Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Inside the Box
H7 Flow RGB : 1
F360 RGB Core (pre-installed, case version) : 1
Installation Accessories : 1
Manual : 1

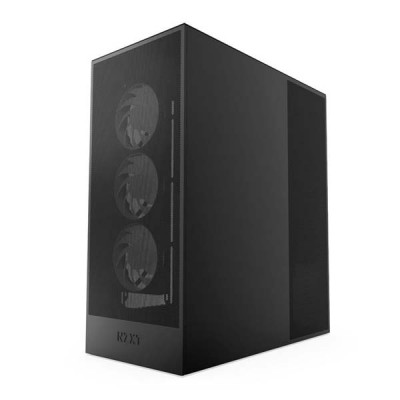

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Out-of-the-Box Performance
Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.Key Specs
Motherboard Support:E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
Enclosure Type:Mid-Tower
Case Material:SGCC Steel, Dark Tinted Tempered Glass (Black)
Dimensions
Height (With Feet):544 mm
Width:244 mm
Depth:468 mm
Weight:11.13 kg
Compatibility & Clearance
CPU Cooler Height:Up to 185mm
GPU Length:Up to 410 mm
PSU Length:Up to 200 mm
Cable Management:Up to 34.5 mm
Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 57 mm
Front I/O Ports
USB 3.2 Gen 1 Type-A:2
USB 3.2 Gen 2 Type-C:1
Headset Audio Jack:1
Expansion Slots
Standard:7
Vertical:0
Drive Bays
2.5":2+2
3.5":2
Fan Support
Front:3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)
Top:3 x 120 mm / 2 x 140 mm
Bottom:3 x 120 mm
Rear:1 x 120 mm / 1 x 140 mm
Filters:High-Performance Mesh
Radiator Support
Front:Up to 420 mm
Top:Up to 360mm
Rear:Up to 140mm
Fan Specs
Model:F360 RGB Core Fan (Case Version)
Speed:1,700 ± 200 RPM
Airflow:50.1 CFM
Static:1.27 mm-H₂O
Noise:23.3 dBA
Fan Connector:3-pin
General
Model Number:CM-H72FB-R1 (Black)
UPC:810074845571 (Black)
EAN:5056547205526 (Black)
