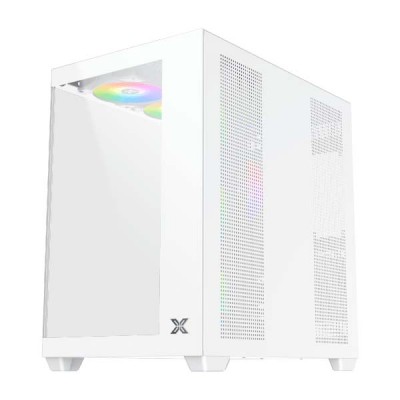

XIGMATEK AQUA V AIR ARCTIC ATX Mid Tower Case - White

Aqua V Air Arctic (White, ATX, U3x2+Type C, 2PCS TG, 6PCS Z22A Arctic Reverse & 1PC Z22A Arctic & ARGB Remote Control Kit)

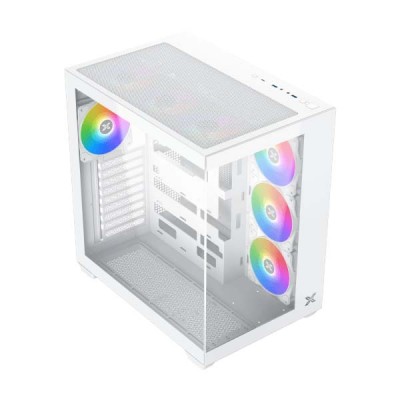

Chassis With 2 Tampered Glass Panel

Easily Mounting Panels

Superior Airflow and Ventilation Design

Traditional Fan Blade

• Pre-installed on Rear Side

Reverse Fan Blade

• Pre-installed on MB Panel Side

CPU Cooler Clearance up to 165mm

GPU Length Limitation 410mm

PSU Length Limitation up to 220mm

Motherboard Support up to ATX

Support ATX Back Plug Motherboard

Fan Support

• Top: 120mm x3 or 140mm x2

• MB: 120mm x3 or 140mm x2

• Bottom: 120mm x3

• (Whithout 3.5” HDD)

• Rear: 120mm x1

Radiator Support

• Top: 240/280/360

• MB: 240/280/360

• Bottom: 240/360

• Rear: 120

HDD Cage : 2.5” x2 & 3.5” x1

Bottom Panel : 2.5” x2 & 3.5” x1

Top Mount I/O Ports

• Power Button
• Reset Button
• USB 3.0 x2
• USB-C x1
• HD Audio Jack
• Light Switch Button

Specifications

Product Name

• AQUA V Air Arctic

Dimensions

• 427x285x455mm (LxWxH)

Fan Support

• Top: 120mm x3 or 140mm x2

• MB: 120mm x3 or 140mm x2

• Bottom: 120mm x3 (Whithout 3.5” HDD)

• Rear: 120mm x1

Drive Bays

• Bottom Panel: 3.5” x1 or 2.5”x2

• HDD Cage: 3.5” x1 & 2.5” x2

CPU Cooler Clearance

• 165mm

GPU Length Limitation

• 410mm

PSU Length Limitation

• 220mm

Material

• Steel

Expansion Slots

• 9 Standard Slots

Motherboard Support

• ATX (Support Back Plug)

• Micro ATX (Support Back Plug)

• Mini ITX (Support Back Plug)

Power Supply

• Standard PS2

• ATX PSU

Radiator Support

• Top: 240/280/360

• MB: 240/280/360

• Bottom: 240/360

• Rear: 120

I/O Panel

• USB 3.0 x 2

• USB-C x 1

• HD Audio
