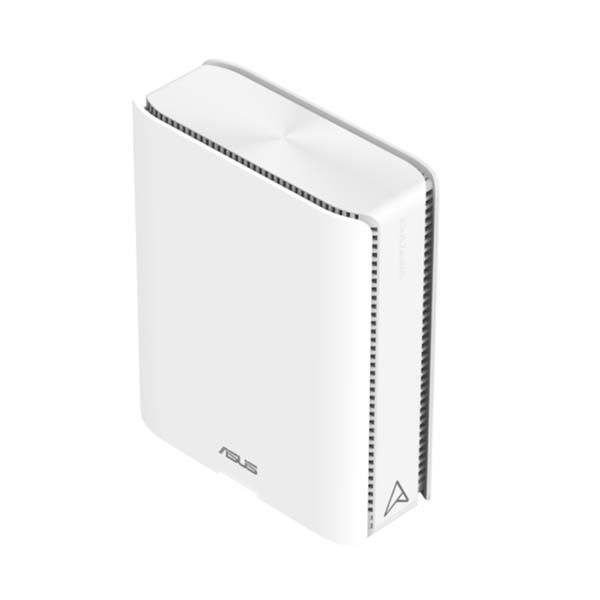

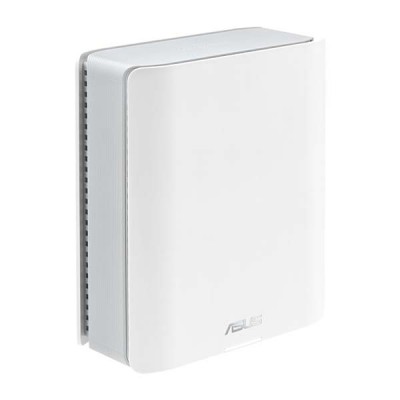

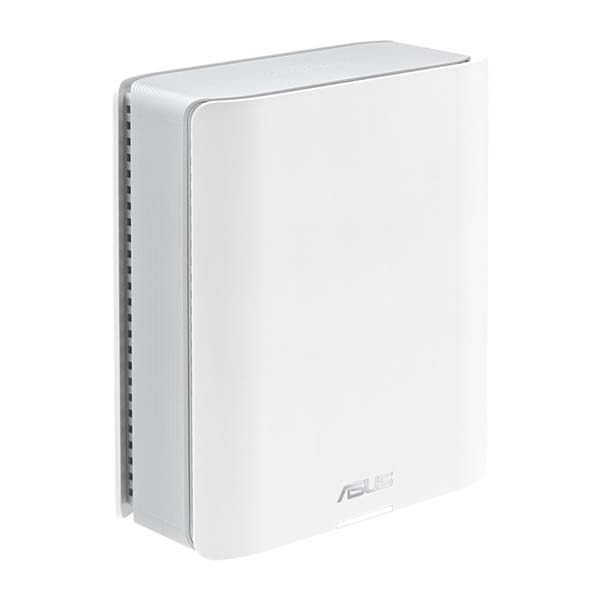

ASUS ZenWiFi BT10 Tri-band WiFi 7 Mesh Router - White - (1pk)

Tri-band WiFi 7 (802.11be) Mesh Router, 18 Gbps, Coverage Up to 6000 sq. ft. Dual 10G ports, Smart Home Master SSIDs for IoT, VPN and parental controls, Commercial-grade security, Smart AiMesh.

ASUS ZenWiFi BT10

Worry-Free Smart Home Mesh

The ASUS ZenWiFi series advances your ever-evolving smart home with worry-free WiFi. The ASUS ZenWiFi BT10 raises the bar for whole-home mesh with WiFi 7 and next-gen Smart AiMesh technology. It delivers blazing-fast tri-band speeds up to 18 Gbps and unleashes superior 6 GHz WiFi. Along with ultra-high-speed dual 10 Gigabit Ethernet and a suite of advanced network and security technologies, this mesh WiFi system is ready to future-proof your smart home network today.

DESIGN

The Pinnacle of WiFi

ASUS ZenWiFi BT10 embodies our unwavering commitment to developing incredible in-house WiFi and network technologies. Seamlessly connect to your family and friends within a worry-free connected experience.

IEEE 802.11be

WiFi 7 Powering Premium Mesh

The ZenWiFi BT10 boasts cutting-edge WiFi 7 technology. This superior tri-band mesh system unleashes the full potential of WiFi 7 with wired backhaul options. Enjoy a next-generation connected experience for home entertainment and cloud computing, including 8K streaming, HDR gaming, content creation and AI.

Superior 6 GHz WiFi

Boasting a superior 6 GHz band, ZenWiFi BT10 unleashes blazing-fast tri-band WiFi 7 speeds up to 18 Gbps. It ensures comprehensive WiFi compatibility for a wide range of devices, from cutting-edge WiFi 6E mobile devices to legacy IoT devices.

Comprehensive MLO Support

Multi-Link Operation (MLO) enables buffering-free connection by intelligently combining and switching between the 2.4 GHz, 5 GHz, and 6 GHz bands. ZenWiFi BT10 is built to be future-proof with all WiFi 7 devices, regardless of the MLO mode they use.

All-new 320 MHz Bandwidth

WiFi 7 introduces ultrawide 320 MHz channel bandwidth in the 6 GHz band, doubling data transmission capacity. This allows for significantly more simultaneous transmissions at the fastest possible speeds.

20% More Efficient with 4K-QAM

Compared to 1024-QAM with WiFi 6/6E, 4096-QAM (Quadrature Amplitude Modulation) allows each signal to more densely incorporate larger amounts of data, delivering up to 20% more efficient data transmission.

Comparison graphic showing bandwidth difference: 320 MHz band has higher capacity than 160 MHz band.

20% More Efficient with 4K-QAM

Compared to 1024-QAM with WiFi 6/6E, 4096-QAM (Quadrature Amplitude Modulation) allows each signal to more densely incorporate larger amounts of data, delivering up to 20% more efficient data transmission.

MESH TECHNOLOGY

AiMesh Made Smarter with AI

ZenWiFi BT10 harnesses the power of WiFi 7 and next-gen Smart AiMesh technology to deliver wider coverage, a more stable and secure network and a feature-rich network experience – all under one network name for your entire smart home.

AI-Powered Mesh Backhaul

Smart AiMesh backhaul intelligently leverages WiFi 7 Multi-Link Operation, automatically aggregating or switching across multiple bands for optimized performance and low latency.

Extendable 10G Connectivity

Experience lightning-fast speeds and robust reliability with our 10 Gbps wired mesh backhaul. With dual 10 Gbps ports, you can extend the 10 Gbps wired backhaul between mesh nodes for strong, seamless connectivity, ensuring your entire home network stays connected and ready for the future.

Efficient Data Prioritization

Unlock optimal data transmission efficiency with ASUS Smart AiMesh. Low-priority packets are directed to the less congested band, while high-priority packets enjoy lightning-fast MLO transmission with optimal resource allocation.

Values Beyond Extension

AiMesh goes beyond just extending coverage or seamless roaming. It works with all compatible ASUS routers, offering easy management, advanced security and smart home features across your entire network.

Performance

Engineered for Always-Connected Home

ASUS engineering shines in ZenWiFi BT10's robust design, delivering superior coverage and unrivaled reliability.

Unrivaled Coverage and Reliability

With eight internal antennas and ten high-power front-end modules, the ZenWiFi BT10 eliminates WiFi dead zones, delivering consistent coverage in all directions. Efficient heat dissipation also maintains cool and quiet operation for enhanced performance and long-lasting reliability.

Next-Gen Connectivity

Embrace the future of 10 Gigabit home networking with the ZenWiFi BT10.

Network Security

Always Secure Smart Home Protection

ZenWiFi BT10 safeguards your smart home and connected life end-to-end with a powerful combination of cybersecurity solutions and real-time cloud AI/ML data centers powered by Trend Micro™.

Connected with Peace of Mind

Stay protected with top-tier security and privacy offered by a VPN's encrypted connections. No worries about your location and browsing habits, passwords or sensitive data, even when you're using public WiFi.

Safeguard Every Device and Everyone

Effortlessly customize WiFi networks tailored to modern smart home needs, ensuring all your devices and your loved ones are protected.

User Friendly

24/7 Network Security Made Easy

AiProtection Pro includes a toolbox for diagnosing network health, fine-tuning settings and receiving on-the-go notifications. Stay vigilant and secure, even when you are away.

Network Segmentation

Feature-Packed Smart Home Master SSIDs

ASUS Smart Home Master subnetwork management streamlines the process of creating or connecting to dedicated SSIDs with advanced features like parental controls and VPNs.

Parental Controls

Safeguard the Internet for Your Loved Ones

Advanced family protection and parental controls empower you to nurture a balanced digital life for you and your kids, all without subscriptions.

VPN

Stay Protected Anywhere, Anytime

Secure browsing, data privacy, remote access – ASUS extensive VPN capabilities handle it all.

ASUS Router App

3-Step Easy Setup and Powerful Management

The ASUS Router mobile app with its intuitive interface makes managing your mesh WiFi system simple right from your smartphone. Simply follow the on-screen directions, and you will be up and running in no time!

Specifications

• Model : ASUS ZenWiFi BT10

• Model Name

1. BT10(W-2-PK)
2. BT10(W-1-PK)
3. BT10(W-3-PK)

• Network Standard

1. IEEE 802.11a

1. IEEE 802.11b

1. IEEE 802.11g

1. WiFi 4 (802.11n)

1. WiFi 5 (802.11ac)

1. WiFi 6 (802.11ax)

1. WiFi 6E (802.11ax)

1. WiFi 7 (802.11be)

1. IPv4

1. IPv6

• Product Segment : BE18000 ultimate BE performance : 688+5764+11529 Mbps

• WiFi Data Rate

1. WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

1. WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

1. WiFi 7 (802.11be) (6GHz): up to 11529 Mbps

• Antenna : Internal antennas x 8

• Transmit / Receive

1. 2.4GHz 2x2

1. 5GHz 4x4

1. 6GHz 4x4

• Processor : 2.0GHz quad-core processor
• Memory : RAM 2GB , Flash 256MB
• Boosts Speed

1. OFDMA (Orthogonal Frequency Division Multiple Access)
2. Beamforming: standard-based and universal
3. 4096-QAM high data rate
4. 20/40/80/160/320 MHz bandwidth

• Operating Frequency

1. 2.4 GHz
2. 5 GHz
3. 6 GHz

• Operating Mode

1. Wireless Router Mode
2. AiMesh Node Mode
3. Access Point Mode

• I/O Ports

1. 10G WAN/LAN x 1
2. 10G LAN x 1
3. 1G WAN/LAN x 1
4. USB 3.0 x1

• Buttons : WPS button, Reset button, Power switch

• LED Indicator : Power x 1
• Power Supply

1. AC Input : 110V~240V(50~60Hz)
2. DC Output : 12V with max. 3A current

• Package Content

1. ZenWiFi BT10
2. RJ45 cable
3. Power adapter
4. Warranty card
5. Quick start guide

• Product Dimensions : 159 x 72 x 186 mm
• AiMesh

1. AiMesh
2. • Primary AiMesh Router
3. • AiMesh Node

• Parental Control

1. "Allow you to block access to unwanted websites and apps."

1. Web & Apps Filters

1. Time Scheduling

1. Reward

1. Parental Control - Safe Browsing

1. Customized Internet Schedule

Router APP

• APP: ASUS Router APP

Guest Network

1. "The Guest Network provides Internet connection for guests but restricts access to your local network."

Support Guest Network

• Security :  AiProtection

VPN

1. WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

WPS

1. Let's Encrypt
2. DNS-over-TLS
3. Security Scan
4. Firewall

AiProtection

1. AiProtection Pro

1. • Router Security Assessment

1. • Malicious Site Blocking

1. • Two-Way IPS

1. • Infected Device Prevention and Blocking

VPN

1. Instant Guard

1. VPN Client L2TP

1. VPN Client Open VPN

1. VPN Client PPTP

1. VPN Client WireGuard

1. VPN Server IPSec

1. VPN Server Open VPN

1. VPN Server PPTP

1. VPN Server WireGuard

1. VPN Fusion

• Traffic Control

1. Adaptive QoS

1. • Bandwidth Monitor

1. • Bandwidth Limiter

1. Traditional QoS

1. Traffic Monitor

1. Traffic Analyzer

• Website History

• WAN

1. Dual WAN

1. 3G / 4G LTE Dongle

1. 4G / 5G Auto Mobile Tethering

1. Port Forwarding

1. Port Triggering

1. DMZ

1. DDNS

• LAN

1. DHCP Server

1. IGMP Snooping

1. IPTV

1. LAN Link Aggregation

1. Manually Assign IP Address

1. Wake on LAN (WOL)

Wireless

1. MU-MIMO

1. UTF-8 SSID

1. WiFi MAC Address Filter

1. Wireless Scheduler

1. Airtime Fairness

1. RADIUS Client

1. Universal Beamforming

1. Explicit Beamforming

• USB application

1. 4G / 5G Auto Mobile Tethering

1. HDD Hibernation

1. Safely Remove Disk

1. Download Master

1. AiDisk

1. Media Server

1. Time Machine

1. Samba Server

1. FTP Server

1. Shared Folder Privileges

1. AiCloud

• Administration

1. Diagnosis Tools

1. Feedback System

1. System Log

1. New Device Connect Notification

1. Login Captcha

1. Connection Diagnosis

1. Auto Firmware Update

• Smart Home : Support Google Assistant
