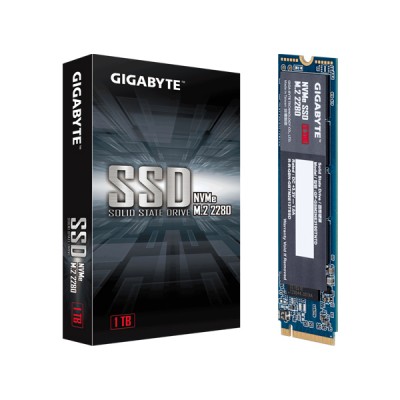

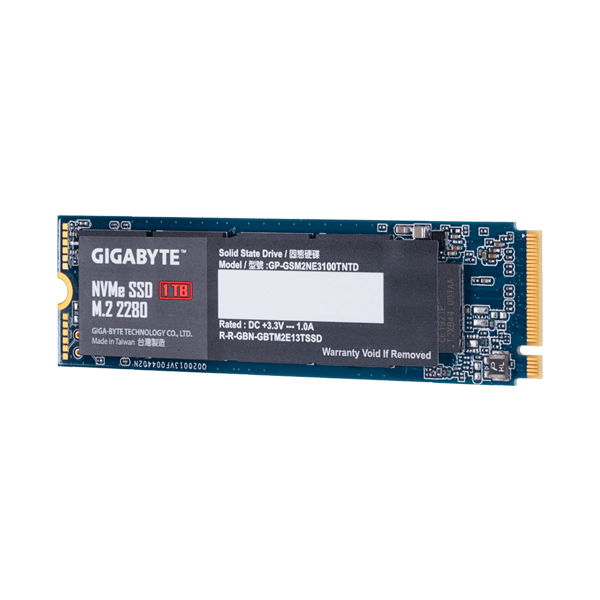

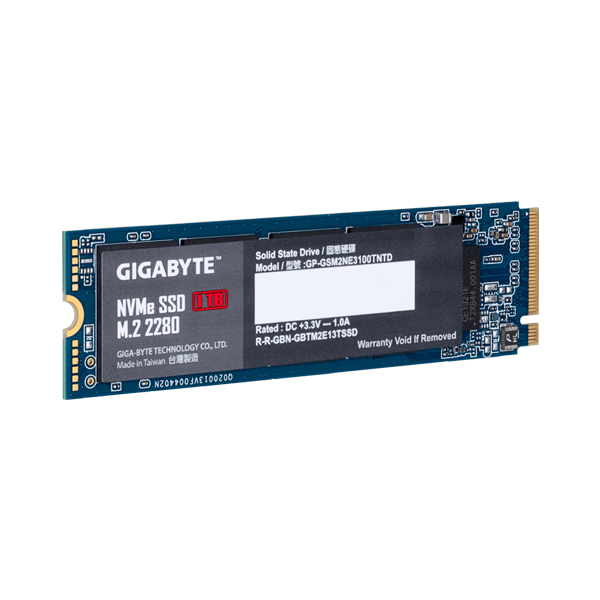

GIGABYTE NVMe SSD 1TB

Host Memory Buffer (HMB)

The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

Outstanding performance
GIGABYTE NVMe SSD provides performance for your daily computing tasks, boast of best controller & NAND flash that provide.

• Sequential read speeds up to 2500 MB/s.
• Sequential write speeds up to 2100 MB/s.
• GIGABYTE M.2 PCIe SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.

SSD Tool Box

The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.

Reliability You Can Trust

GIGABYTE NVMe SSDs possess both high data transferring speed and enhanced endurance, providing durable MTBF* of 1.5 million hours and 5 years or 1600TBW**

Specifications

• Interface

PCI-Express 3.0 x4, NVMe 1.3

• Form Factor

M.2 2280

• Total Capacity

1TB

• NAND

NAND Flash

• External DDR Cache

N/A

• Sequential Read speed

Up to 2500 MB/s

• Sequential Write speed

Up to 2100 MB/s

• Random Read IOPS

Up to 295k

• Random Write IOPS

Up to 430k

• Dimension

80 x 22 x 2.3 mm

• Mean time between failure (MTBF)

1.5M hours

• Power Consumption (Active)

Avg. read : 3.5W ; Write : 3.3W

• Power Consumption (Idle)

2.1mw

• Temperature (Operating)

0°C to 70°C

• Temperature (Storage)

-40°C to 85°C
