Perforated top panel

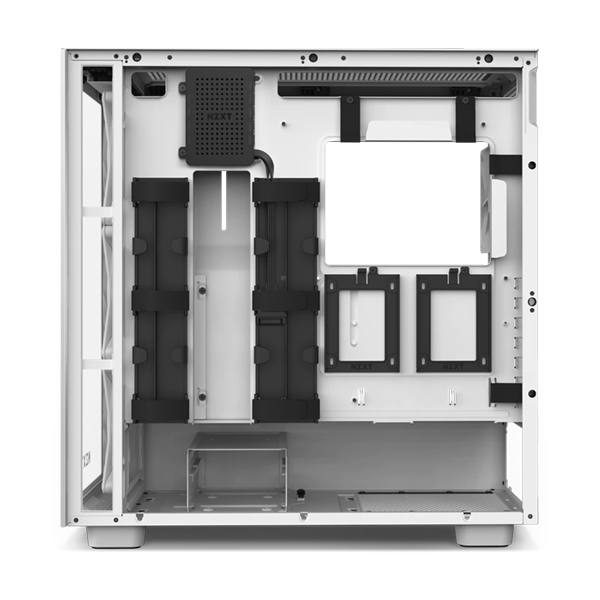

Intuitive cable management system with wide channels, hooks, & straps
Tool-less access to front & side panels
Front & top support radiators up to 360mm
Three pre-installed F Series RGB 140mm Fans
One pre-installed 140mm F Series Quiet Airflow Fan
Supports vertical GPU mounting (Sold Separately)
Built-in RGB & Fan Controller V2 w/ NZXT CAM
Tempered glass front panel
Two top-mounted USB 3.2 Type-A ports
One top-mounted USB 3.2 Type-C port
Two color options (Matte Black, Matte White)

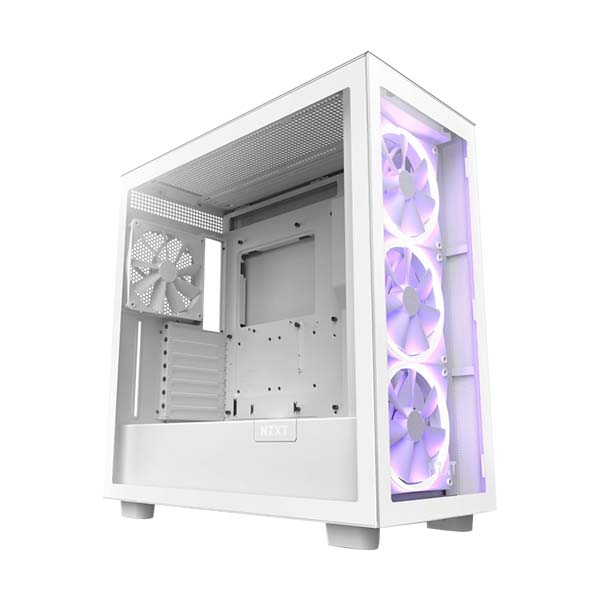

The H7 Elite combines luminous style with a large form factor, making it a elegant way to accommodate premium components. With improved airflow and a streamlined build experience, the H7 Elite is perfect for an RGB build.

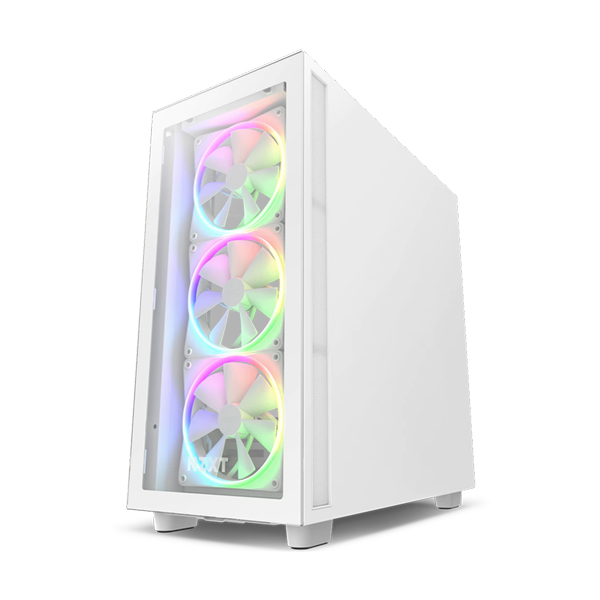

This mid-tower case is the premier choice for enthusiasts, featuring a tempered glass front panel to show off three pre-installed 140mm F Series RGB Fans, a built-in RGB & Fan Controller, widened channels, hooks, straps, and toolless entry.
Key Specs
Motherboard Support : Mini-ITX, Micro-ATX, ATX, and EATX (Up to 272mm)
Enclosure Type : Mid-Tower
Case Material : SGCC Steel, Tempered Glass
Dimensions
Height : 505mm (With Feet)
Width : 230mm
Depth : 480mm
Weight : 11.36 kg
Compatibility & Clearance
Max CPU Cooler Clearance : Up to 185mm
Max GPU Clearance : Up to 400mm
Front Radiator Clearance : 60mm
Top Radiator Clearance : 30mm
Cable Management : 18-22mm
Front I/O Ports
USB 3.2 Gen 1 Type-A : 2
USB 3.2 Gen 2 Type-C : 1
Headset Audio Jack : 1
RGB and Fan Controller
Expansion Slots
Standard : 7
Vertical : 0
Drive Bays
2.5":4+2
3.5":2
Fan Support
Front : 3 x 120mm / 3 x 140mm
Top : 3 x 120mm / 2 x 140mm
Rear : 1 x 120mm / 1 x 140mm
Filters : All Air Intakes
Radiator Support
Front : Up to 360mm with Push/Pull
Top : Up to 360mm
Rear : Up to 140mm
Fan Specs
Model : F140Q (Case Version)
Speed : 1200 ± 240RPM
Airflow : 99.56 CFM
Static Pressure : 1.14 mm-H2O
Noise : 24.18 dBA
Fan Connector : 3-pin
Fan Specs
Model : F140 RGB
Speed : 500 - 1800 RPM
Airflow : 24.85 - 89.48 CFM
Static Pressure : 0.94 - 3.39 mm-H2O
Noise : 20 - 32.5 dBA
Fan Connector : 4-pin
