Powered by NVIDIA DLSS 3 , ultra-efficient Ada Lovelace arch and full ray tracing.
Boost Clock / Memory Speed
2745 MHz (GAMING & SILENT Mode) / 21 Gbps
DisplayPort x 3 (v1.4a)HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
TRI FROZR 3 Thermal Design
TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
Copper Baseplate: The CNC machined nickel-plated copper base captures heat from the GPU and the memory then rapidly transfers it to Core Pipes.
Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
Get equipped for stellar gaming and creating with the NVIDIA® GeForce RTX™ 4070 Ti. It’s built with the ultra-efficient NVIDIA Ada Lovelace architecture. Experience fast ray tracing, AI-accelerated performance with DLSS 3, new ways to create, and much more.
GAMING IN STYLE
Play with style! GAMING is upgraded with TRI FROZR 3 to sustain intense performance during gaming and content creation. A
Powered by GeForce RTX 40 Series and DLSS 3The Ultimate Platform for Gamers and Creators
high-speed style matches high-performance capabilities for gamers who want to go all out.
GAMING reflects both the spirit of gamers and the intense performance within the cards with a styled exterior that erupts with colorful lights between bold lines and edges.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.
HARDENING EVERY DETAIL
*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

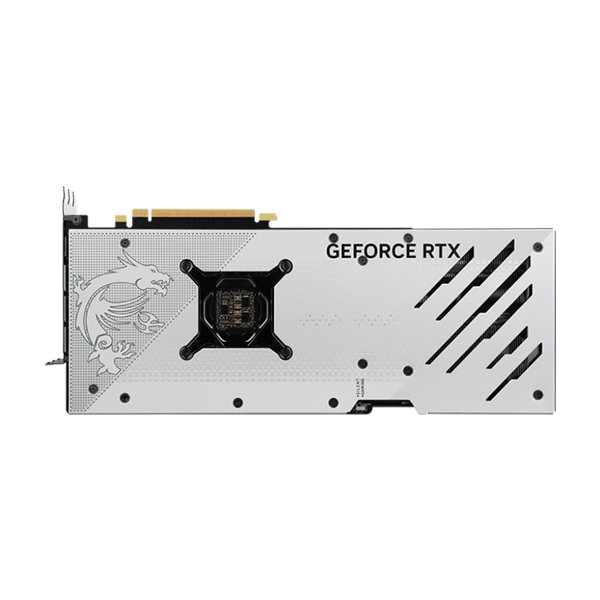

A die-cast anti-bending plate reinforces the whole card while thermal pads allow cooling to reach critical component underneath.
YOUR SUPPORT CHARACTER
A bundled support bracket can be attached to your PC case for additional graphics card reinforcement.

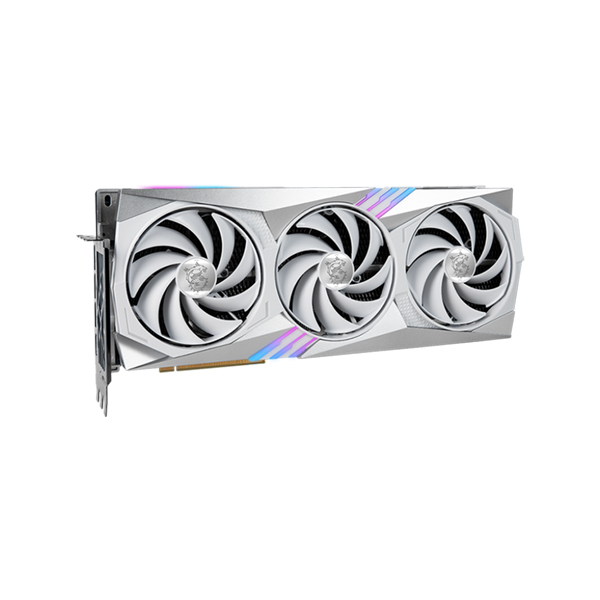

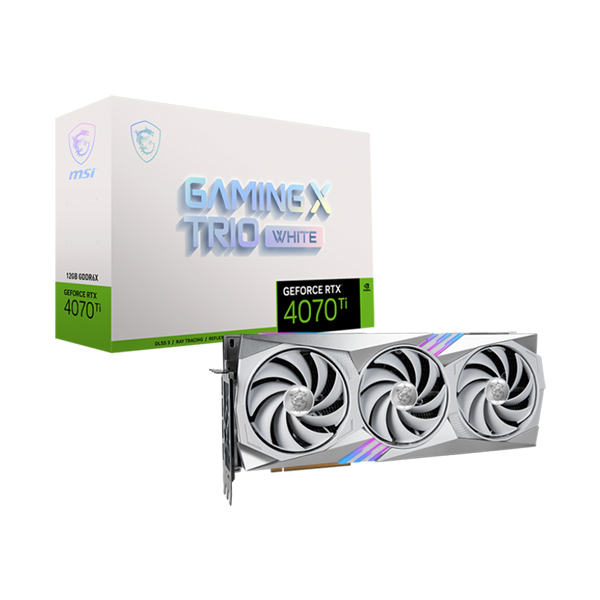

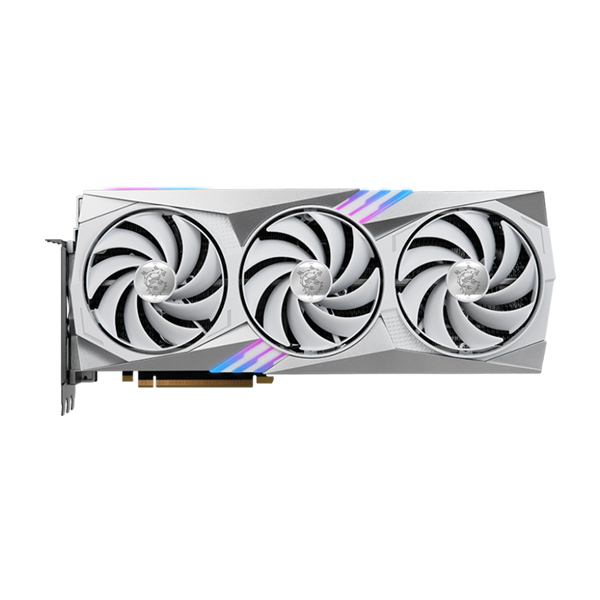

Model Name : GeForce RTX™ 4070 Ti GAMING X TRIO WHITE 12G
Graphics Processing Unit : NVIDIA® GeForce RTX™ 4070 Ti
Interface : PCI Express® Gen 4
Core Clocks : Extreme Performance: 2760 MHz (MSI Center)
Boost: 2745 MHz (GAMING & SILENT Mode)
CUDA® CORES :7680 Units
Memory Speed : 21 Gbps
Memory : 12GB GDDR6X
Memory Bus : 192-bit
Output : DisplayPort x 3 (up to v2.1) HDMI™ x 1 (Supports 4K@120Hz/8K@60Hz and VRR as specified in HDMI™ 2.1)
HDCP Support : Y
Power consumption : 285W
Power connectors : 16pin x 1
Recommended PSU : 700W
Card Dimension (mm) : 337 x 140 x 62 mm
Weight (Card / Package) : 1599g/2580g
DirectX Version Support : 12 Ultimate
OpenGL Version Support : 4.6
Maximum Displays : 4
G-SYNC® technology : Y
Digital Maximum Resolution : 7680 x 4320
