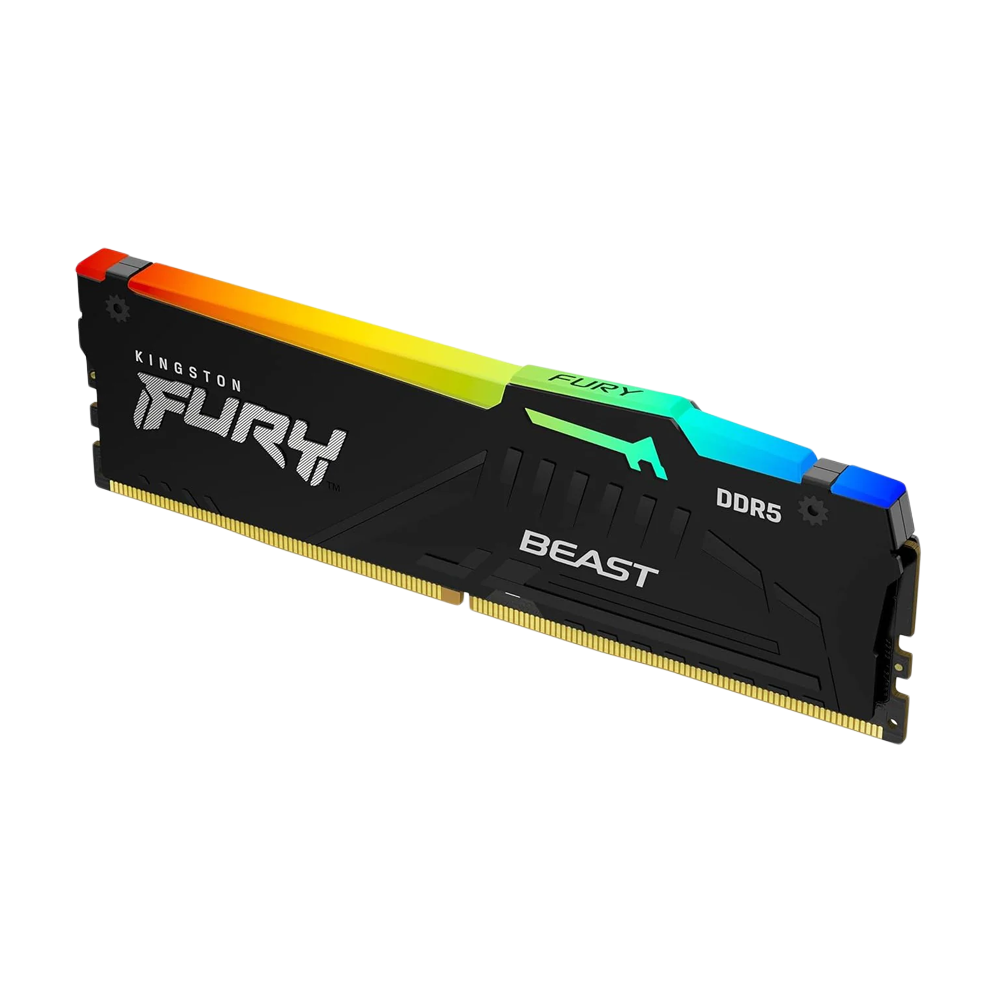

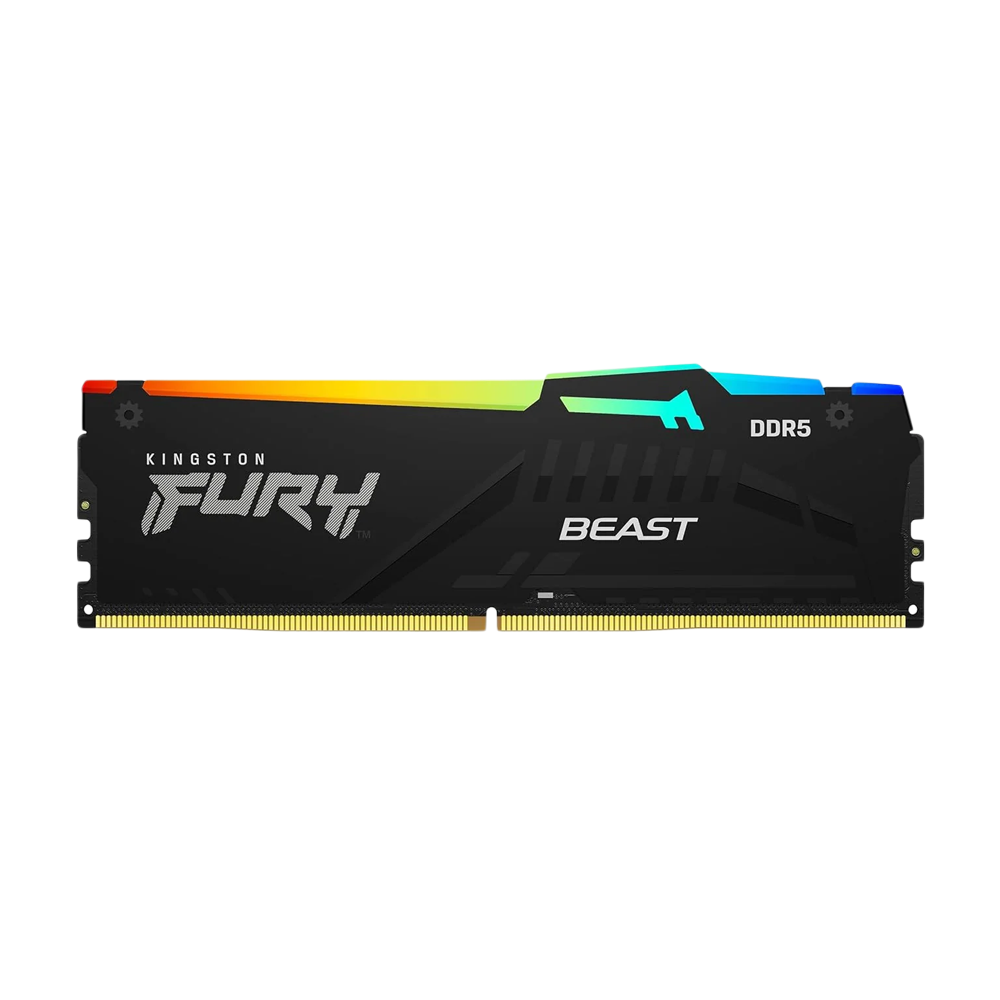

Kingston Technology Fury Beast RGB 16GB 5600MT/s DDR5 CL40 DIMM Desktop Memory Single Module

Kingston FURY KF556C40BBA-16 is a 2G x 64-bit (16GB) DDR5-5600 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module.  The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0.  Each module has been tested to run at DDR5-5600 at a low latency timing of 40-40-40 at 1.25V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.  The JEDEC standard electrical and mechanical specifications.

Specifications

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.66” (42.23mm), w/heatsink
