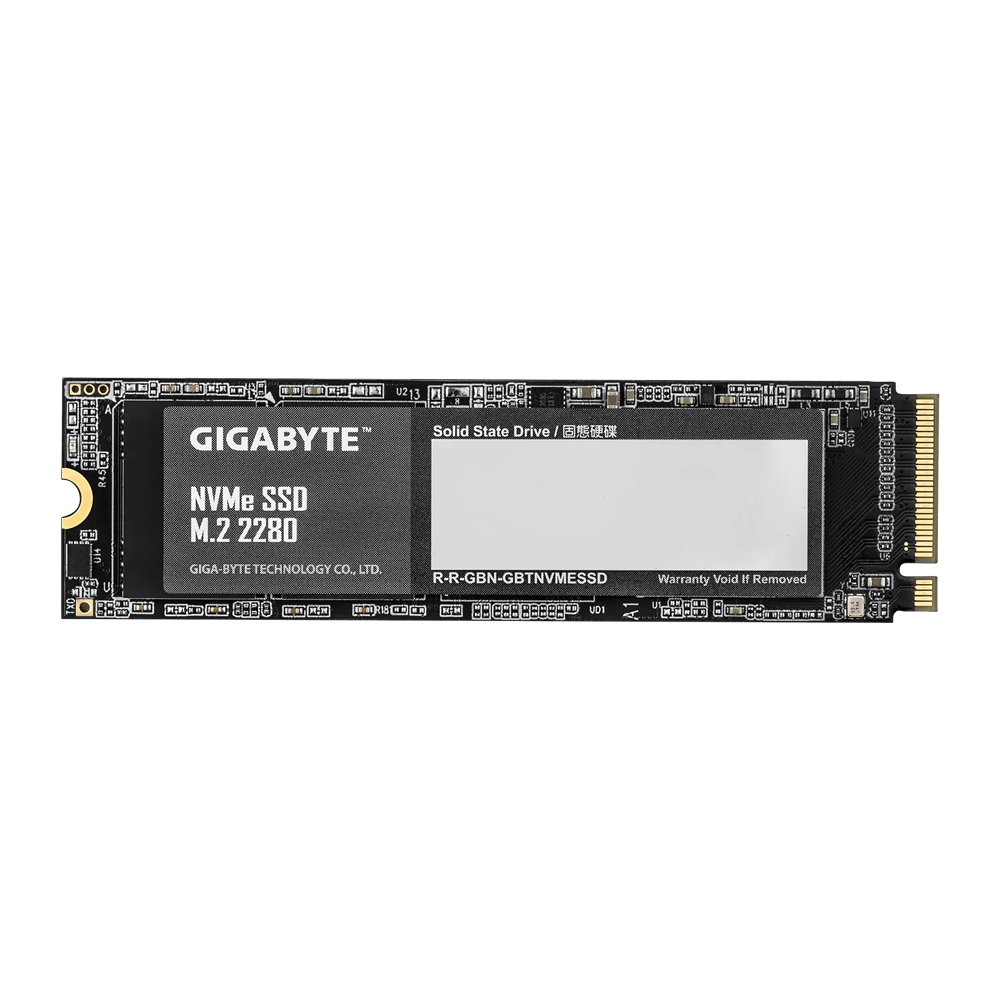

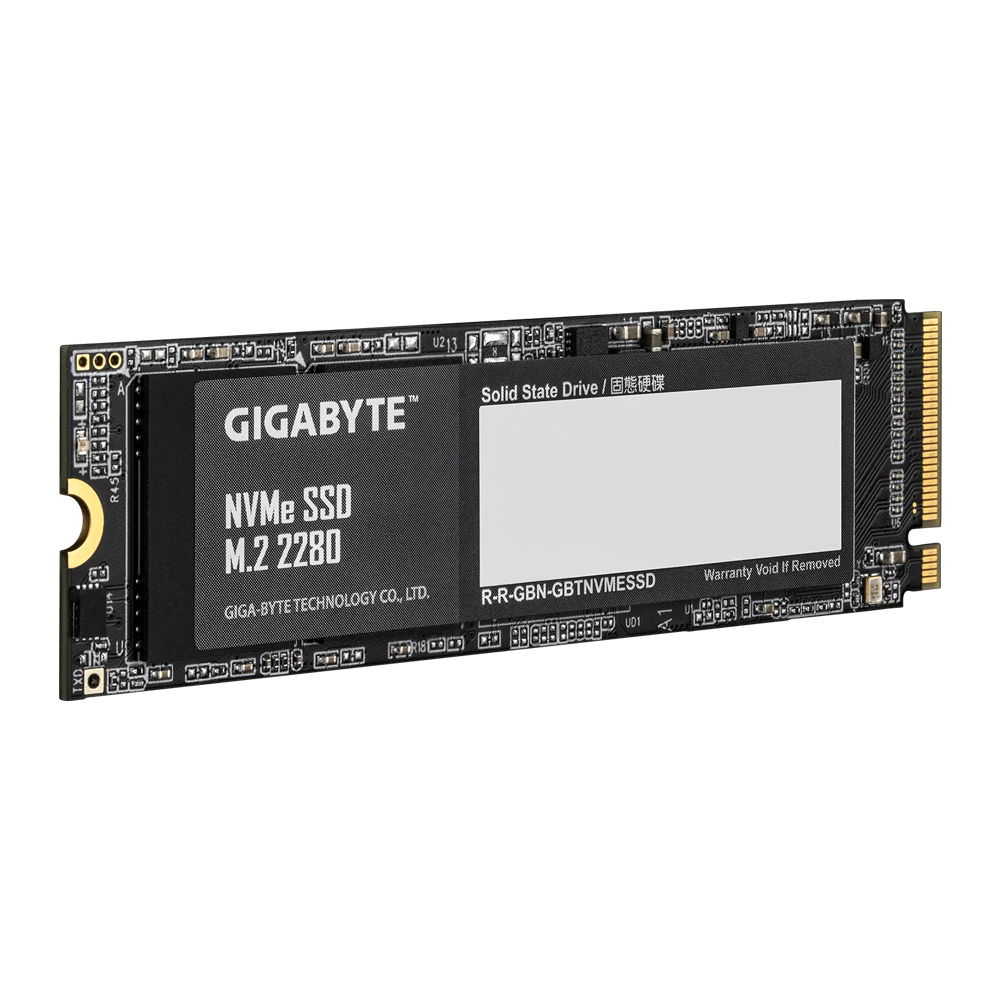

GIGABYTE M.2 2280 PCIe GEN3X4 NVMe SSD (R:1,900 MB/s W:1,200 MB/s) - 512GB

Key Features

• Form Factor: M.2 2280
• Interface: PCI-Express 3.0 x4, NVMe 1.3
• Total Capacity: 512GB*
• GP-GSM2NE3512GNTD
• Sequential Read Speed : up to 1700 MB/s**
• Sequential Write speed : up to 1550 MB/s**
• G3NVME512G
• Sequential Read Speed : up to 1900 MB/s**
• Sequential Write speed : up to 1200 MB/s**
• HMB (Host Memory Buffer) supported
• TRIM & S.M.A.R.T supported

Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

Breaking the barriers of SATA limitations (512GB)
Outstanding performance

• GIGABYTE NVMe SSD provides performance for your daily computing tasks, boast of best controller & NAND flash that provide.

• GIGABYTE NVMe SSD gives you faster data transferring experience compared to 2.5" SATA solid state drive.

SSD Tool Box
The newly updated SSD Tool Box is an application that helps users monitor SSD Status, provides general information such as model name, FW version, health condition, drive optimization and also detects sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the Support.

GIGABYTE CONTROL CENTER (GCC)
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.

• Unified software platform for all Gigabyte supported products

• Intuitive user interface for an eased experience

• Modularized control components only for installed hardware

• Auto update function to keep system up to date and support future products

Specifications

• Interface : PCI-Express 3.0 x4, NVMe 1.4

• Form Factor : M.2 2280

• Total Capacity : 512GB

• NAND : 3D TLC NAND Flash

• External DDR Cache : N/A

• Sequential Read speed : Up to 1,900 MB/s

• Sequential Write speed : Up to 1,200MB/s

• Dimension : 80 x 22 x 2.3 mm

• Mean time between failure (MTBF) : 1.5 million hours

• Max. Operating Power : Read : 3.2W; Write : 3.2W

• Power Consumption (Idle, PS3) : 35mW

• Power Consumption(PS4, L1.2) : 5mW

• Temperature (Operating) : 0°C to 70°C

• Temperature (Storage) : -40°C to 85°C
