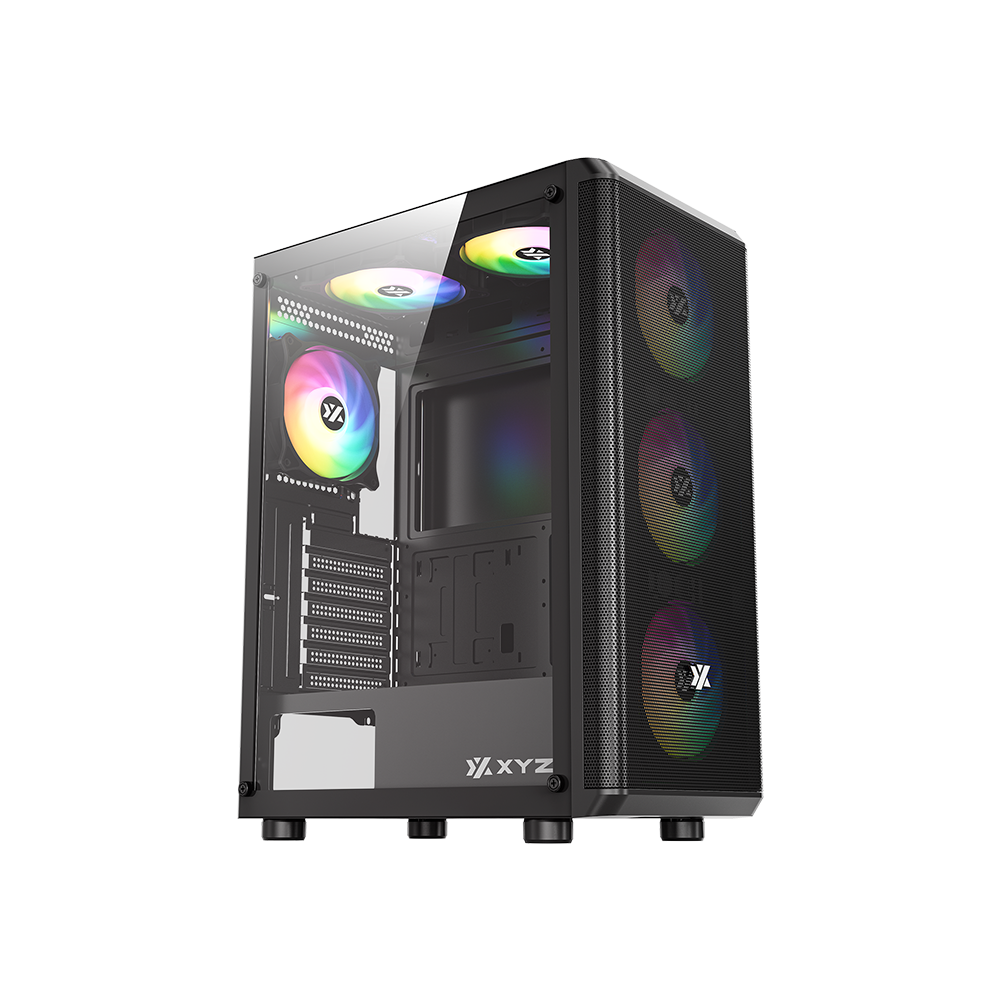

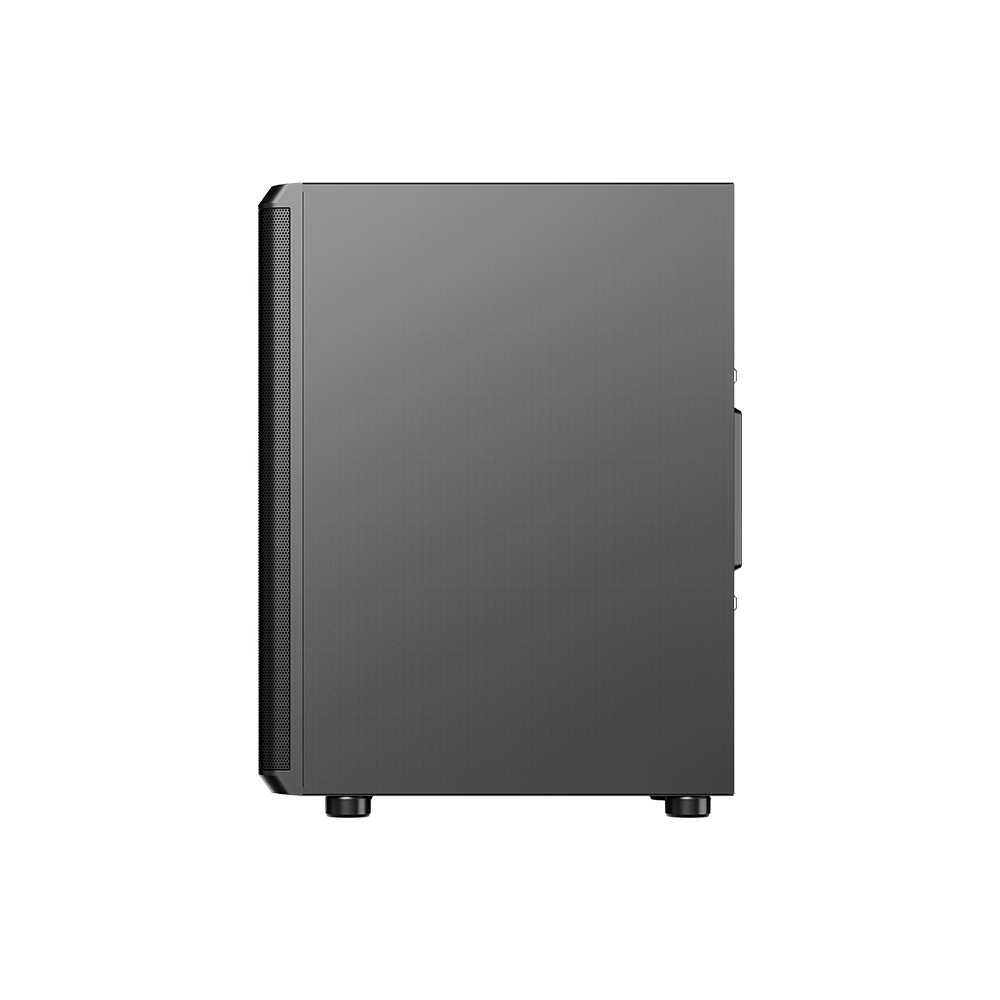

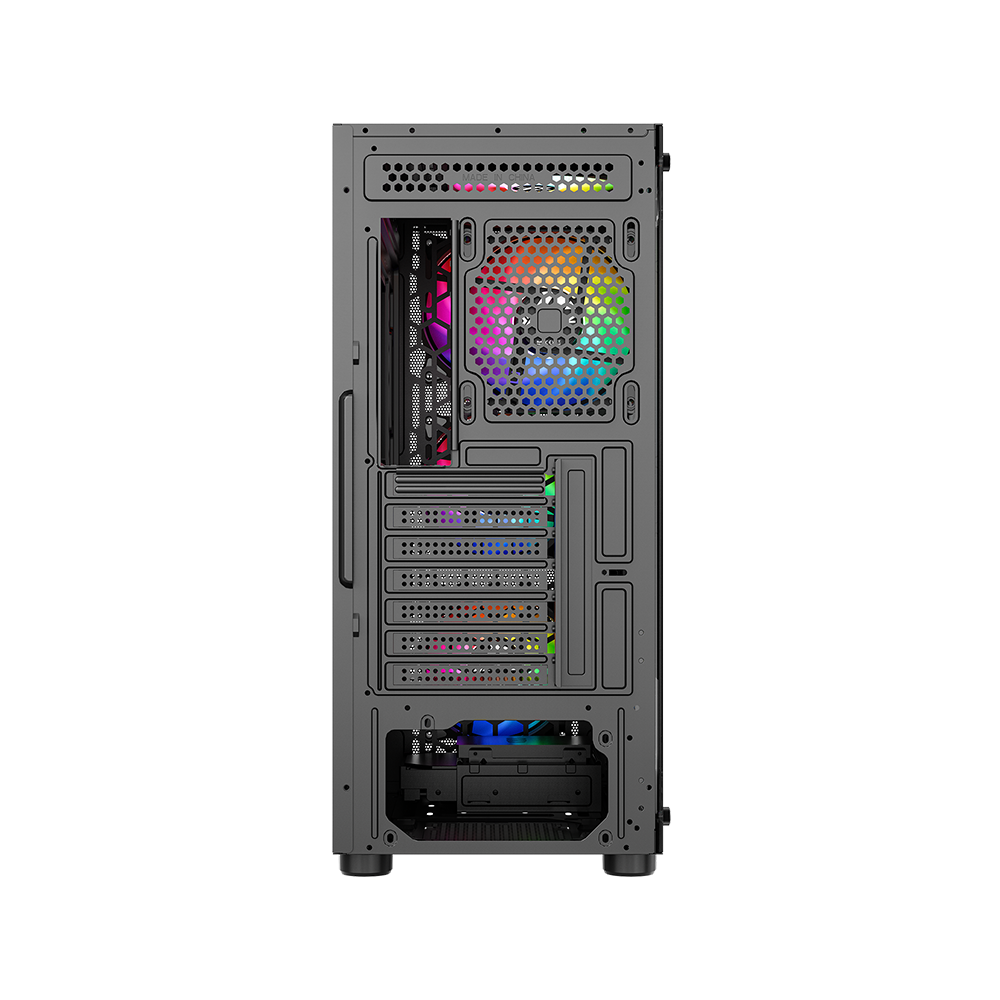

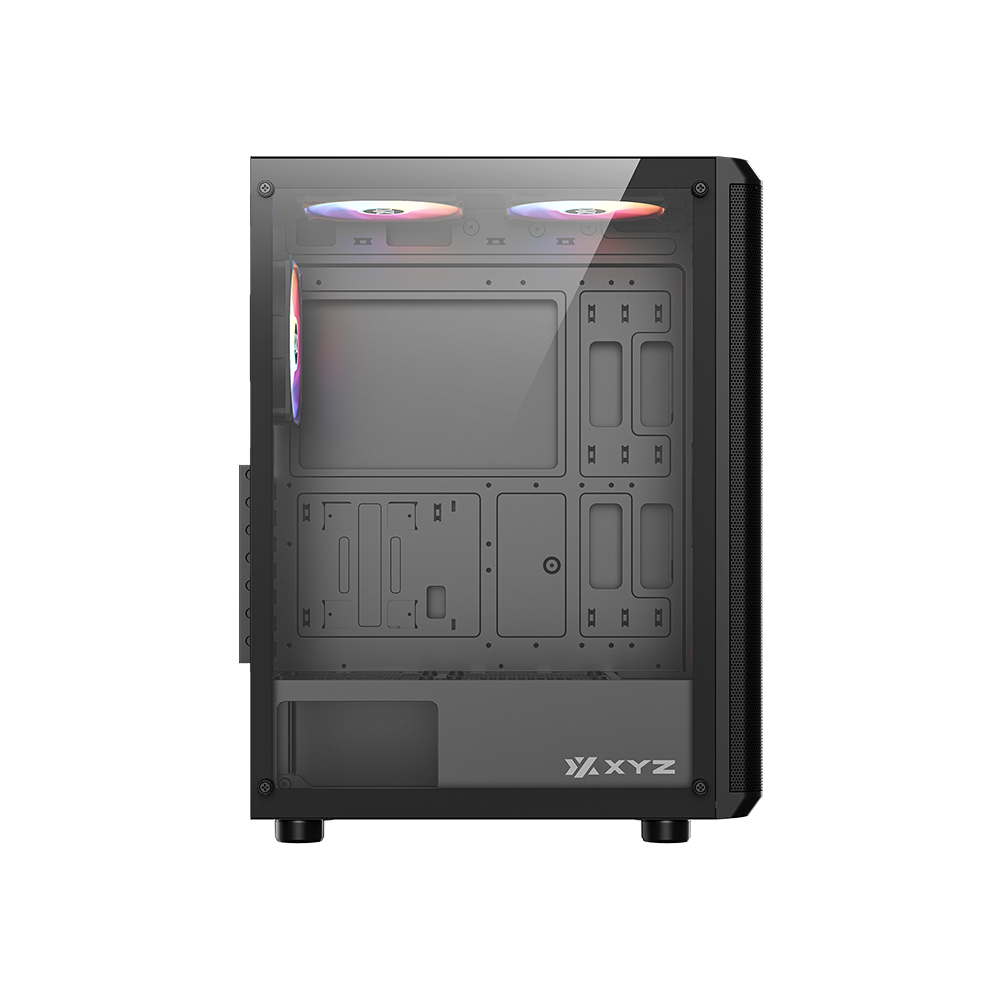

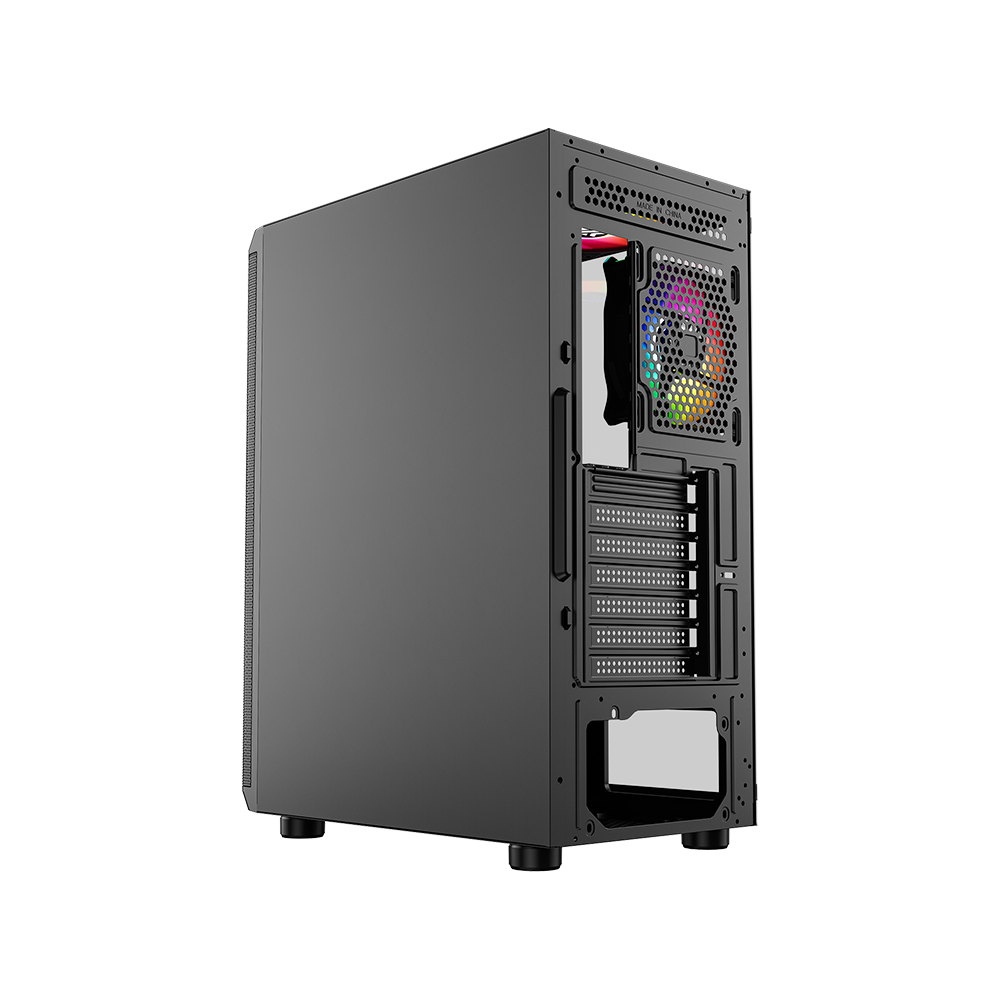

XYZ AIRONE 60 MESH ATX Case - Black

Key Features:

• High-Airflow Front Mesh Design: The full mesh front panel allows for direct and efficient air intake, keeping your system cool under load.

• 6 x AIRPULSE 100 A-RGB Fans Included: Three front 140 mm fans, two top fans and one rear fan deliver vibrant lighting and quiet cooling, with hydraulic bearing technology and optimized air pressure design.

• Compact Format with ATX Support: Despite its reduced footprint, it supports ATX, Micro-ATX, and ITX motherboards, as well as GPUs up to 300 mm in length and CPU coolers up to 165 mm in height.

• Modern Connectivity: Includes USB 3.0 port, two USB 2.0 ports, HD Audio, and an RGB switch/reset button on the front panel for quick and functional access.

• Liquid Cooling Ready: Space for 360 mm radiators on the front, 280/240 mm on the top, and 120 mm at the rear allows full cooling flexibility.

XYZ AIRONE 60 Mesh 6 FANS is the ideal choice for those seeking a compact and elegant case with outstanding airflow. Its front mesh design, combined with four pre-installed AIRPULSE 100 A-RGB fans, ensures efficient cooling and a modern aesthetic. Compatible with ATX motherboards and equipped with USB 3.0, it’s ready for both gaming and professional builds with stable and quiet performance.

XYZ AIRONE 60 MESH 6FANS
Exceptional value and efficiency at the most cost-effective ratio

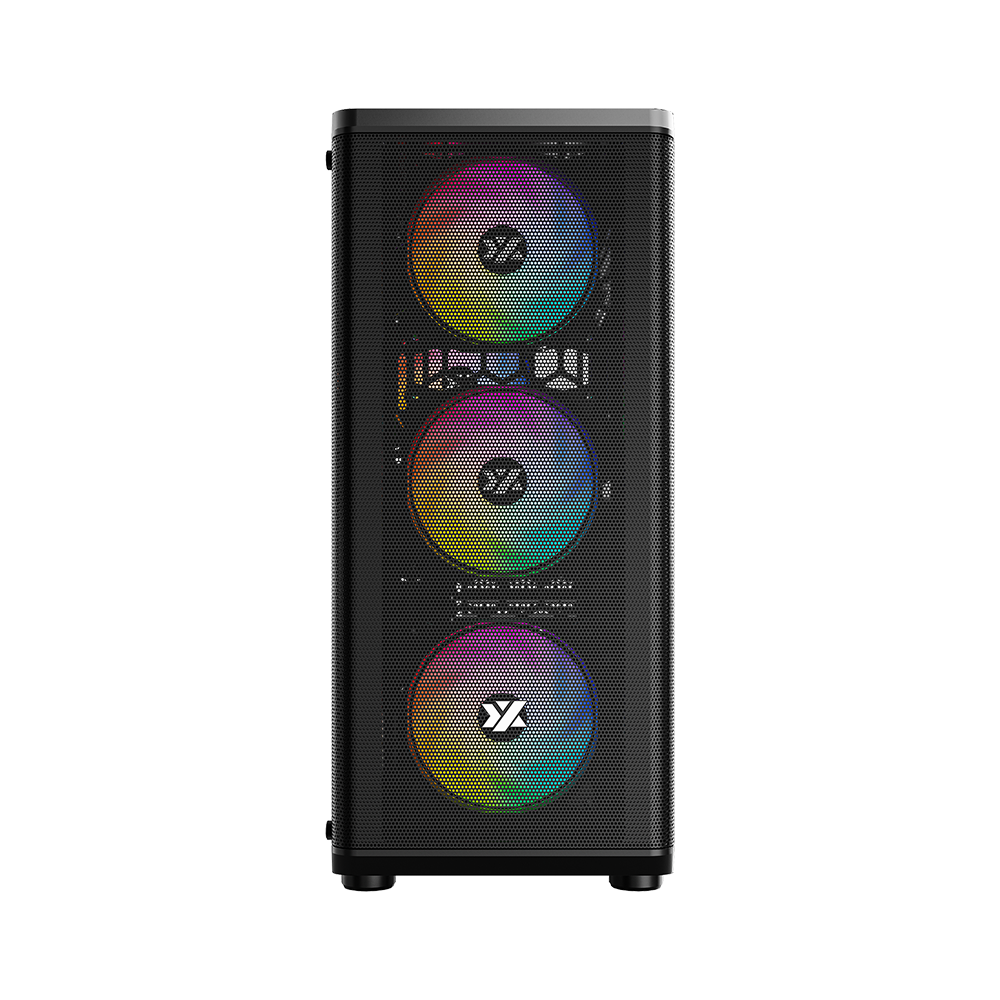

High-Airflow Front Mesh Design

The full mesh front panel allows for direct and efficient air intake, keeping your system cool under load.

Liquid Cooling Ready
Space for 360 mm radiators on the front, 280/240 mm on the top, and 120 mm at the rear allows full cooling flexibility.

6x AIRPULSE 100 A-RGB Fans Included
Three front 140 mm fans, two top fans and one rear fan deliver vibrant lighting and quiet cooling, with hydraulic bearing technology and optimized air pressure design.

Compact Format with ATX Support

Despite its reduced footprint, it supports ATX, Micro-ATX, and ITX motherboards, as well as GPUs up to 300 mm in length and CPU coolers up to 165 mm in height.

Liquid Cooling Ready
Space for 360 mm radiators on the front, 280/240 mm on the top, and 120 mm at the rear allows full cooling flexibility.

Modern Connectivity
Includes USB 3.0 port, one USB 2.0 ports, HD Audio, and an RGB switch/reset button on the front panel for quick and 120 mm at the rear allows full cooling flexibility.

Specifications

XYZ AIRONE 60 MESH 6 FANS

• Chassis Dimensions: 330 x 212 x 470 mm

• Total Dimensions: 365 x 212 x 470 mm

• Box Size: 531 x 269 x 440 mm

• Material: Steel, tempered glass, ABS (0.6 mm thickness)

• Side Panel: Tempered glass with 4 screws

• Color: Black

• Motherboard Support: ATX / Micro-ATX / ITX

• PCI Expansion Slots: 7 horizontal, 0 vertical

• Drive Bays: 1 x 3.5”/2.5”, 2 x 2.5”

• Max GPU Length: 300 mm

• Max CPU Cooler Height: 165 mm

• Power Supply: Standard ATX

• Controller Included: No (ARGB switch only, no PWM and includes MB SYNC support)

• Pre-installed Fans:

• 3 x 140 mm front AIRPULSE 100 A-RGB

• 2 x 120 mm top AIRPULSE 100 A-RGB

• 1 x 120 mm rear AIRPULSE 100 A-RGB

• Fan Placement:

• Front: 3 x 140 mm

• Top: 2 x 120 mm

• Rear: 1 x 120 mm

• Total Fan Support:

• Front: 3 x 120 mm or 3 x 140 mm

• Top: 2 x 120 mm or 2 x 140 mm

• Rear: 1 x 120 mm

• Radiator Compatibility:

• Front: 1 x 360 mm

• Top: 1 x 280/240 mm

• Rear: 1 x 120 mm

• Dust Filters: Front / Top / Bottom

• I/O Pannel:

• 1 x USB 3.0

• 2 x USB 2.0

• 1 x HD Audio In/Out

• 1 x Reset / RGB Switch Button

• Black : SKU | X-CS-AIRONE60-M-B-6

• EAN | 6978262012526

AIRPULSE 100 A-RGB Fan

• Dimensions: 120 x 120 x 25 mm

• Rated Voltage: DC 12V

• Rated Current: 141 mA ±10%

• Operating Voltage: DC 5–13.8V

• Start-up Voltage: ≥5V

• Speed: 1100 RPM ±10%

• Power Consumption: 1.6W

• Bearing Type: Hydraulic

• Airflow: 32.5 CFM

• Air Pressure: 1.10 mmH₂O

• Noise Level: 25.3 dBA

• MTTF: ≥40,000 hours (at 25 °C)
