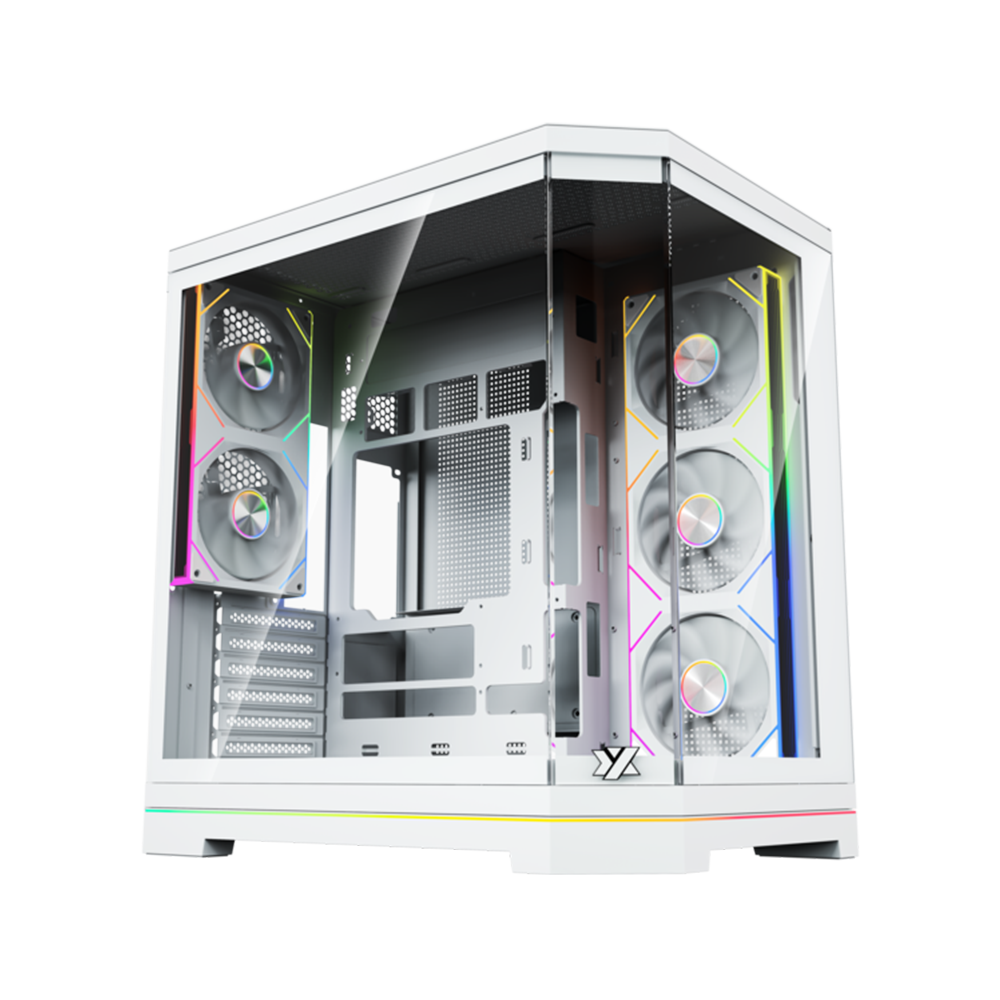

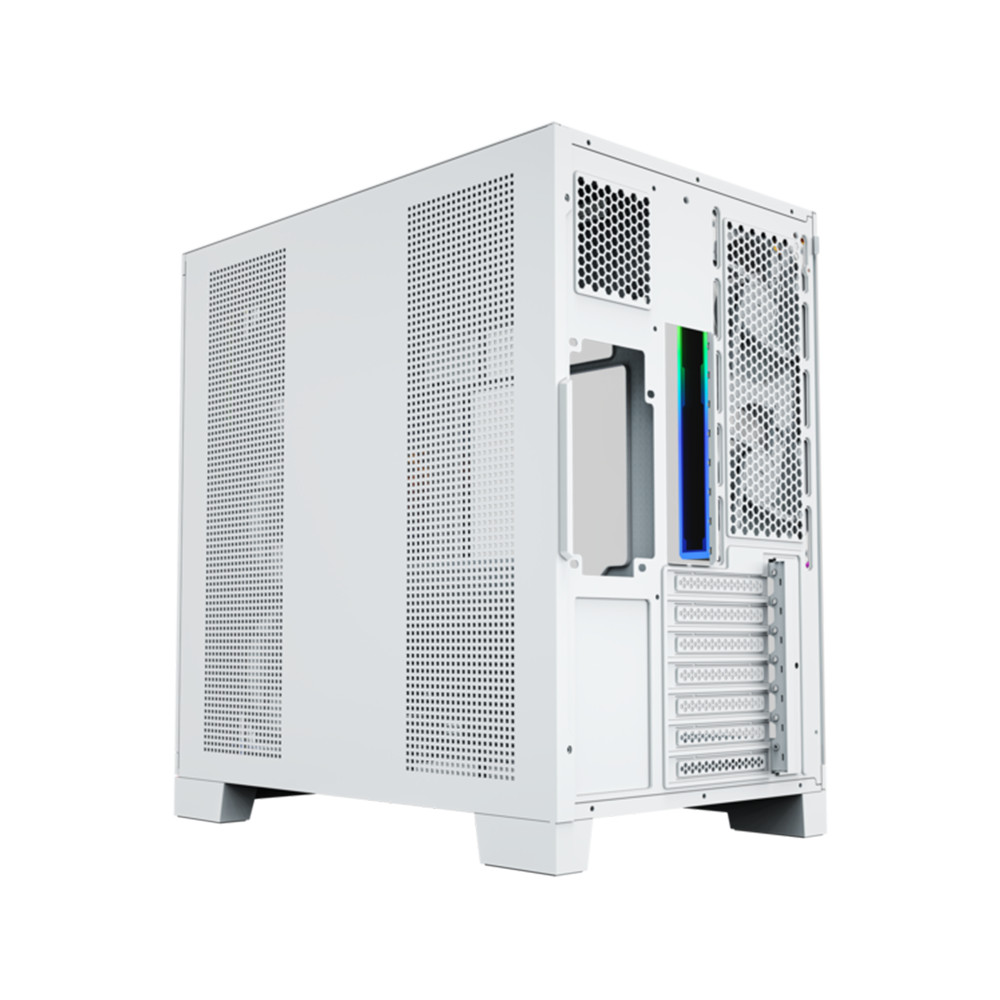

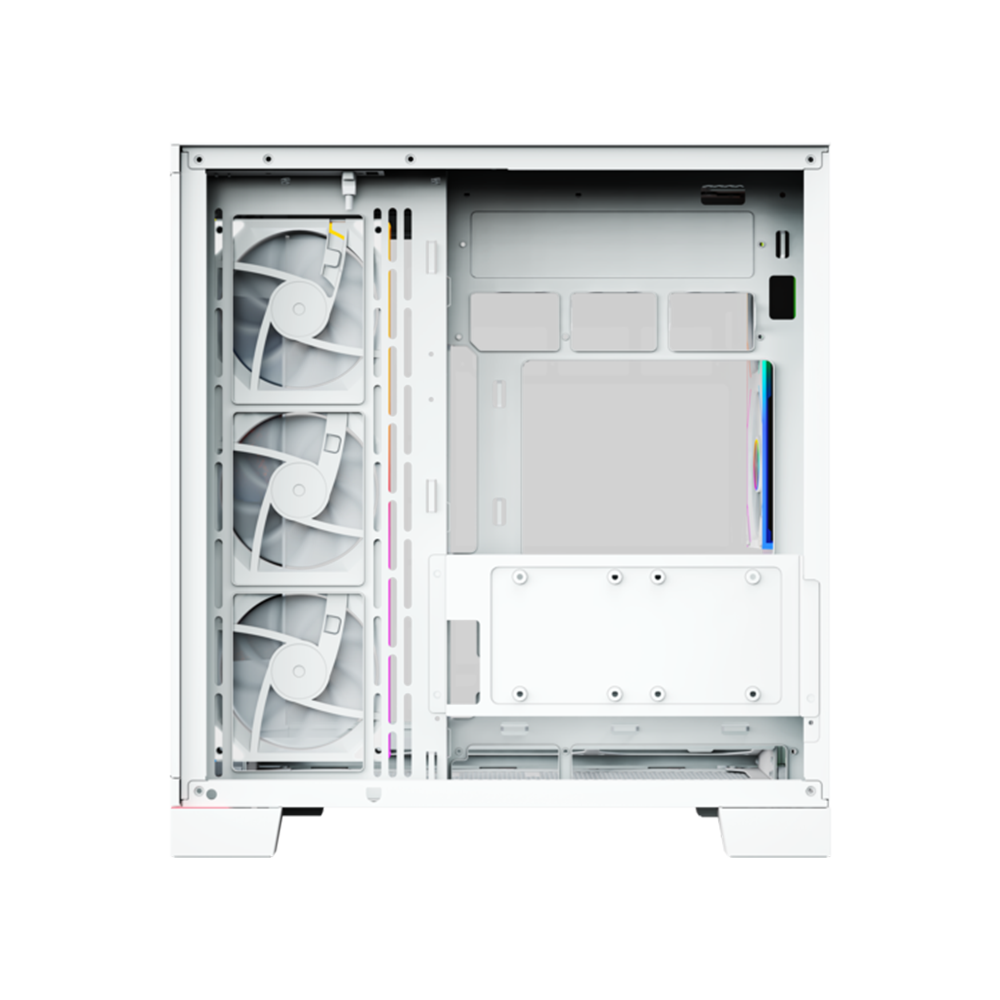

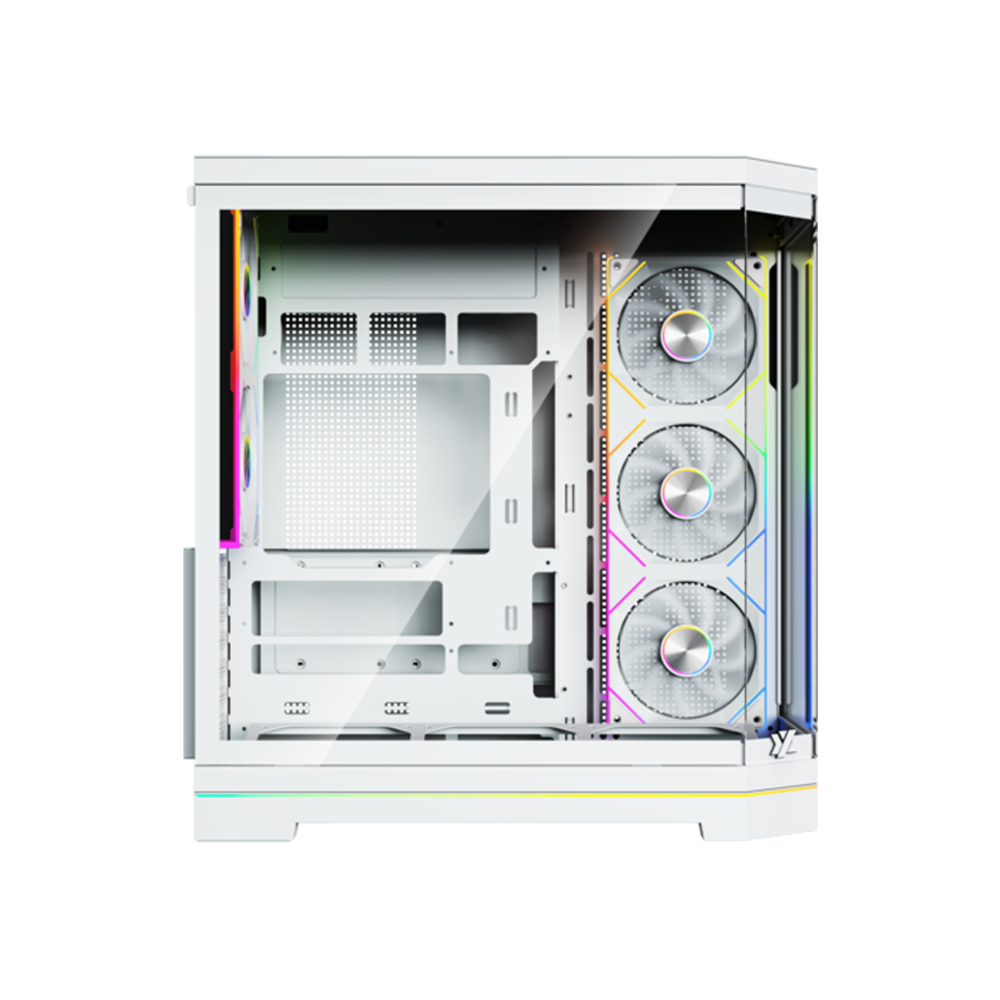

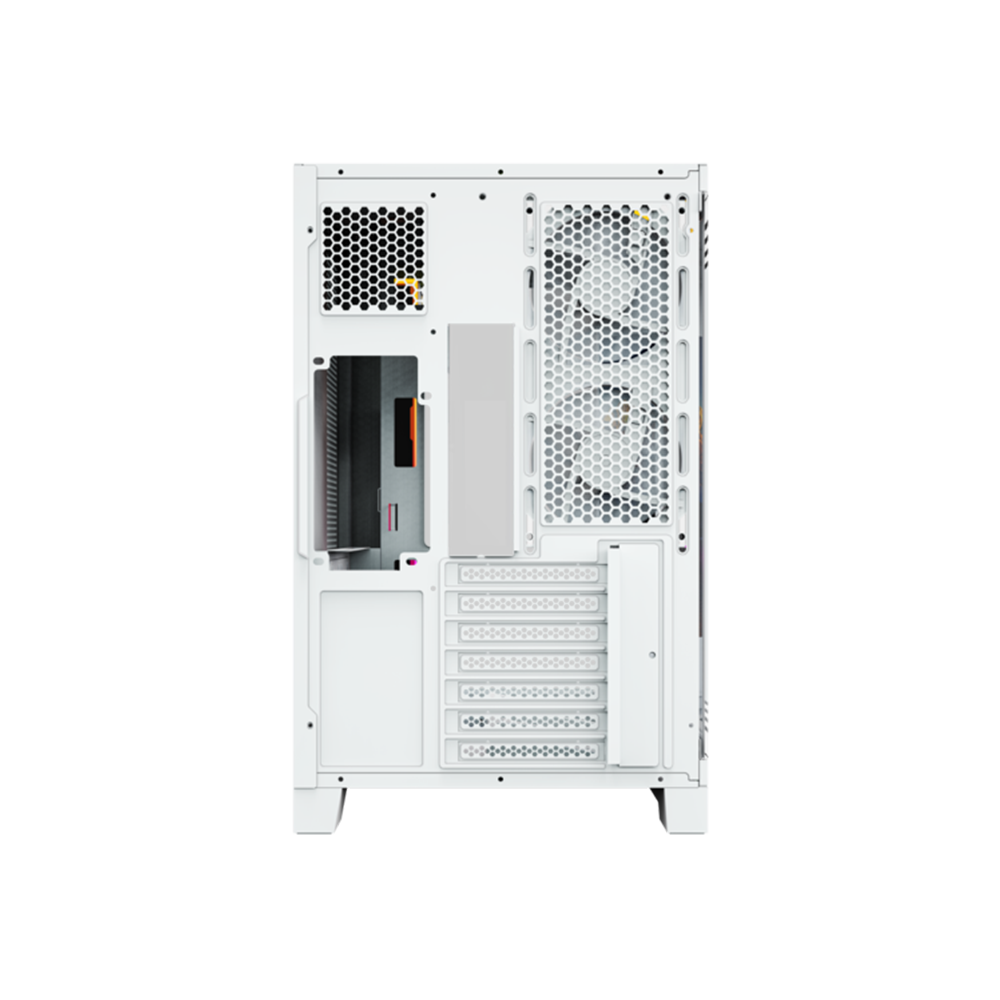

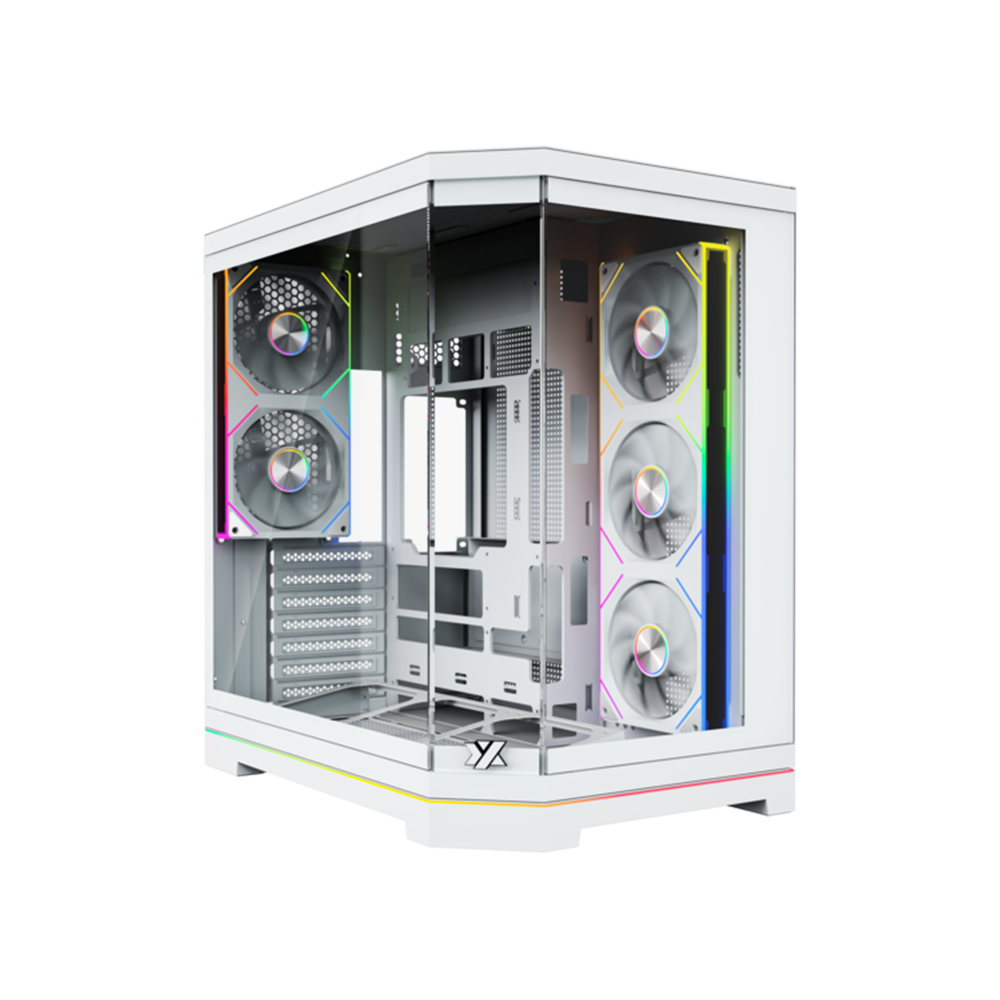

XYZ NEUTRON X ATX Case - White

The XYZ NEUTRON X combines elegant panoramic design, high-performance cooling, and advanced functionality in a dual-chamber layout optimized for airflow and cable management.
Featuring five pre-installed VORTEX 100 120mm A-RGB PWM fans, a PWM + ARGB MBSYNC controller, and full BTF motherboard compatibility, it provides a premium foundation for clean, efficient, and visually striking builds.

The case also includes an adjustable multi-level bottom bracket to redirect airflow directly toward the GPU, enhancing thermal performance and system cooling.

Pre-installed with 5 VORTEX 100 120mm A-RGB PWM fans optimized for pressure and airflow, offering quiet cooling with a noise level between 30.2 dB(A).

Panoramic Dual-Chamber Design
Tempered glass on the front and side panels provides a full, unobstructed view of internal components, while the dual-chamber layout separates PSU and cables for a cleaner build.

Adjustable GPU Airflow Bracket
Includes a bottom multi-position bracket allowing users to redirect airflow directly toward the GPU for improved temperature balance and cooling performance.

Full BTF Motherboard & Extreme Compatibility

Designed for next-generation rear-connector motherboards, providing seamless cable management and a cable-free front chamber. It also includes compatibility with all types of 360mm radiators in various positions and with extreme GPUs up to 415mm.

Integrated PWM + ARGB Controller

Synchronize lighting and fan speed with popular motherboard ecosystems such as ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion, and ASRock Polychrome. It also features state-of-the-art Type C GEN2 + USB 3.0 connectivity.

Specifications

• Structure Size: 418 × 280 × 410 mm

• Dimensions: 424 × 285 × 412 mm

• Box Size: 464 × 350 × 512 mm

• Material: Steel, Tempered Glass, ABS

• Side Panel: Tempered glass + Mesh with Airflow Openings

• Motherboard Compatibility: ATX / M-ATX / ITX / BTF

• BTF Support: Yes

• Total Possible Fans:

• 3 × 120 mm (Bottom)

• 3 × 120 mm  (Top)

• 2 × 120 mm  (Front)

• 2 × 120 mm (Rear)

• Pre-installed Fans: 5 × VORTEX 100 120 mm A-RGB PWM

• MBO Bracket: 3 × 120 mm (Reversed)

• Rear: 2 × 120 mm (Regular)

• Controller: PWM + ARGB MBSYNC

• Radiator Compatibility

• Top: 1 × 240 mm

• MB Tray: 1 × 360 / 240 mm

• Bottom: 1 × 240 mm (with removable fan bracket)

• Rear: 1 × 120 mm

• Storage & Expansion

• Drive Bays: 1 × 3.5” / 2 × 2.5”

• Power Supply: Standard ATX

• Horizontal PCI-E Slots: 7

• Vertical PCI-E Slots: No

• I/O Panel

• 2 × USB 3.0

• 1 × USB Type-C

• 1 × HD Audio In/Out

• 1 × Reset / RGB Switch

• Hardware Compatibility

• Max GPU Length: 415 mm

• Max CPU Cooler Height: 160 mm

• Max PSU Length: 165 mm

• VORTEX 100 120mm ARGB PWM

• Dimensions: 120 × 120 × 25 mm

• Bearing Type: Hydraulic Bearing

• Fan Speed: 1600–1800 RPM ±10%

• Airflow: 48.69 CFM

• Air Pressure: 0.39–1.59 mmH₂O

• Noise Level: 30.2 dB(A)

• Connector: 3-pin 21T1

• Rated Voltage: 12V DC

• Rated Current: 0.22A

• Power Consumption (Fan): 2.64W

• White

• SKU | X-CS-NEUTRONX-W


• Gross & Net Weight

• GW: 10.23 KG

• NW: 8.35 KG
