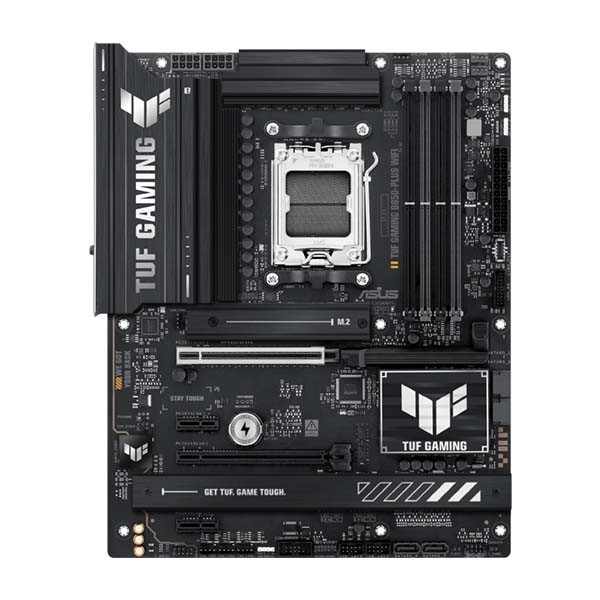

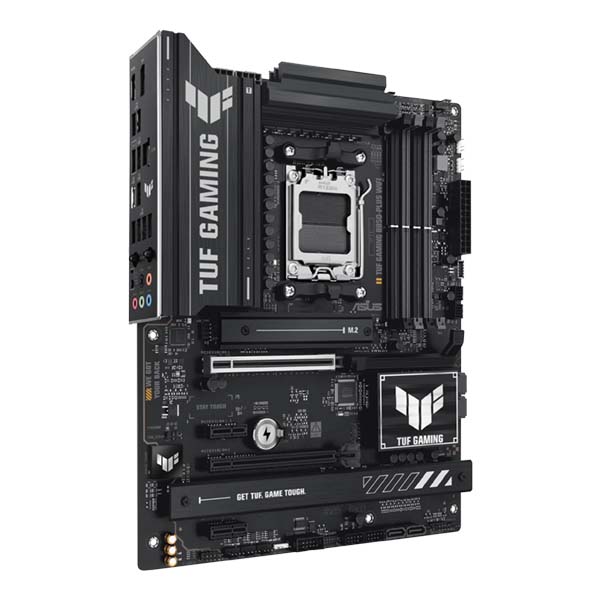

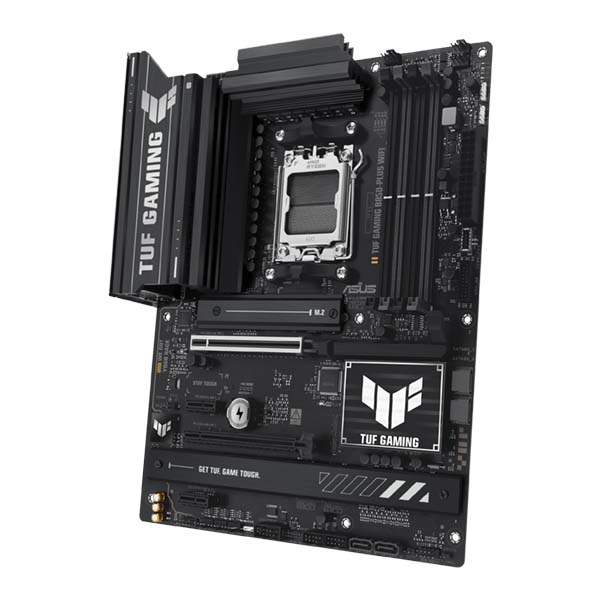

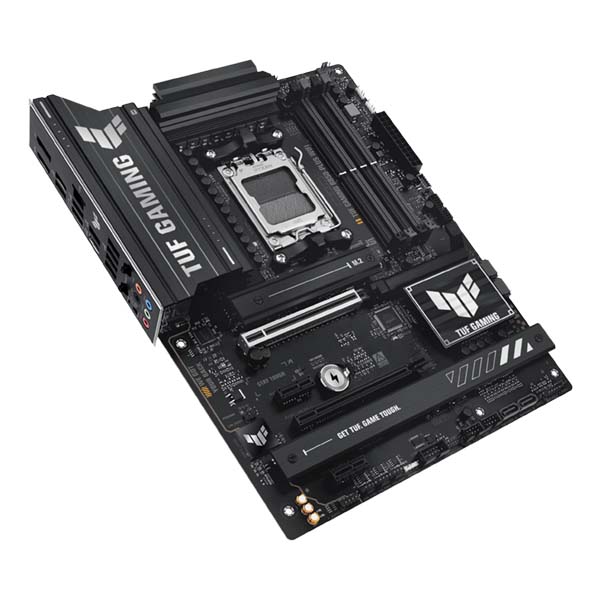

    ASUS TUF GAMING B850-PLUS WIFI DDR5 AM5 ATX Motherboard - Black

    Item #10953
    Brand
    : Asus
    Part #
    : 90MB1J30-M0EAY0
    Availability
    : In Stock
    KD 84.000
  • Give A Rating

    • Advanced AI PC Ready

    • ATX Form Factor

    • AM5 Socket

    • WiFi 7

    • DDR5

    • M.2 PCIe 5.0 Support

    • Rear USB 20Gbps Type-C

    ASUS TUF GAMING B850-PLUS WIFI DDR5 AM5 ATX Motherboard - Black

    ASUS TUF GAMING B850-PLUS WIFI takes all the essential elements of the latest AMD Ryzen™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.

    Intelligent

    Intelligent Control

    AI Advisor

    ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

    UEFI BIOS

    The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

    ASUS DriverHub

    Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

    ASUS GlideX

    Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.

    Power Saving

    Leverage all-around energy efficiency settings to optimize power consumption.

    Armoury Crate

    Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

    Performance

    Premium Power Design

    Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

    Eight Layered PCB design

    Enhanced stability and overclocking.

    ProCool Power Connectors

    Proprietary 8+8 pin connectors improve PSU connection.

    TUF Components

    TUF chokes and capacitors offer rock-solid durability and stability.

    Digi+VRM Control

    Real-time voltage control.

    Memory & Storage

    DRAM Overclocking Performance

    Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they're from an extreme-speed kit or an entry-level set that would otherwise be locked.

    DDR5 DOMINANCE

    For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

    ASUS AEMP

    ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

    M.2 PCIe 5.0 Support

    This motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

    Cooling

    Cooler by Design

    Cooler Compatibility

    ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

    Connectivity

    Empowering Connection

    This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C® port, front USB 10Gbps Type-C® connector and Thunderbolt™ (USB4®) header support.

    PCIe 5.0 for Graphics Card​

    PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

    Rear USB 20Gbps Type-C®

    Extensive USB support ensures connections to a wide array of external devices. This motherboard includes a USB 20Gbps Type-C® port on the rear I/O panel that delivers transfer speeds of up to 20Gbps.

    Front USB 10Gbps Type-C®

    This motherboard features a USB 10Gbps Type-C® front panel connector for speedy data transfers of up to 10Gbps.

    DIY

    Easy PC DIY

    PCIe Slot Q-Release

    A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

    Build With Confidence

    TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.

    Gaming

    Ultrafast Networking

    Provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay.

    WiFi 7

    WiFi 7 ensures stable connections and low latency.​

    2.5Gb Ethernet

    On-board 2.5Gb Ethernet kicks your LAN connection up a notch by improving bandwidth speeds up to 2.5X faster than 1Gb connections.​

    Audio

    Realtek 7.1 Channel Audio

    ALC1220P

    This motherboard utilizes an audio codec designed in close collaboration with Realtek — the Realtek ALC1220P. It features an unprecedented 120 dB signal-to-noise (SNR) ratio for the stereo line out and a 113 dB SNR for the line in, providing pristine audio quality. Additionally, an impedance-sensing circuit automatically adjusts gain to ensure an optimal volume range for your headphones.

    Lighting

    Outshine The Competition

    ASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.

    Addressable Gen2 RGB Headers

    Automatically optimize lighting effects for the number of LEDs present in compatible ARGB gear.

    Specifications

     Model : TUF GAMING B850-PLUS WIFI

    CPU

    • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

    Chipset

    • AMD B850 Chipset

    Memory

    • 4 x DIMM slots, max. 192GB, DDR5

    • Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*

    • Dual channel memory architecture

    • Supports AMD Extended Profiles for Overclocking (EXPO™)

    • ASUS Enhanced Memory Profile (AEMP)

    • * Adjustments will be made based on the specifications of mass-produced memory products available on the market.

    • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information

    • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

    Graphics

    • 1 x DisplayPort**

    • 1 x HDMI™ port***

    • * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

    • ** Supports max. 8K@30Hz as specified in DisplayPort 1.4.

    • *** Supports 4K@60Hz as specified in HDMI 2.1.

    Expansion Slots

    • AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

    • 1 x PCIe 5.0 x16 slot (supports x16 mode)

    • AMD Ryzen™ 8000 Series Desktop Processors

    • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

    • AMD B850 Chipset

    • 1 x PCIe 4.0 x16 slot (supports x4 mode)***

    • 2 x PCIe 4.0 x1 slots

    • * Please check the PCIe bifurcation

    • ** Specifications vary by CPU types.

    • *** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.

    Storage

    • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
      AMD Ryzen™ 9000 & 7000 Series Desktop Processors

    • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

    • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    • AMD Ryzen™ 8000 Series Desktop Processors

    • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

    • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)*

    • AMD B850 Chipset

    • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)**

    • 4 x SATA 6Gb/s ports

    • * Specifications vary by CPU types.

    • ** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.

    • AMD RAIDXpert2 Technology

    • Ryzen™ 9000 Series Processors: RAID 0/1/5/10

    • Ryzen™ 8000 Series Processors: RAID 0/1

    • Ryzen™ 7000 Series Processors: RAID 0/1/10

    Ethernet

    • 1 x Realtek 2.5Gb Ethernet

    • TUF LANGuard

    Wireless & Bluetooth

    • Wi-Fi 7*

    • 2x2 Wi-Fi 7 (802.11be)

    • Supports 2.4/5/6GHz frequency band**

    • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate

    • Bluetooth® v5.4***

    • * Wi-Fi features may vary depending on the operating system.

    • For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

    • For Windows 10, please note that no driver is available, please refer to the Wi-Fi chipset vendor's website for details.

    • ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

    • *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

    USB

    • Rear USB (Total 10 ports)

    • 1 x USB 20Gbps port (1 x USB Type-C®)

    • 3 x USB 10Gbps ports (3 x Type-A)

    • 4 x USB 5Gbps ports (4 x Type-A)

    • 2 x USB 2.0 ports (2 x Type-A)

    • Front USB (Total 7 ports)

    • 1 x USB 10Gbps connector (supports USB Type-C®)

    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

    • * USB Type-C® power delivery output: max. 5V/3A.

    Audio

    • Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

    • - Impedance sense for front and rear headphone outputs

    • - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

    • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    • - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

    • - Supports up to 32-Bit/192 kHz playback*

    • Audio Features

    • - Audio Shielding

    • - Premium audio capacitors

    • - Dedicated audio PCB layers

    • - Audio cover

    • - Unique de-pop circuit

    • * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

    Back Panel I/O Ports

    • 1 x USB 20Gbps port (1 x USB Type-C®)

    • 3 x USB 10Gbps ports (3 x Type-A)

    • 4 x USB 5Gbps ports (4 x Type-A)

    • 2 x USB 2.0 ports (2 x Type-A)

    • 1 x DisplayPort

    • 1 x HDMI™ port

    • 1 x Wi-Fi module

    • 1 x Realtek 2.5Gb Ethernet port

    • 5 x Audio jacks

    • 1 x BIOS FlashBack™ button

    Internal I/O Connectors

    • Fan and Cooling Related

    • 1 x 4-pin CPU Fan header

    • 1 x 4-pin CPU OPT Fan header

    • 1 x 4-pin AIO Pump header

    • 4 x 4-pin Chassis Fan headers

    • Power Related

    • 1 x 24-pin Main Power connector

    • 2 x 8-pin +12V CPU Power connectors

    • Storage Related

    • 3 x M.2 slots (Key M)

    • 4 x SATA 6Gb/s ports

    • USB

    • 1 x USB 10Gbps connector (supports USB Type-C® )

    • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

    • Miscellaneous

    • 3 x Addressable Gen 2 headers

    • 1 x Clear CMOS header

    • 1 x Chassis Intrusion header

    • 1 x COM Port header

    • 1 x Front Panel Audio header (F_AUDIO)

    • 1 x 10-1 pin Front System Panel header

    • 1 x Thunderbolt™ (USB4®) header

    Special Features

    • ASUS TUF PROTECTION

    • - DIGI+ VRM (- Digital power design with DrMOS)

    • - ESD Guards

    • - TUF LANGuard

    • - Overvoltage protection

    • - SafeSlot

    • - Stainless-steel back I/O

    • ASUS Q-Design

    • - M.2 Q-Latch

    • - PCIe Slot Q-Release

    • - Q-Antenna

    • - Q-Dashboard

    • - Q-DIMM

    • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

    • - Q-Slot

    • ASUS Thermal Solution

    • - M.2 heatsink

    • - VRM heatsink design

    • ASUS EZ DIY

    • - BIOS FlashBack™ button

    • - BIOS FlashBack™ LED

    • - ProCool

    • - Pre-mounted I/O shield

    • - SafeDIMM

    • Aura Sync

    • - Addressable Gen 2 headers

    Software Features

    • ASUS Exclusive Software

    • Armoury Crate

    • - Aura Creator

    • - Aura Sync

    • - Fan Xpert 4

    • - Power Saving

    • ASUS DriverHub

    • ASUS GlideX

    • TurboV Core

    • TUF GAMING CPU-Z

    • DTS Audio Processing

    • Norton 360 for Gamers (60 Days Free Trial)

    • WinRAR (40 Days Free Trial)

    • UEFI BIOS

    • ASUS EZ DIY

    • - ASUS CrashFree BIOS 3

    • - ASUS EZ Flash 3

    • - ASUS UEFI BIOS EZ Mode

    • - ASUS MyHotkey

    BIOS

    • 256 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    • WOL by PME, PXE

    Accessories

    • Cables

    • 2 x SATA 6Gb/s cables

    • Miscellaneous

    • 1 x ASUS WiFi Q-Antenna

    • 1 x TUF GAMING sticker

    • 2 x M.2 rubber packages

    • Documentation

    • 1 x Quick start guide

    Operating System

    • Windows 11

    Form Factor

    • ATX Form Factor

    • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
