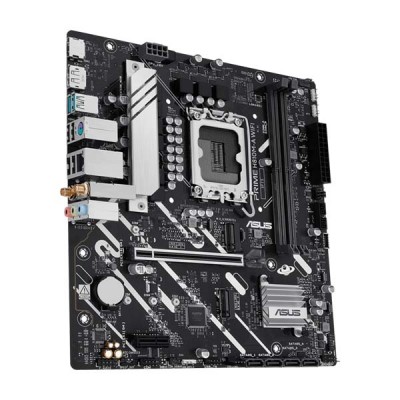

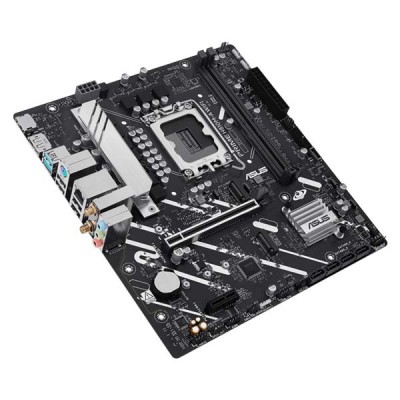

ASUS PRIME H810M-A WIFI DDR5 micro-ATX Motherboard - Black

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance

Digital Power Design

Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2).The PRIME H810M-A WIFI features an 6+1+1+1 phase design with discrete MOSFETs,ensuring efficient and stable power delivery for Intel® processors plus steady performance for day-to-day use.
Enhanced Memory & Storage Performance

DIMM Fit

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

Two M.2 slots (up to 64Gbps)

PRIME H810M-A WIFI offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 64Gbps via PCIe 4.0, one that supports 32Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

Cooling

Cooler by design

The PRIME H810M-A WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Smart cooling precisionASUS Fan Xpert 2+

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Flexibility

Empowering connections

This motherboard offers a versatile range of connectivity, including support for PCIe 4.0 M.2, PCIe 4.0 slot and an arsenal of USB ports which includes Type-C® connection.

WiFi 6

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 600Mbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to experience the networking potential of WiFi 6

High Speed Transferring

Numerous USB ports support high-end rigs loaded with peripherals, including two rear USB Type-A ports with transmission speeds of up to 10Gbps and a front USB Type-C® connector with ultrafast USB 5Gbps for transmission speeds of up to 5Gbps

Intel® 1 Gb Ethernet

Intel® Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Customization

Personalization

The PRIME H810M-A WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

Addressable Gen2 RGB headers

Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

Customization

DIY friendly

The PRIME H810M-A WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

SafeSlot Core+

SafeSlot Core+ is a one-piece stainless-steel brace that shields the slot to protect it from damage. The metal cover is tightly secured to the slot with hooks, and the entire assembly is firmly anchored to the PCB with strengthened solder points to provide a secure foundation for heavyweight graphics cards.

Enhanced Memory & Storage Performance

Two M.2 slots (up to 64Gbps)

Smart cooling precision

ASUS Fan Xpert 2+

WiFi 6

High Speed Transferring

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

Specifications

Model

• PRIME H810M-A WIFI

CPU

• Support Intel® Core™ Ultra Processors (Series 2) , LGA1851

• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel® H810 Chipset

Memory

• 2 x DIMM slots, max. 128GB, DDR5

• Supports up to 6400MT/s, Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

• Dual channel memory architecture

• DIMM Fit

• Supports Intel® Extreme Memory Profile (XMP) memory module

• ASUS Enhanced Memory Profile II (AEMP II)

• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information


• ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort**

• 1 x HDMI™ port***

• * Graphics specifications may vary between CPU types.


• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

• *** Supports 4K@60Hz as specified in HDMI 2.1.

• **** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

• Intel® Core™ Ultra Processors (Series 2)

• 1 x PCIe 4.0 x16 slot

• Intel® H810 Chipset

• 1 x PCIe 4.0 x1 slot

• - To ensure compatibility of the device installed.

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

• Intel® H810 Chipset

• M.2_1 slot (Key M), type 2280  (supports PCIe 4.0 x4 mode)

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)

• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Intel® 1Gb Ethernet port*

• ASUS LANGuard

• *With Intel® I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.

Wireless & Bluetooth

• Wi-Fi 6

• 1x1 Wi-Fi 6 (802.11ax)

• Supports 2.4/5GHz frequency band

• Bluetooth® v5.3*

• * The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

• Rear USB (Total 6 ports)

• 2 x USB 10Gbps ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• Front USB (Total 5 ports)

• 1 x USB 5Gbps connector (supports USB Type-C®)*

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

• * USB Type-C® power delivery output: max. 5V/3A

• ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - Supports up to 24-Bit/192 kHz playback

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 2 x USB 10Gbps ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x DisplayPort

• 1 x HDMI™ port

• 1 x Wi-Fi module

• 1 x Intel® 1Gb Ethernet port

• 3 x Audio jacks

• 1 x PS/2 keyboard/mouse combo port

Internal I/O Connectors

• Fan and Cooling Related

• 1 x 4-pin CPU Fan header

• 2 x 4-pin Chassis Fan headers

• Power Related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V CPU Power connector

• Storage Related

• 2 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

USB

• 1 x USB 5Gbps connector (supports USB Type-C® )

• 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

• 1 x USB 2.0 header supports 2 additional USB 2.0 ports

• Miscellaneous

• 3 x Addressable Gen2 headers

• 1 x Clear CMOS header

• 1 x COM Port header

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x S/PDIF Out header

• 1 x SPI TPM header (14-1 pin)

• 1 x 10-1 pin Front Panel System header

Special Features

• ASUS 5X PROTECTION III

• - DIGI+ VRM

• - LANGuard

• - Overvoltage protection

• - SafeSlot Core+

• - Stainless-steel back I/O

• ASUS Q-Design

• - Q-DIMM

• - Q-Dashboard

• - Q-LED Core

• - Q-Slot

• ASUS Thermal Solution

• - VRM heatsink design

• Aura Sync

• - Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 2+

• - Power Saving

• ASUS DriverHub

• ASUS GlideX

• ASUS CPU-Z

• Norton 360 Deluxe (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash

• - ASUS UEFI BIOS EZ Mode

• - ASUS MyHotkey

BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x ASUS Wi-Fi moving antenna

• 1 x I/O shield

• 1 x Screw package for M.2 SSD

• Documentation

• 1 x Quick start guide

Operating System

• Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor

• micro-ATX Form Factor

• 9.6 inch x 8.75 inch (24.4 cm x 22.2 cm)
