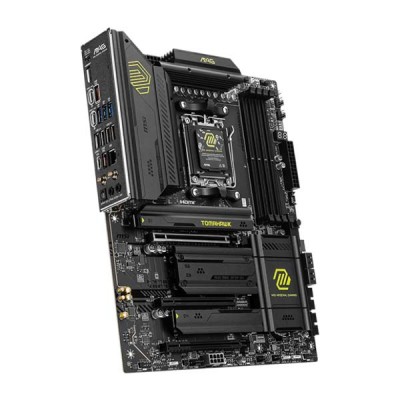

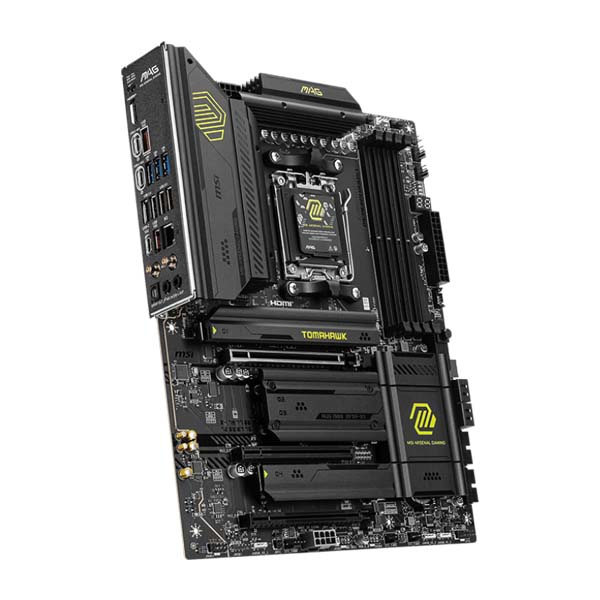

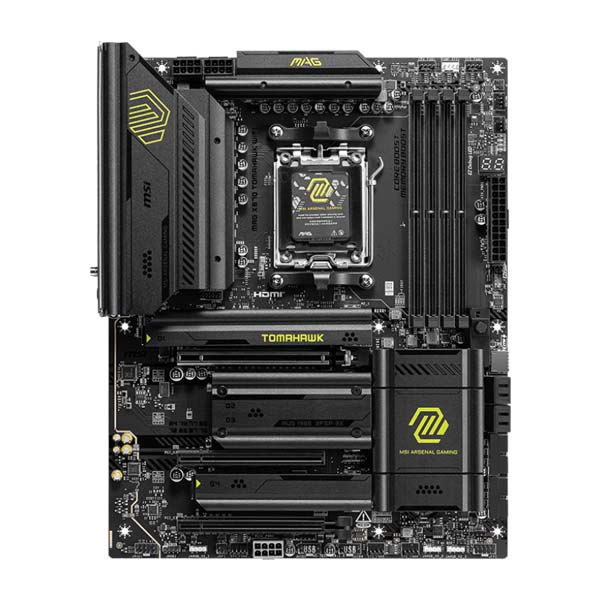

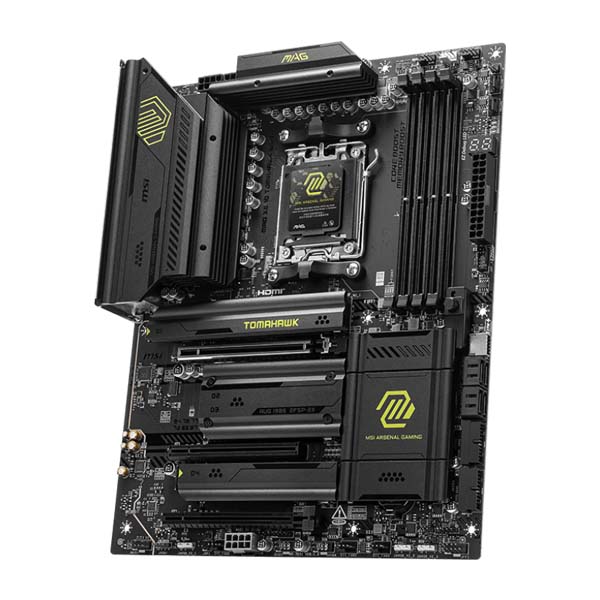

MSI MAG X870 TOMAHAWK WIFI DDR5 AMD ATX Motherboard - Black

MAG X870 TOMAHAWK WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine

provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER

optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling

automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost

is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.

EZ PCIe Release

An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.

14+2+1 DRPS POWER DESIGN

Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG X870 TOMAHAWK WIFI is ready for the challenge of high-end processors.

OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

Combo Fan Header

The MSI Combo Fan Header is a versatile component, functioning as both a pump and or fan header. The header will automatically detects whether it is either pump or PWM/DC fan, with it's distinctive gray color ensuring easy identification

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

THE NEXT GEN WI-FI SOLUTION – WI-FI 7

Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

AI LAN Manager

MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING

When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.

Specifications:-

• Chipset

• AMD X870

• CPU

• Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

• Socket

• AM5

• Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB

• Memory Support DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s

• Ryzen™ 9000 Series Processors max. overclocking frequency:

• • 1DPC 1R Max speed up to 8400+ MT/s

• • 1DPC 2R Max speed up to 6400+ MT/s

• • 2DPC 1R Max speed up to 6400+ MT/s

• • 2DPC 2R Max speed up to 4800+ MT/s

• Supports AMD POR Speed and JEDEC Speed

• Supports Memory Overclocking and AMD EXPO™

• Supports Dual-Channel mode

• Supports Non-ECC, Un-buffered memory

• Supports CUDIMM, Clock Driver bypass mode only*

• * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.

• • The DIMM slots on this motherboard have double-sided latches.

• • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.

• Onboard Graphics

• 1x HDMI™

• Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*

• 2x Type-C DisplayPort

• USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz*

• *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• Slot 3x PCI-E x16 slot

• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

• PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

• PCI_E1 slot

• • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)

• • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)

• • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

• *PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot

• Audio

• Realtek® ALC4080 Codec

• 7.1-Channel USB High Performance Audio

• Supports up to 32-bit/384kHz playback on front panel

• Supports S/PDIF output

• Storage

• 4x M.2

• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices

• M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices

• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices

• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

• 4x SATA 6G

• M2_1 & M2_2 slots

• • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)

• • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

• * The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.

• ** USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.

• *** PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.

• **** Please refer to the manual for M.2 SSD heatsink restrictions

• Multi-GPU

• AMD MULTI-GPU Support

• RAID

• •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

• •Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

• *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.

• *RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.

• USB

• 4x USB 2.0 (Rear)

• 4x USB 2.0 (Front)

• 3x USB 5Gbps Type A (Rear)

• 4x USB 5Gbps Type A (Front)

• 2x USB 10Gbps Type A (Rear)

• 1x USB 10Gbps Type C (Rear)

• 1x USB 20Gbps Type C (Front)

• 2x USB 40Gbps Type C (Rear)

• LAN

• Realtek® 8126-CG 5G LAN

• Internal IO

• 1x Power Connector(ATX_PWR)

• 2x Power Connector(CPU_PWR)

• 1x Power Connector(PCIE_PWR 8pin)

• 1x CPU Fan

• 1x Combo Fan (Pump_Sys Fan)

• 6x System Fan

• 1x EZ Conn-header (JAF_2)

• 2x Front Panel (JFP)

• 1x Chassis Intrusion (JCI)

• 1x Front Audio (JAUD)

• 3x Addressable V2 RGB LED connector (JARGB_V2)

• 1x RGB LED connector(JRGB)

• 1x TPM pin header(Support TPM 2.0)

• 4x USB 2.0 ports

• 4x USB 5Gbps Type A ports

• 1x USB 20Gbps Type C ports

• WIRELESS LAN & BLUETOOTH Wi-Fi 7

• The Wireless module is pre-installed in the M.2 (Key-E) slot

• Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps

• Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

• Supports Bluetooth® 5.4**, MLO, 4KQAM

• * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.

• ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

• LED FEATURE

• 4x EZ Debug LED

• 1x EZ Digit Debug LED

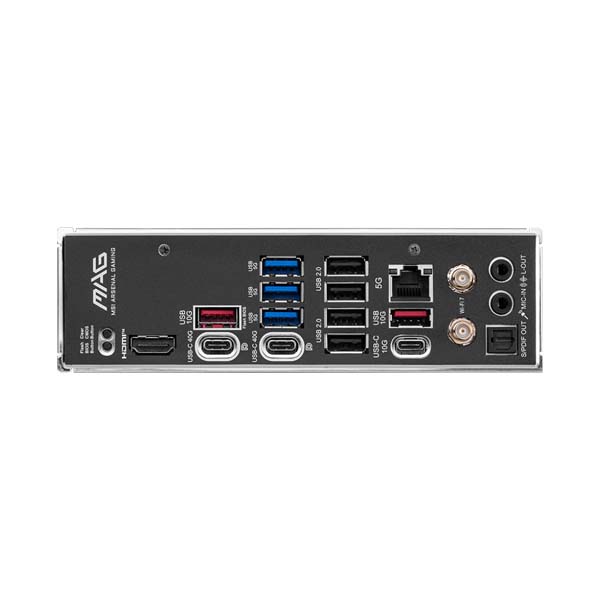

• BACK PANEL PORTS

• Clear CMOS Button

• USB 10Gbps Type-A

• USB 5Gbps Type-A

• USB 2.0

• 5G LAN

• Wi-Fi / Bluetooth

• Audio connectors

• Flash BIOS Button

• HDMI™

• USB 40Gbps Type-C

• USB 10Gbps Type-C

• USB 10Gbps Type-A

• OPERATING SYSTEM Support for Windows® 11 64-bit

• BOX CONTENT

• PCB Info

• ATX

• 304.8mmx243.84mm
