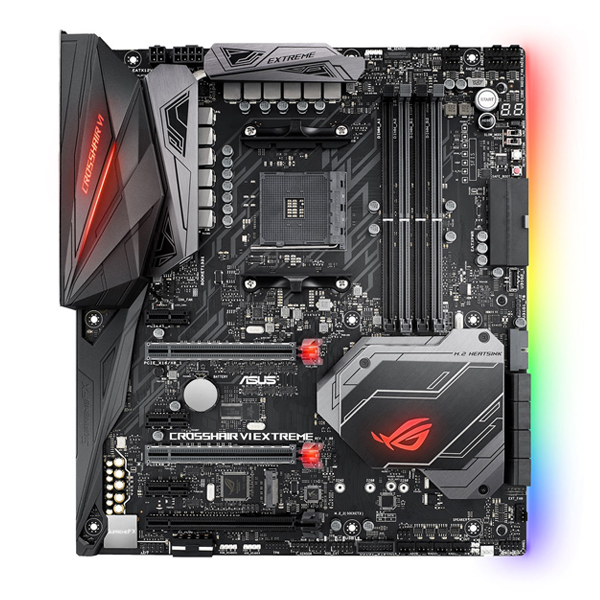

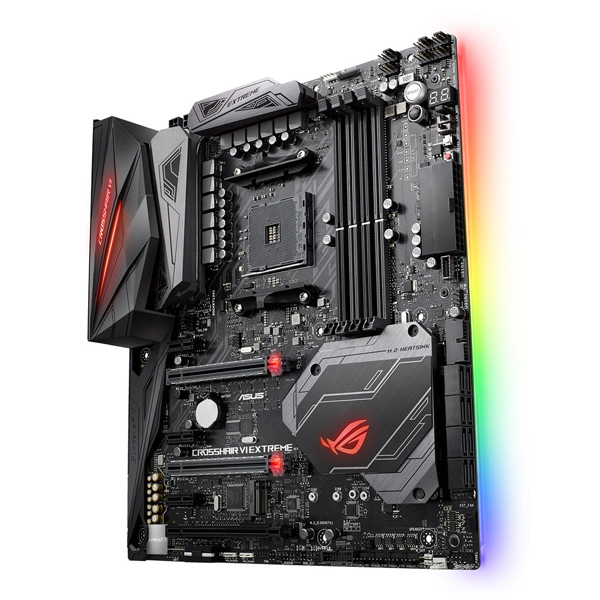

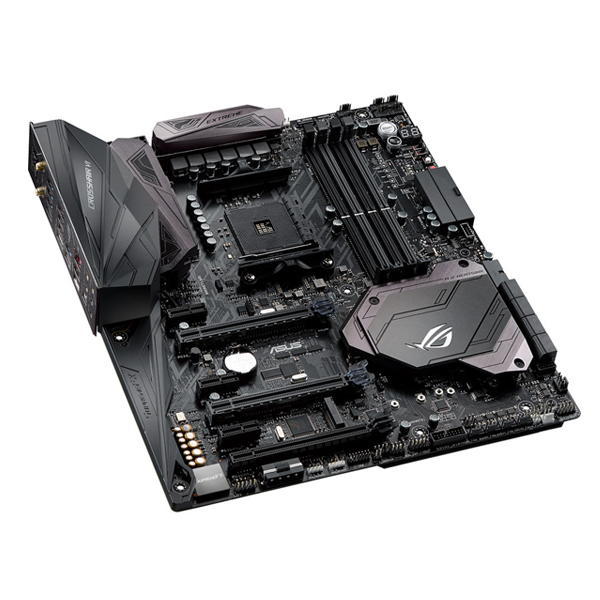

ASUS ROG CROSSHAIR VI EXTREME AM4 DDR4 E-ATX Motherboard

For more than a decade, Republic of Gamers has delivered exemplary design and performance to thrill the world's best players and PC enthusiasts. Our journey is a road without end. Now, it's time for competitors to be warned and for gamers and enthusiasts to push the limits — the packed and pumped ROG Crosshair VI Extreme is ready to defeat all challengers!

Optimal cooling

PERFECTED COOLING FOR UNLEASHING PERFORMANCE

PCH M.2 HEATSINK

ROG Crosshair VI Extreme is equipped with an M.2 heatsink integrated into the PCH heatsink. With its huge cooling surface, the M.2 heatsink perfectly chills an inserted M.2 SSD — providing maximum performance and reliability.
Featuring a stylish angular design replete with an awesome glowing ROG eye logo, the M.2 heatsink adds a beautiful touch to the build, while the T-sensor detects temperatures in the vital M.2 area for instant monitoring

Fully Dominate Your Water-Cooling System

Water Cooling Zone

ROG's innovative Water Cooling Zone lets you monitor your cooling system like never before. The dual water-temperature headers and flow-rate header of the ROG Water Cooling Zone feeds information straight into ROG's intuitive Fan Xpert 4 utility ─ so you can stay on top of the heat and stay cool in every game!

Best gaming LIGHTING

Aura lighting control

Customize your own favorite LED effects with intuitive, ASUS-exclusive lighting-control software. Aura RGB technology makes it possible to cast a stunning multicolor glow across your entire build, via the ROG Crosshair VI Extreme's brilliant built-in RGB LEDs or attached RGB strips via the two onboard 4-pin headers ─ all lights will perform in perfect synchronization! Fire up Aura and enjoy the creative freedom of nine different lighting schemes!

RGB LIGHTING PERFECTED

ROG Crosshair VI Extreme includes a dedicated addressable RGB header* that connects to compatible lighting strips, fans, coolers, and compatible PC cases — all to create a new world of illumination possibilities. Aura software offers an array of effects for addressable gear, and the Aura SDK takes things to the next level — allowing developers to control each LED individually, unleashing infinite lighting possibilities!

Best gaming audio

Exquisite audio, inside and out

New SupremeFX Codec

ROG SupremeFX audio technology has levelled up with ROG Crosshair VI Extreme, delivering an exceptional 113dB signal-to-noise ratio on the line-in connection for best-ever recording quality — and 120dB on line-out for crystal-clear sound. We've also added a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, plus Texas Instruments® RC4580 and OPA1688 op-amps for high gain with low distortion. It all adds up to audio that envelops you as never before!

Intuitive Audio-Tuning Suite

Sonic Studio III

Sonic Studio III now supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The Sonic Studio GUI also offers a range of EQ options, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

Best gaming connectivity

Unleash 32Gbps SSD Speeds

Dual M.2

ROG Crosshair VI Extreme offers dual PCIe 3.0 x4 M.2 slots that provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 3.0 storage devices via the dual M.2 slots to enjoy the fastest data-transfer speeds on the AMD® Ryzen™ processors platform!

USB 3.1 gen2 Type A+C

Ultimate-speed 10Gb/s With Onboard USB 3.1 gen2

Best gamingnetworking

More Throughput And Less Processing Equals Faster Online Play

Intel Ethernet

ROG Crosshair VI Extreme features the very latest Intel I211-AT Ethernet controller for faster, smoother gaming. Intel's LAN has the serious double advantage of reducing CPU overhead and offering exceptionally high TCP and UDP throughput, so there's more power for your game and your gameplay.

Pumped-Up Throughput, Best Surge Protection

LANGaurd

LANGuard means safer, more reliable connections for your battles! Advanced signal-coupling technology and premium surface-mounting processes join forces to protect your ROG Crosshair VI Extreme connection, plus electrostatically guarded and surge-protected components (ESD Guards) provide 1.9X-greater tolerance to static electricity and 2.5X-greater protection against surges — up to 15kV!

Best gaming performance

OC design

(base-clock generator)

ASUS Pro Clock Technology

A dedicated base-clock generator designed for Ryzen® processors allows overclocked base-clock frequencies up to or beyond 150MHz*. This custom solution works in tandem with the ASUS TurboV Processing Unit (TPU) to enhance voltage and base-clock overclocking control — providing an exciting new way to boost performance to extreme heights.

DDR4 Overclocking Strength In Numbers

DDR4 OC 3200MHz+

With support for DDR4 memory you're able to drive memory frequencies to 3200MHz — or beyond! ASUS-exclusive T-Topology circuit design provides superb memory-overclocking potential, minimizing coupling noise and signal reflection to unleash the full power of DDR4. With innovative equidistant memory channels, the ROG design delivers the most balanced control and incredibly powerful overclocking capability. And that's not all: ROG works with almost every DDR4 memory vendor, ensuring the best compatibility.

One-Click Overclocking And Cooling, Done!

5-Way Optimization

ASUS 5-Way Optimization technology sorts all the complex settings with a click — for instant, highly controllable performance boosts! Exclusive ROG technology dynamically optimizes essential aspects of your system, based on real-time use — so you get superb CPU performance, everyday energy savings, ultrastable digital power, cool and quiet fans, and networking settings that are tailored for your apps. In short, 5-Way Optimization ensures that your PC is perfect for gaming, entertainment, and productivity!
Games run swiftly and smoothly with high performance, prioritized bandwidth.
Fans stay whisper-quiet for everyday computing, and ensure extreme cooling efficiency when gaming.
Stutter is eliminated for smooth-running apps, even under heavy loading.
Energy waste is reduced so you'll save money and the earth.

Best gaming protection

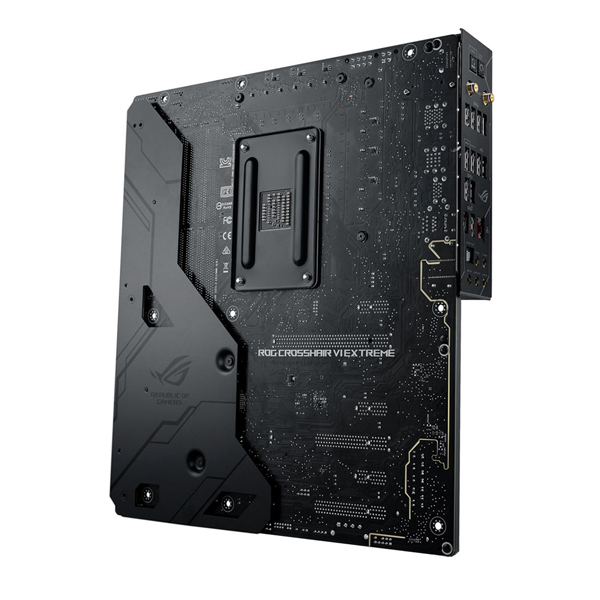

ROG Backplate

ROG Crosshair VI Extreme features a new and exclusive backplate, levelling up the board's aesthetic appeal and providing enhanced protection against bending.

Pre-mounted I/O Shield

ROG's pre-mounted I/O shield offers increased protection against electrostatic discharge of 12kV, and is pre-fitted to make it even easier to install the motherboard. As an added bonus, its sleek new design makes it look as good as it performs!

Rog gives you more

Beyond VR READY

ROG Crosshair VI Extreme isn't just VR ready — it goes way beyond! The ASUS ROG Beyond VR Ready marque means that ROG Crosshair VI Extreme has been tested with loads of class-leading components to ensure that your productivity, gaming and entertainment needs are tuned for maximum performance. ASUS ROG Beyond VR Ready opens up a new way to configure and build your dream system with total confidence.

Specifications

CPU

• AMD AM4 Socket for AMD Ryzen/7th Generation A-series/Athlon Processors

• Supports AM4 Socket 14 nm CPU

• Supports CPU up to 8 cores

Chipset

• AMD X370

Memory

• AMD Ryzen Processors

• 4 x DIMM, Max. 64GB, DDR4 3200(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *

• AMD 7th Generation A-series/Athlon Processors

• 4 x DIMM, Max. 64GB, DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory *

• Dual Channel Memory Architecture

• * Hyper DIMM support is subject to the physical characteristics of individual CPUs.

Multi-GPU Support

• Supports NVIDIA® 2-Way SLI Technology *1

• Supports AMD 3-Way CrossFireX Technology *1

Expansion Slots

• AMD Ryzen Processors

• 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) *2

• AMD 7th Generation A-series/Athlonâ„¢ Processors

• 1 x PCIe 3.0/2.0 x16 (x8 mode)

• AMD X370 chipset

• 1 x PCIe 2.0 x16 (max at x4 mode) *3

• 3 x PCIe 2.0 x1 *3

Storage

• AMD Ryzen Processors :

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)*2

• AMD 7th Generation A-series/Athlonâ„¢ Processors :

• 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

• AMD X370 chipset :

• 8 x SATA 6Gb/s port(s),

• Support Raid 0, 1, 10

LAN

• Intel® I211-AT, 1 x Gigabit LAN Controller(s)

• Anti-surge LANGuard

• ROG GameFirst IV

Wireless Data Network

• Wi-Fi 802.11 a/b/g/n/ac

• Supports dual band frequency 2.4/5 GHz

• Supports MU-MIMO

Bluetooth

• Bluetooth V4.2*4

Audio

• ROG SupremeFX 8-Channel High Definition Audio CODEC S1220

• - Impedance sense for front and rear headphone outputs

• - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

• - SupremeFX Shielding Technology

• - ESS® ES9023P

• - Supports up to 32-Bit/192kHz playback *5

• Audio Feature :

• - Gold-plated jacks

• - Optical S/PDIF out port(s) at back panel

• - Sonic Radar III

• - Sonic Studio III

USB Ports

• AMD Ryzen/7th Generation A-series/Athlon Processors :

• 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue)

• AMD X370 chipset :

• 6 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 4 at mid-board)

• AMD X370 chipset :

• 5 x USB 2.0 port(s) (4 at back panel, black, 1 at mid-board)

• ASMedia® USB 3.1 Gen 2 controller :

• 1 x USB 3.1 Gen 2 front panel connector port(s)

• ASMedia® USB 3.1 Gen 2 controller :

• 2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A + USB Type-CTM)

ROG Exclusive Features

• Clear CMOS button

• ROG RAMCache II

• ROG CPU-Z

• ROG CloneDrive

• Pre-mounted I/O Shield

• Slow Mode

• Overwolf

• ReTry Button

• Safe Boot Button

• Start Button

• Reset Button

• LN2 Mode

• GameFirst IV

• Extreme Engine Digi+ :

• - MicroFine Alloy Chokes

• - NexFETâ„¢ Power Block MOSFET

• - 10K Black Metallic Capacitors

• Mem TweakIt

• KeyBot II

• - One-click Overclocking

• - DirectKey

• - ClrCMOS

• - Power On

• UEFI BIOS features :

• - O.C. Profile

• - Tweakers' Paradise

• - ROG SSD Secure Erase

• - Graphic Card Information Preview

• ROG RAMDisk

• Extreme Tweaker

• USB BIOS Flashback

Special Features

• ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :

• - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App

• TPU

• - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors

• Gamer's Guardian:

• - SafeSlot

• AURA :

• - Aura Lighting Control

• - Aura RGB Strip Headers

• - Aura Lighting Effects Synchronization with compatible ASUS ROG devices

• - Aura Addressable Strip Header(s)

• ASUS Exclusive Features :

• - AI Suite 3

• ASUS EZ DIY :

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS USB BIOS Flashback

• ASUS Q-Design :

• - ASUS Q-Code

• - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

• - ASUS Q-DIMM

• - ASUS Q-Connector

• Overclocking Protection :

• - ASUS C.P.R.(CPU Parameter Recall)

Back I/O Ports

• 1 x LAN (RJ45) port(s)

• 1 x USB 3.1 Gen 2 (black)USB Type-CTM

• 1 x USB 3.1 Gen 2 (red)Type-A

• 6 x USB 3.1 Gen 1 (blue)

• 4 x USB 2.0 (one port can be switched to USB BIOS Flashback)

• 1 x Optical S/PDIF out

• 1 x Clear CMOS button(s)

• 1 x USB BIOS Flashback Button(s)

• 1 x ASUS 2x2 Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.2 module

• 5 x Gold-plated audio jacks

Internal I/O Ports

• 1 x Aura Addressable Strip Header(s)

• 2 x Aura RGB Strip Headers

• 2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

• 1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)

• 1 x M.2 Socket 1 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)

• 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)

• 1 x TPM header

• 8 x SATA 6Gb/s connector(s)

• 1 x CPU Fan connector(s) (1 x 4 -pin)

• 1 x CPU OPT Fan connector(s) (1 x 4 -pin)

• 1 x Chassis Fan connector(s) (1 x 4 -pin)

• 1 x W_PUMP+ connector (1 x 4 -pin)

• 1 x 8-pin EATX 12 V Power connector

• 1 x 4-pin EATX 12 V_1 Power connector(s)

• 1 x 24-pin EATX Power connector(s)

• 1 x Front panel audio connector(s) (AAFP)

• 1 x Internal speaker connector(s)

• 1 x System panel(s) (Q-Connector)

• 1 x Slow Mode switch(es)

• 7 x ProbeIt Measurement Points

• 1 x EZ Plug connector(s) (4-pin Molex power connector)

• 1 x Reset button(s)

• 1 x 5-pin EXT_FAN(Extension Fan) connector

• 1 x LN2 Mode jumper(s)

• 1 x ROG extension (ROG_EXT) header(s)

• 1 x Safe Boot button

• 1 x ReTry button

• 1 x W_IN header

• 2 x W_OUT header

• 1 x W_FLOW header

• 1 x Thermal sensor connector

• 1 x Start button

• 1 x USB 3.1 Gen 2 front panel connector

• 1 x 9 pin Monoblock sensor

• 8 x Radiator Fan Headers

Accessories

• User's manual

• 1 x ROG logo plate sticker

• 8 x SATA 6Gb/s cable(s)

• 1 x M.2 Screw Package

• 1 x Supporting DVD

• 1 x Fan Extension Card (3 x 4-pin fan out)

• 1 x Fan Extension card screw pack

• 1 x Fan Extension card cable

• 1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n compliant)

• 1 x SLI HB BRIDGE(2-WAY-M)

• 1 x ROG big sticker

• 1 x Q-Connector

• 1 x 10-in-1 ROG cable label

• 1 x Extension Cable for RGB strips (80 cm)

• 1 x Extension cable for Addressable LED

• 3 x Thermistor cable(s)

• 1 x ROG coaster(s)

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Manageability

• WfM 2.0, WOL by PME, PXE

Support Disc

• Drivers

• AURA

• ROG GameFirst IV*5

• ROG RAMDisk

• ROG RAMCache II

• ROG CPU-Z

• ROG Mem TweakIt

• ROG Keybot II

• Sonic Studio III

• Sonic Radar III

• Overwolf

• CloneDrive

• Kaspersky® Anti-Virus

• DAEMON Tools Software

• Winzip

ASUS Utilities

• Operating System

• Windows® 10 64-bit

Form Factor

• Extended ATX Form Factor

• 12 inch x 10.6 inch ( 30.5 cm x 26.9 cm )
