Cooler Master  MasterLiquid maker 240 RGB

INTRODUCING

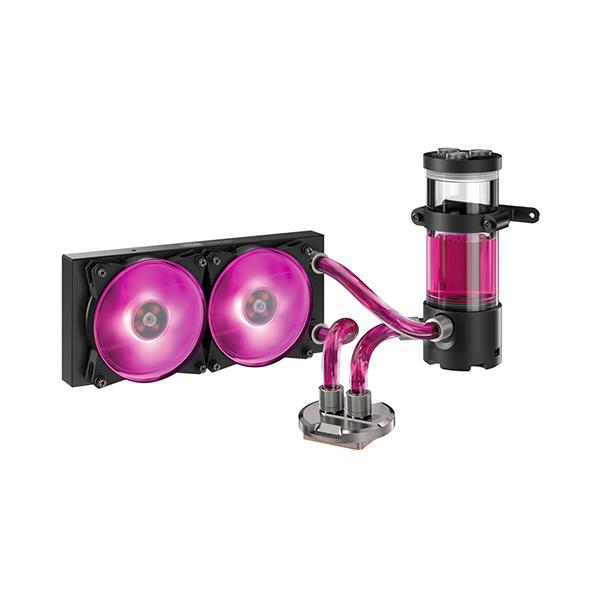

THE MASTERLIQUID MAKER 240

Cooler Master is a world leading thermal solution provider with a long history of high performance, innovative thermal solutions for the PC. It now introduces its first liquid cooling kit for CPUs, blending high performance, low noise with an extensible design that allows users the flexibility to customize it to meet their needs. It includes a pure copper CPU block with two 120mm MasterFan Pro RGB fans that features an innovative negative noise technology and an ultra-low noise pump enabling the best possible cooling in silence. It gives the user build flexibility and the ability for future upgradability, while looking awesome with its RGB lighting effects.

HIGH PERFORMANCE PUMP

Our high performance tri-phase PWM water pump/reservoir combo comes with our exclusive in-house design impeller for a more powerful pump.

WATER BLOCK

CONTINUOUS JET IMPINGEMENT COOLING

Generates powerful liquid pressure and directing the liquid to elminate hot spots in the cooler

HIGH PERFORMANCE

COPPER CORE RADIATOR

Copper core radiator with a compact size that can fit most cases while also providing best-in-class performance.

PREMIUM COOLANT

IMPROVES LONG-TERM

RUNNING RELIABILITY

The premium coolant is created with a effective anti-corrosion solution to protect the cooling system and improve the heat transfer to provide the best cooling performance.

RGB IN THE PALM OF YOUR HAND

WITH INCLUDED WIRED RGB CONTROLLER

A compact size RGB LED controller that allows you to easily customize your RGB devices without the need for either an RGB capable motherboard or software. You can have the colorful rig you’ve always wanted with just the touch of a button.

Product Specifications

• Product Name: MasterLiquid Maker 240

• Model: MLZ-N24L-C20PC-R1

• CPU Socket Compatibility

• Intel® LGA 2066 / 2011-v3 / 2011 / 1151 / 1150 / 1155 / 1156 socket

• AMD® AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 socket

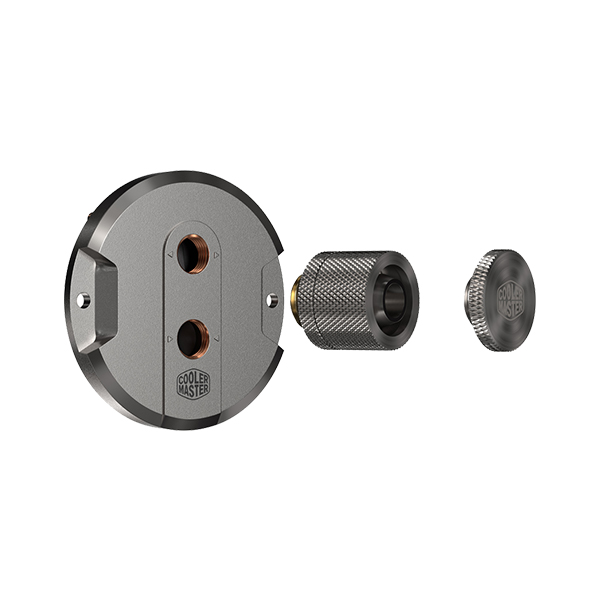

PURE COPPER CPU BLOCK

• Dimensions: Ø84 x 18.9 mm (3.3 x 0.7")

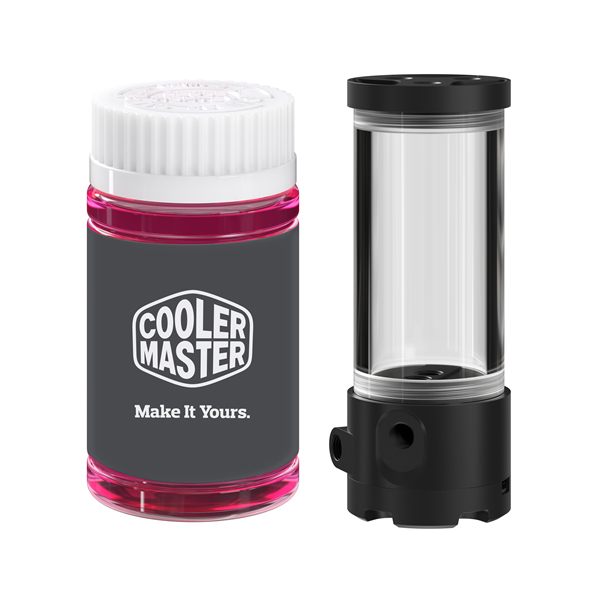

LOW NOISE PUMP-RESERVOIR COMBO

• Combo Dimensions: 76 x 76 x 200 mm (3 x 3 x 7.9")

• Pump

• Connector: 4-Pin (PWM)

• Rated Voltage: 12 V

• Rated Current: 0.65 A

HIGH PERFORMANCE RADIATOR

• Dimensions: 280 x 124 x 29.2 mm (11 x 4.9 x 1.15")

• Material: Copper core (with Aluminum Frame)

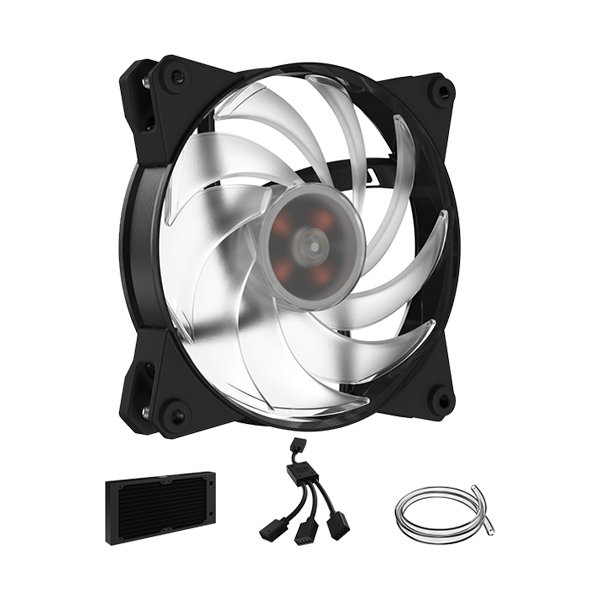

MASTERFAN PRO 120 RGB

• Quantity: 2 pcs

• Dimensions: 120 x 120 x 25mm (4.7 x 4.7 x 1")

• Fan Speed: 650 ~ 2000 RPM ± 10%

• Fan Airflow: 66.7 CFM

• Fan Air Pressure: 2.34 mmH2O

• Noise Level: 6 ~ 30 dBA

• MTTF: 490,000 hours

• L-10 Life: 70,000 hours

• Rated Current: 0.18 A

• Connector: 4-Pin

COMPRESSION FITTING

• Quantity: 6 pcs

• Thread: G 1/4

• ID: 3/8"

• OD: 5/8"

FILL PORT CAP

• Quantity: 3 pcs

• Thread: G ¼

TUBING

• Length: 1.2 Meter

• ID: 3/8"

• OD: 5/8"

PREMINUM COOLANT

• Capacity: 100 mL

• Color: Pink

• Suggested water to coolant ratio: 80% distilled water & 20% coolant

ACCESSORY

• 1-to-2 Fan Splitter x 1

• 1-to-3 RGB Splitter x 1

• Wired RGB Controller x 1

• Pump-Reservoir Mounting Bracket x 1

• EAN Code: 4719512061022

• UPC Code: 884102033629
