Cooler Master MasterAir MA620M Dual Tower RGB CPU Cooler

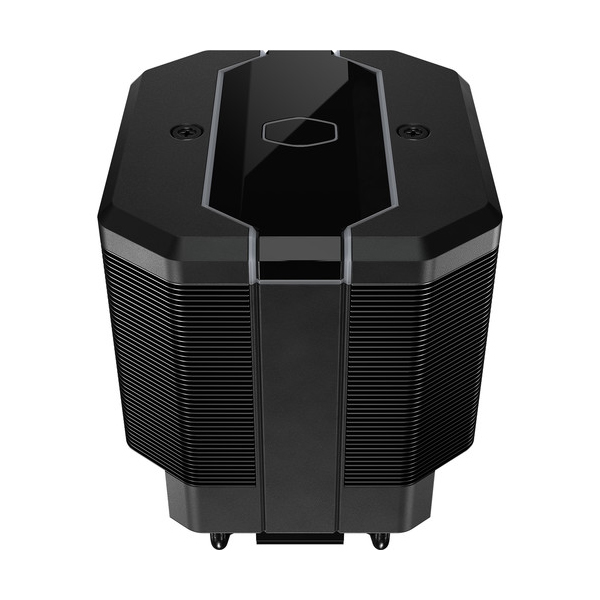

DUAL TOWER HEATSINK

A combination of 2 sets of heatsink allows bigger and more spread out surface area. The black paint enhances radiation cooling performance

6 HEATPIPE ARRAY

Enhanced thermal conductivity and uniform layout distributes heat over more evenly across heatsinks

EASY MOUNTING SYSTEM

Exclusive All-In-One mounting design for easy installation

THE NEW SF120R FAN

with silent driver IC and a wide range of speed settings, it can be used for silent operation or fine-tuned for maximum cooling performance

ADDRESSABLE RGB LED CONTROLLER

The wired Addressable RGB LED Controller allows for customizable colors and effects with just the touch of a button. software

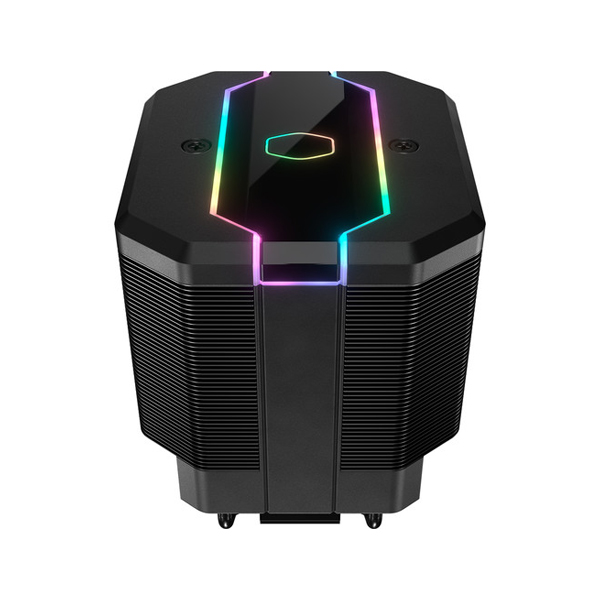

LIGHTING BADGE

The Cooler Master hexagon logo and embedded Addressable RGB lighting strip provides unique perspective light effect

Specifications

• PRODUCT NUMBER : MAM-D6PN-120PA-R1
• CPU SOCKET : LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1
• DIMENSIONS (L X W X H) : 135 x 125 x 165 mm / 5.3 x 4.9 x 6.5 inch
• HEAT SINK MATERIAL : 6 Heat Pipes, Aluminum Fins
• FAN DIMENSIONS (L X W X H) : 120 x 120 x 25 mm / 4.7 x 4.7 x 1 inch
• FAN QUANTITY : 1 PCS
• FAN SPEED : 650-2000 RPM (PWM) ± 10%
• FAN AIRFLOW : 57.3 CFM (Max)
• FAN AIR PRESSURE : 2.0 mmH2O (Max)
• FAN MTTF : 160,000 Hours
• FAN NOISE LEVEL : 8 - 30 dBA
• FAN POWER CONNECTOR : 4-Pin (PWM)
• FAN RATED VOLTAGE : 12VDC
• FAN RATED CURRENT : 0.16A
• FAN SAFETY CURRENT : 0.37A
• FAN POWER CONSUMPTION : 1.92W
• SERIES : MasterAir
• COOLER TYPE : Air Cooler
• HEATPIPES : 6
