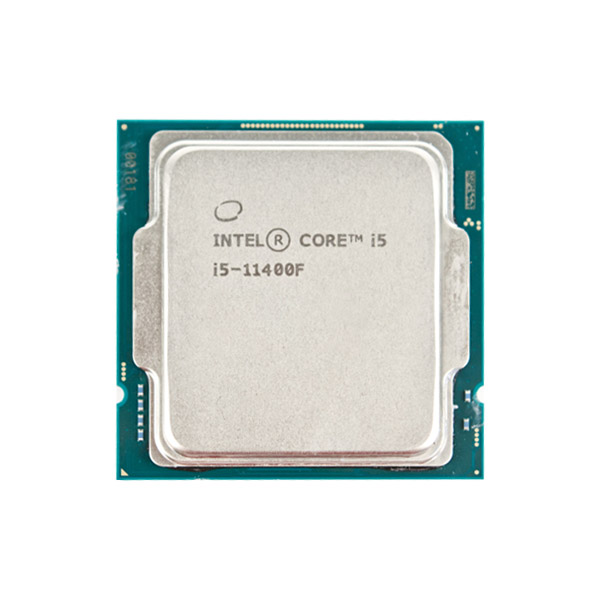

Intel Core i5-11400F 6-Core 11th Gen Processor Only - (OEM - No Fan)

Power up your productivity, gaming, and content creation experiences by installing the Intel Core i5-11400F 2.6 GHz Six-Core LGA 1200 Processor into your computer system. Built using the 14nm process, this 11th generation desktop processor features a base clock frequency of 2.6 GHz and a 4.4 GHz turbo frequency with 12MB of cache, six cores, and twelve threads for fast and reliable performance. The Core i5-11400F also includes support for PCI Express 4.0 and dual-channel DDR4 memory at 3200 MHz to help run and multitask a variety of demanding applications and games using technologies such as built-in AI acceleration. Performance can be further enhanced by installing Intel Optane memory to cache frequently accessed data.

The Core i5-11400F does not include integrated graphics, meaning that users will need to purchase a separate dedicated graphics card. A thermal solution is included to help maintain optimal temperatures and the processor is backed

PCIe 4.0

This processor supports up to 20 PCIe 4.0 lanes, delivering exceptional data throughput with compatible devices.

AI Acceleration

Intel Deep Learning Boost (VNNI) technologies help to enhance the performance of deep learning workloads.

Thunderbolt 4 & USB4

With Thunderbolt 4 technology, this processor supports data transfer speeds of up to 40 Gb/s with compatible devices and you can connect up to two 4K monitors simultaneously. USB4 technology supports a 20 Gb/s throughput with compatible devices and up to one 4K monitor.

Specifications

Essentials

• Product Collection : 11th Generation Intel® Core i5 Processors

• Code Name : Products formerly Rocket Lake

• Vertical Segment : Desktop

• Processor Number : i5-11400F

• Status : Launched

• Launch Date : Q1'21

• Lithography : 14 nm

• Use Conditions : PC/Client/Tablet

CPU Specifications

• # of Cores : 6

• # of Threads : 12

• Processor Base Frequency : 2.60 GHz

• Max Turbo Frequency : 4.40 GHz

• Cache : 12 MB Intel® Smart Cache

• Bus Speed : 8 GT/s

• Intel® Turbo Boost Technology 2.0 Frequency : 4.40 GHz

• TDP : 65 W

Supplemental Information

• Embedded Options Available : No

• Memory Specifications

• Max Memory Size (dependent on memory type) : 128 GB

• Memory Types : DDR4-3200

• Max # of Memory Channels : 2

• Max Memory Bandwidth : 50 GB/s

• ECC Memory Supported  : No

Expansion Options

• Scalability : 1S Only

• PCI Express Revision : 4.0

• PCI Express Configurations  : Up to 1x16+1x4, 2x8+1x4, 1x8+3x4

• Max # of PCI Express Lanes : 20

Package Specifications

• Sockets Supported : FCLGA1200

• Max CPU Configuration : 1

• Thermal Solution Specification : PCG 2019C

• TJUNCTION : 100°C

• Package Size : 37.5 mm x 37.5 mm

Advanced Technologies

• Intel® Deep Learning Boost (Intel® DL Boost) : Yes

• Intel® Optane Memory Supported  : Yes

• Intel® Thermal Velocity Boost : No

• Intel® Turbo Boost Max Technology 3.0  : No

• Intel® Turbo Boost Technology : 2.0

• Intel vPro® Platform Eligibility  : No

• Intel® Hyper-Threading Technology  : Yes

• Intel® Virtualization Technology (VT-x)  : Yes

• Intel® Virtualization Technology for Directed I/O (VT-d)  : Yes

• Intel® VT-x with Extended Page Tables (EPT)  : Yes

• Intel® 64  : Yes

• Instruction Set : 64-bit

• Instruction Set Extensions : Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2, Intel® AVX-512

• Idle States : Yes

• Enhanced Intel SpeedStep® Technology : Yes

• Thermal Monitoring Technologies : Yes

• Intel® Identity Protection Technology  : Yes

• Intel® Stable Image Platform Program (SIPP) : No

• Intel® Gaussian and Neural Accelerator 2.0 : Yes

Security & Reliability

• Intel® AES New Instructions : Yes

• Secure Key : Yes

• Intel® Software Guard Extensions (Intel® SGX) : No

• Intel® OS Guard : Yes

• Intel® Trusted Execution Technology  : No

• Execute Disable Bit  : Yes

• Intel® Boot Guard : Yes
