6 Cores & 12 Threads
3.6 GHz Base Clock
4.1 GHz Max Boost Clock
Socket AM4
3MB L2 & 8MB L3 Cache
DDR4-3200 Memory
Includes Wraith Stealth Cooler
Unlocked Processor
Zen 2 Architecture

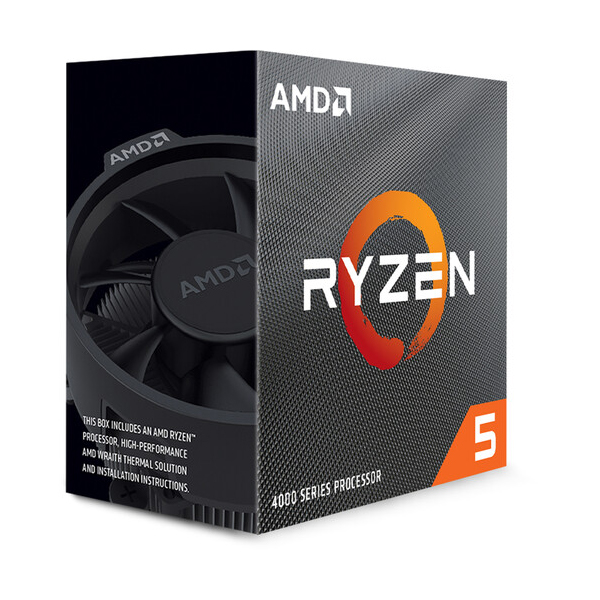

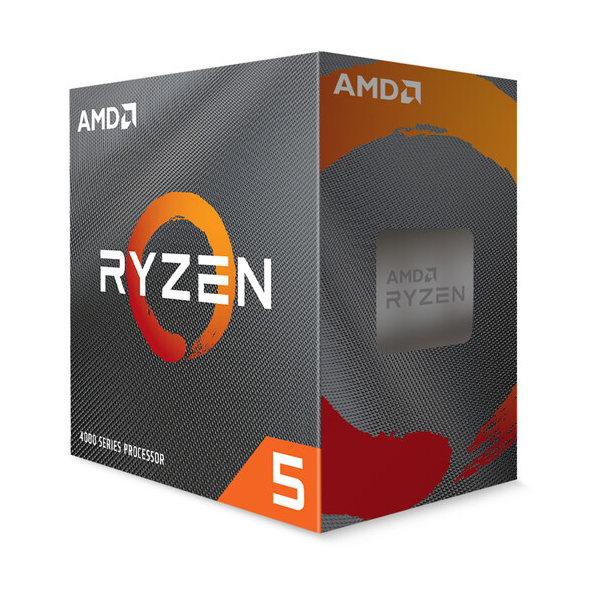

Power up your computing experience with the AMD Ryzen 5 4500 3.6 GHz Six-Core AM4 Processor, which features six cores and 12 threads to help quickly load and multitask demanding applications. Designed for socket AM4 motherboards and featuring the 7nm Zen 2 architecture, this 4th generation processor is designed to provide fast, power efficient performance. With a base clock speed of 3.6 GHz and a max boost clock speed of 4.1 GHz in addition to 8MB of L3 Cache, the Ryzen 5 4500 is built to deliver the power needed to smoothly handle tasks ranging from content creation to immersive gaming experiences. You can boost performance further by overclocking this unlocked processor. Other features include support for PCIe Gen 3 technology and 3200 MHz DDR4 RAM. This processor has a 65W TDP (Thermal Design Power) and includes a Wraith Stealth cooling solution. Please note that it does not have an integrated GPU, so a dedicated graphics card is required.
AMD StoreMI Technology
Platform : Desktop
Market Segment : Mainstream Desktop
Product Family : AMD Ryzenâ„¢ Processors
Product Line : AMD Ryzenâ„¢ 5 Desktop Processors
Consumer Use : Yes
Regional Availability : Global, China, NA, EMEA, APJ, LATAM
Former Codename : "Renoir"
Architecture : "Zen 2"
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 4.1GHz
Base Clock : 3.6GHz
L1 Cache : 384KB
L2 Cache : 3MB
L3 Cache : 8MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 7nm FinFET
CPU Compute Die (CCD) Size : 180mm²
Package Die Count : 1
Unlocked for Overclocking : Yes
CPU Socket : AM4
Socket Count : 1P
Supporting Chipsets : X570
X470
X370
B550
B450
B350
A520
A320
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
Thermal Solution (PIB) : AMD Wraith Stealth
Max. Operating Temperature (Tjmax) : 95°C
*OS Support : Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.
Connectivity
USB Type-C® Support : Yes
Native USB 3.2 Gen 2 (10Gbps) Ports : 4
Native USB 3.2 Gen 1 (5Gbps) Ports : 0
Native USB 2.0 (480Mbps) Ports : 0
Native SATA Ports : 2
PCI Express® Version : PCIe 3.0
Native PCIe® Lanes (Total/Usable) : 24/20
Additional Usable PCIe Lanes from Motherboard : AMD X570 16x Gen 3
AMD X470 2x Gen 3
AMD X470 8x Gen 2
NVMe Support : Boot, RAID0, RAID1, RAID10
System Memory Type : DDR4
Memory Channels : 2
Max. Memory : 128GB
System Memory Subtype : UDIMM
System Memory Specification : Up to 3200MHz
Max Memory Speed : 2x1R DDR4-3200
2x2R DDR4-3200
4x1R DDR4-2933
4x2R DDR4-2667
Graphics Capabilities
Integrated Graphics : No
Graphics Model : Discrete Graphics Card Required
Product IDs
Product ID Boxed : 100-100000644BOX
Product ID Tray : 100-000000644
Key Features
Supported Technologies :
AMD StoreMI Technology
AMD "Zen 2" Core Architecture
AMD Ryzenâ„¢ VR-Ready Premium
