Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
Supports DDR4 Memory, up to 5333+(OC) MHz
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
Enhanced Power Design: 16+1+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Premium Thermal Solution: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
High Quality PCB: 6-layer PCB made by server grade level material
Pre-installed I/O Shield: Better EMI protection and more convenience for installation

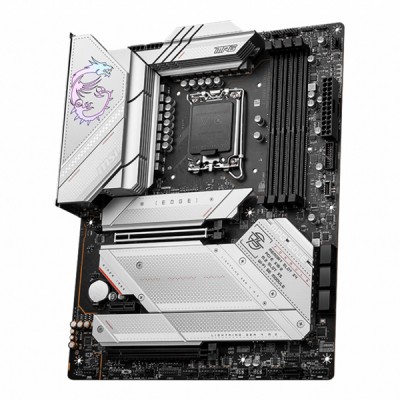

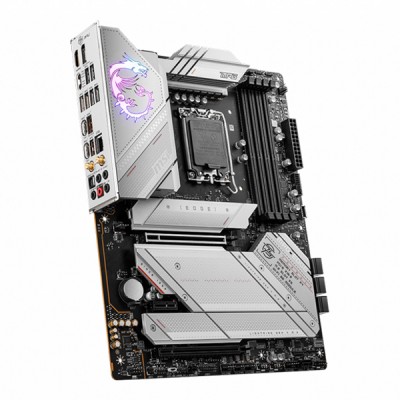

MPG Z790 EDGE WIFI DDR4 employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2x2 20G
Using USB 3.2 devices has never been faster! MPG Z790 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
glow your pc
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI's premium network solution provides incredible data transfer speed for demanding users.
LGA 1700
Memory Support 5333/5200/5066/5000/4800/4600/4533/4400/4266/4000/3866/3733/3600/3466/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
1x DisplayPort
Support HDMIâ„¢ 2.1, maximum resolution of 4K 60Hz*
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x PCI-E x1 slot
PCI_E1 PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 PCIe 4.0 supports up to x4 (From Chipset)
M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_5 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
7x SATA 6G port
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1~A2 do not support RAID function.
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11."
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0
2x USB 3.2 Gen1 Type A
1x USB 3.2 Gen2 Type C
1x EZ LED Control switch
Display Port
USB 3.2 Gen 1 5 Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMIâ„¢
Clear CMOS / Flash BIOS
USB 3.2 Gen 2 10Gbps (Type-A)
USB 3.2 Gen 2 10Gbps (Type-C)
USB 3.2 Gen 2x2 20Gbps (Type-C)
Optical S/PDIF Out
243.84mmx304.8mm
