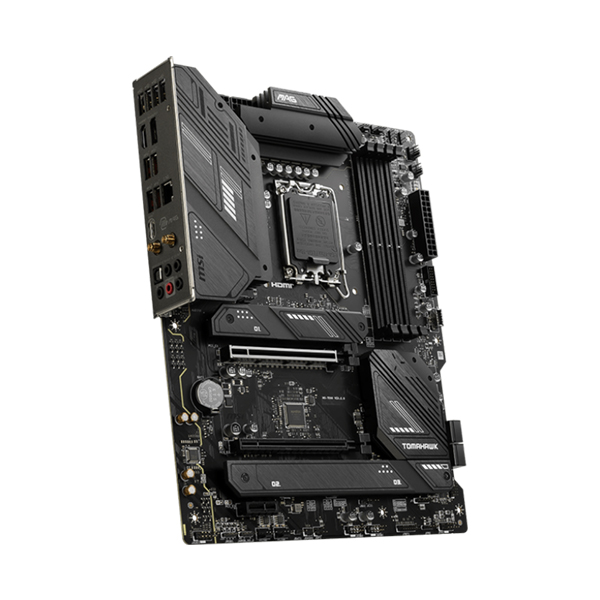

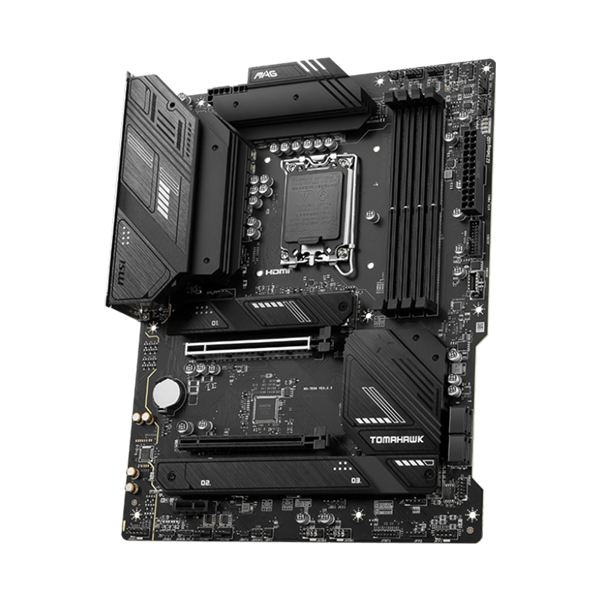

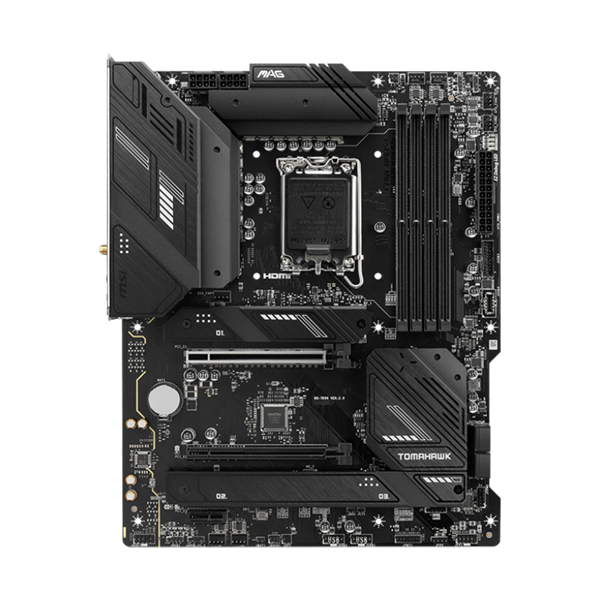

MSI MAG B760 TOMAHAWK WIFI DDR5 ATX Motherboard

The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.

OPTIMIZED FOR WATER COOLING

Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.

12+1+1 DUET rAIL POWER SYSTEM

Unleash and sustain maximum performance with an aggressive VRM design built with digital CPU power system. Combining 8 + 8-pin power connectors and exclusive Core Boost technology, MAG B760 series motherboard is ready to sustain heavy gaming loadings.

Diy Friendly

Have trouble turning screws? MSI innovative EZ M.2 clip assist you install an M.2 SSD quickly and effortlessly.

Connectivity

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

• Wi-Fi 6E

• Bluetooth 5.3

• 2.5G LAN

Specifications

• Chipset  : INTEL B760
• CPU SUPPORT  :  Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

                                                LGA1700

• Memory   :  4x DDR5, Maximum Memory Capacity 192GB

                            Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
                                Max. overclocking frequency:
                                • 1DPC 1R Max speed up to 7000+ MHz
                                • 1DPC 2R Max speed up to 6600+ MHz
                                • 2DPC 1R Max speed up to 6400+ MHz
                                • 2DPC 2R Max speed up to 5600+ MHz
                                Supports Dual-Channel mode
                                Supports non-ECC, un-buffered memory
                                Supports Intel® Extreme Memory Profile

• Onboard Graphics  :   1x HDMI™

                                Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
                                1x DisplayPort
                                Support DP 1.4, maximum resolution of 8K 60Hz*
                                *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• EXPANSION SLOT   :  2x PCI-E x16 slot

                                Supports x16/x4
                                1x PCI-E x1 slot
                                PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
                                PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
                                PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

• Storage  :   3x M.2

                                M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
                                M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
                                M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
                                4x SATA 6G

• RAID  :   Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• USB :    4x USB 2.0 (Rear)

                            4x USB 2.0 (Front)
                            2x USB 3.2 Gen1 Type A (Front)
                            4x USB 3.2 Gen2 Type A (Rear)
                            1x USB 3.2 Gen2 Type C (Front)
                            1x USB 3.2 Gen2x2 Type C (Rear)

• LAN   :  Realtek® 2.5Gbps LAN

• WIRELESS / BLUETOOTH   :  Intel® Wi-Fi 6E

              The Wireless module is pre-installed in the M.2 (Key-E) slot
            Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
            Supports 802.11 a/ b/ g/ n/ ac/ ax
            Supports Bluetooth® 5.3, FIPS, FISMA
            * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
            ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

• Audio   :  Realtek® ALC897 Codec

                            7.1-Channel USB High Performance Audio
                            Supports S/PDIF output

• Internal I/O  :   1x Power Connector(ATX_PWR)

                                        2x Power Connector(CPU_PWR)
                                      1x CPU Fan
                                      1x Pump Fan
                                      5x System Fan
                                      2x Front Panel (JFP)
                                      1x Chassis Intrusion (JCI)
                                      1x Front Audio (JAUD)
                                      1x TBT connector (JTBT, supports RTD3)
                                      1x Tuning Controller connector(JDASH)
                                      2x Addressable V2 RGB LED connector (JARGB_V2)
                                      2x RGB LED connector(JRGB)
                                      1x TPM pin header(Support TPM 2.0)
                                      4x USB 2.0 ports
                                      2x USB 3.2 Gen1 Type A ports
                                      1x USB 3.2 Gen2 Type C ports

• LED FEATURE  :   4x EZ Debug LED

• BACK PANEL PORTS

                            USB 2.0
                            DisplayPort 1.4
                            USB 3.2 Gen 2 10Gbps Type-A
                            2.5G LAN Port
                            Wi-Fi / Bluetooth Antenna
                            HD Audio Connectors
                            HDMI™ 2.1 Port
                            USB 3.2 Gen 2x2 20Gbps Type-C
                            Optical S/PDIF OUT

• OPERATING SYSTEM  :   Support for Windows® 11 64-bit, Windows® 10 64-bit

• PCB Dimension  :    ATX

                                                 243.84mmx304.8mm
