Supports 12th/ 13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
M-Vision Dashboard: The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
Extreme Power Design: 26+2 phases power design with 105A Smart Power Stage and dual CPU power connectors are ready to unleash the maximum performance.
Premium Thermal Module: Wavy fin design, Direct Touch Cross Heat-pipe, Aluminum Cover, 7W/mK thermal pads, Double-Sided M.2 Shield Frozr and Frozr AI software ensure the utmost performance with low temperature.
Maximum 7 x M.2 Connectors: Onboard septuple M.2 connectors including one PCIe 5.0 solution for the maximum storage performance. The double-sided Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Latest Network Solution: Onboard 10G Super LAN, Intel 2.5G LAN and the latest Wi-Fi 6E solution deliver the best online experience without lag.
Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 5 x4 M.2, Dual Front USB 3.2 Gen 2x2 20G with one 60W USB Power Delivery.
DIY Friendly Design: Patented Magnetic & Screwless M.2 Shield Frozr, EZ M.2 Clips, Smart Button, Pre-installed I/O Shield, Steel Armor, Metal Backplate
8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.
Audio Boost 5 HD: Ultimate audio solution with the latest premium ALC4082 audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience.

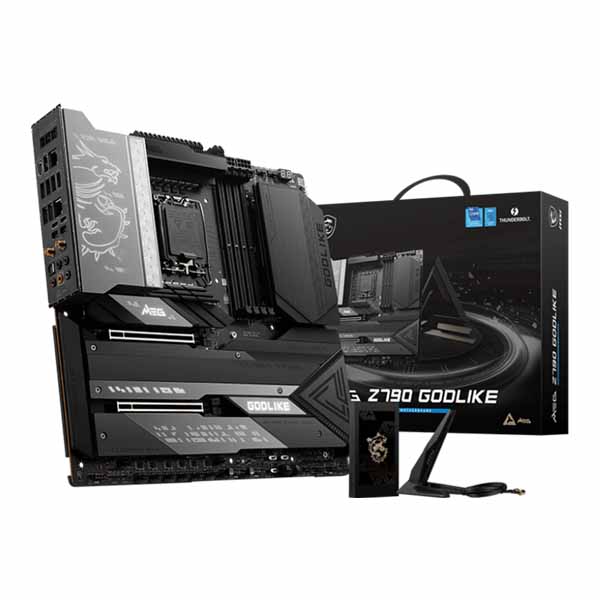

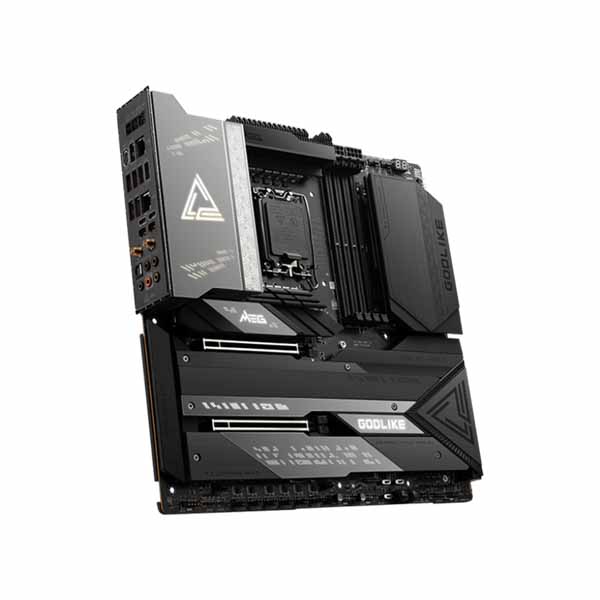

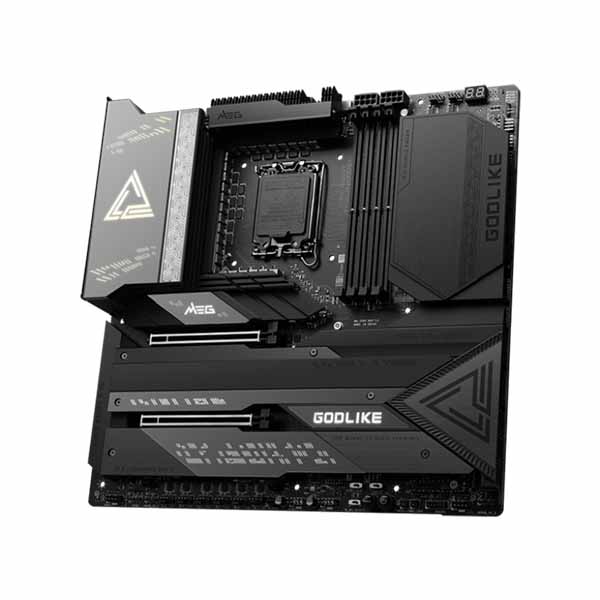

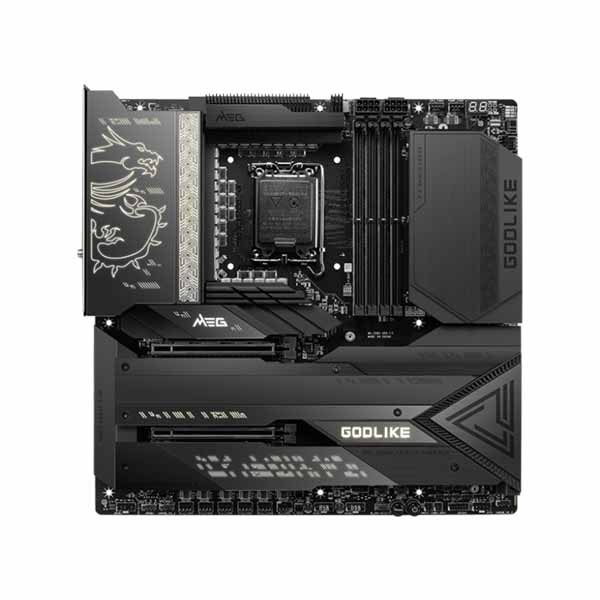

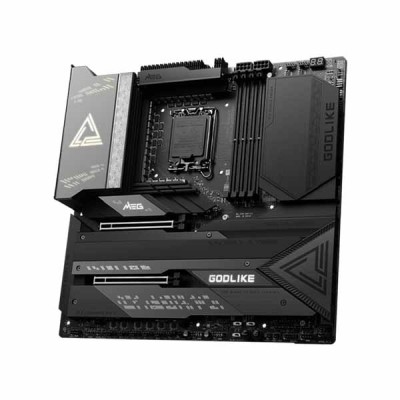

Designed with a black and heavy heatsink which comes with dark mirror and time carving design in pale gold illuminating that symbolizes the timeless form and function as well as representing perfection in its purest form. Featuring the latest technology, high-speed transmission, ultra-performance, and industry's first M-Vision Dashboard, the MEG Z790 GODLIKE is developed to unleash the extreme gaming potential of the latest 13th Gen Intel® Core processor and is ready to rule the tournament once again.
EXTREME THERMAL & POWER SOLUTION
The heat dissipation module is one of the biggest contributors to keeping GODLIKE efficient and cool. The flagship and exclusive cooling solution make it unnecessary for gamers to worry about temperature problems.
LIGHTNING FAST STORAGE
Onboard septuple M.2 connectors for the maximum storage performance with one Lightning Gen 5 solution.
Lightning Gen 5 M.2 solution delivers 12,311MB/s read speed and 11,507 write speed to meet the demanding hardcore users.
Double-sided M.2 Shield Frozr keeps M.2 SSDs safe while preventing throttling, making them run faster.
The screwless M.2 patented design allows you to set your M.2 and Shield Frozr without the annoying screws, provides the easiest way for M.2 installation.
The patented magnetic M.2 Shield Frozr design enables true “wire-less” RGB function, enhances the installation process and maximizes the storage performance.
LATEST CONNECTIVITY
Onboard 10G Super LAN and 2.5G LAN deliver the best online experience without lag.
The latest Wi-Fi 6E solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Thunderbolt 4 brings USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining, Multi-Port Accessory Architecture and USB 4.0 Compliant.
M-VISION DASHBOARD
The touchable 4.5-inch full-color IPS LCD not only indicates the status of your gaming rig which combines hardware monitor and debug function, but also allows system operation and customization with touch control.
Illusion Lighting
MEG Z790 GODLIKE features Illusion Lighting effect that adopts exclusive multiple structure, which allows GODLIKE to displays dual patterns in one area. The non-overlapping dual patterns not only showoff the well crafted of the GODLIKE, but also reinforce the DIY and MEG spirit.
Lightning Gen 5
The latest and the fastest PCI-e data transfer solution can reach 128GB/s of unidirectional transfer bandwidth of a x16 interface that has doubled compared to its previous generation. Optimized by Steel Armor design and server grade PCB, you can enjoy next-gen devices without any compromise.
Latest DDR5 Memory
Take a huge step of DDR performance upgrade with the latest DDR5 memory. Combining a dedicated SMT welding process and with MSI memory boost technology, the MEG Z790 GODLIKE are ready to deliver world-class memory performance.
LGA 1700
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
2x Thunderbolt4 (USB-C) ports Q’ty
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display (need to connect the DisplayPort of the discrete graphics card to the Mini DisplayPort Input port on the back panel)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices
M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_5 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260 devices
M.2_6 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_7 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
*PCI_E2 slot will be unavailable when installing M.2 SSD in the M2_4 slot.
**SATA5~8 will be unavailable when installing M.2 PCIe SSD in the M2_5 slot.
***SATA5~8 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*SATA_A1_A2 do not support RAID function.
4x USB 3.2 Gen1 Type A (Front)
7x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
2x USB 3.2 Gen2x2 Type C (Front)
*To achieve 60W PD fast charging for JUSB6, the PD_PWR1 connector needs to be connected to the power supply unit.
**JUSB6 doesn’t support USB 2.0 and older USB devices.
Intel® 2.5Gbps LAN
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
2x Power Connector(CPU_PWR)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
2x Pump Fan
7x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Water Flow connector
1x Slow Mode Booting Jumper(JSLOW)
1x Front Audio (JAUD)
2x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
2x USB 3.2 Gen 2x2 Type C ports
V-check point
4x EZ Debug LED
1x 2-Digit Debug Code LED
Clear CMOS Button
Flash BIOS Button
2.5G LAN
10G Super LAN
Thunderbolt 4 40Gbps (Type-C)
Wi-Fi / Bluetooth
Audio Connectors
Smart Button
USB 3.2 Gen 2 10Gbps (Type-C)
USB 3.2 Gen 2 10Gbps (Type-A)
Mini DisplayPort Input (for Thunderbolt passthrough)
Optical S/PDIF-Out
304.8mmx310mm
