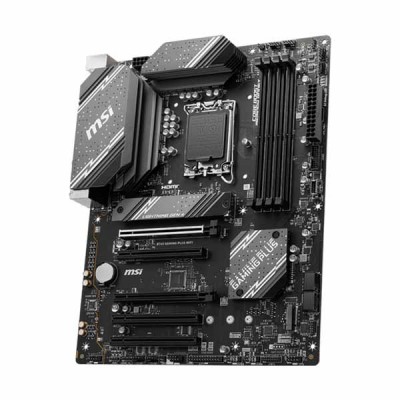

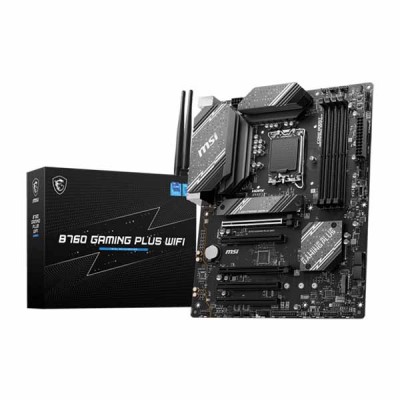

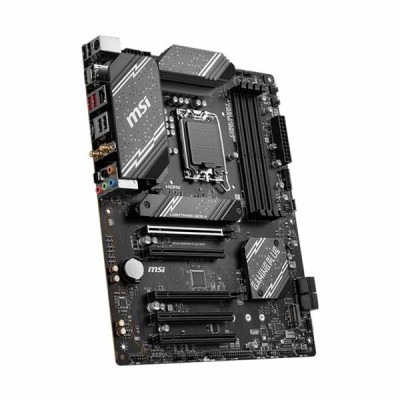

MSI B760 GAMING PLUS WIFI DDR5 ATX Motherboard

B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all

power solution

12+1+1 DUET RAIL POWER SYSTEM

Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, B760 GAMING PLUS WIFI is ready to sustain heavy daily work.

PERFORMANCE

Lightning Gen 4 PCI-e with Steel Armor

LIGHTNING GEN 4 PCI-E

Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.

Memory

LATEST DDR5 MEMORY WITH SMT SLOT

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, B760 GAMING PLUS WIFI motherboards are ready to deliver the world class memory performance.

Connectivity

mystic light

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

Networking

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

Specifications

• Chipset  :   INTEL B760

• CPU SUPPORT  :   Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

                                                LGA 1700

• Memory  :   4x DDR5, Maximum Memory Capacity 192GB

                Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/                     5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

                        Max. overclocking frequency:

                        • 1DPC 1R Max speed up to 6800+ MHz

                        • 1DPC 2R Max speed up to 6400+ MHz

                        • 2DPC 1R Max speed up to 6000+ MHz

                        • 2DPC 2R Max speed up to 5600+ MHz

                        Supports Intel® XMP 3.0 OC

                        Supports Dual-Controller Dual-Channel mode

                        Supports non-ECC, un-buffered memory

• Onboard Graphics   :  1x HDMI™

                    Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz*

                    1x DisplayPort

                    Support DP 1.4, maximum resolution of 4K 60Hz*

                *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

• EXPANSION SLOT  :   5x PCI-E x16 slot

                                           PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

                                           PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)

                                           PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

                                           PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)

                                           PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset)

• Storage  :   2x M.2

                                           M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices

                                           M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices

                                           4x SATA 6G

                                           * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

• RAID  :   Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• USB  :   4x USB 2.0 (Rear)

                                           4x USB 2.0 (Front)

                                           2x USB 3.2 Gen1 Type A (Front)

                                           1x USB 3.2 Gen1 Type C (Front)

                                           2x USB 3.2 Gen2 Type A (Rear)

                                           1x USB 3.2 Gen2 Type C (Rear)

• LAN  :  Realtek® RTL8125BG 2.5G LAN

• WIRELESS / BLUETOOTH  :  Intel® Wi-Fi 6E       The Wireless module is pre-installed in the M.2 (Key-E) slot

       Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps

       Supports 802.11 a/ b/ g/ n/ ac/ ax

       Supports Bluetooth® 5.3, FIPS, FISMA

       * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.

       ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

• Audio  :   Realtek® ALC897 Codec

                        7.1-Channel High Definition Audio
                        Supports S/PDIF output

• Internal I/O   :  1x Power Connector(ATX_PWR)

                                 2x Power Connector(CPU_PWR)
                                 1x CPU Fan
                                 1x Pump Fan
                                 5x System Fan
                                 2x Front Panel (JFP)
                                 1x Chassis Intrusion (JCI)
                                 1x Front Audio (JAUD)
                                 1x Printer Port (JLPT)
                                 1x Com Port (JCOM)
                                 1x TBT connector (JTBT, supports RTD3)
                                 2x Addressable V2 RGB LED connector (JARGB_V2)
                                 1x RGB LED connector(JRGB)
                                 1x TPM pin header(Support TPM 2.0)
                                 4x USB 2.0 ports

                                 2x USB 3.2 Gen1 Type A ports
                                 1x USB 3.2 Gen1 Type C ports

• LED FEATURE  :   4x EZ Debug LED

• BACK PANEL PORTS


                                        Keyboard / Mouse

                                         DisplayPort

                                         2.5G LAN

                                         USB 2.0

                                          Wi-Fi / Bluetooth

                                         Audio Connectors

                                        USB 2.0

                                         HDMI™

                                        USB 3.2 Gen 2 10Gbps (Type-A)

                                         USB 3.2 Gen 2 10Gbps (Type-C)

• OPERATING SYSTEM  :   Support for Windows® 11 64-bit, Windows® 10 64-bit

                                                         S/PDIF-OUT

• PCB Dimension   :  ATX

                                                 243.84mmx304.8mm
