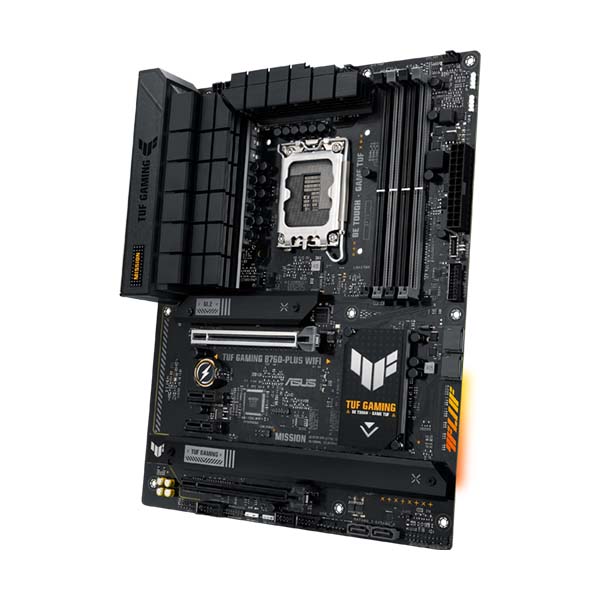

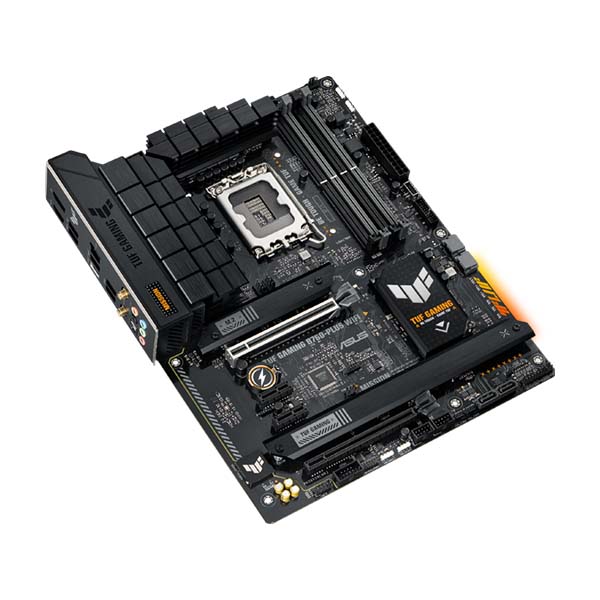

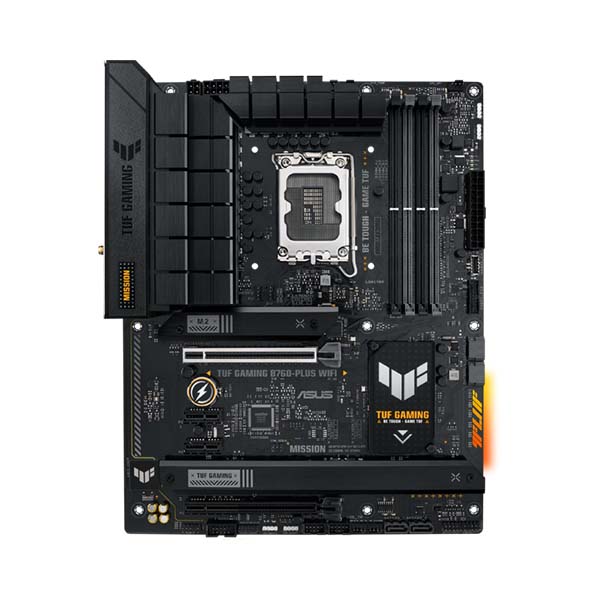

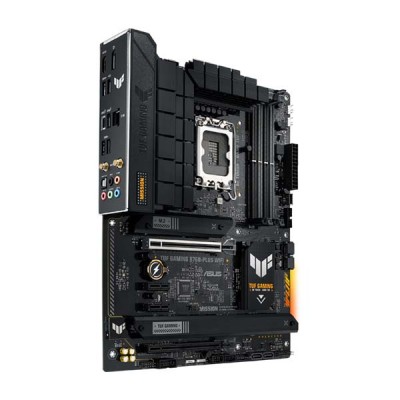

    ASUS TUF GAMING B760-PLUS WIFI DDR5 ATX Motherboard - Black

    Item #9577
    Brand
    : Asus
    Part #
    : 90MB1ER0-M1EAY0
    Availability
    : Out Of Stock
  • Give A Rating

    • Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors

    • Enhanced power solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability

    • Comprehensive cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4

    • Latest connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2x2 Type-C, front panel header for USB 3.2 Gen 2 Type-C and Thunderbolt (USB4) header support

    • Made for online gaming: Intel WiFi 6, Realtek 2.5Gb Ethernet, TUF LANGuar

    • Two-way AI Noise-Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences.

    ASUS TUF GAMING B760-PLUS WIFI DDR5 ATX Motherboard - Black

    TUF GAMING

    B760-PLUS WIFI

    TUF GAMING B760-PLUS WIFI takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.

    INTELLIGENT CONTROL

    The TUF GAMING B760 motherboards pack flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match the way you play.

    POWER SAVING

    All-Around Energy Efficiency

    The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

    UEFI BIOS

    The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners and comprehensive features for seasoned veterans.

    Armoury Crate

    The ASUS-exclusive Armoury Crate software centralizes control of all supported gaming products. A single intuitive interface lets you customize RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from, and enables control of, a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.

    Rock-Solid Performance

    With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR5 memory and PCIe 4.0 storages, the TUF GAMING B760-PLUS WIFI is the perfect foundation for your next Intel battle rig.

    Power Design

    DrMOS Power Stages

    12+1 power stages combine high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.

    Memory & Storage

    Unleash DDR5 With AEMP II

    ASUS Enhanced Memory Profile II is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.
    Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.

    Cooling

    Cooler By Design

    The TUF GAMING B760-PLUS WIFI is armed with an enlarged VRM heatsink, while three M.2 slots and the PCH feature heatsinks that provide the perfect balance of mass and surface area for heat dissipation.

    Connectivity

    The TUF GAMING B760-PLUS WIFI reaches new heights of performance potential with the latest version of PCI Express, while an arsenal of USB ports includes two Type-C connections, and Thunderbolt 4 expands compatibility and bandwidth even further.

    Easy PC DIY

    The TUF GAMING line offers easy setup for all builders. The TUF GAMING Alliance ecosystem grants compatibility, while Armoury Crate has Fan Xpert 4, hardware info, Two-Way AI Noise Cancelation, RGB options and peripheral settings. This platform has intuitive tools to build and optimize dream rigs.

    TUF Gaming Alliance

    Build With Confidence

    TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.

    TUF Protection

    SafeSlot Core+ & SafeDIMM

    SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. Because PCIe 5.0 is two times faster than PCIe 4.0, ASUS enhanced SMT manufacturing processes for the faster SafeSlot Core+ ― all to ensure users get the highest-possible data speeds. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.

    Easy Configuration

    M.2 Q-Latch

    The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
    M.2 Q-Latch.

    Immersive Gaming

    TUF GAMING B760 motherboards provide a feature-packed high-performance gaming package, with ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS Gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.

    Networking

    WIFI 6

    2.5 Gb Ethernet

    2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.

    Two-Way AI Noise Cancelation

    This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are muffled so you can hear and be heard with excellent clarity while gaming or during calls.

    *An audio splitter (3.5 mm audio jack Y-cable) is necessary when using a 3.5 mm headset.

    Audio

    Realtek 7.1 Surround Sound

    The unique audio codec designed in close collaboration with Realtek for TUF GAMING B760 motherboard features an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.

    Lighting

    Outshine The Competition

    A well-tuned system deserves a matching aesthetic. The TUF GAMING B760 series features edge lighting to enhance its rugged look, and ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips. It can all sync with an ever-growing portfolio of Aura-compatible hardware.

    Specifications

    Model : TUF GAMING B760-PLUS WIFI

    CPU

    • Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

    • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

    • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

    Chipset

    • Intel® B760 Chipset

    Memory

    • 4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

    • Dual Channel Memory Architecture

    • Supports Intel® Extreme Memory Profile (XMP)

    • OptiMem II

    • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration

    • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

    Graphics

    • 1 x DisplayPort**

    • 1 x HDMITM port***

    • * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

    • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

    • *** Supports 4K@60Hz as specified in HDMITM 2.1.

    Expansion Slots

    • Intel® 13th & 12th Gen Processors

    • 1 x PCIe 5.0 x16 slot

    • Intel® B760 Chipset

    • 1 x PCIe 3.0 x16 slot (supports x4 mode)*

    • 2 x PCIe 3.0 x1 slots*

    • * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2 . When PCIEX1(G3)_1 or PCIEX1(G3)_2 runs at PCIe x1 mode, PCIEX16(G3) will only run at PCIe x2 mode.

    • - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

    Storage

    • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

    • Intel® 13th & 12th Gen Processors

    • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    • Intel® B760 Chipset

    • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

    • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    • 4 x SATA 6Gb/s ports

    • * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

    Ethernet

    • 1 x Realtek 2.5Gb Ethernet

    • TUF LANGuard

    • Wireless & Bluetooth

    Wi-Fi 6

    • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

    • Supports 2.4/5GHz frequency band

    • Bluetooth® v5.2*

    • *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications."

    USB

    • Rear USB (Total 6 ports)

    • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

    • 1 x USB 3.2 Gen 2 port (1 x Type-A)

    • 3 x USB 3.2 Gen 1 ports (3 x Type-A)

    • 1 x USB 2.0 port (1 x Type-A)

    • Front USB (Total 7 ports)

    • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

    • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

    Audio

    • Realtek 7.1 Surround Sound High Definition Audio CODEC

    • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    • - Supports up to 24-Bit/192 kHz playback

    • Audio Features

    • - Audio Shielding

    • - Rear optical S/PDIF out port

    • - Premium audio capacitors

    • - Dedicated audio PCB layers

    • - Audio cover

    Back Panel I/O Ports

    • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

    • 1 x USB 3.2 Gen 2 port (1 x Type-A)

    • 3 x USB 3.2 Gen 1 ports (3 x Type-A)

    • 1 x USB 2.0 port (1 x Type-A)

    • 1 x DisplayPort

    • 1 x HDMITM port

    • 1 x Wi-Fi Module

    • 1 x Realtek 2.5Gb Ethernet port

    • 5 x Audio jacks

    • 1 x Optical S/PDIF out port

    Internal I/O Connectors

    • Fan and Cooling related

    • 1 x 4-pin CPU Fan header

    • 1 x 4-pin CPU OPT Fan header

    • 1 x 4-pin AIO Pump header

    • 4 x 4-pin Chassis Fan headers

    • Power related

    • 1 x 24-pin Main Power connector

    • 1 x 8-pin +12V Power connector

    • 1 x 4-pin +12V Power connector

    • Storage related

    • 3 x M.2 slots (Key M)

    • 4 x SATA 6Gb/s ports

    • USB

    • 1 x USB 3.2 Gen 2 connector (supports USB Type-C® )

    • 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports

    • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

    • Miscellaneous

    • 3 x Addressable Gen 2 headers

    • 1 x Aura RGB header

    • 1 x Clear CMOS header

    • 1 x COM Port header

    • 1 x Front Panel Audio header (AAFP)

    • 1 x 20-3 pin System Panel header with Chassis intrude function

    • 1 x Thunderbolt™ (USB4®) header

    Special Features

    • ASUS TUF PROTECTION

    • - DIGI+ VRM (- Digital power design with DrMOS)

    • - ESD Guards

    • - TUF LANGuard

    • - Overvoltage Protection

    • - SafeSlot Core+

    • - Stainless-Steel Back I/O

    • ASUS Q-Design

    • - M.2 Q-Latch

    • - Q-DIMM

    • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

    • - Q-Slot

    • ASUS Thermal Solution

    • - M.2 heatsink

    • - VRM heatsink design

    • ASUS EZ DIY

    • - CPU Socket lever protector

    • - ProCool

    • - Pre-mounted I/O shield

    • - SafeSlot Core+

    • - SafeDIMM

    • Aura Sync

    • - Aura RGB header

    • - Addressable Gen 2 headers

    Software Features

    • ASUS Exclusive Software

    • Armoury Crate

    • - Aura Creator

    • - Aura Sync

    • - Fan Xpert 4

    • - Power Saving

    • - Two-Way AI Noise Cancellation

    • AI Suite 3

    • - DIGI+ VRM

    • - PC Cleaner

    • TUF GAMING CPU-Z

    • DTS Audio Processing

    • MyASUS

    • Norton 360 for Gamers

    • WinRAR

    • UEFI BIOS

    • ASUS EZ DIY

    • - ASUS CrashFree BIOS 3

    • - ASUS EZ Flash 3

    • - ASUS UEFI BIOS EZ Mode

    BIOS
    • 128 Mb Flash ROM, UEFI AMI BIOS

    Manageability

    • WOL by PME, PXE

    Accessories

    • Cables

    • 2 x SATA 6Gb/s cables

    • Miscellaneous

    • 1 x ASUS Wi-Fi moving antenna

    • 1 x TUF Gaming sticker

    • 2 x M.2 Rubber Packages

    • 1 x Screw package for M.2 SSD

    • Documentation

    • 1 x TUF Certification card

    • 1 x User guide

    Operating System

    • Windows® 11, Windows® 10 64-bit

    Form Factor

    • ATX Form Factor

    • 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
