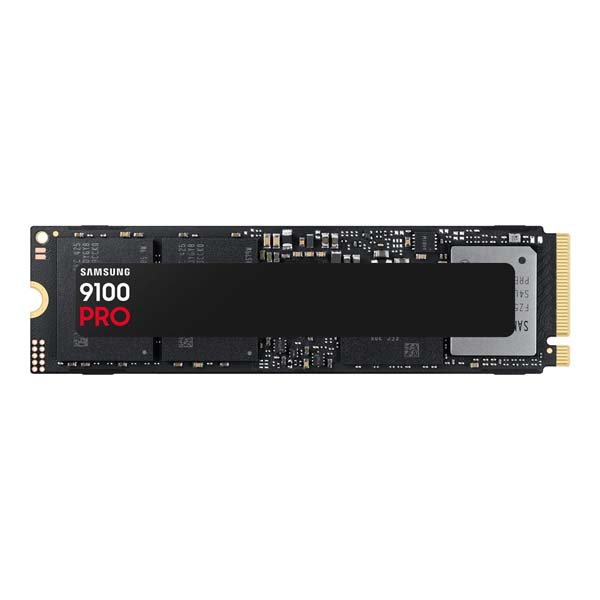

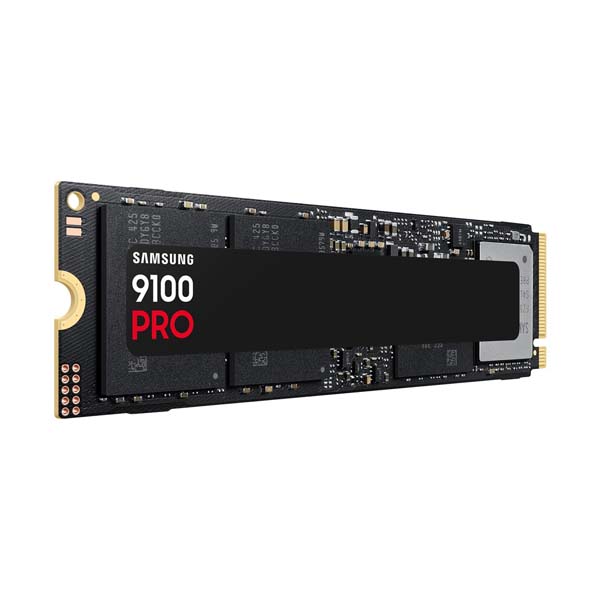

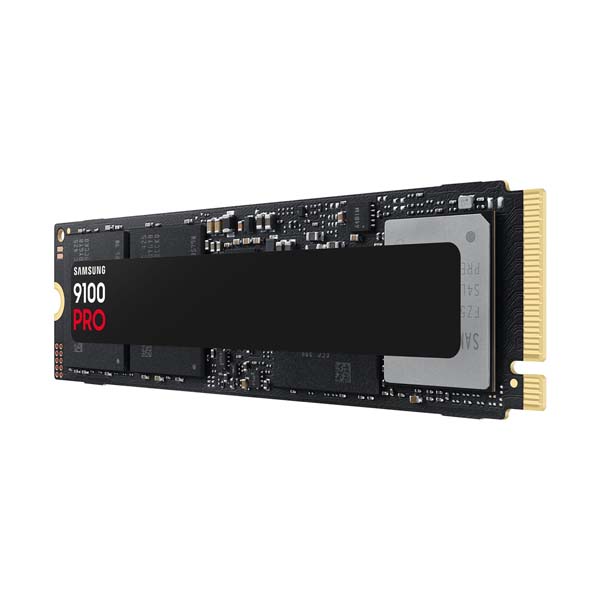

SAMSUNG 9100 PRO PCIe Gen 5x4 M.2 SSD - 1TB

• Samsung NVMe SSD powered by V-NAND technology

• Up to 14,800 MB/s sequential read and 13,400 MB/s write speed

• Up to 2,200K IOPS random read and 2,600K IOPS random write speed

SAMSUNG 9100 PRO PCIe Gen 5x4 M.2 SSD - 1TB

PCIe® 5.0 Performance

Max 14,800/ 13,400 MB/s sequential speeds,two times faster than 990 PRO.

Various game screens are shown centered around the 9100 PRO, and it says "8TB".

Expanded Experience

Super massive capacity with exceptional compatibility*.

*Availability may vary depending on market and timing.

Innovative Power & Thermal Control

Enhanced power efficiency with advanced thermal control

Breakthrough PCIe® 5.0 performance

Push PCIe® 5.0 performance to the max. 9100 PRO achieves lightning-fast sequential read/write speeds up to 14,800/ 13,400 MB/s, two times faster than 990 PRO*. Leave Gen4 limits behind with random read/write speeds up to 2,200K/ 2,600K IOPS, made possible by Gen5.

Every task, powerfully parallel

Speed past productivity limits. Exhilarating random read/ write speeds enable ultra-fast parallel processing for countless fragmented data, at up to 2,200K/2,600K IOPS. Experience superior output and instant loads for huge games, high-performance tasks, and even AI applications.

Create with AI

Intelligence redefines performance. Defy your limits in work and play with an on-board AI PC and AI content generation, fuelled by 9100 PRO’s exhilarating random read/write speeds up to 2,200K/ 2,600K IOPS*. Swift loads, smooth gameplay, seamless performance.

Exceptional experience

Elevate your competitive edge. Breeze through video editing, 3D art, and streaming sessions with the latest PCIe® 5.0 interfaces. Experience cutting-edge performance anytime, anywhere, on compatible devices, and choose the storage you need with expansive capacity up to 8TB*.

Extraordinary thermal efficiency

Consistent peak performance. The advanced 5nm controller power architecture enhances power efficiency up to 49% over 990 PRO*. Exceptional thermal control minimises disruption, so you can keep the most demanding programs running with the max possible power of PCIe® 5.0.

Samsung Magician software

Make your SSD work like magic. Samsung Magician software's optimization tools ensure the best SSD performance. It's a safe and easy way to migrate all your data for a Samsung SSD upgrade. Protect valuable data, monitor drive health, and get the latest firmware updates.

Bringing innovations to life

For decades, Samsung’s NAND flash memory has powered groundbreaking technologies that have changed every part of our daily lives. This NAND flash technology also powers our consumer SSDs, making room for the next big push of innovation.

Specificaitons:-

Interface

PCIe® 5.0 x4, NVMe™ 2.0

Sequential Read

Up to 14,700 MB/s * Performance may vary based on system hardware & configuration

Sequential Write

Up to 13,300 MB/s * Performance may vary based on system hardware & configuration

Application

Client PCs, Game Consoles

Weight

Max 9.0g Weight

General Feature

Application

Client PCs, Game Consoles

Rated Capacity

1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)s

Form Factor

M.2 (2280)

Interface

PCIe® 5.0 x4, NVMe™ 2.0

Dimension (WxHxD)

Max 80.15 x Max 22.15 x Max 2.38 mm

Weight

Max 9.0g Weight

Storage Memory

Samsung V-NAND TLC

Controller

Samsung in-house Controller

Cache Memory

Samsung 1GB Low Power DDR4X SDRAM

Performance

Sequential Read

Up to 14,700 MB/s * Performance may vary based on system hardware & configuration

Sequential Write

Up to 13,300 MB/s * Performance may vary based on system hardware & configuration

Random Read

Up to 1,850,000 IOPS * Performance may vary based on system hardware & configuration

Random Write

Up to 2,600,000 IOPS * Performance may vary based on system hardware & configuration

Environment

Average Power Consumption (system level)

Average: Read 7.6 W / Write 7.2 W* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Typical 4 mW * Actual power consumption may vary depending on system hardware & configuration

Power Consumption (Device Sleep)

Typical 3.3 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 - 70 ℃ Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)
