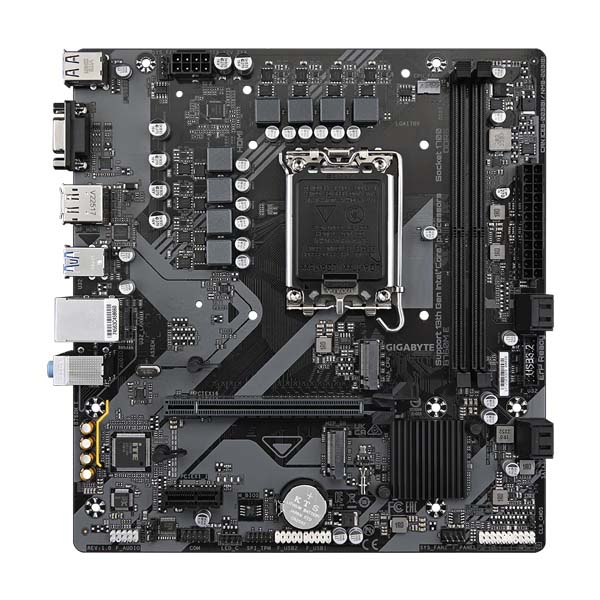

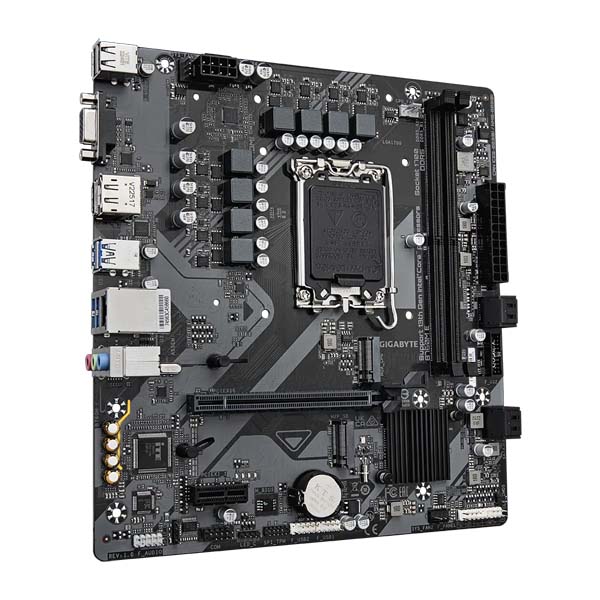

GIGABYTE B760M E DDR5 Micro ATX Motherboard - Black

slider_1
slider_1
slider_1
KD 33.000
Brand : Gigabyte
Quantity :
Add to Cart

    • Supports Intel® Core™ 14th/ 13th /12th processors
    • Unparalleled Performance：Hybrid 6+1+1 Phases Digital VRM Solution
    • Dual Channel DDR5：2*DIMMs XMP Memory Module Support
    • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
    • EZ-Latch：PCIe 4.0x16 Slot with Quick Release Design
    • Fast Networks：GbE LAN
    • Extended Connectivity：Display Port, HDMI, D-Sub
    • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP

    GIGABYTE B760M E DDR5 Micro ATX Motherboard - Black

    PERFORMANCE

    6+1+1 Phases Hybrid Digital VRM Design

    • 6+1+1 Phases Low RDS(on) MOSFETs

    • Premium Choke and Capacitors to improve transient response and minimize oscillation

    CONNECTIVITY

    GbE LAN with Bandwidth Management

    GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.

    PERSONALIZATION

    Friendly User Interface

    The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

    My Favorites

    Add constantly used items into the favorite menu for quick access.

    Storage Information

    Show all kinds of storage information including SATA, PCIE and M.2 interface.

    Changelog

    List all changes before saving and exiting bios. Quickly review overall settings modification.

    Intuitive Load Line Curve

    Clearly show each loadline calibration setting in an intuitive curve graph.

    ULTRA DURABLE

    PCIe EZ-Latch

    Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.

    Specifications

    CPU

    • LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
    • L3 cache varies with CPU
    • (Please refer "CPU Support List" for more information.)

    Chipset

    • Intel ® B760 Express Chipset

    Memory

    • Support for DDR5 7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
    • 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules
    • (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

    Onboard Graphics

    • Integrated Graphics Processor-Intel® HD Graphics support:
    • - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    • - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    • * Support for DisplayPort 1.2 version and HDCP 2.3
    • - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • * Support for HDMI 2.1 version and HDCP 2.3.
    • ** Support native HDMI 2.1 TMDS compatible ports.
    • (Graphics specifications may vary depending on CPU support.)
    • Support for up to triple-display at the same time
    Audio
    • Realtek® Audio CODEC
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    • * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
    • Support for S/PDIF Out
    LAN
    • Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
    • Expansion Slots
    • CPU:
    • - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
    • * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
    • Chipset:
    • - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    • Storage Interface
    • CPU:
    • - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
    • Chipset:
    • - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2P_SB)
    • - 4 x SATA 6Gb/s connectors
    • RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    USB
    • Chipset:
    • - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    • - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)

    Internal I/O Connectors

    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 2 x system fan headers
    • 1 x RGB LED strip header
    • 2 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x S/PDIF Out header
    • 1 x USB 3.2 Gen 1 header
    • 2 x USB 2.0/1.1 headers
    • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    • 1 x serial port header
    • 1 x Clear CMOS jumper

    Back Panel Connectors

    • 2 x USB 2.0/1.1 ports
    • 1 x D-Sub port
    • 1 x DisplayPort
    • 1 x HDMI port
    • 4 x USB 3.2 Gen 1 ports
    • 1 x RJ-45 port
    • 3 x audio jacks

    I/O Controller

    • iTE® I/O Controller Chip
    • H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Water cooling flow rate detection
    • Fan fail warning
    • Fan speed control
    • * Whether the fan speed control function is supported will depend on the fan you install.
    BIOS
    • 1 x 128 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Unique Features

    • Support for GIGABYTE Control Center (GCC)
    • * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    • Support for Q-Flash

    Bundled Software

    • Norton® Internet Security (OEM version)
    • LAN bandwidth management software

    Operating System

    • Support for Windows 11 64-bit
    • Support for Windows 10 64-bit

    Form Factor

    • Micro ATX Form Factor; 23.0cm x 21.5cm
