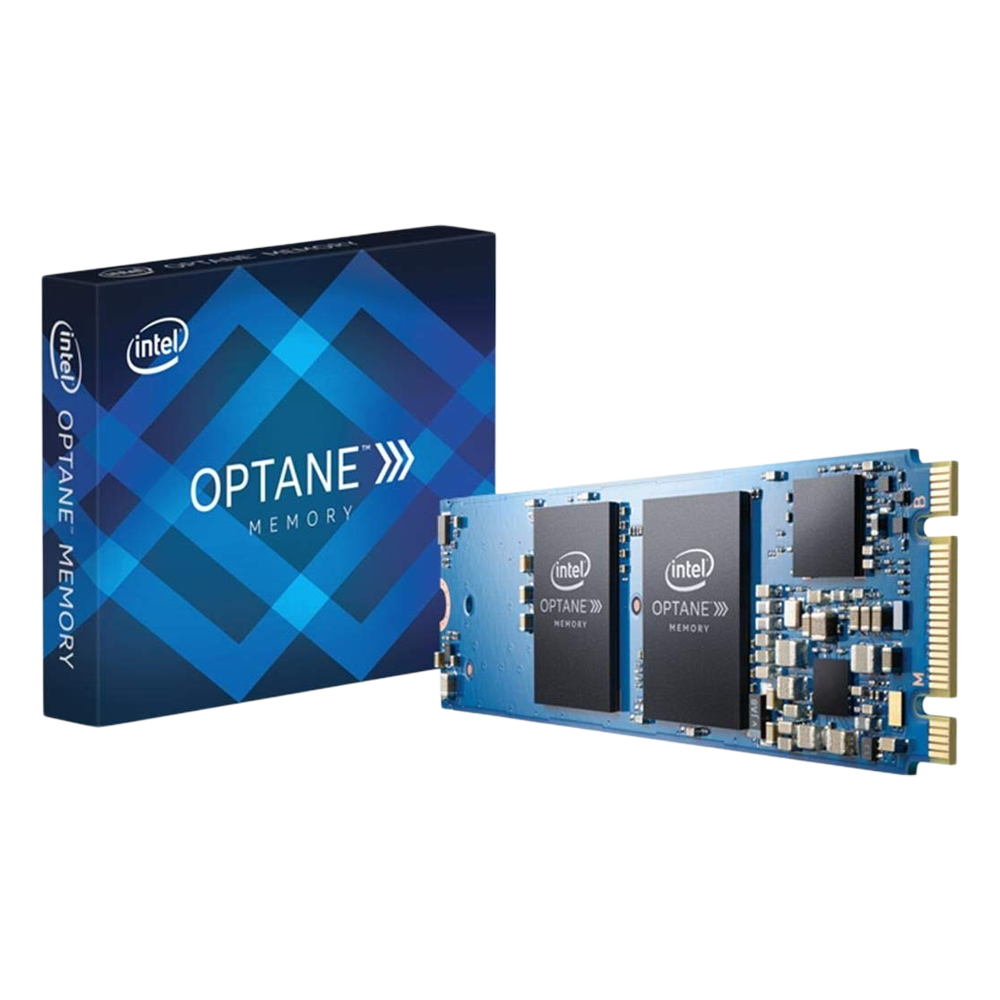

Intel Optane M.2 80mm PCIe 3.0 32GB Memory

Specifications:

Performance Specifications

• Sequential Bandwidth - 100% Read (up to)  : 1350 MB/s

• Sequential Bandwidth - 100% Write (up to)  : 290 MB/s

• Random Read (8GB Span) (up to)  : 240000 IOPS (4K Blocks)

• Random Write (8GB Span) (up to) : 65000 IOPS (4K Blocks)

• Random Read (100% Span) : 240000 IOPS (4K Blocks)

• Random Write (100% Span) : 65000 IOPS (4K Blocks)

• Power - Active : 3.5 Watts

• Power - Idle : 1 Watt

Reliability

• Vibration - Operating : 2.17 Grms (5-800 Hz) MAX

• Vibration - Non-Operating : 3.13 Grms (5-800 Hz) MAX

• Shock (Operating and Non-Operating) : 1500 G / 0.5 ms

• Operating Temperature Range : 0°C to 70°C

• Max Operating Temperature  : 70 °C

• Minimum Operating Temperature : 0 °C

• Endurance Rating (Lifetime Writes) : 182.5 TB

• Mean Time Between Failures (MTBF) : 1.6 Million

• Uncorrectable Bit Error Rate (UBER) : < 1 sector per 10^15 bits read

Package Specifications

• Form Factor : M.2 22 x 80mm

• Interface : PCIe 3.0 x2, NVMe

Advanced Technologies

• Enhanced Power Loss Data Protection : No

• Temperature Monitoring and Logging : Yes

• End-to-End Data Protection : Yes

• Intel® Rapid Start Technology : Yes

• Intel® Remote Secure Erase : No
