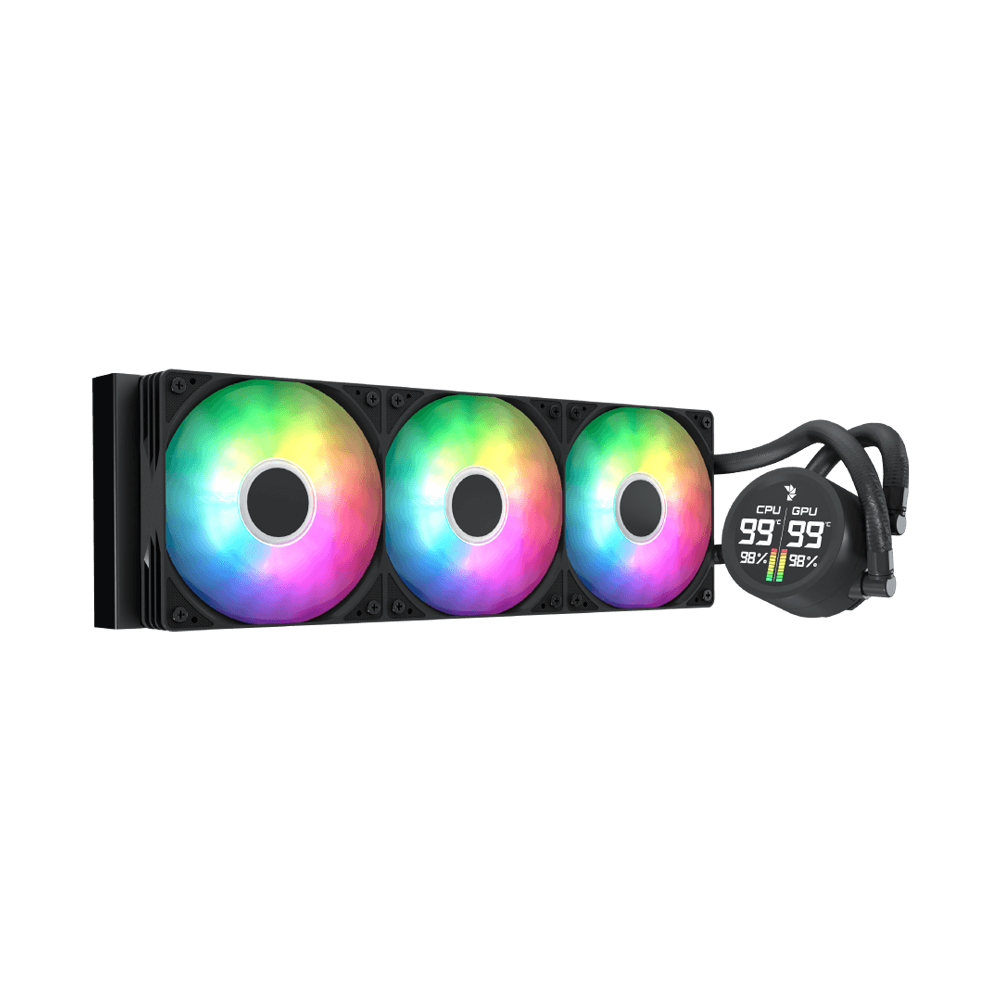

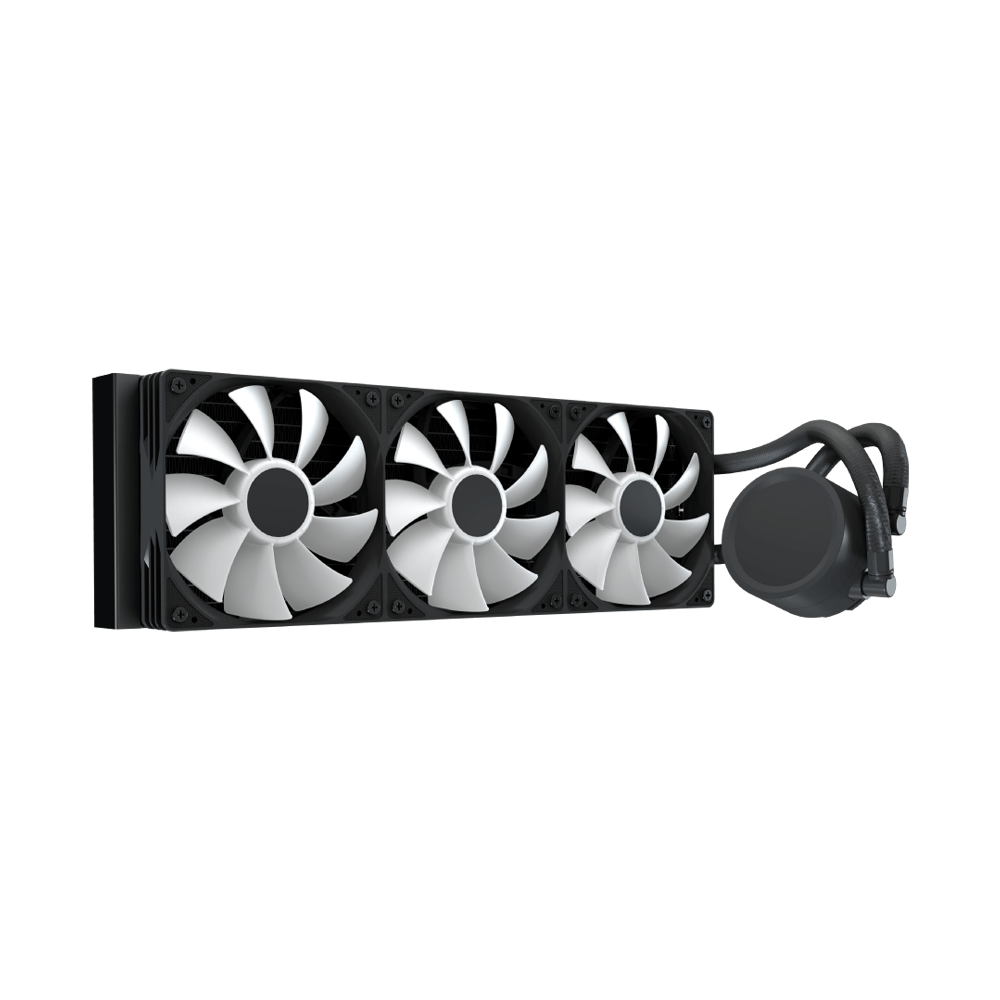

AEROCOOL Abyss L360R Digi Liquid Cooler - Black

Key Features:

• ARGB-illuminated pump head adds vibrant, customizable lighting to enhance your system’s look.
• 320W TDP rating ensures reliable cooling capacity for demanding systems.
• Pure copper water block with micro-channel design improves heat transfer for better cooling.
• Expanded radiator surface increases heat dissipation for enhanced cooling performance.
• PWM ARGB fans deliver high airflow and pressure for efficient system cooling.
• Integrated fan frame simplifies installation and keeps cables neat.
• 16.8 million color control lets you match fan and pump lighting to your build’s style.

The Abyss L360R Digi delivers elite cooling performance with a pump head display that shows real-time CPU and GPU temperature and usage. A pure copper micro-channel water block and expanded radiator surface maximize heat transfer and dissipation, while PWM ARGB fans provide powerful airflow and pressure for stable system temperatures. With an integrated fan frame for clean cable management and 16.8 million-color lighting customization, it blends performance, convenience, and style.

Live System Feedback

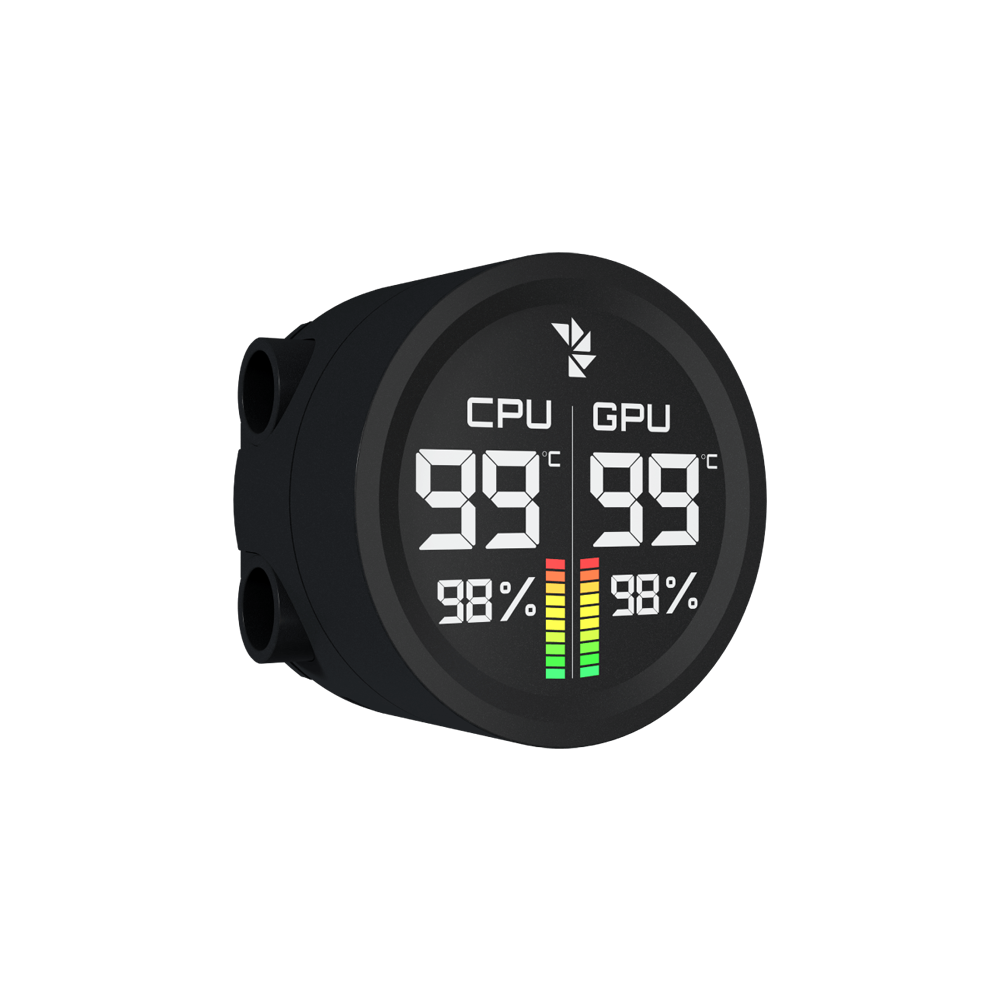

The pump head features a built-in display for real-time monitoring of CPU and GPU temperatures and usage. Keep an eye on system performance without needing extra software.

Superior Heat Conductivity
The water block is crafted from pure copper, ensuring excellent heat conductivity. Its micro-channel design accelerates heat dissipation, allowing your system to stay cool and efficient even during intense gaming or heavy workloads. With a TDP rating of 320W, it delivers reliable thermal performance for high-demand setups.

Simple & Clean Design
Integrated fan frames streamline installation and cable routing, while ceramic pump bearings ensure long-term durability and whisper-quiet operation.

High Performance ARGB Fans
Equipped with high airflow and high air pressure fans, Abyss ensures superior cooling performance. These fans not only provide excellent cooling but also enhance visual appeal with vibrant ARGB lighting.

Hassle-free Installation
Designed with fewer parts, the brackets make installation quick and
straightforward, saving time and effort during setup.

Specifications

• Model Name : Abyss L360R Digi BK
• Block Material : Copper
• Radiator Material : Corrosion resistant aluminum alloy
• Radiator Dimension : 394 × 120 × 27 mm
• TDP (Thermal Design Power) : 320W
• Pump Speed : 600 ~ 3000 RPM ± 10%
• Pump Rated Voltage : DC 12.0V
• Pump Rated Power : 4.2W
• Pump Noise : 18 dB(A)
• Pump Bearing Type : Ceramic bearing
• Fan Speed : 660 ~ 1800 RPM ± 10%
• Fan Connector Type : PWM 4-Pin
• Fan Dimensions (L × W × H) : 360 × 120 × 25.4 mm
• Fan Starting Voltage : 6V
• Fan Rated Voltage : DC 12.0V
• Fan Rated Current : 1A
• Fan Rated Power : 12W
• Fan Air Pressure (Max.) (One Fan) : 2.3 mmH₂O
• Fan Air Flow (Max.) (One Fan) : 81.5 CFM
• Fan Noise Level (Max.) : 36.0 dB(A)
• Fan Bearing Type : Hydro bearing
• MTBF : 30,000 hrs
• Socket : Intel LGA1851 / LGA1700 / LGA1200 / LGA115X / AMD AM5 / AM4
• LED Type : Addressable RGB LED
• LED Rated Voltage : 5 VDC
• LED Rated Power : 1.8 W (Pump) / 1.44 W × 3 (Fan × 3)
• LED Connector : 3-Pin (+5V-D-G)
