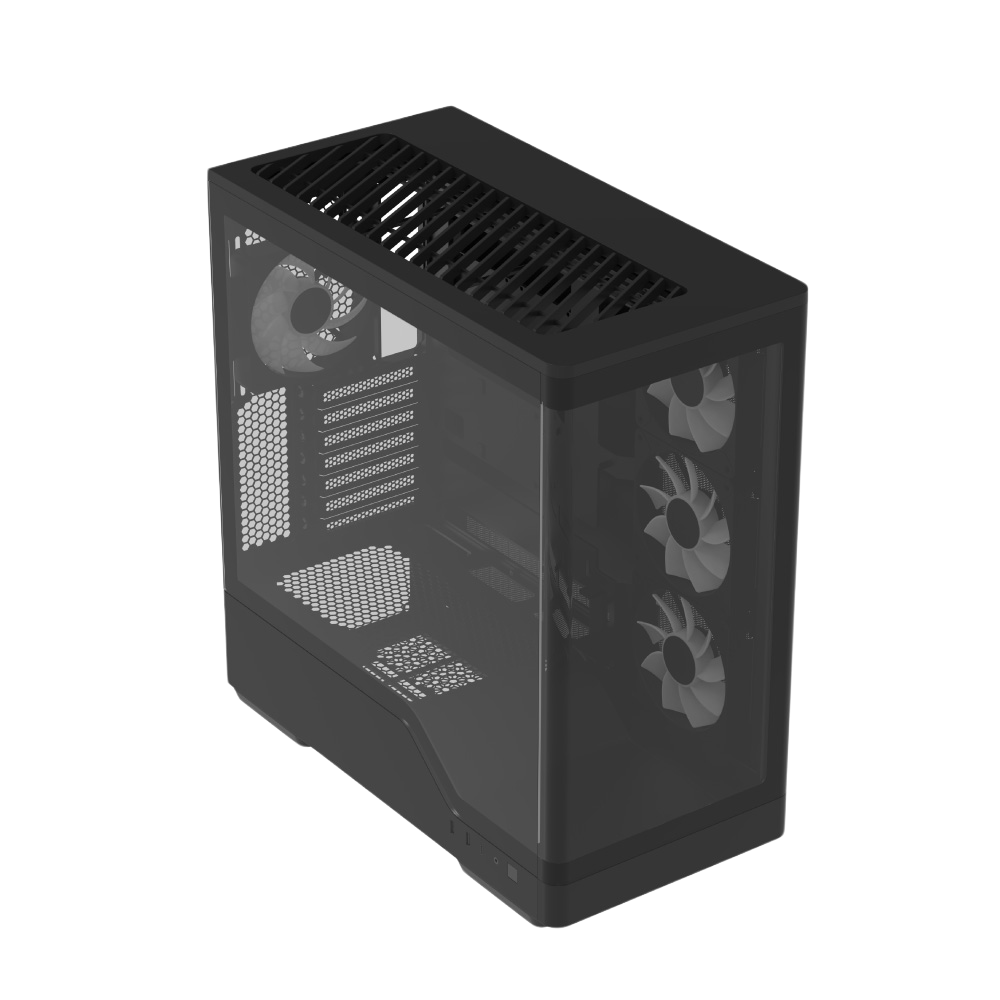

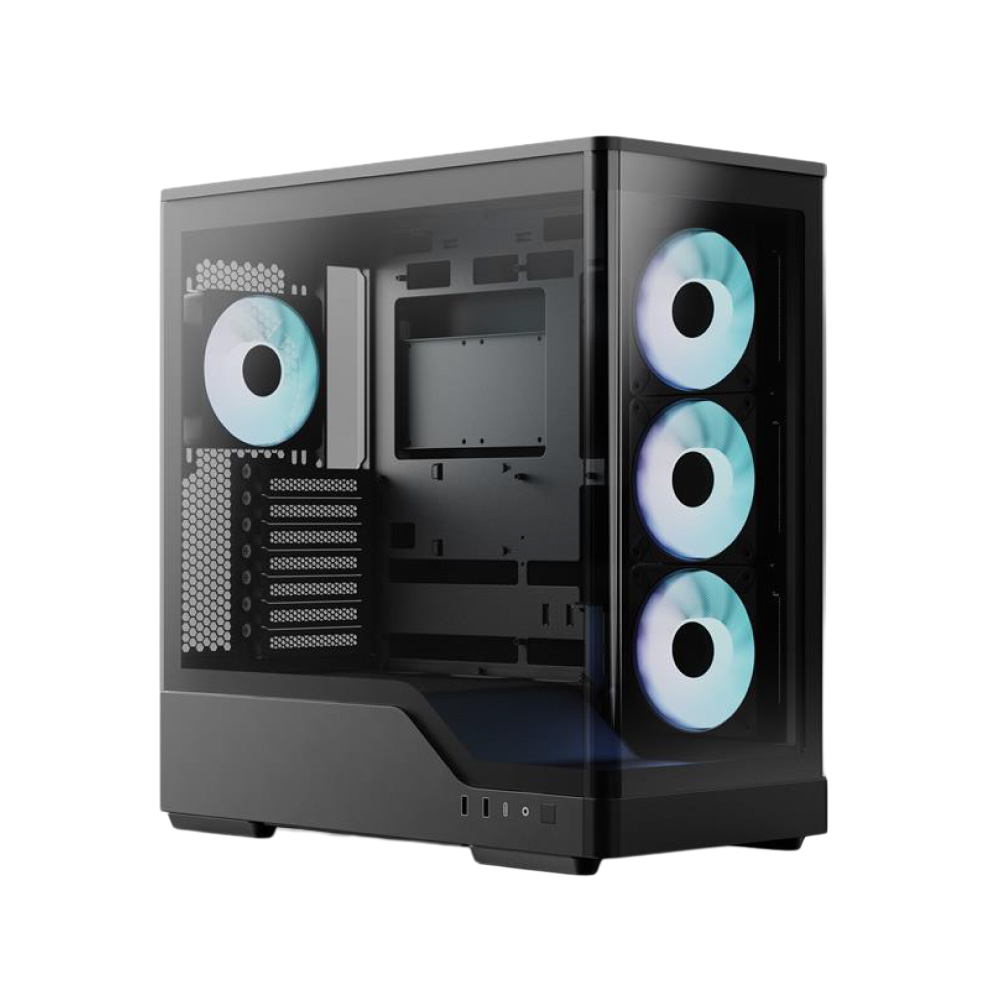

AEROCOOL P500A v1 Mid Tower Case - Black

Key Features:

• Supports mainstream BTF reverse connector motherboards that keep cables out of sight
• Dual curved glass front and side panels for 270-degree panoramic view
• A total of 9 fan slots for even greater cooling potential
• Airflow-optimized PSU shroud design
• GPU support bracket for heavy graphics cards
• Removable front, top, and side panels (left & right)
• Removable nylon dust filters on the top and bottom for easy maintenance

The AeroCool P500A is a mid-tower case for builders who demand total control, featuring tool-free removable panels on all sides and strategic dust filters to keep airflow pure and maintenance easy. With support for reverse connector motherboards, an airflow-optimized PSU shroud, reinforced with a GPU support bracket, and up to 9 fan slots, this case is primed for next-level performance and reliability. Finished with dual curved glass front and side panels, the P500A blends elite cooling with showcase aesthetics.

Hidden Cable Magic
Designed for mainstream BTF reverse connector motherboards to route cables behind the motherboard tray. Enjoy a clean, professional look with uninterrupted component visibility and easier airflow.

Massive Cooling Capacity
Supports up to nine total fans to deliver outstanding cooling potential for high-performance systems. Whether you’re gaming, editing, or overclocking, your system stays cool under pressure.

Dust-Free Design
Removable nylon filters on the top and bottom keep out dust while allowing smooth airflow. Maintenance stays simple while your components stay cleaner, longer.

Adjustable GPU Support Bracket
The built-in adjustable GPU support bracket secures heavy graphics cards and prevents long-term sag. Customize the height to fit your setup perfectly and protect your investment with confidence.

Specifications

• Model : ACL-P500A-BK-FRPB
• Case Type : Mid Tower
• Color : Black
• Body Material : SPCC
• Steel Thickness : 0.6~0.8mm
• Motherboards : ATX/Micro ATX/Mini-ITX
• Case Dimensions (Internal) : 285 x 380 x 420 mm (W x H x D)
• Case Dimensions (Overall) : 460 x 235 x 480mm (D x W x H)
• Capacity : 49L
• 5.25” Drive Bays : N/A
• 3.5” Drive Bays : 1 Max. (2 x 3.5”/1 x 2.5″ or 1 x 3.5”/2 x 2.5″)
• 2.5” Drive Bays : 3 Max. (3 x 2.5” or 2 x 3.5”/1 x 2.5″ or 1 x 3.5”/2 x 2.5″)
• Expansion Slots : 7
• GPU Clearance : Supports GPU up to 420mm (W/O radiator in the front-right position)
• CPU Cooler Clearance : Supports CPU cooler up to 180mm
• Air Cooling : Side: 120mm x 3 (Max.)
• (3x 120mm Reversed ARGB PWM Fan included)
• Top: 120mm x 3 or 140mm x 2(Max.)
• Power Supply Shroud: 120mm x 2 (Max.)
• Rear: 120mm x 1 or 140mm x 1
• (1x 120mm ARGB PWM Fan included)
• Liquid Cooling : Side:N/A
• Top: 120/140/240/280/360 Radiator (Optional)
• I/O Ports : USB3.2 Gen 2×2 Type-C x 1 | USB3.2 Gen 1 Type -A x 2 | HD Audio & Mic.
• Internal Cable Management Depth 30mm
• Power Supply : ATX PSU (Including cables, up to 280mm) (Optional)
