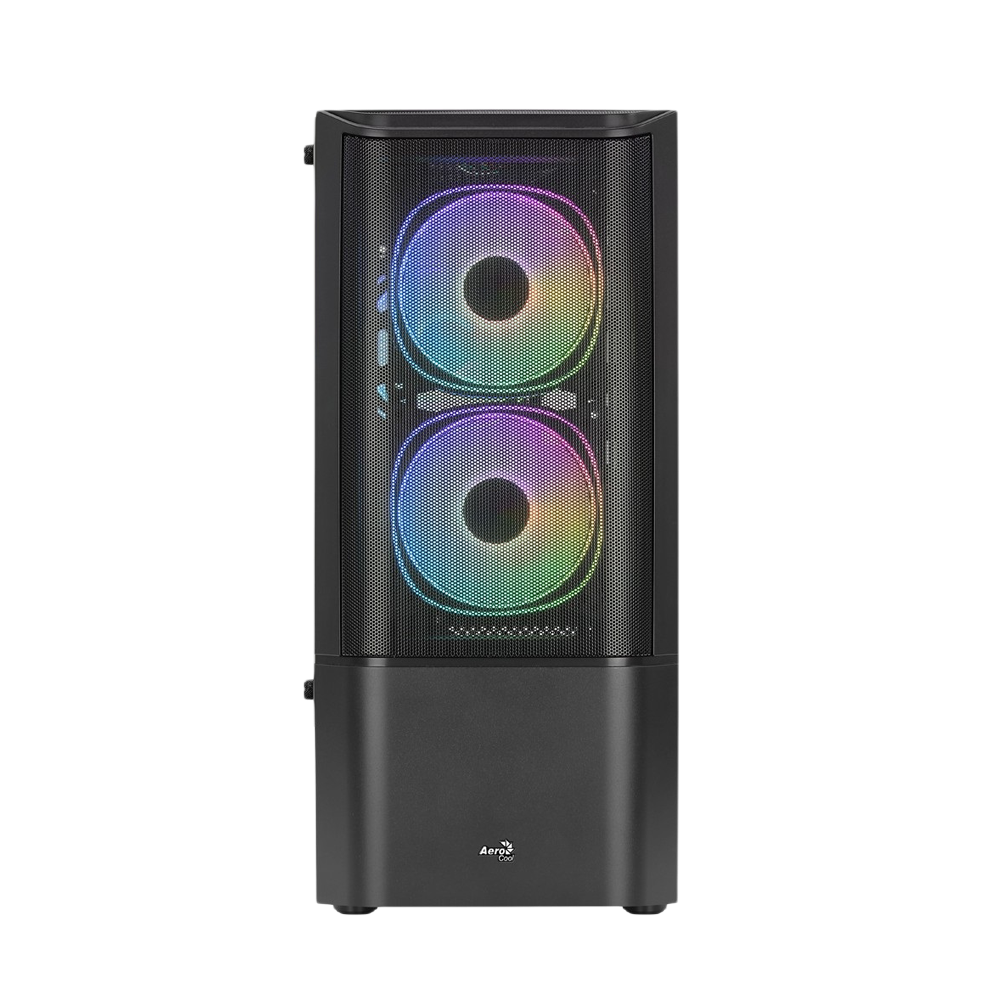

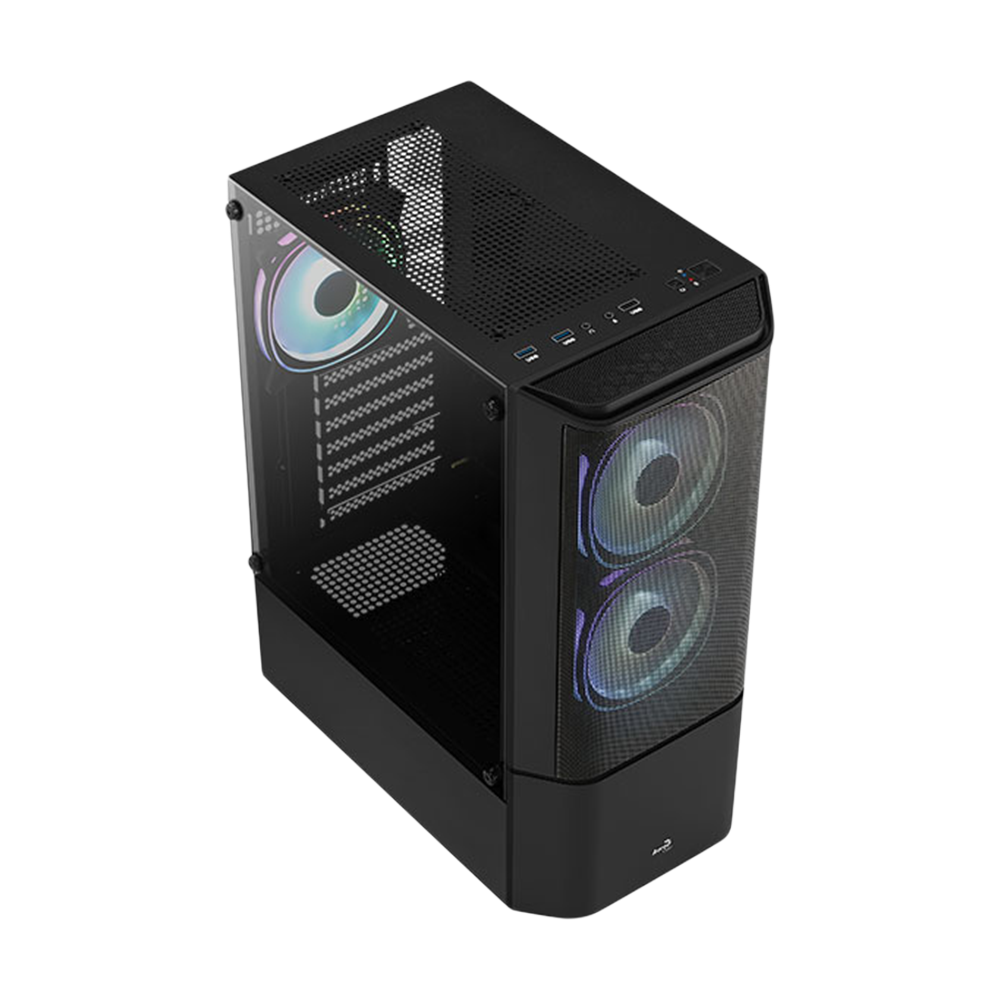

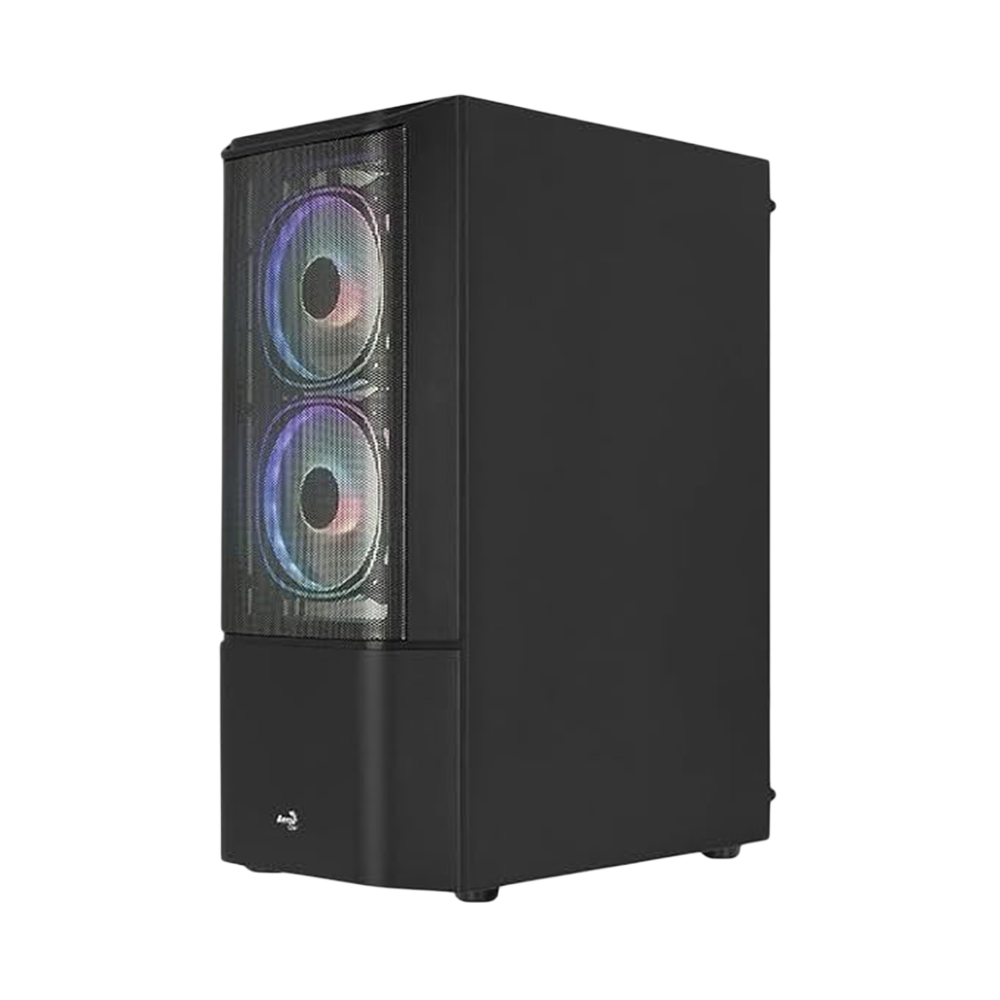

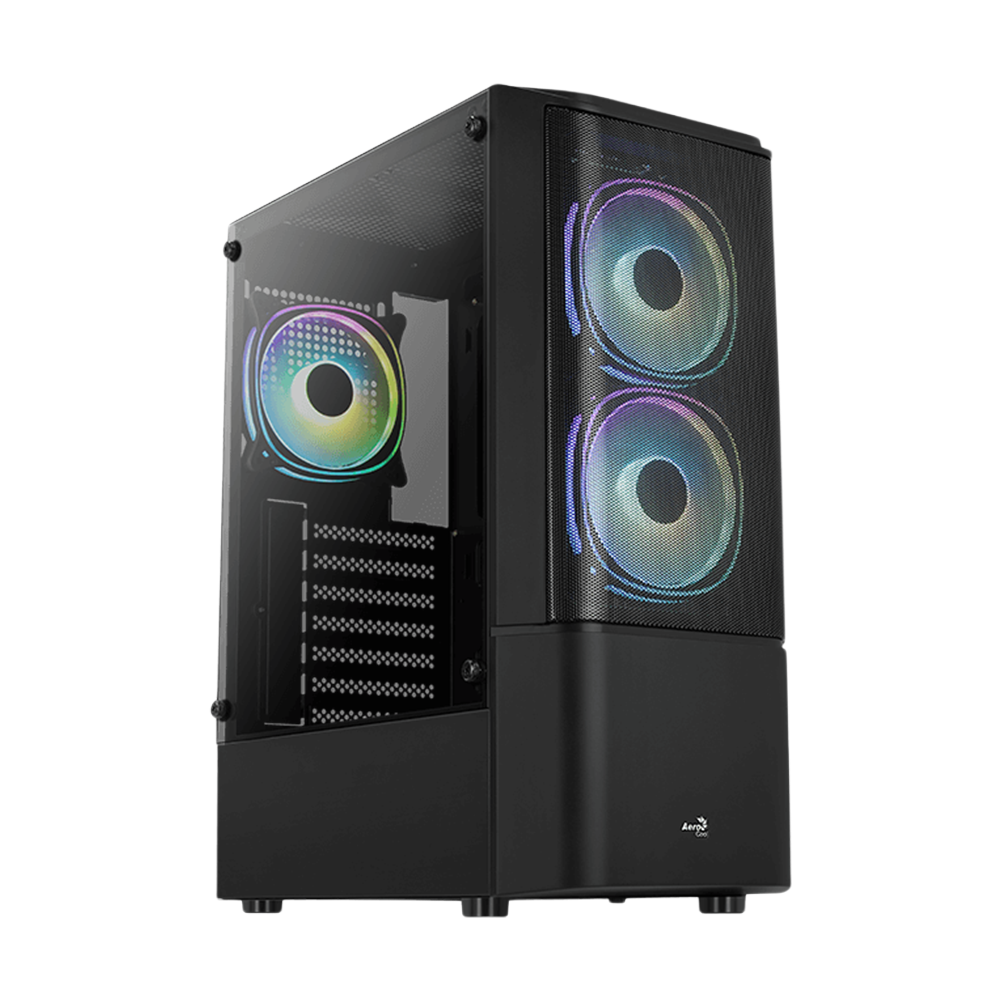

Aerocool Quantum Mesh V3 RGB Mid Tower Case - Black

Aerocool Quantum Mesh Mid-tower Gaming case

Featuring space grey metallic paint finishing with a mesh front panel design, this case provides improved air ventilation while delivering a premium and futuristic look and feel. This high performance mid tower case comes equipped with a full tempered glass side panel to showcase the inside of your rig.

MESH FRONT PANEL DESIGN

Featuring a mesh front panel design, this case allows for clear viewing of your front LED fans while improving air flow and ventilation.

With a space grey metallic paint finishing, this case delivers a premium and futuristic look and feel to your gaming setup.

FULL TEMPERED GLASS SIDE PANEL

Comes equipped with a full tempered glass side panel to showcase the inside of your rig and put your components on display.

COOLING FOR YOUR GRAPHICS CARD

Fan mounts on the PSU shroud support graphics card cooling : 2 x 120mm fans for superior VGA cooling.

AIR COOLING

Supports air cooling in the front, top, and rear of the case to enhance cooling performance.

Front: 120mm x 3 or 140mm x 2 (Max.)

Top: 120mm x 2 (Max.)

Rear: 120mm x 1 (Max.)

PSU Shroud: 120mm x 2 (Max.)

LIQUID COOLING

Supports liquid cooling in the front and rear of the case for maximum cooling efficiency.

Front: 120/240/280mm Radiator (Optional)

(for 280mm, supports max length of 323mm and max thickness of 28mm)

Rear: 120mm Radiator (Optional)

DUAL CHAMBER DESIGN

Built with a dual chamber design to direct heat away from the main chamber for more effective all-around cooling.

BUILT FOR HIGH PERFORMANCE

Supports ATX, Micro-ATX, and Mini-ITX motherboards

Supports CPU coolers up to 158mm

Supports high-end graphics cards up to 297mm (without front radiator)

CONVENIENT ACCESS TO YOUR MEDIA

Quick and easy access to 1 x USB 2.0, 2 x USB 3.0, HD audio and mic ports, and power button.

STORAGE CAPABILITY

Supports up to 2 x 3.5” HDDs (2 x 3.5”/2.5″) and 2 x 2.5 SSDs (2 x 2.5”/3.5” for Micro-ATX & ATX M/B) or 4 x 2.5 SSDs (2 x 2.5”/3.5” and 2 x 2.5” for Mini-ITX M/B).

Specifications

• Model : Quantum Mesh

• Case Type : Mid Tower

• Color : Black

• Body Material : SPCC

• Front Panel Material : ABS

• Steel Thickness : 0.5mm

• Motherboards : ATX/micro ATX/mini-ITX

• Case Dimensions (Internal) : 200 x 440 x 300mm (W x H x D)

• Case Dimensions (Overall) : 206 x 450 x 360mm (W x H x D)

• 3.5” Drive Bays : 2 Max. (2 x 3.5”/2.5″)

• 2.5” Drive Bays : 2 Max. (2 x 2.5”/3.5” for Micro-ATX & ATX M/B), 4 Max. (2 x 2.5”/3.5” and 2 x 2.5” for Mini-ITX M/B)

• Expansion Slots : 7

• GPU Clearance : Supports GPU up to 297mm (without front radiator)

• CPU Cooler Clearance : Supports CPU cooler up to 158mm

• I/O Ports USB3.0 x 2 | USB2.0 x 1 | HD Audio & Mic.

• Internal Cable Management Depth 18.9mm

• Power Supply ATX PSU (Including cables, up to 160mm) (Optional)

• EAN Code : Quantum Mesh-G-BK-v3: 4710562758580 (Includes 12cm RGB Fan x 3)

Air Cooling

• Front: 120mm x 3 or 140mm x 2 (Max.)

• Top: 120mm x 2 (Max.)

• Rear: 120mm x 1 (Max.)

• PSU Shroud:120mm x 2 (Max.)

Liquid Cooling

• Front: 120/240/280mm Radiator (Optional) (for 280mm, supports max length of 323mm and max thickness of 28mm)

• Rear: 120mm Radiator (Optional)
