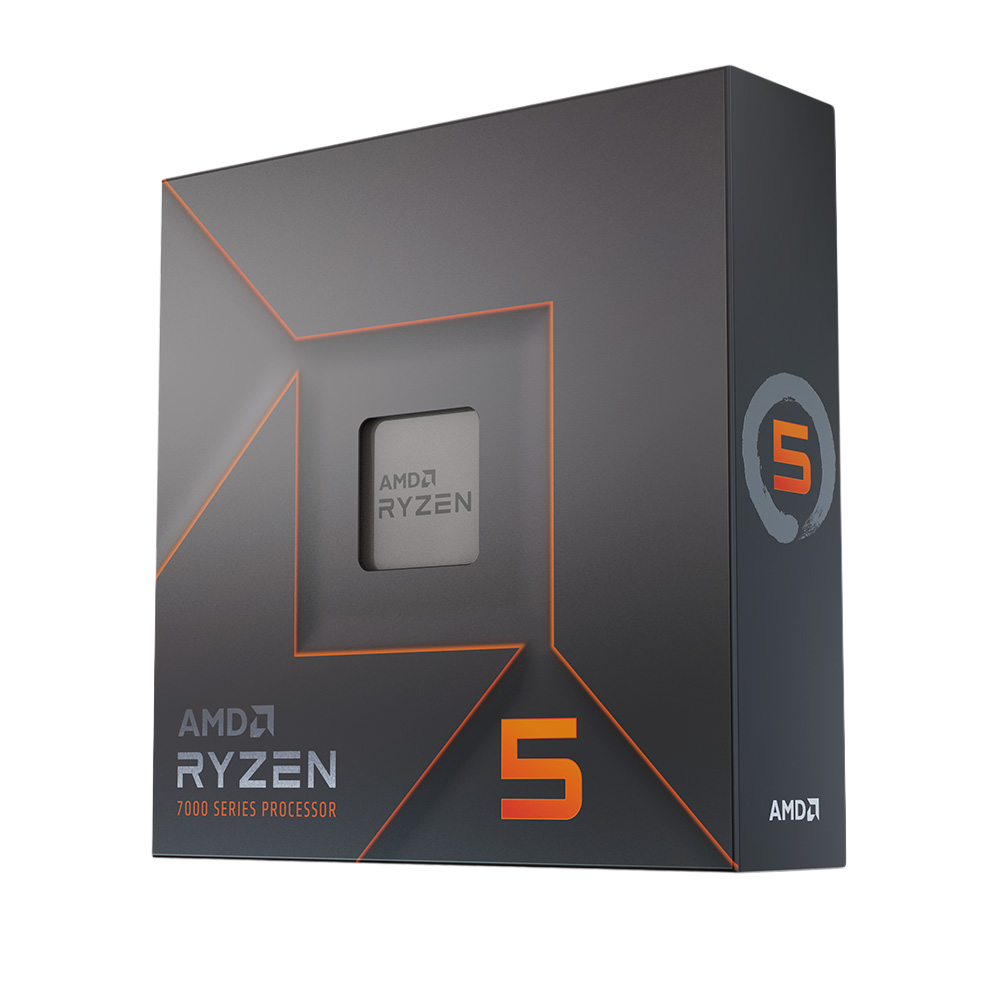

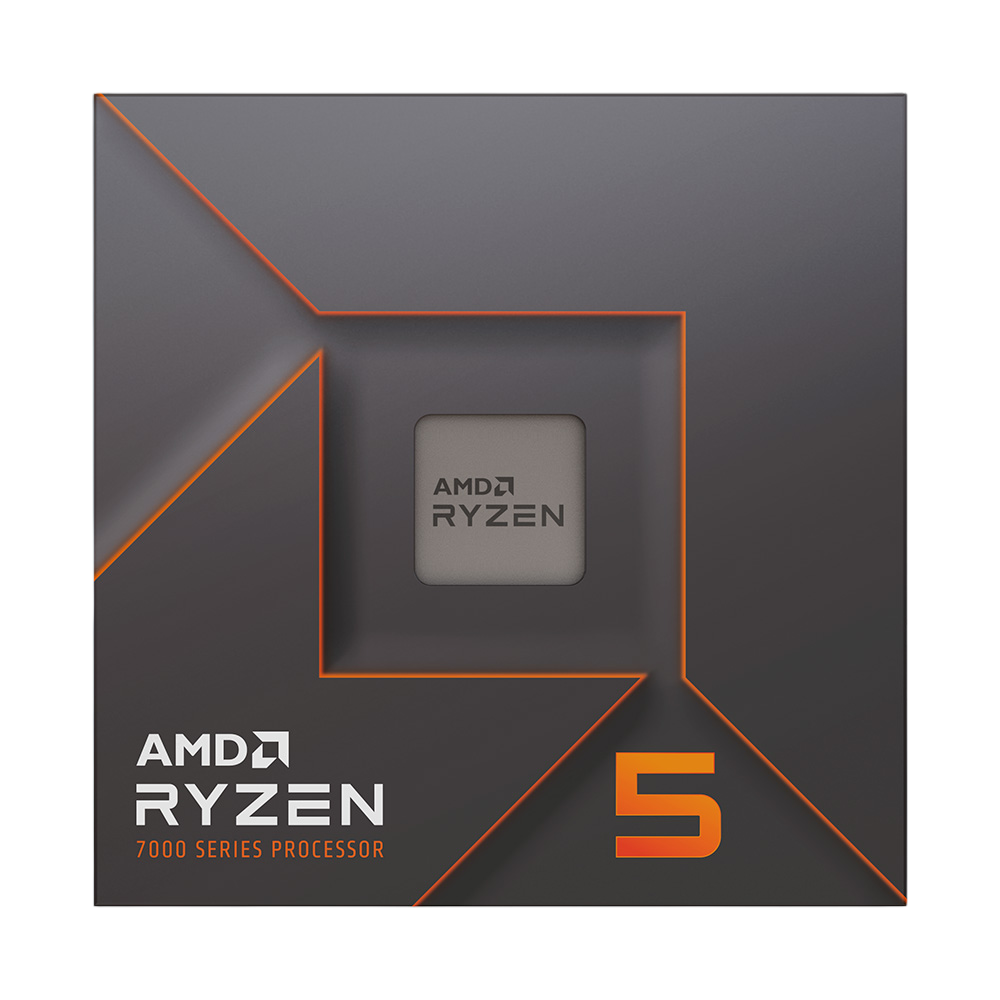

AMD CPU Desktop Ryzen 5 6C/12T 7600X(4.7/5.0 GHz Max Boost,38MB,105W,AM5) Box, With Radeon Graphics

Key Features:

• 6 Cores & 12 Threads
• 4.7 GHz Base Clock
• 5.3 GHz Max Boost Clock
• Socket AM5
• 6MB L2 & 32MB L3 Cache
• Integrated AMD Radeon Graphics
• DDR5-6400 Memory
• Unlocked Processor
• Zen 4 Architecture

Take your computing to the next level with the Ryzen 5 7600X 4.7 GHz Six-Core AM5 Processor, which features six cores and 12 threads to help quickly load and multitask demanding applications. Designed for socket AM5 motherboards using the powerful Zen 4 architecture with the 5nm process, this Ryzen processor delivers significantly improved performance compared to its predecessor while maintaining high energy efficiency. With a base clock speed of 4.7 GHz and a max boost clock speed of 5.3 GHz in addition to 32MB of L3 Cache, the Ryzen 5 7600X is built to deliver the power needed to smoothly handle tasks ranging from content creation to immersive gaming. You can boost performance further by overclocking this unlocked processor.

Other features include support for PCIe Gen 5 technology to take full advantage of high-bandwidth graphics cards and storage drives. The Ryzen 5 7600X also supports up to 128GB of 6400 MHz DDR5 ECC memory with compatible motherboards, which may be overclocked using AMD EXPO profiles for higher gaming performance. This processor has a 105W TDP (Thermal Design Power) and does not include a cooling solution. This processor also includes integrated Radeon graphics.

Performance Features

Precision Boost 2

AMD Ryzen processors monitor the system's energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.

Precision Boost Overdrive

Precision Boost Overdrive technology takes advantage of your compatible motherboard's design to boost clock speeds higher and for longer periods of time. It also allows you to overclock the processor at the touch of a button.

AMD EXPO Technology

The AMD Extended Profiles for Overclocking (AMD EXPO Technology) provides users with advanced profile settings for memory overclocking with supported modules.

AMD Ryzen Master Utility

Personalized Performance

The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.

System Monitoring

Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.

Specifications

• Platform : Desktop
• Market Segment : Enthusiast Desktop
• Product Family : AMD Ryzen Processors
• Product Line : AMD Ryzen 5 Desktop Processors
• AMD PRO Technologies : No
• Consumer Use : Yes
• Regional Availability : Global
• Former Codename : "Raphael AM5"
• Architecture : "Zen 4"
• # of CPU Cores  : 6
• Multithreading (SMT) : Yes
• # of Threads : 12
• Max. Boost Clock : Up to 5.3GHz
• Base Clock : 4.7GHz
• L1 Cache : 384KB
• L2 Cache : 6MB
• L3 Cache : 32MB
• Default TDP : 105W
• Processor Technology for CPU Cores : TSMC 5nm FinFET
• Processor Technology for I/O Die : TSMC 6nm FinFET
• CPU Compute Die (CCD) Size : 71mm²
• I/O Die (IOD) Size : 122mm²
• Package Die Count : 2
• Unlocked for Overclocking : Yes
• AMD EXPO Memory Overclocking Technology : Yes
• Precision Boost Overdrive : Yes
• Curve Optimizer Voltage Offsets : Yes
• AMD Ryzen Master Support : Yes
• CPU Socket : AM5
• Supporting Chipsets: X670E

                                                     X670

                                                     B650E

                                                     B650

• CPU Boost Technology : Precision Boost 2
• Instruction Set : x86-64
• Supported Extensions : AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
• Thermal Solution (PIB) : Not included
• Max. Operating Temperature (Tjmax) : 95°C

*OS Support

                        Windows 11 - 64-Bit Edition

                        Windows 10 - 64-Bit Edition

                        RHEL x86 64-Bit

                        Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity

• USB Type-C® Support : Yes
• Native USB 3.2 Gen 2 (10Gbps) Ports : 4
• Native USB 3.2 Gen 1 (5Gbps) Ports : 0
• Native USB 2.0 (480Mbps) Ports : 1
• Native SATA Ports : 0
• Native PCIe® Lanes (Total/Usable) : 28/24
• Additional Usable PCIe Lanes from Motherboard :

                            AMD X670E   12x Gen4

                            AMD X670     12x Gen4

                            AMD B650E    8x Gen4

                            AMD B650       8x Gen4

• NVMe Support : Boot, RAID0, RAID1, RAID10
• Memory Channels : 2
• Max. Memory : 128GB
• System Memory Subtype : UDIMM
• Max Memory Speed

                            1x1R    5200 MT/s

• ECC Support : Yes (Requires mobo support)

Graphics Capabilities

• Integrated Graphics : Yes

Graphics Model

• AMD Radeon Graphics
• Graphics Core Count : 2
• Graphics Frequency : 2200 MHz
• GPU Base : 400 MHz
• USB Type-C DisplayPort Alternate Mode : Yes

Supported Technologies

• AMD EXPO Technology
• AMD Ryzen Technologies
