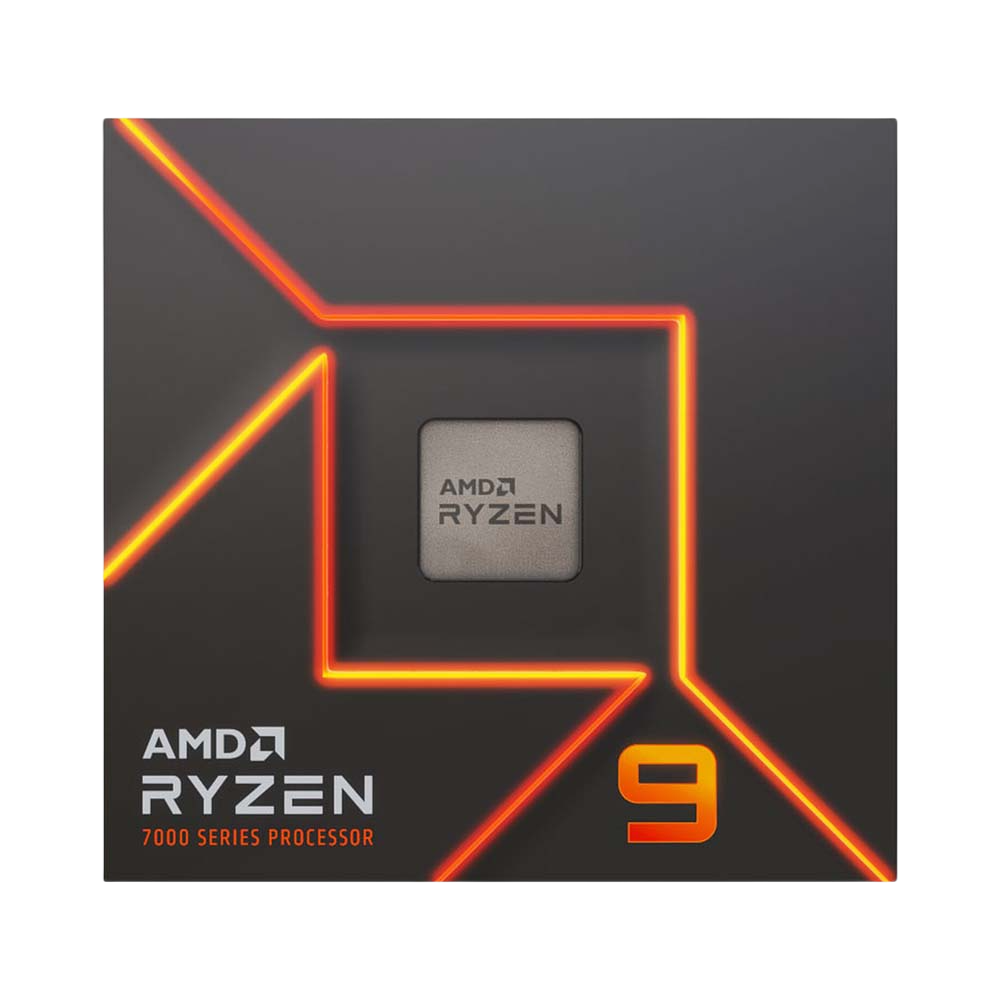

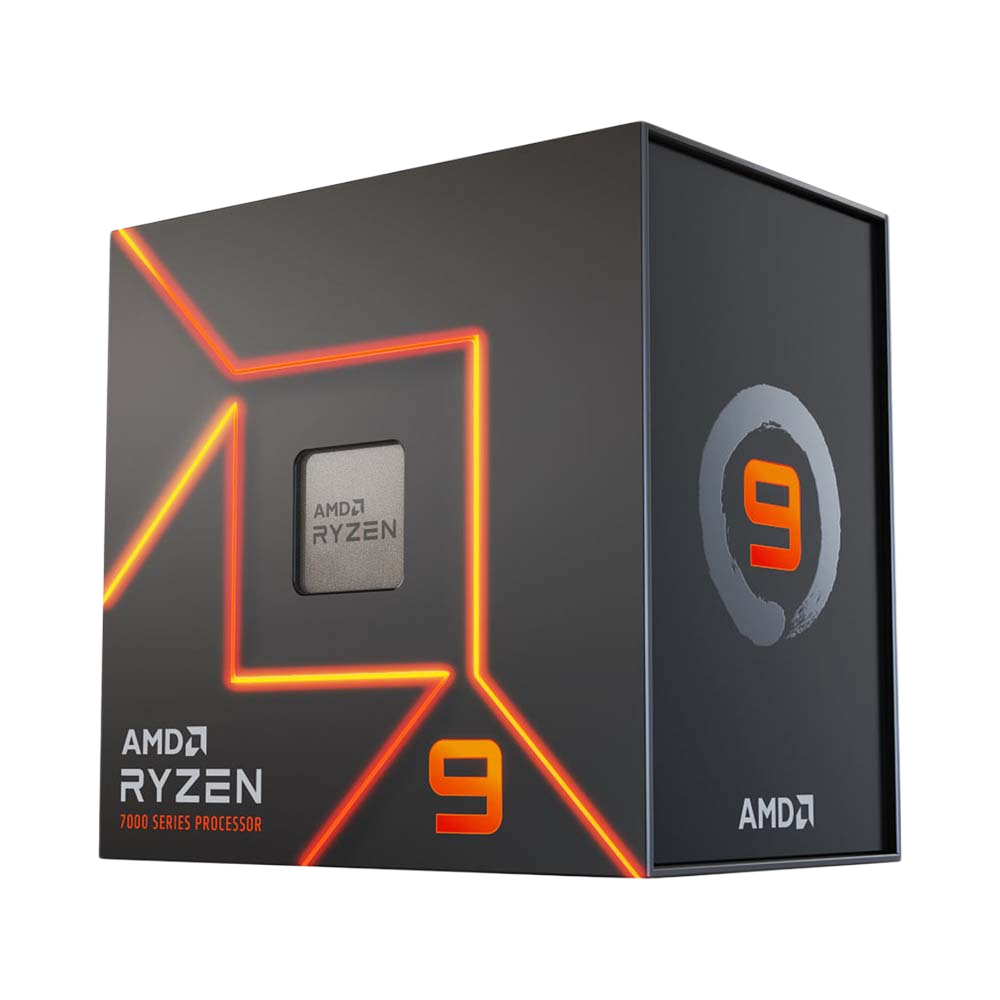

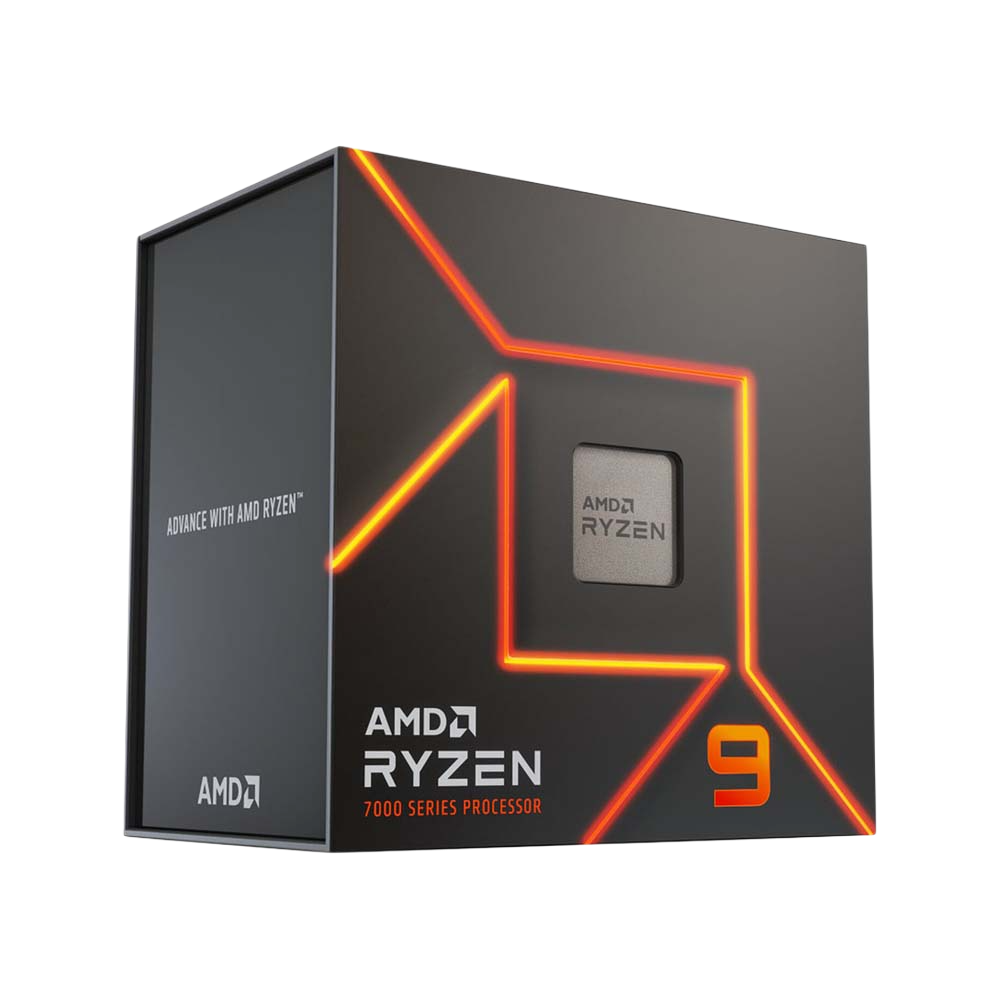

AMD CPU Desktop Ryzen 9 12C/24T 7900X(4.7/5.0 GHz Max Boost,76MB,170W,AM5) Box, With Radeon Graphics

AMD Ryzen™ 9 7900X is a powerful gaming and streaming desktop processor that comes with 12 CPU cores, 24 threads & a base clock speed of 4.7GHz.

Specifications

• Name : AMD Ryzen™ 9 7900X
• Family : Ryzen
• Series : Ryzen 7000 Series
• Form Factor : Desktops, Boxed Processor
• Market Segment : Enthusiast Desktop
• AMD PRO Technologies : No
• Regional Availability : Global
• Former Codename : Raphael AM5
• Processor Architecture : Zen 4
• # of CPU Cores : 12
• Multithreading (SMT) : Yes
• # of Threads : 24
• Max. Boost Clock : Up to 5.6 GHz
• Base Clock : 4.7 GHz
• L1 Cache : 768 KB
• L2 Cache : 12 MB
• L3 Cache : 64 MB
• Default TDP : 170W
• Processor Technology for CPU Cores : TSMC 5nm FinFET
• Processor Technology for I/O Die : TSMC 6nm FinFET
• CPU Compute Die (CCD) Size : 71mm²
• I/O Die (IOD) Size : 122mm²
• Package Die Count : 3
• Unlocked for Overclocking : Yes
• AMD EXPO™ Memory Overclocking Technology : Yes
• Precision Boost Overdrive : Yes
• Curve Optimizer Voltage Offsets : Yes
• AMD Ryzen™ Master Support : Yes
• CPU Socket : AM5
• Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
• CPU Boost Technology : Precision Boost 2
• Instruction Set : x86-64
• Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
• Thermal Solution (PIB) : Not Included
• Recommended Cooler : Liquid cooler recommended for optimal performance
• Max. Operating Temperature (Tjmax) : 95°C
• *OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
• Connectivity
• Native USB 3.2 Gen 2 (10Gbps) : 4
• Native USB 3.2 Gen 1 (5Gbps) : 0
• Native USB 2.0 (480Mbps) : 1
• Native SATA Ports : 0
• Native PCIe® Lanes (Total/Usable) : 28 , 24
• Additional Usable PCIe Lanes from Motherboard : X670E 12x Gen4
• X670 12x Gen4
• B650E 8x Gen4
• B650 8x Gen4
• NVMe Support : Boot , RAID0 , RAID1 , RAID10
• System Memory Type : DDR5
• Memory Channels : 2
• Max. Memory : 128 GB
• System Memory Subtype : UDIMM
• Max Memory Speed: 2x1R DDR5-5200
• 2x2R DDR5-5200
• 4x1R DDR5-3600
• 4x2R DDR5-3600
• ECC Support : Yes (Requires mobo support)
• Graphics Capabilities
• Graphics Model : AMD Radeon™ Graphics
• Graphics Core Count : 2
• Graphics Frequency : 2200 MHz
