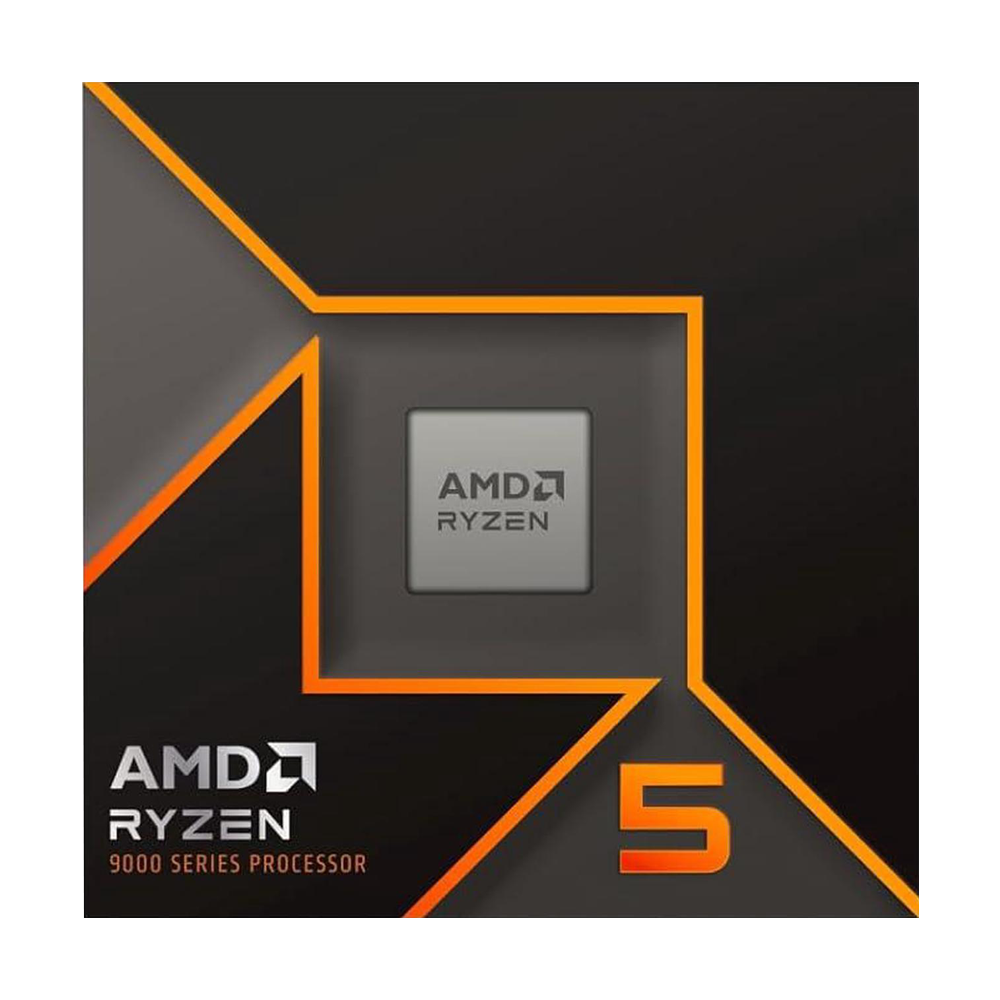

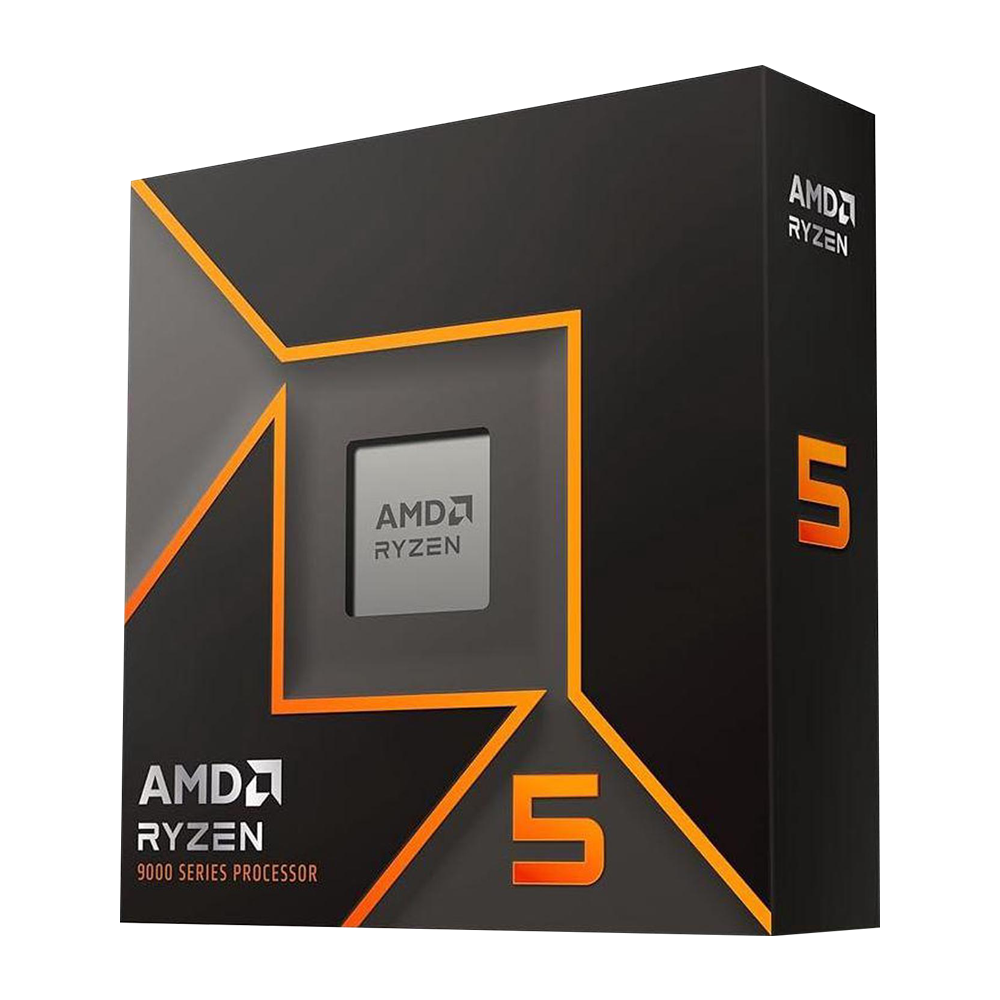

AMD Ryzen 5 9600X Desktop Processor
AMD Ryzen 5 9600X Desktop Processor
SKU:100-100001405WOF
QR Code : 1325321
In stock
Description
Description
AMD RYZEN 5 9600X - 6-Core AM5 Gaming Processor
Take your computing experiences to a new level with the AMD Ryzen 5 9600X 3.9 GHz 6-Core AM5 Processor. Featuring 6 cores and 12 threads with 32MB of L3 Cache, this desktop processor quickly loads and multitasks demanding applications.
Designed for socket AM5 motherboards using the powerful Zen 5 4nm architecture, this processor offers exceptional performance. With a base clock speed of 3.9 GHz and a max boost clock speed of 5.4 GHz, the Ryzen 5 9600X delivers the power needed to smoothly handle tasks ranging from content creation to immersive gaming experiences. You can boost performance further by overclocking this unlocked processor. Other features include support for PCIe Gen 5 technology and 5600 MHz ECC DDR5 RAM with compatible motherboards.
This processor has a 65W TDP (Thermal Design Power) and does not include a cooling solution. Integrated Radeon Graphics delivers rich visuals.
Precision Boost 2
AMD Ryzen processors monitor the system's energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.
Precision Boost Overdrive
Precision Boost Overdrive technology takes advantage of your compatible motherboard's design to boost clock speeds higher and for longer periods of time. It also allows you overclock the processor at the touch of a button.
AMD Ryzen Master Utility
Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and DDR4 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.
System Monitoring
Specifications
Name : AMD Ryzen™ 5 9600X
Family : Ryzen
Series : Ryzen 9000 Series
Form Factor : Desktops , Boxed Processor
Market Segment : Enthusiast Desktop
AMD PRO Technologies : No
Consumer Use : Yes
Regional Availability : Global
Former Codename : Granite Ridge AM5
Architecture : Zen 5
# of CPU Cores : 6
Multithreading (SMT) : Yes
# of Threads : 12
Max. Boost Clock : Up to 5.4 GHz
Base Clock : 3.9 GHz
L1 Cache : 480 KB
L2 Cache : 6 MB
L3 Cache : 32 MB
Default TDP : 65W
Processor Technology for CPU Cores : TSMC 4nm FinFET
Processor Technology for I/O Die : TSMC 6nm FinFET
Package Die Count : 2
Unlocked for Overclocking : Yes
AMD EXPO™ Memory Overclocking Technology : Yes
Precision Boost Overdrive : Yes
Curve Optimizer Voltage Offsets : Yes
AMD Ryzen™ Master Support : Yes
CPU Socket : AM5
Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
CPU Boost Technology : Precision Boost 2
Instruction Set : x86-64
Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
Thermal Solution (PIB) : Not Included
Recommended Cooler : Premium air cooler recommended for optimal performance
Max. Operating Temperature (Tjmax) : 95°C
*OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
Native USB 3.2 Gen 2 (10Gbps) Ports : 4
Native USB 2.0 (480Mbps) Ports : 1
PCI Express® Version : PCIe® 5.0
Native PCIe® Lanes (Total/Usable) : 28 , 24
Additional Usable PCIe Lanes from Motherboard
8x Gen4
X870
4x Gen4
X670E
12x Gen4
X670
12x Gen4
B650E
8x Gen4
B650
8x Gen4
NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10
System Memory Type : DDR5
Memory Channels : 2
Max. Memory : 192 GB
System Memory Subtype : UDIMM
Max Memory Speed
DDR5-5600
2x2R
DDR5-5600
4x1R
DDR5-3600
4x2R
DDR5-3600
- ECC Support : Yes (Requires mobo support)
Graphics Capabilities
Graphics Model : AMD Radeon™ Graphics
Graphics Core Count : 2
Graphics Frequency : 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode : Yes
Supported Technologies : AMD EXPO™ Technology , AMD Ryzen™ Technologies
