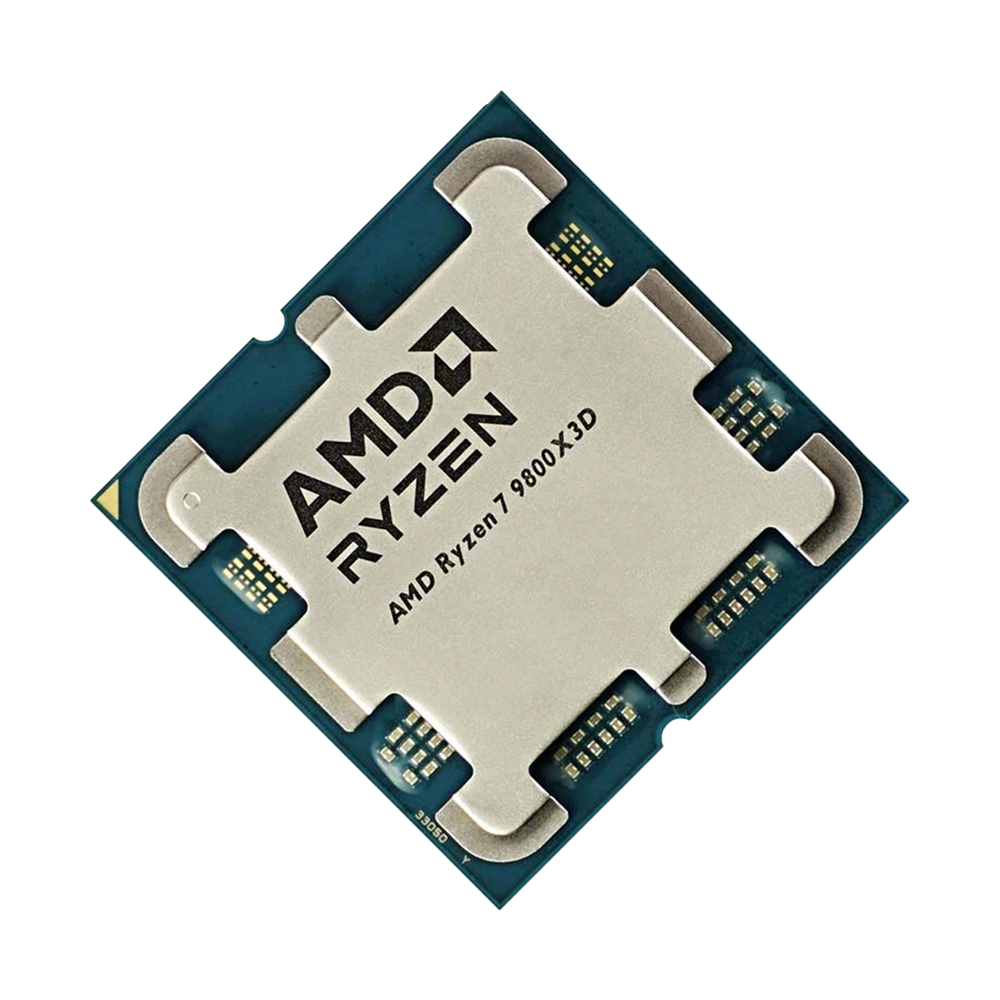

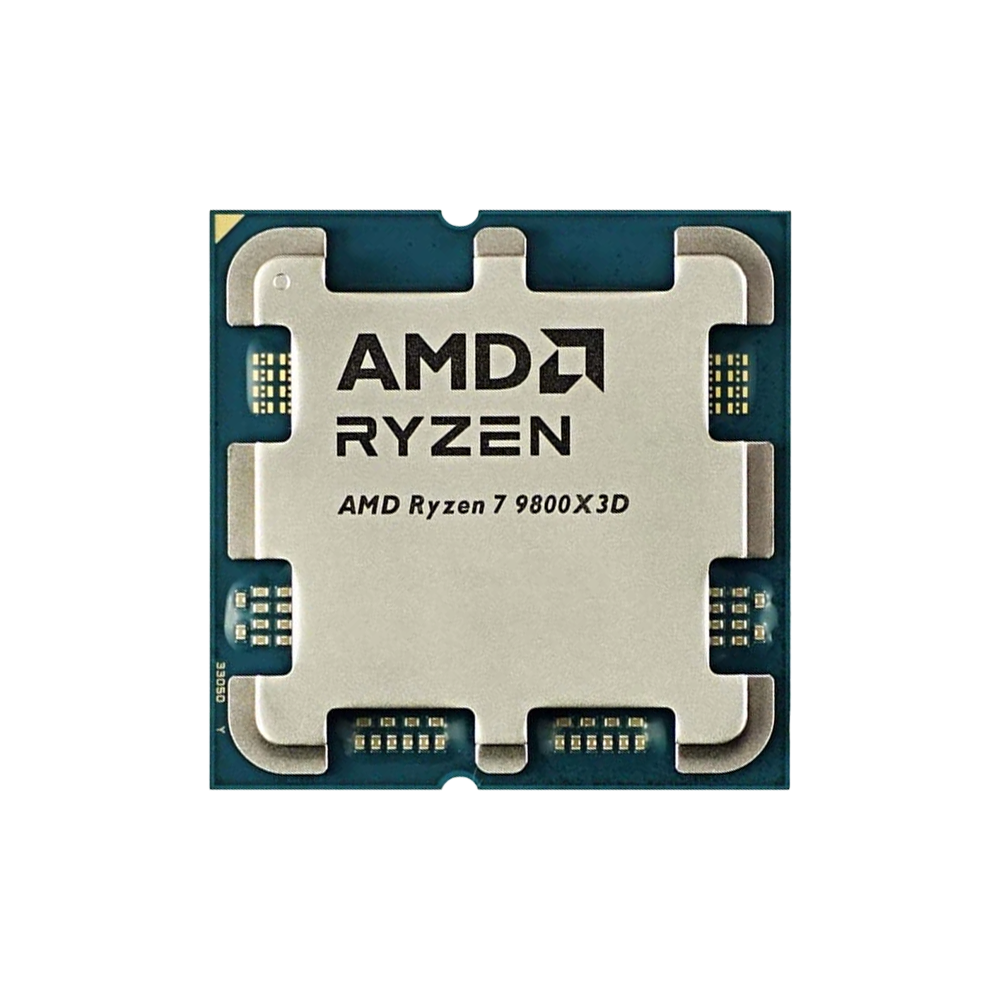

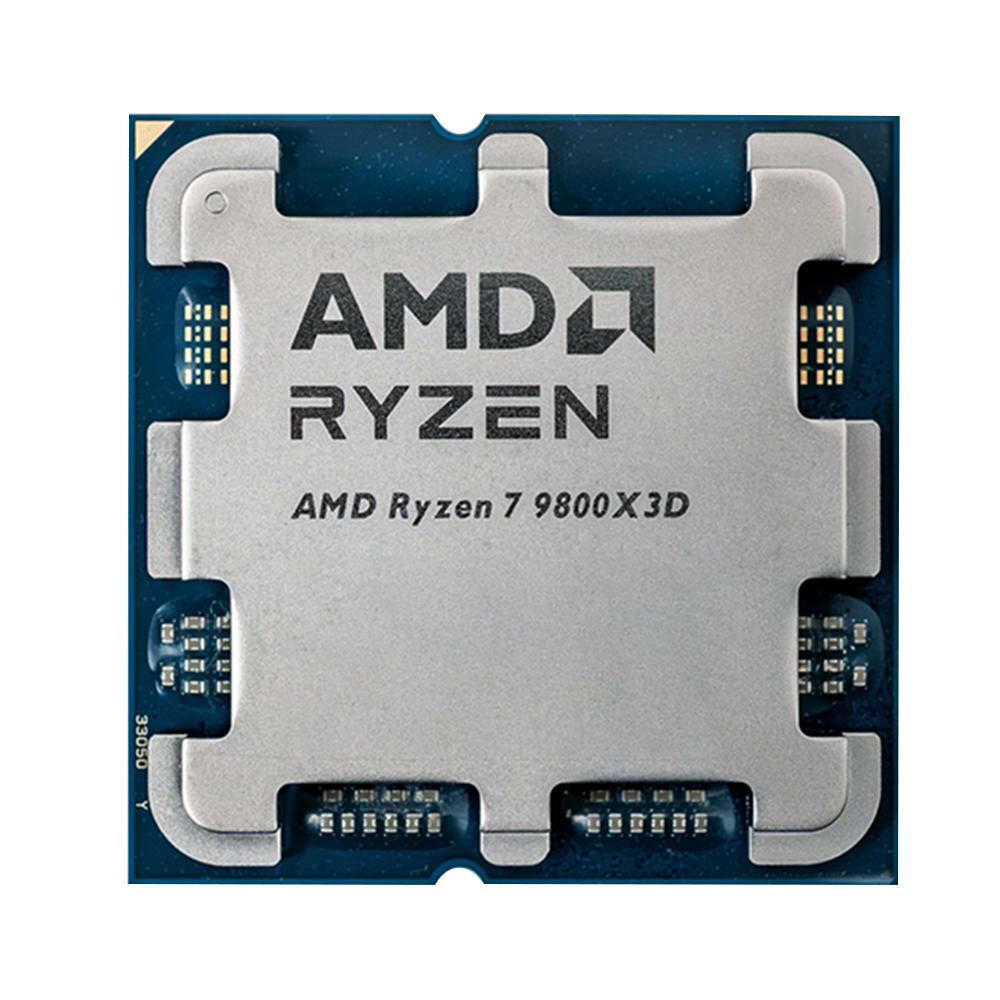

AMD Ryzen 7 9800X3D Desktop Processor - OEM

• 8 Cores & 16 Threads
• 4.7 GHz Base Clock
• 5.2 GHz Max Boost Clock
• Socket AM5
• 8MB L2 & 96MB L3 Cache
• Integrated AMD Radeon Graphics
• DDR5-5600 Memory
• Fully Enabled Overclocking
• AMD 3D V-Cache Technology
• Zen 5 Architecture

AMD RYZEN 7 9800X3D - 8-Cores AM5 Desktop Processor - OEM

Harness the ultimate gaming edge with AMD Ryzen™ 7 9800X3D Processor. Enjoy faster gaming with 2nd gen AMD 3D V-Cache™ technology for low latency.

For gamers looking to upgrade their socket AM5 motherboards, the Ryzen 7 9800X3D 4.7 GHz Eight-Core AM5 Processor is ready to let you boost frame rates and graphics settings in the latest triple-A titles. Like other X3D CPUs, the 9800X3D features AMD 3D V-Cache technology designed to boost gaming performance by positioning its 96MB of ultra-fast stacked L3 cache close to the cores. Built upon Zen 5 architecture and providing eight-core, sixteen-thread processing, the 9800X3D can achieve a 4.7 GHz base clock speed, with a max boosted clock of 5.2 GHz. Other advanced technologies that are supported include PCIe 5.0 for high-end graphics cards and SSDs, and up to 192GB of speedy DDR5-5600 memory.

AMD EXPO

Ryzen-optimized AMD EXPO (Extended Profiles for Overclocking) profiles provide a user-friendly method to overlocking your DDR5 memory when using the Ryzen 7 9800X3D with your socket AM5, increasing software load speeds and boosting overall gaming performance.

Additional Features

• Unlocked to support CPU overclocking
• 120W TDP (Thermal Design Power) with no active cooling provided
• Integrated Radeon graphics
• Increased CPU speed with Precision Boost 2

Specifications

• Name : AMD Ryzen™ 7 9800X3D
• Family : Ryzen
• Series : Ryzen 9000 Series
• Form Factor :  Desktops

• Market Segment :  Enthusiast Desktop
• AMD PRO Technologies : No
• Consumer Use : Yes
• Regional Availability : Global
• Former Codename : Granite Ridge AM5
• Architecture : Zen 5
• # of CPU Cores :  8
• Multithreading (SMT) : Yes
• # of Threads : 16
• Max. Boost Clock :  Up to 5.2 GHz
• Base Clock :  4.7 GHz
• L1 Cache : 640 KB
• L2 Cache : 8 MB
• L3 Cache : 96 MB
• Default TDP : 120W
• Processor Technology for CPU Cores : TSMC 4nm FinFET
• Processor Technology for I/O Die : TSMC 6nm FinFET
• Package Die Count : 2
• Unlocked for Overclocking : Yes
• AMD EXPO™ Memory Overclocking Technology : Yes
• Precision Boost Overdrive : Yes
• Curve Optimizer Voltage Offsets : Yes
• AMD Ryzen™ Master Support : Yes
• CPU Socket :  AM5
• Supporting Chipsets :  A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850
• CPU Boost Technology : Precision Boost 2
• Instruction Set : x86-64
• Supported Extensions :  AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
• Thermal Solution (PIB) : Not Included
• Recommended Cooler : Liquid cooler recommended for optimal performance
• Max. Operating Temperature (Tjmax) : 95°C
• *OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64Bit, Ubuntu x86 64-Bit

Connectivity

• Native USB 3.2 Gen 2 (10Gbps) Ports : 4
• Native USB 2.0 (480Mbps) Ports : 1
• PCI Express® Version : PCIe® 5.0
• Native PCIe® Lanes (Total/Usable) : 28 , 24
• NVMe Support :  Boot , RAID0 , RAID1 , RAID5 , RAID10
• System Memory Type : DDR5
• Memory Channels : 2
• Max. Memory : 192 GB
• System Memory Subtype : UDIMM
• Max Memory Speed

                                2x1R

                                DDR5-5600

                                2x2R

                                DDR5-5600

                                4x1R

                                DDR5-3600

                                4x2R

                                DDR5-3600

• ECC Support : Yes (Requires mobo support)

Graphics Capabilities

• Graphics Model : AMD Radeon™ Graphics
• Graphics Core Count :  2
• Graphics Frequency : 2200 MHz
• USB Type-C® DisplayPort™ Alternate Mode : Yes

Supported Technologies

•     AMD EXPO™ Technology , AMD Ryzen™ Technologies
