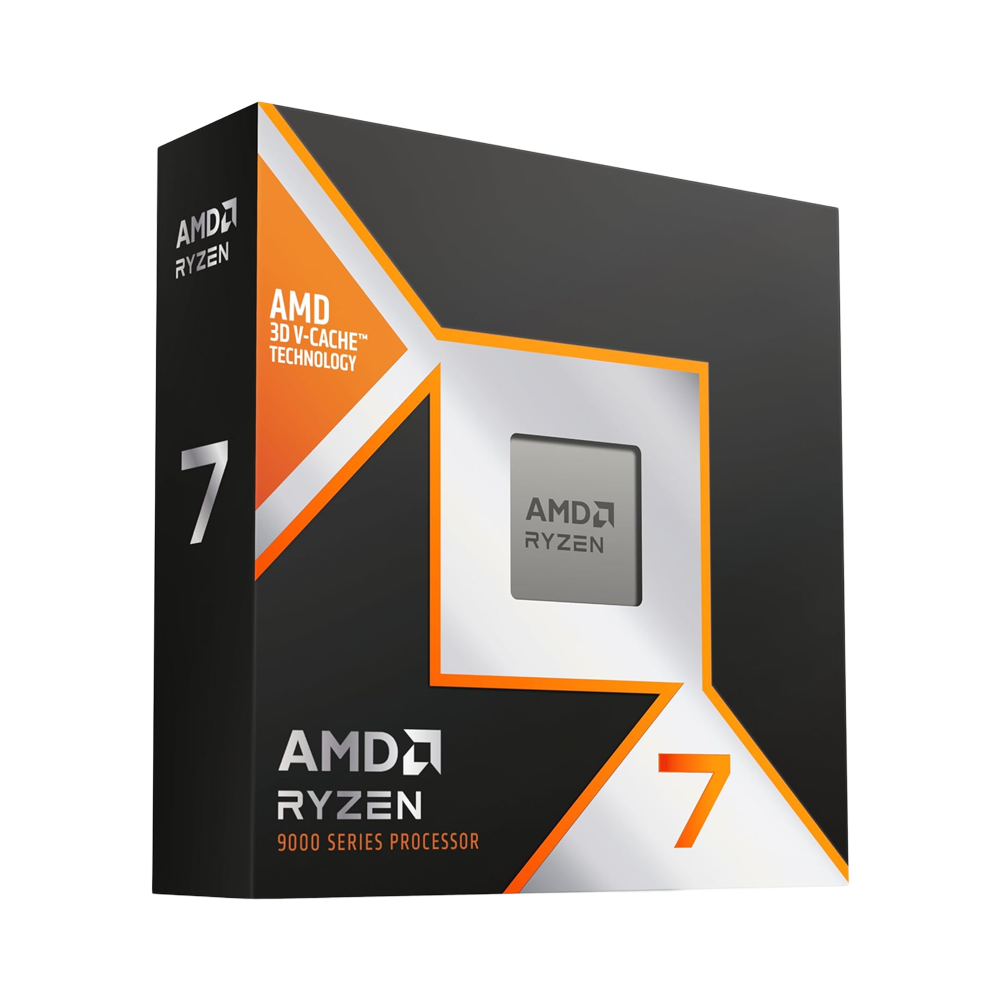

AMD Ryzen 7 9850X3D Desktop Processor

Key features

8 cores and 16 threads built on the AMD Zen 5 architecture
Up to 5.6 GHz max boost, unlocked for overclocking
96MB L3 cache and 8MB L2 cache, DDR5-5600 support
Socket AM5 platform with PCIe 5.0 support on select motherboards

Specifications

• Series : Ryzen 9000 Series

• Form Factor : Desktops , Boxed Processor

• Market Segment : Enthusiast Desktop

• Processor Architecture : Zen 5

• # of CPU Cores : 8

• Multithreading (SMT) : Yes

• # of Threads : 16

• Max. Boost Clock  : Up to 5.6 GHz

• Base Clock  : 4.7 GHz

• L1 Cache : 640 KB

• L2 Cache : 8 MB

• L3 Cache : 96 MB

• Default TDP : 120W

• Processor Technology for CPU Cores : TSMC 4nm FinFET

• Processor Technology for I/O Die : TSMC 6nm FinFET

• Unlocked for Overclocking  : Yes

• AMD EXPO™ Memory Overclocking Technology : Yes

• Precision Boost Overdrive : Yes

• Curve Optimizer Voltage Offsets : Yes

• AMD Ryzen™ Master Support : Yes

• CPU Socket : AM5

• Supporting Chipsets : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

• CPU Boost Technology : Precision Boost 2

• Instruction Set : x86-64

• Supported Extensions : AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus ,

• SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

• Thermal Solution (PIB) : Not Included

• Recommended Cooler : Liquid cooler recommended for optimal performance

• Max. Operating Temperature (Tjmax) : 95°C

• *OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86

• 64-Bit , Ubuntu x86 64-Bit

• Native USB 3.2 Gen 2 (10Gbps) : 4

• Native USB 2.0 (480Mbps) : 1

• PCI Express® Version : PCIe® 5.0

• Native PCIe® Lanes (Total/Usable) : 28 , 24

• NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10

• System Memory Type : DDR5

• Memory Channels : 2

• Max. Memory : 256 GB

• System Memory Subtype : UDIMM

• Max Memory Speed

  • 2x1R    DDR5-5600

  • 2x2R    DDR5-5600

  • 4x1R    DDR5-3600

  • 4x2R    DDR5-3600

• ECC Support : Yes (Requires mobo support)

• Graphics Model : AMD Radeon™ Graphics

• Graphics Core Count : 2

• Graphics Frequency : 2200 MHz

• USB Type-C® DisplayPort™ Alternate Mode : Yes

• AMD Secure Processor : Yes

• AMD Platform Secure Boot : Yes

• Windows Secure Boot : Yes

• UEFI Secure Boot : Yes

• Windows Device Guard : Yes

• Supervisor Mode Execution Prevention (SMEP) : Yes

• Guest Mode Execution (GMET) Trap : Yes

• Virtualization-Based Security (VBS) : Yes

• Windows Secured-Core PC : Yes

• Firmware TPM : Yes

• AMD-V (SVM) : Yes

• AMD AVIC (Interrupt Virtualization) : Yes

• AMD-Vi (I/O MMU Virtualization) : Yes

• Second Level Address Translation (SLAT) : Yes

• Advanced Encryption Standard New Instructions (AES-NI) : Yes

• AMD Enhanced Virus Protection (NX bit) : Yes

• AMD Shadow Stack : Yes
