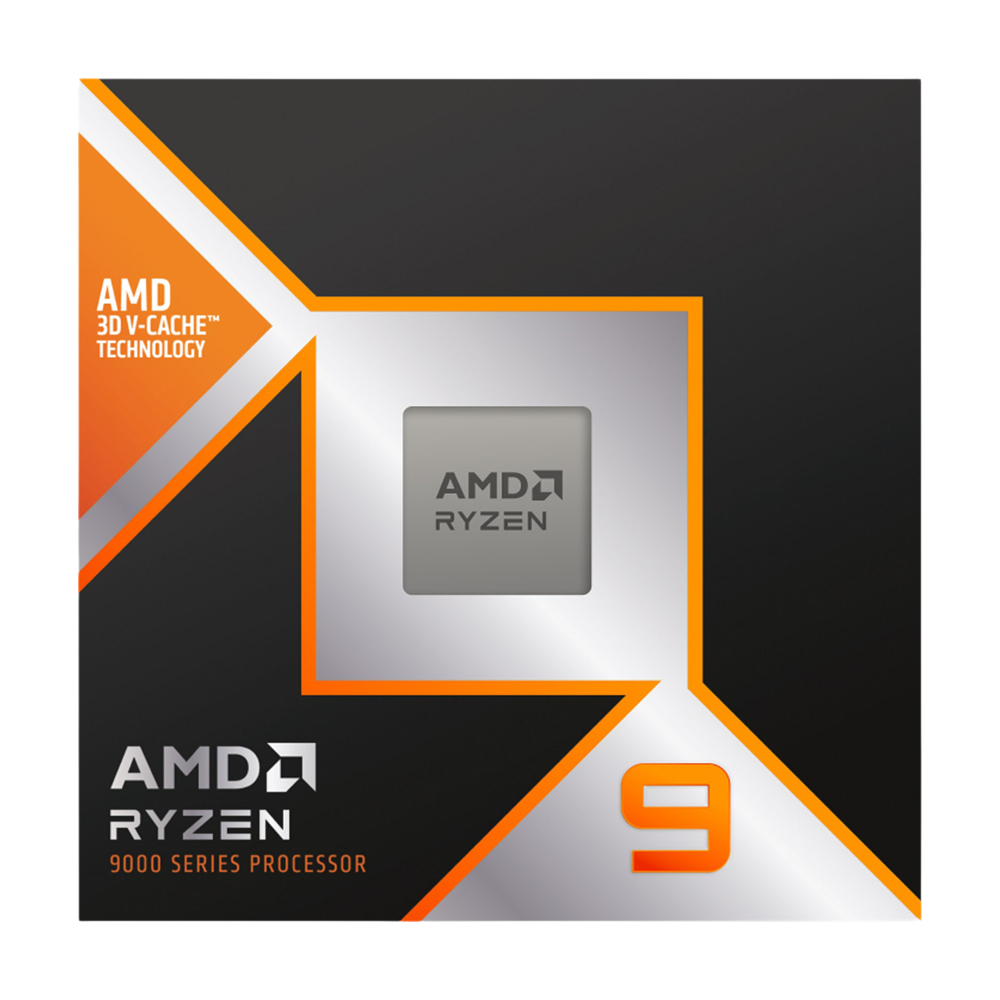

AMD Ryzen 9 9900X3D Processor

AMD Ryzen 9 9900X3D 12-Cores Gaming Processor

A powerful desktop CPU, with 2nd gen AMD 3D V-Cache™ Technology for you to enjoy extreme performance for gaming, creating, streaming or any workload you choose.

Specifications

• Name : AMD Ryzen™ 9 9900X3D

• Family : Ryzen

• Series : Ryzen 9000 Series

• Form Factor : Desktops , Boxed Processor

• Market Segment : Enthusiast Desktop

• AMD PRO Technologies : No

• Regional Availability : Global

• Former Codename :Granite Ridge AM5

• Processor Architecture : Zen 5

• # of CPU Cores : 12

• Multithreading (SMT) : Yes

• # of Threads : 24

• Max. Boost Clock  : Up to 5.5 GHz

• Base Clock   : 4.4 GHz

• L1 Cache : 960 KB

• L2 Cache : 12 MB

• L3 Cache : 128 MB

• Default TDP : 120W

• Processor Technology for CPU Cores : TSMC 4nm FinFET

• Processor Technology for I/O Die : TSMC 6nm FinFET

• Package Die Count : 3

• Unlocked for Overclocking  : Yes

• AMD EXPO™ Memory Overclocking Technology : Yes

• Precision Boost Overdrive : Yes

• Curve Optimizer Voltage Offsets : Yes

• AMD Ryzen™ Master Support : Yes

• CPU Socket : AM5

• Supporting Chipsets  : A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

• CPU Boost Technology : Precision Boost 2

• Instruction Set : x86-64

• Supported Extensions : AES , AMD-V , AVX512 , AVX2 , AVX , FMA3 , MMX-plus , SHA , SSE2 , SSE4.2 , SSE4A , SSE4.1 , SSE3 , SSSE3 , SSE , x86-64

• Thermal Solution (PIB) : Not Included

• Recommended Cooler : Liquid cooler recommended for optimal performance

• Max. Operating Temperature (Tjmax) : 95°C

• *OS Support : Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

Connectivity

• Native USB 4 (40Gbps) : 4

• Native USB 3.2 Gen 1 (5Gbps) : 1

• PCI Express® Version : PCIe® 5.0

• Native PCIe® Lanes (Total/Usable) : 28 , 24

• NVMe Support : Boot , RAID0 , RAID1 , RAID5 , RAID10

• System Memory Type : DDR5

• Memory Channels : 2

• Max. Memory : 192 GB

• System Memory Subtype : UDIMM

• Max Memory Speed

• 2x1R DDR5-5600

• 2x2R DDR5-5600

• 4x1R DDR5-3600

• 4x2R DDR5-3600

• ECC Support  : Yes (Requires mobo support)

Graphics Capabilities

• Graphics Model : AMD Radeon™ Graphics

• Graphics Core Count : 2

• Graphics Frequency : 2200 MHz

• USB Type-C® DisplayPort™ Alternate Mode : Yes
