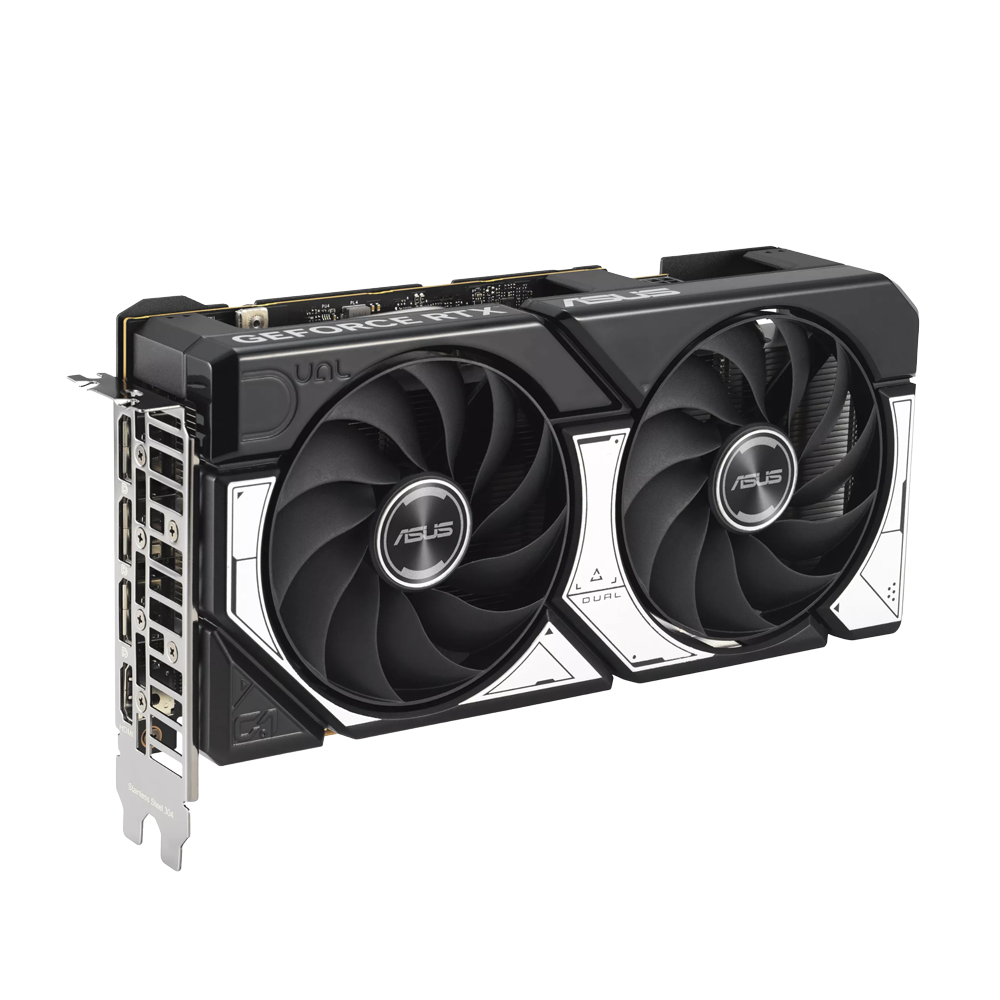

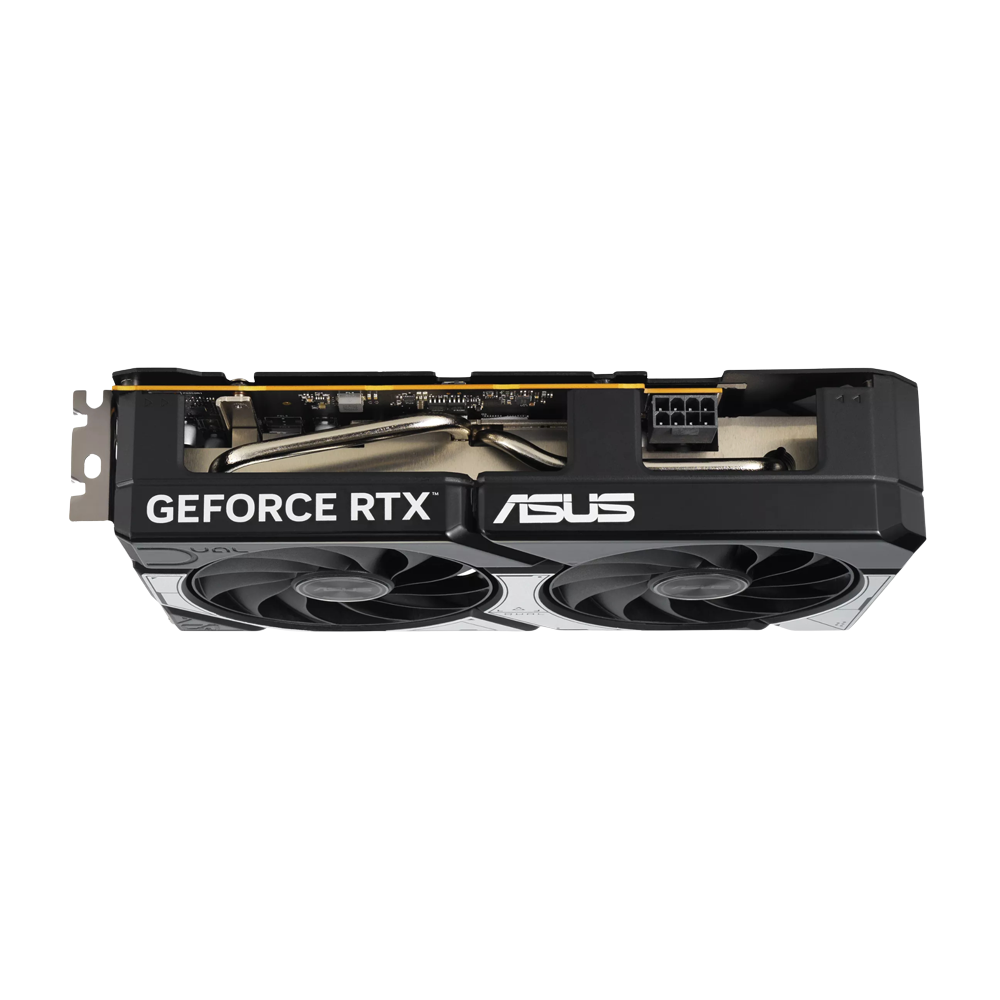

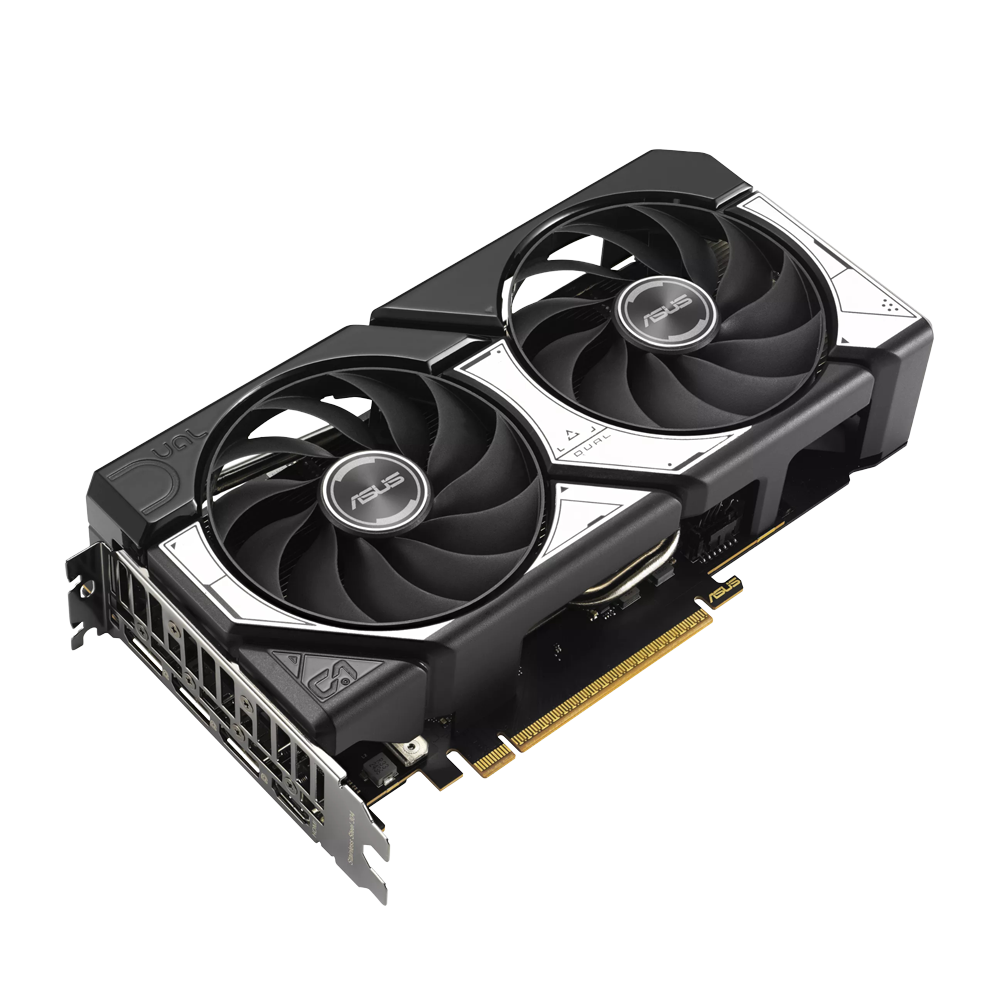

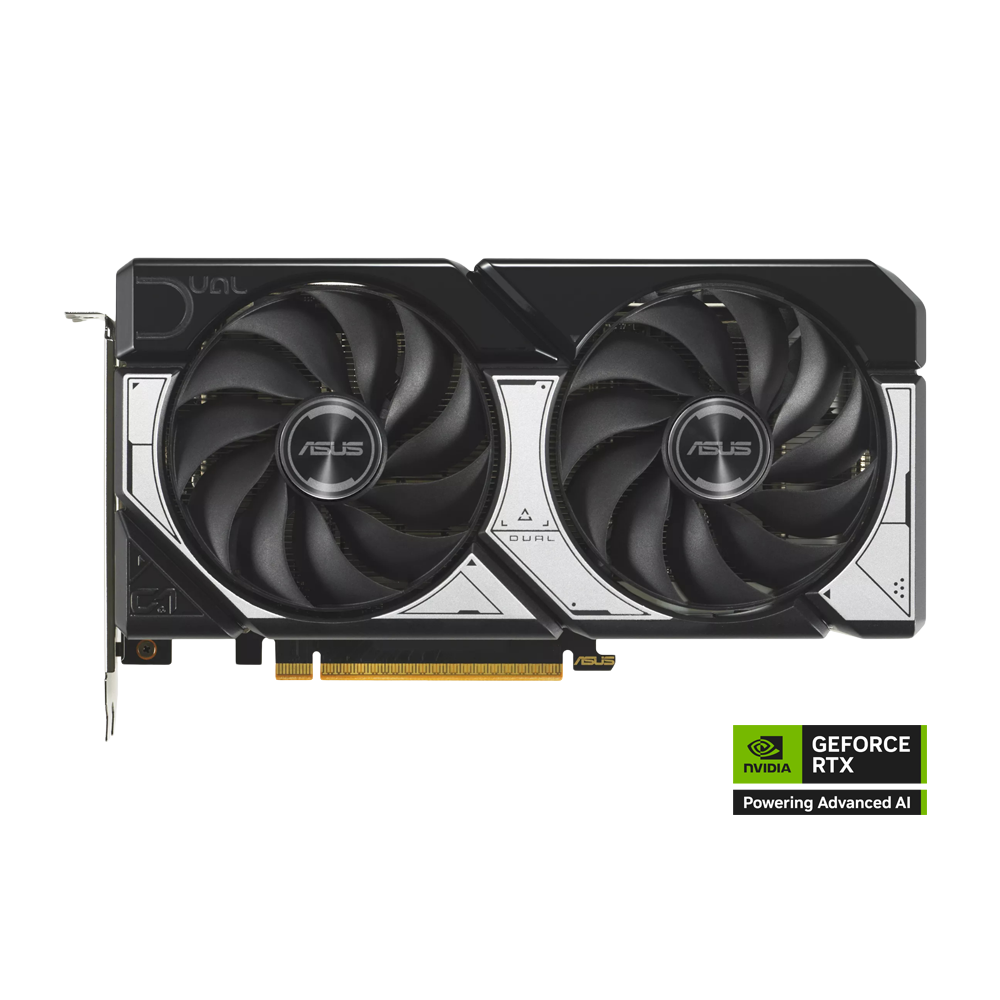

ASUS DUAL GeForce RTX 5060 8GB OC Edition Advanced Graphic Card - Black

Key Features:

• NVIDIA Blackwell Architecture: The Ultimate Platform for Gamers and Creators .

• Fifth-Gen Tensor Cores: Max AI performance with FP4 and DLSS 4.

• New Streaming Multiprocessors: Optimized for neural shaders.

• Fourth-Gen Ray Tracing Cores: Built for Mega Geometry.

• OC Edition - AI Performance: 614 TOPS - 2587 MHz (OC Mode) / 2550 MHz (Default Mode)

• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

• A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis.

• 0dB technology lets you enjoy light gaming in relative silence.

• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

• A protective aluminum backplate prevents PCB flex and trace damage.

• A stainless steel bracket is harder and more resistant to corrosion.

• Dual BIOS lets you toggle between Quiet and Performance BIOS profiles.

• Auto-Extreme precision automated manufacturing for higher reliability.

Dual GeForce RTX™ 5060 8GB GDDR7 OC Edition Advanced
Dual Fans, Perfect Fit
ASUS Dual GeForce RTX™ 5060 OC Edition Advanced combines powerful thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards — including two Axial-tech fans —optimize airflow to the heatsink, helping the card deliver enhanced performance. Designed in a compact 2.5-slot form factor, it is delivering higher engine clocks in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.

Cooling
2.5-slot Design
A carefully designed shroud, heatsink, and heatpipe layout enables the two Axial-tech fans to leverage chassis side-panel ventilation, delivering thermal performance that beyond the compact size.

Axial-tech Upgrades
Two tried-and-true Axial-tech fans feature a smaller hub facilitates longer blades and a barrier ring to increase downward air pressure.

0dB Technology
To eliminate unnecessary noise, the stop mode automatically halts all fans when the GPU temperature drops below 50 degrees and power consumption is low.

Dual Ball Fan Bearings
Fan bearings come in different types, each with its own advantages. Dual ball bearings provide superior durability and can last up to twice as long as sleeve-bearing designs.

Vented Backplate
A vented backplate significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.

ASUS GPU Guard
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks.

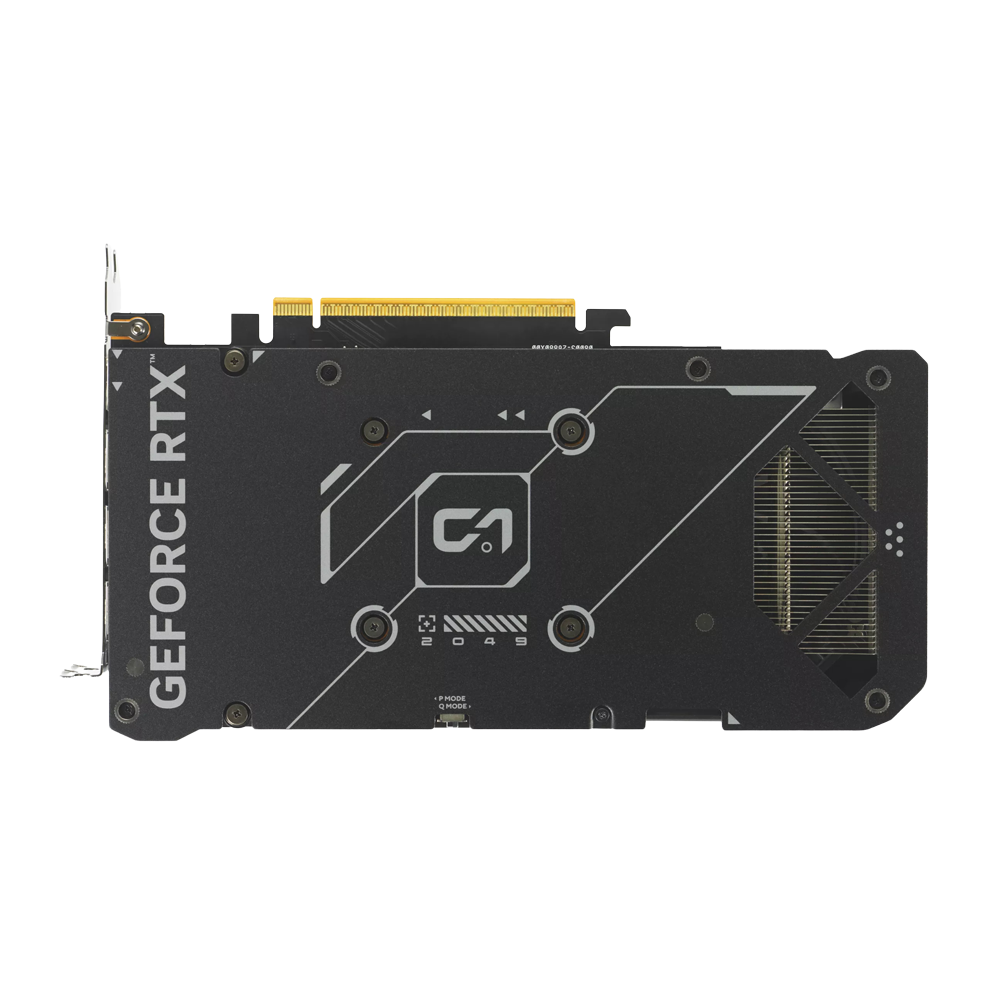

Protective Backplate
The PCB is reinforced by a backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.

Stainless Steel Bracket
The mounting bracket of the Dual has been beefed up with 304 Stainless Steel that’s harder and more resistant to corrosion.

Engineering

Dual BIOS
Do you prioritize lower core temperatures or quieter operation? Performance mode increases fan speed to keep the card running cool all the time. Quiet mode maintains the same power target and performance settings, but applies a less aggressive fan curve for quieter operation at medium temperatures. Want more control? Customize your experience with GPU Tweak III software for fine-tuned fan profiles and performance adjustments.

Auto−Extreme Technology
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing completing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting and minimizes in less environmental impact. The result is lower power consumption during manufacturing and a more reliable, high-quality product.lower manufacturing power consumption, and a more reliable product overall.

Specifications

• Model : DUAL-RTX5060-O8G-A

• Graphic Engine : NVIDIA® GeForce RTX™ 5060

• AI Performance : 614 TOPs

• Bus Standard : PCI Express 5.0

• OpenGL : OpenGL®4.6

• Video Memory : 8GB GDDR7

• Engine Clock : OC mode: 2587MHz; Default mode: 2550MHz (Boost Clock)

• CUDA Core : 3840

• Memory Speed : 28 Gbps

• Memory Interface : 128-bit

• AI Accelerators : 614

• Resolution : Digital Max Resolution 7680 x 4320

• Interface : Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1b), HDCP Support Yes (2.3)

• Maximum Display Support : 4

• NVlink/ Crossfire Support : No

• Accessories

• 1 x Speedsetup Manual

• 1 x Thank You Card

• Software : ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.

• Dimensions : 228 x 123 x 50 mm; 8.98 x 4.84 x 1.97 inches

• Recommended PSU : 550W

• Power Connectors : 1 x 8-pin

• Slot : 2.5 Slot
