ASUS ROG Rapture GT-BE98 Edition 20 WiFi 7 Gaming Router - Black
ASUS ROG Rapture GT-BE98 Edition 20 WiFi 7 Gaming Router - Black
SKU:90IG08F0-MO9A3V
QR Code : 1330940
In stock
Description
Description
Key Features:
-
Beyond-fast WiFi 7 (802.11be) with new 320MHz channels in the 6 GHz band and 4096-QAM significantly increases network capacity and throughput, with speeds of up to 25 Gbps
-
Multi-link Operation links to multiple bands at the same time to ensure stable internet connections and efficient data transfers
-
Cutting-edge external dual-feeding antennas boost coverage by providing high efficiency and significantly enhanced signal strength
-
Maximized wired connectivity and flexibility with dual 10G ports and quad 2.5G ports, paving the way for most bandwidth-intensive games
-
Subscription-free network securitywith commercial-grade AiProtection Pro powered by Trend Micro™, plus a one-tap security scan and Safe Browsing
-
Comprehensive VPN features including advanced site-to-site VPN and the Instant Guard mobile app for secure connection over public WiFi
-
AiMesh extendable routers enable whole home seamless roaming with rich, advanced features
GT-BE98 Quad-band WiFi 7 (802.11be) Gaming Router, support new 320MHz bandwidth & 4096-QAM, dual 10G ports, backup WAN, Triple-level Game Acceleration, Mobile Game Mode, AURA RGB, AiMesh support, subscription-free network security and comprehensive VPN features.
ROG GT-BE98 EDITION 20Innovate. Perform. Dominate.
The limited-edition GT-BE98 Edition 20 inherits two decades of ROG innovation and pushes the boundaries of high-performance networking. This router features ultra-fast connectivity, advanced performance technologies, and a premium anniversary design that stands as a bold expression of the ROG tradition.
For two decades, ROG has stood at the forefront of gaming innovation, pushing boundaries and defining excellence. To commemorate this monumental 20th anniversary, ROG proudly unveils a special selection of limited-edition ROG components and gear featuring an alternative colorway and leading innovations. More than an aesthetic, this colorway reflects core values that are a testament to an enduring legacy.
Precise Design
The sleek gold-on-black aesthetic highlights precision-crafted details, from a metallic finish to exclusive anniversary accents. Each element reflects 20 years of ROG innovation, creating a refined yet bold look that embodies performance and prestige.
Signature Edition 20 Interface
An exclusive ROG Edition 20 web interface comes with a specially crafted color theme, bringing a refreshed visual experience that reflects the iconic ROG design and elevates your setup.
Extreme Throughput. Total Connectivity.
Combining high-performance processing with up to 31G wired capacity, the GT-BE98 Edition 20 is equipped with two 10G and four 2.5G Ethernet ports for uncompromised speed. Advanced networking features help ensure stable, flexible, and always-on connectivity.

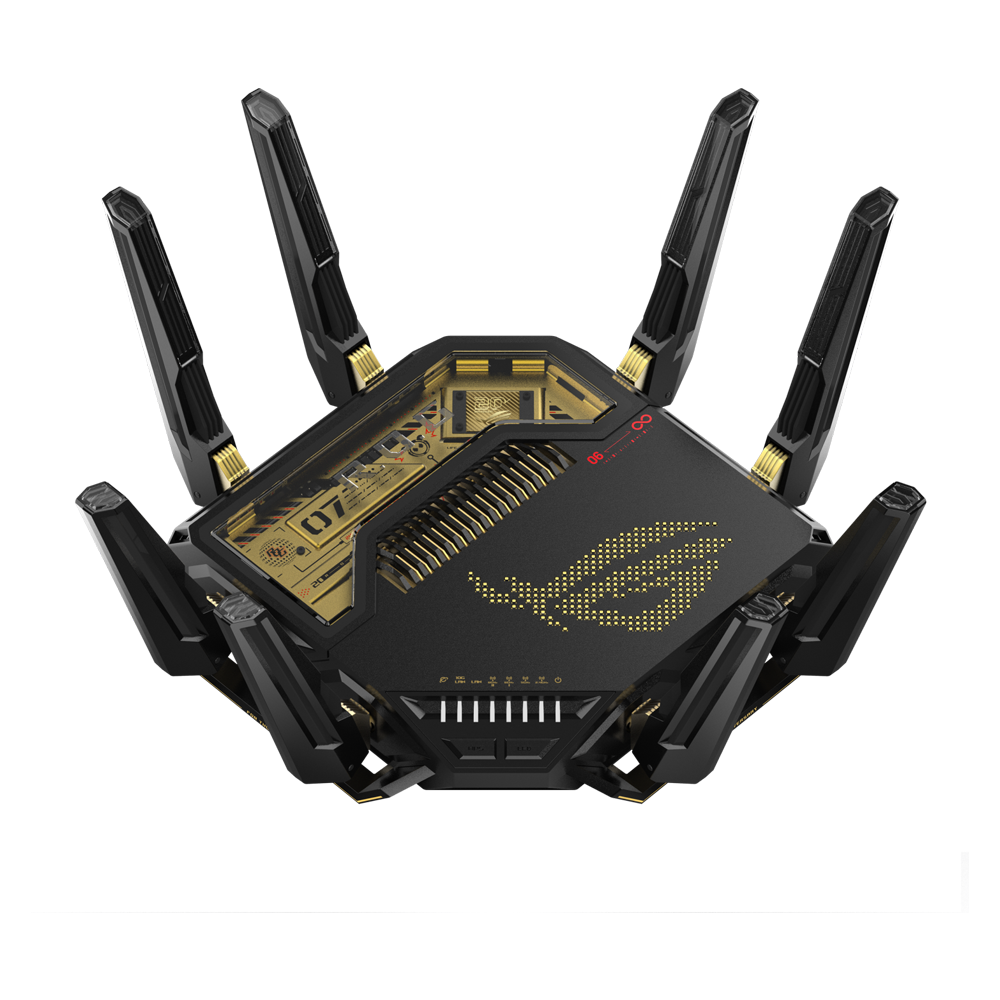

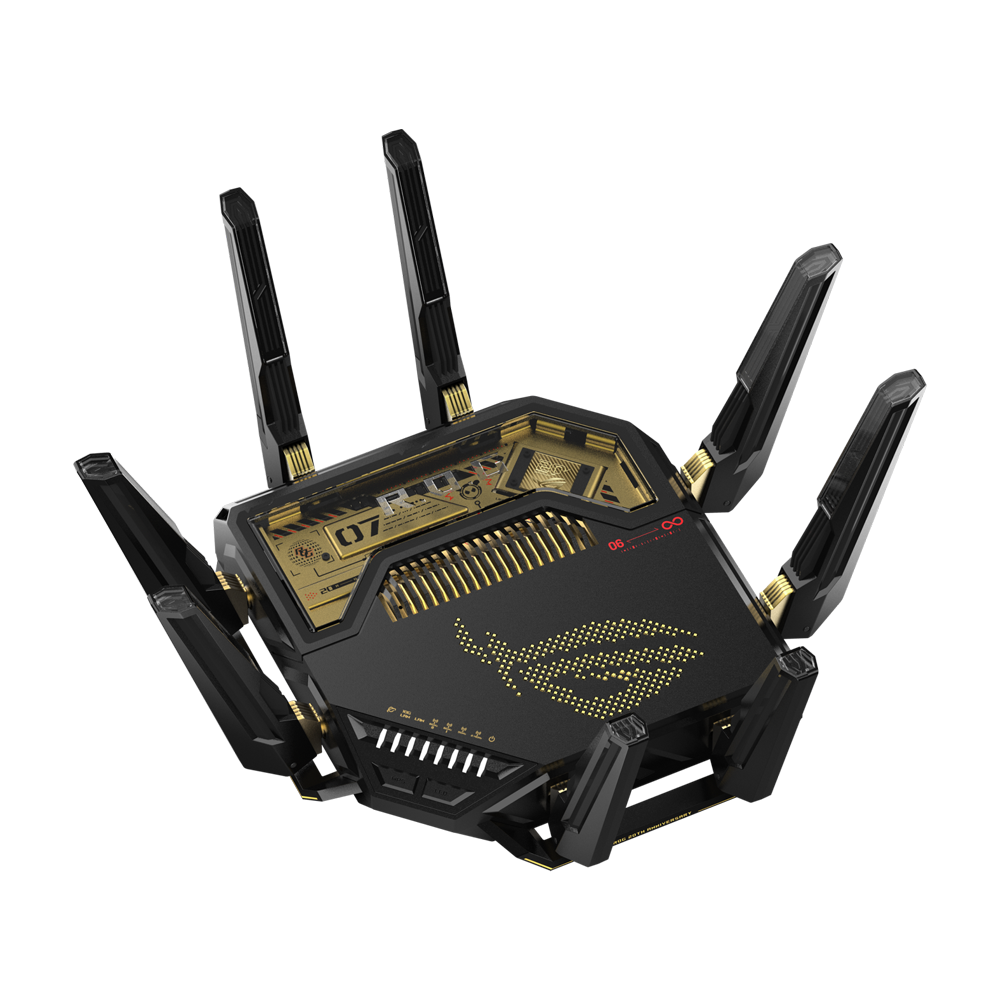

ROG Rapture GT-BE98 Edition 20 gaming router with multiple antennas and WiFi 7 branding in gold theme.
Specifications
Model : ROG Rapture GT-BE98 Edition 20
Model Name
- GT-BE98
Network Standard
-
WiFi 6 (802.11ax)
-
WiFi 7 (802.11be)
-
IEEE 802.11a
-
IEEE 802.11b
-
IEEE 802.11g
-
IEEE 802.11n
-
IEEE 802.11ac
-
IPv4
-
IPv6
Product Segment
- BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps
WiFi Data Rate
-
2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
-
5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps
-
5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps
-
6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbps
Antenna
- External antenna x 8
Transmit / Receive
-
2.4GHz 4x4
-
5GHz-1 4x4
-
5GHz-2 4x4
-
6GHz 4x4
Processor
- 2.6GHz quad-core processor
Memory
- 256 MB Flash and 2 GB RAM
Boosts Speed
- OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
Operating Frequency
- 2.4 GHz / 5 GHz / 6 GHz
Operating Mode
- Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
I/O Ports
-
1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
1 x 10Gbps for LAN
3 x 2.5Gbps for LAN
1 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen1
1 x USB 2.0
Buttons
- WPS Button, Reset Button, Power Switch, LED control Button
LED Indicator
- WAN(Internet) x1
10G LAN x1
1G/2.5G LAN x1
6GHz x1
5GHz-1 x 1
5GHz-2 x 1
2.4GHz x1
Power x1
Power Supply
- AC Input : 110V~240V(50~60Hz)
DC Output : 19.5 V with max. 3.33 A current
Package Content
- GT-BE98 quad-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
- 2000 g
Product Dimensions
- 350.41 x 350.41 x 220.6 mm
AiMesh
Game
- Game Boost / Acceleration
- WTFast
- ROG_First
- OpenNAT (Game Profile)
- Gaming Port
Parental Control
- "Allow you to block access to unwanted websites and apps."
- Parental Control Customized Internet Schedule
- • Maximum Parental Control Profile : 64
- • Maximum Parental Control Content Filter Rule : 64
Guest Network
- "The Guest Network provides Internet connection for guests but restricts access to your local network."
- • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
- Guest Network Connection time limit
- Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
Security
-
WiFi Encryption : WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE - WPS
- Let's Encrypt
- DNS-over-TLS
- SSH
- Security Scan
- Firewall
- • Maximum Firewall Keyword Filter : 64
- • Maximum Firewall Network Service Filter : 32
- • Maximum Firewall URL Filter : 64
AiProtection
- AiProtection Pro
- • Router Security Assessment
- • Malicious Site Blocking
- • Two-Way IPS
- • Infected Device Prevention and Blocking
VPN
-
Instant Guard
-
VPN Client L2TP
-
VPN Client Open VPN
-
VPN Client PPTP
-
VPN Client WireGuard
-
VPN Server IPSec
-
VPN Server Open VPN
-
VPN Server PPTP
-
VPN Server WireGuard
-
VPN Fusion
Traffic Control
- Adaptive QoS
- • Bandwidth Monitor
- • Bandwidth Limiter
- -- Maximum Bandwidth Limiter Rule : 32
- Traditional QoS
- Traffic Monitor
- • Real-time Traffic Monitor
- • Wired Traffic Monitor
- • Wireless Traffic Monitor
- Traffic Analyzer
- • Traffic Analysis Period : Daily, Weekly, Monthly
- • Website History
WAN
- Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
- Dual WAN
- 3G / 4G LTE Dongle
- 4G / 5G Auto Mobile Tethering
- Port Forwarding
- • Maximum Port Forwarding Rule : 64
- Port Triggering
- • Maximum Port Triggering Rule : 32
- DMZ
- DDNS
- NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
LAN
-
DHCP Server
-
IPTV
-
LAN Link Aggregation
-
Manually Assign IP Address
-
• Maximum Manually Assign IP Address Rule : 128
- Wake on LAN (WOL)
Wireless
-
MU-MIMO
-
UTF-8 SSID
-
WiFi MAC Address Filter
-
• Maximum MAC Filters : 64
-
Wireless Scheduler
-
Airtime Fairness
-
RADIUS Client
-
Universal Beamforming
-
Explicit Beamforming
USB application
-
4G / 5G Auto Mobile Tethering
-
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
-
Safely Remove Disk
-
Download Master
-
Media Server
-
Time Machine
-
Samba Server
-
FTP Server
-
Shared Folder Privileges
User Interface
- Operating system : ASUSWRT
Administration
-
Configuration Backup and Restore
-
Diagnosis Tools
-
Feedback System
-
System Log
-
New Device Connect Notification
-
Login Captcha
-
Connection Diagnosis
-
Auto Firmware Update
