ASUS PRIME TRX40 PRO DDR4 Motherboard

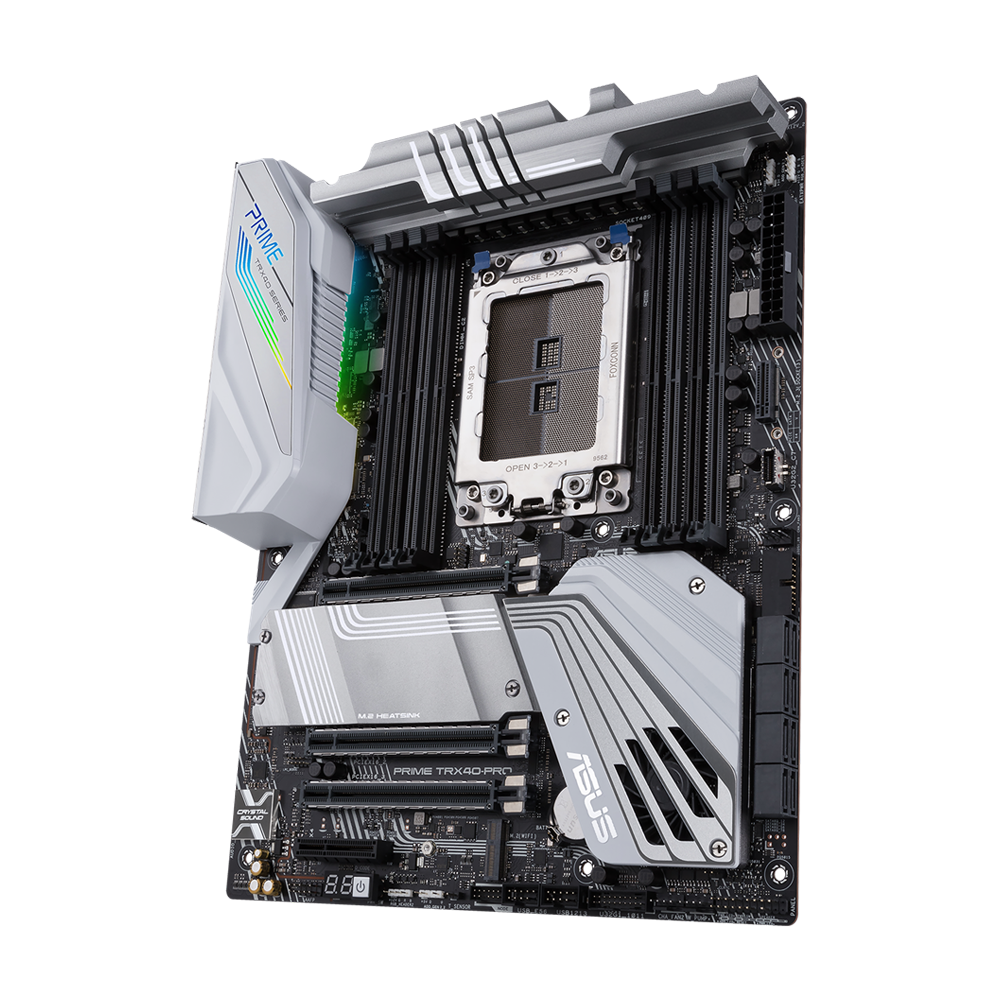

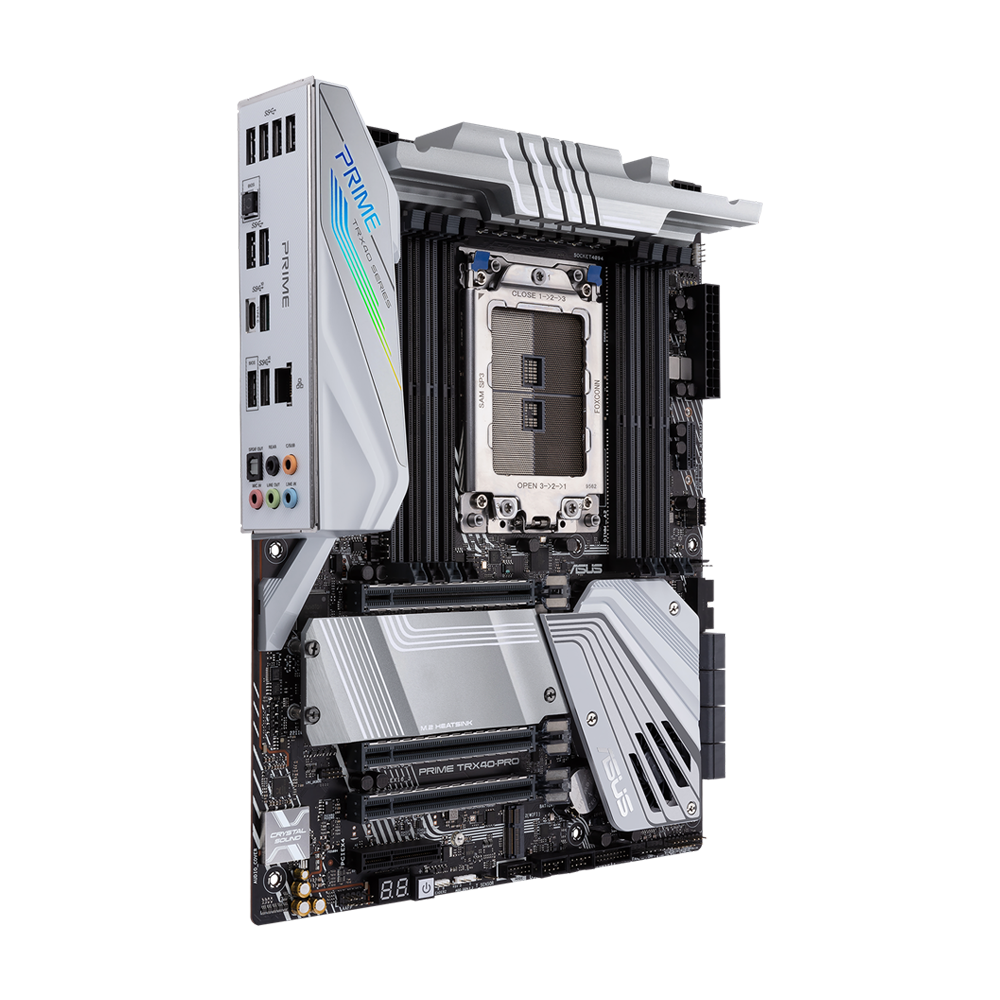

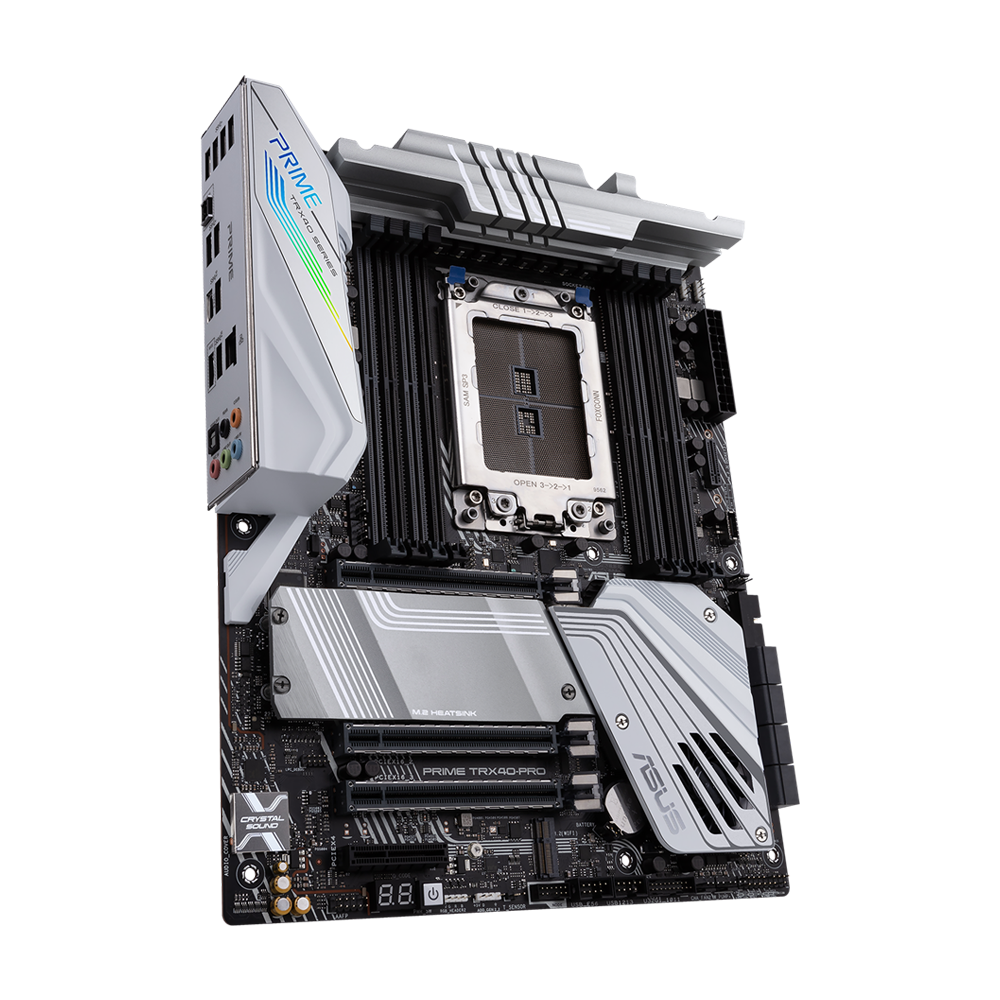

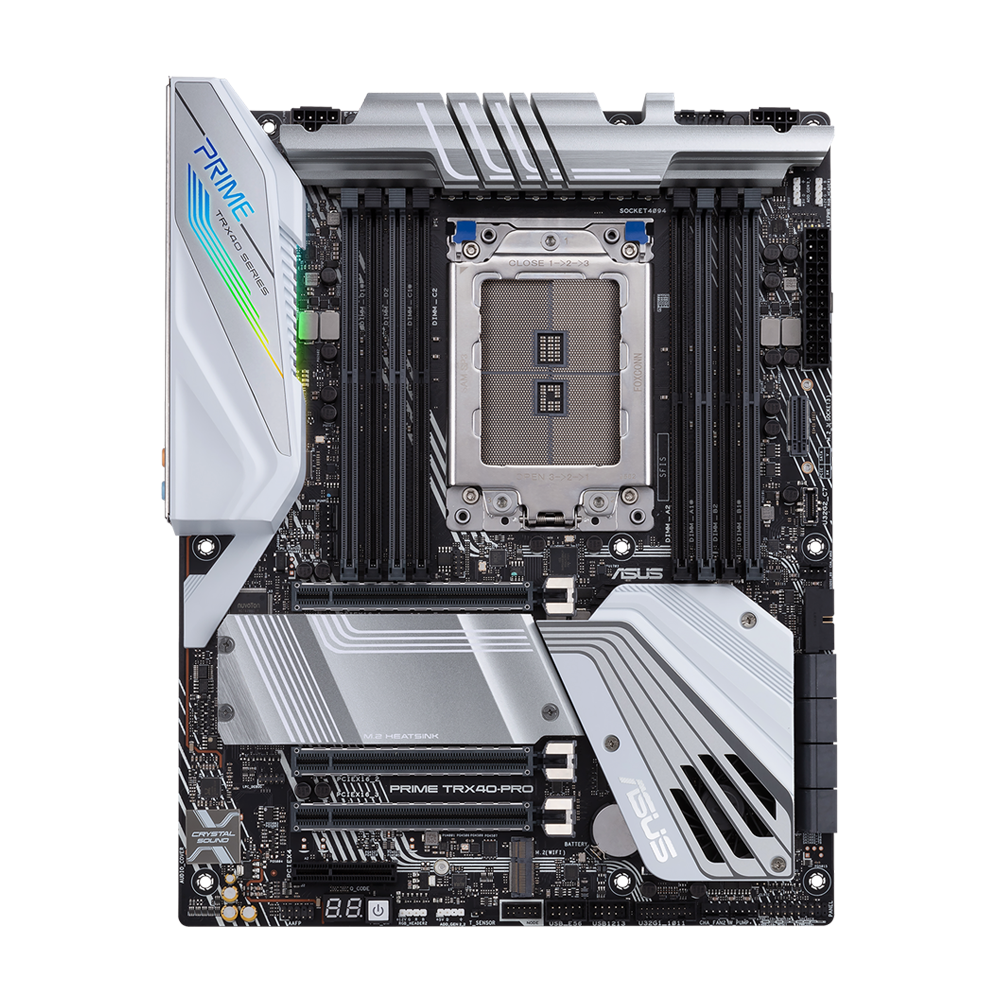

Asus Prime TRX40-Pro Gaming ATX Motherboard

AMD TRX40 ATX motherboard sTRX4 for 3rd Gen Ryzen Threadripper-series processors with 16 power stages, DDR4 4666+ MHz (O.C.), triple PCIe 4.0 M.2s, USB 3.2 Gen 2 Type-C front-panel connector and Aura Sync RGB lighting

ASUS Prime TRX40-Pro is expertly engineered to unleash the full potential of AMD's latest high-core-count processors for content creators, designers and professional use. Combining a robust power design, comprehensive cooling solutions, ultrafast PCIe 4.0 connectivity and intelligent tuning options, the high-end desktop motherboard delivers the performance and stability needed to turn every creative vision into reality.

Robust Power Design

The new AMD Socket sTRX4 is compatible with 3rd Gen AMD Ryzen Threadripper CPUs with up to 32 cores, up to 64 PCIe 4.0 lanes, and 280-watt thermal design power (TDP). Such specifications require serious power, so Prime TRX40-Pro is equipped with an enhanced power solution that includes 16 power stages to ensure your processor keeps up with your creativity.

ProCool II Connectors

ProCool II connectors ensure a snug and reliable connection to the EPS 12V power lines. The second-generation features upgrades of metal amour and solid pins for better heat dissipation, as well as a warning LED-display with a BIOS POST message to indicate improper connections.

Cool to the Core

Effective content creation demands a reliable, professional foundation. Prime TRX40-Pro is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads, so that your focus remains fixed on your creative goals.

M.2 Heatsink

Two M.2 slots are covered by a massive heatsink to combat temperature-induced throttling that can affect performance during heavy, sustained storage loads.

Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. Prime TRX40-Pro packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.

5-Way Optimization

One click takes care of all that complex tuning. ASUS 5-Way Optimization makes your PC smart. It dynamically optimizes essential aspects of the system, providing overclocking and cooling profiles that are tailored for your rig.

• An automated tuning utility that optimizes overclocking and cooling profiles for your unique system configuration.
• Fans stay quiet as a whisper for everyday computing, and deliver optimal airflow when the system is crunching through CPU- or GPU-intensive tasks.
• The stress test allows you to optimize and overclock for CPU- or memory-centric workloads.

Little Things Make a Big Difference

We pay careful attention to all the little details that improve your overall experience, from utilizing exclusive codecs for pristine audio quality to intuitive RGB lighting controls for a customized look. Prime TRX40-Pro provides the tools you need to personalize your build for a more enjoyable creation process.

Pre-Mounted I/O Shield

Set Up without Slip-Ups

Form meets function in the pre-mounted I/O shield that we pioneered with the ROG series motherboards. Now available on Prime TRX40-Pro, this feature streamlines the installation process for budding builders and savvy enthusiasts alike.

Specifications

• CPU : AMD Socket sTRX4 for 3rd Gen AMD Ryzen Threadripper Series Desktop Processors


• Chipset : Build in AMD TRX40

• Memory : 3rd Gen AMD Ryzen Threadripperâ„¢ Series Desktop processors


             8 x DIMM, Max. 256GB, DDR4 4666(O.C.)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3466(O.C.)/3400(O.C.)/3200/2933/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory

• Multi-GPU Support : Supports NVIDIA® Quad-GPU SLI® Technology


                                                    Supports NVIDIA® 2-Way SLI® Technology
                                                    Supports AMD Quad-GPU CrossFireX Technology
                                                    Supports AMD 2-Way CrossFireX Technology

• Expansion Slots : 3rd Gen AMD Ryzen Threadripper Series Desktop processors


                                                3 x PCIe 4.0 x16 (x16/x16/x16) *

                                                AMD TRX40 chipset

                                                1 x PCIe 4.0 (x4 mode)

• Storage : 3rd Gen AMD Ryzen Threadripper Series Desktop processors :

                               2 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(PCIe 4.0 x4 mode)

                              AMD TRX40 chipset :

                                1 x M.2 Socket 3, with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

                                8 x SATA 6Gb/s port(s)

                                Support Raid 0, 1, 10

• LAN : Intel® I211-AT


                        ASUS Turbo LAN Utility
                        ASUS LAN Guard

• Audio : Realtek® ALC S1220 8-Channel High Definition Audio CODEC featuring Crystal Sound 3


                            - Impedance sense for front and rear headphone outputs

                            - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

                            - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

                            - High quality 120 dB (Line-out at rear) and 108 dB SNR recording input (Line-in)

            Audio Feature :
                            - DTS X®:Ultra
                            - Optical S/PDIF out port(s) at back panel
                            - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
                            - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
                            - Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
                            - Unique de-pop circuit: Reduces start-up popping noise to audio outputs

• USB Ports : AMD Ryzen Threadripper Processors :


                                    4 x USB 3.2 Gen 2 port(s) (4 at back panel, , 3 x Type-A+1 x Type-C)

                                     AMD TRX40 chipset :

                                     1 x USB 3.2 Gen 2 front panel connector port(s) (1 at mid-board)

                                     AMD TRX40 chipset :

                                     6 x USB 3.2 Gen 1 port(s) (2 at back panel, , Type-A, 4 at mid-board)

                                     AMD TRX40 chipset :

                                     2 x USB 2.0 port(s) (2 at mid-board)

                                     ASMedia® USB 3.2 Gen 1 controller :

                                     4 x USB 3.2 Gen 1 port(s) (4 at back panel, , Type-A)

                                     GL852G USB Hub :

                                     2 x USB 2.0 port(s) (2 at mid-board)

• Special Features : ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5 :


                                                - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App

                                                ASUS SafeSlot - Protect your graphics card Investment

                                                AURA :

                                                - Aura RGB Strip Headers

                                                - Aura Lighting Effects Synchronization with compatible ASUS ROG devices

                                                - Addressable Gen 2 Header

                                                ASUS Exclusive Features :

                                                - AI Suite 3

                                                - Ai Charger

                                                - Onboard Button : Power

                                                - ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface

                                                - Turbo LAN

                                                - Crystal Sound 3

                                                - Armoury Crate

                                                - Pre-mounted I/O Shield

                                                ASUS Quiet Thermal Solution :

                                                - Stylish Design Heat-pipe solution

                                                - Stylish Fanless Design with M.2 Heat-sink solution

                                                - ASUS Fan Xpert 4

                                                ASUS EZ DIY :

                                                - ASUS EZ Flash 3

                                                - ASUS USB BIOS FlashBack

                                                - ASUS UEFI BIOS EZ Mode

                                                - Multi-language BIOS

                                                ASUS Q-Design :

                                                - ASUS Q-Code

                                                - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)

                                                - ASUS Q-Slot

                                                - ASUS Q-DIMM

                                                - ASUS Q-Connector

• Back I/O Ports : 1 x LAN (RJ45) port(s)


                                            4 x USB 3.2 Gen 2 (teal blue) (3 x Type-A+1 x Type-C) (one port can be switched to USB BIOS FlashBackâ„¢)

                                            6 x USB 3.2 Gen 1 (blue)

                                            1 x Optical S/PDIF out

                                            5 x Audio jack(s)

                                            1 x USB BIOS FlashBack Button(s)

• Internal I/O Ports :1 x Q_Code


                                                2 x Aura RGB Strip Header(s)

                                                2 x Addressable Gen 2 header(s)

                                                2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)

                                                2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

                                                2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
                                                1 x M.2 Socket 3 with vertical M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)

                                              &n
