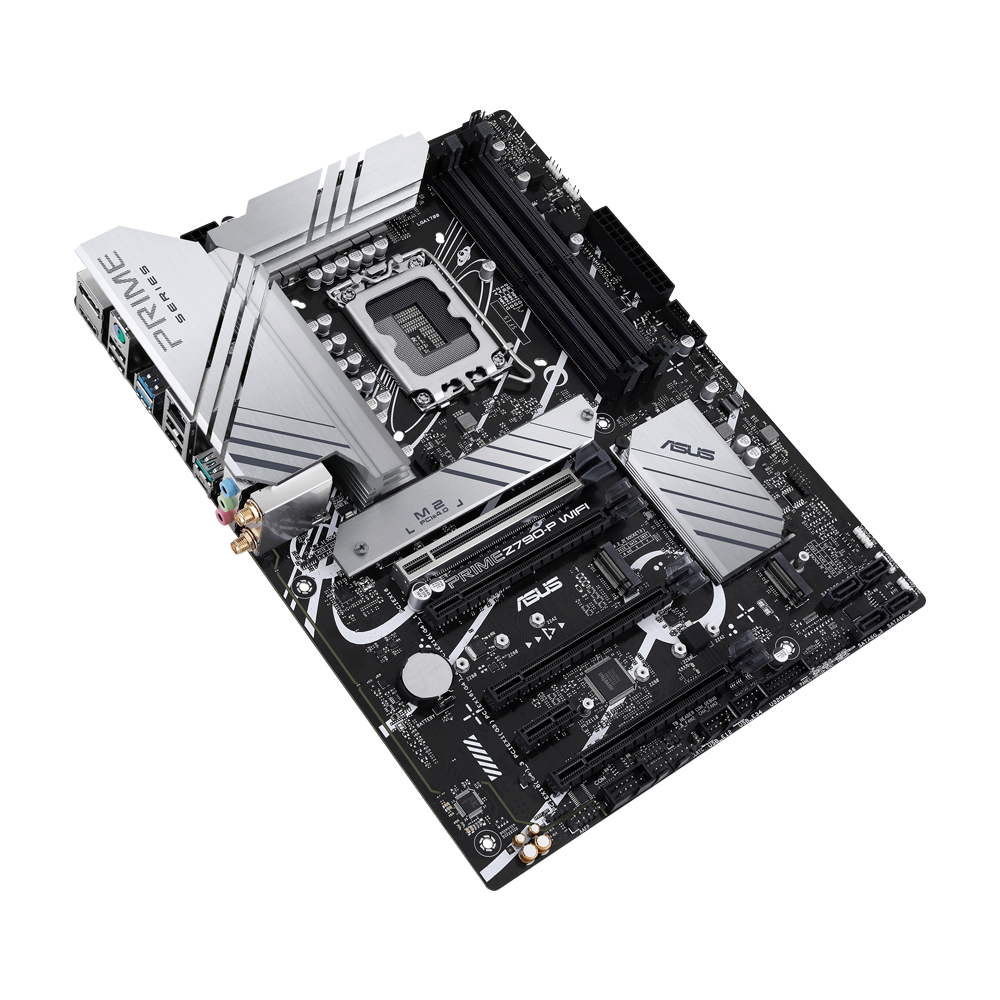

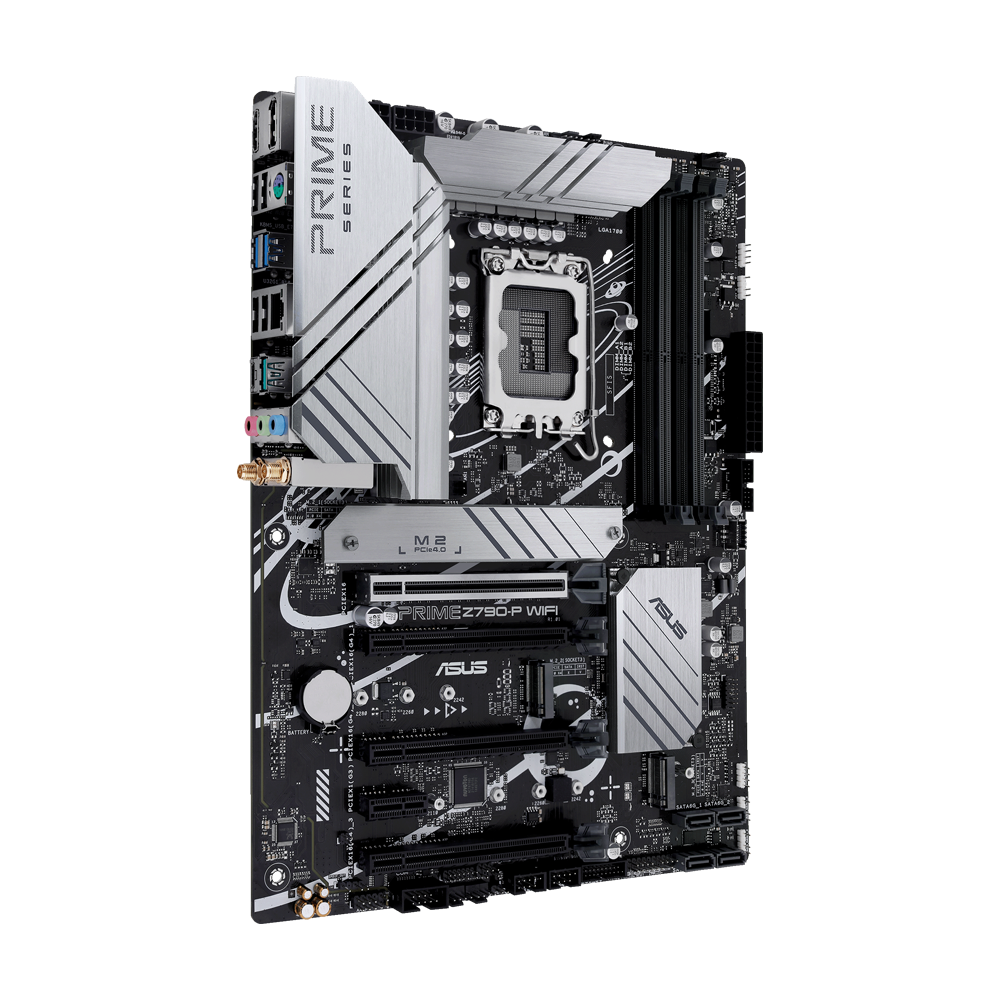

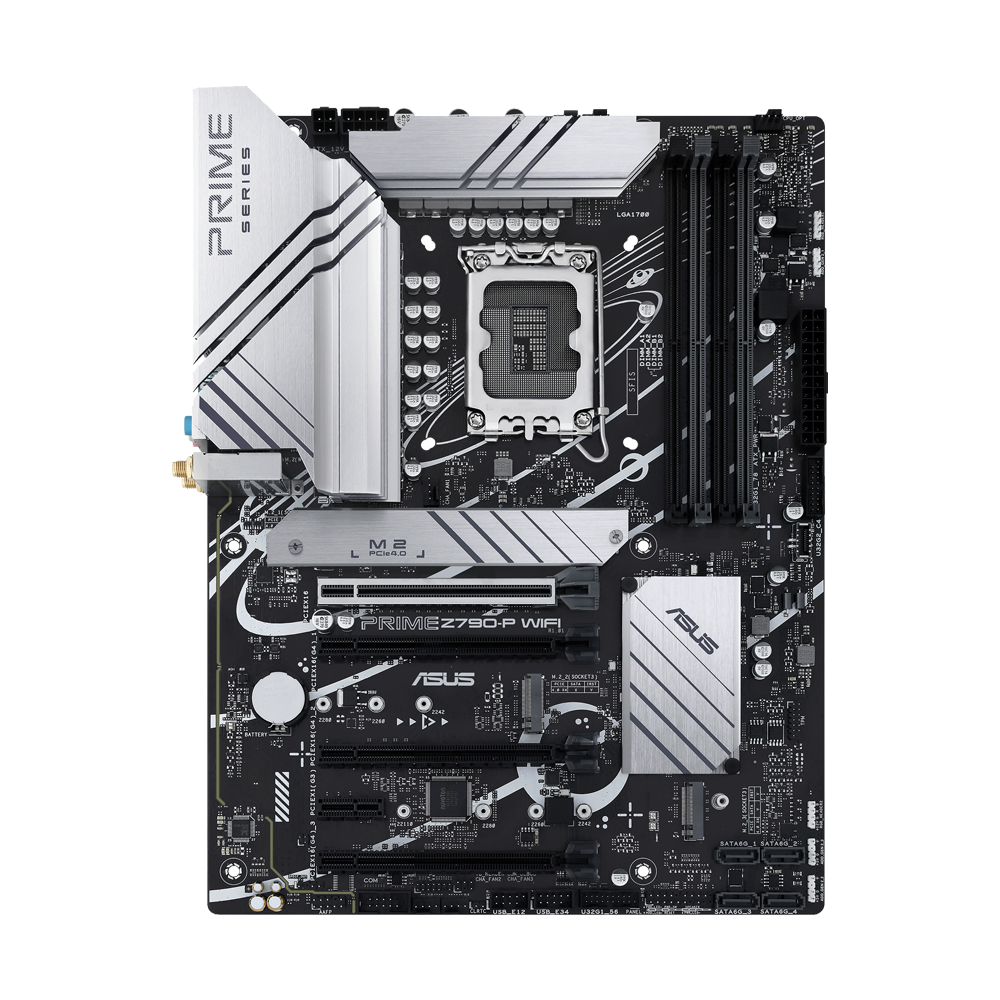

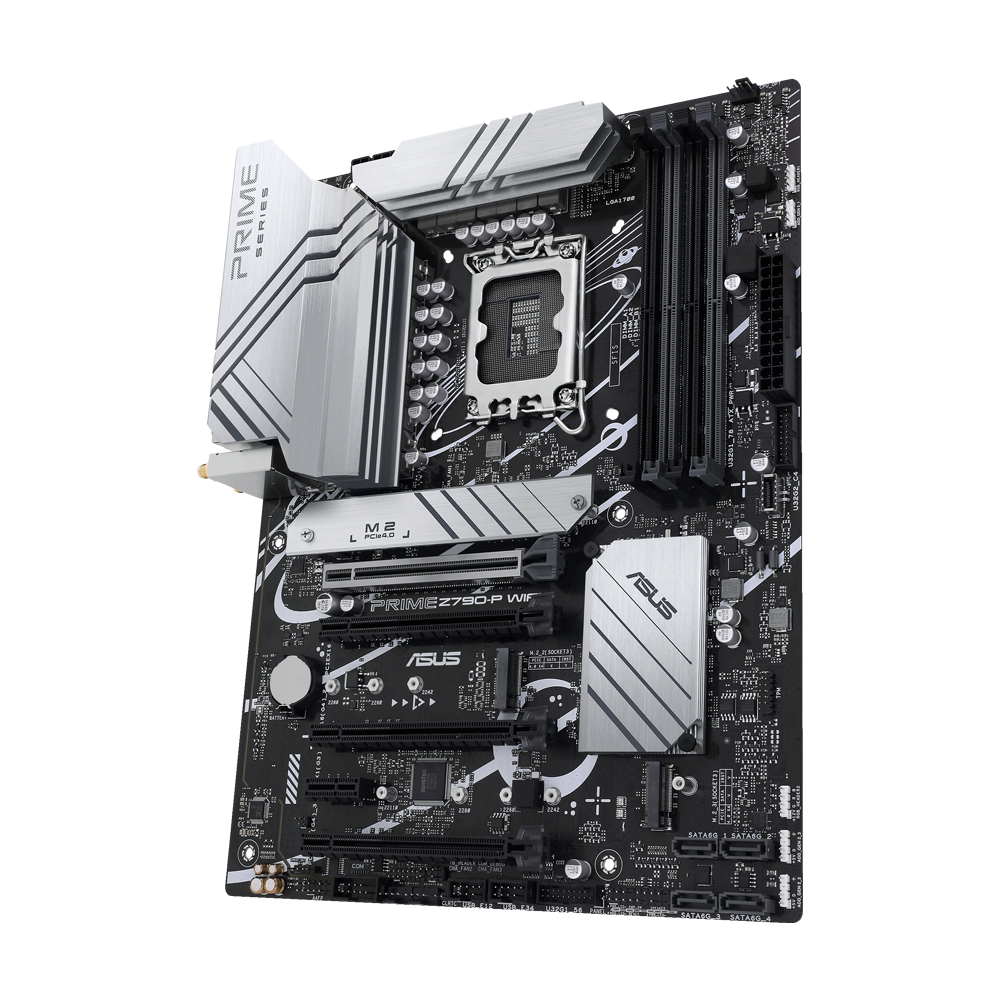

ASUS PRIME Z790-P WIFI DDR5 ATX Motherboard - Black

ASUS PRIME Z790-P WIFI DDR5 ATX Motherboard - Black

90MB1CJ0-M1EAY0

QR Code : 1320054

In stock

KWD 77.900
KWD 77.900
Sale Sold out
Manufacturer

Description

Key Features:

  • Intel® LGA 1700 socket: Ready for 12th and 13th Gen Intel® processors
  • Enhanced power solution: 14+1 DrMOS, 6-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
  • Next-gen connectivity: DDR5 memory, Intel® Wi-Fi 6, PCIe® 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen2x2 Type-C®, front panel USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) header support, 3 PCIe® 4.0 M.2
  • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II
  • Comprehensive cooling: Large VRM heatsinks, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II

ASUS Prime Z790-P WIFI, an Intel Z790 LGA 1700 ATX motherboard with PCIe® 5.0, three M.2 slots, 14+1 DrMOS, DDR5, Intel WIFI 6, Realtek 2.5 Gb LAN, HDMI®, DP, USB 3.2 Gen 2x2 Type-C®, front USB 3.2 Gen 2 Type-C®, Thunderbolt™ (USB4®) support, Arua Sync

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME Z790-P WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME Z790-P WIFI motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

AI Cooling ll

AI Cooling II balances the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then it monitors CPU temperatures to dynamically adjust fans to optimal speeds.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers

An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup

EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time

COOLING

PRIME Z790-P WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks

M.2 Heatsink

The flexible M.2 heatsink with removable captive screws can take care of the M.2_1 or M.2_3 slot, warding off throttling that can occur with M.2 storage during sustained transfers.

Removable captive screws reduce risk of drops or loss during heatsink removal.

VRM Heatsink and Thermal Pad

The extensive surface area of the massive heatsinks cover the VRMs and chokes to improve heat dissipation. Together with specially engineered thermal pads, they improve heat transfer from the MOSFETs and chokes for better cooling performance.

PERFORMANCE

The PRIME Z790-P WIFI motherboard is built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS Z790 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance out of Intel processors. The PRIME Z790-P WIFI is geared to cater to the demands of these high-core-count CPUs.

AEMP II for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile II (AEMP II) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP II is based on a CPU and memory module’s ability to train the memory chips on your kit, and it presents an optimized clock speed that can effortlessly unleash performance.

Built through a flexible training method, AEMP II makes it easy to not only tune the memory above baseline settings but also maintain the stability of system operation, whether getting the most out of an entry-level module or priming a high-speed kit for ultimate performance.

CUSTOMIZATION

The PRIME Z790-P WIFI motherboard adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Outstanding Audio

Combined onboard features deliver elevated audio

Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced.

Audio Shielding

Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.

Dedicated Audio PCB Layers

Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.

Premium Audio Capacitors

Provides warm, natural, and immersive sound with exceptional clarity and fidelity.

Specifications

Model

  • PRIME Z790-P WIFI
CPU
  • Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  • Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  • ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

  • Intel® Z790 Chipset

Memory

  • 4 x DIMM, Max. 128GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

  • Dual Channel Memory Architecture

  • Supports Intel® Extreme Memory Profile (XMP)

  • OptiMem II

  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

  • 4 x DIMM, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*

  • Dual Channel Memory Architecture

  • Supports Intel® Extreme Memory Profile (XMP)

  • OptiMem II

  • * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory  configuration, for more information

  • * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

  • 1 x DisplayPort**

  • 1 x HDMI® port***

  • *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

  • ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

  • *** Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

  • Intel® 13th & 12th Gen Processors*

  • 1 x PCIe 5.0 x16 slot

  • Intel® Z790 Chipset

  • 3 x PCIe 4.0 x16 slots (support x4 mode)

  • 1 x PCIe 3.0 x1 slot

  • - To ensure compatibility of the device installed peripherals.

Storage

  • Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

  • Intel® 13th & 12th Gen Processors

  • M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

  • Intel® Z790 Chipset

  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

  • M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

  • 4 x SATA 6Gb/s ports

  • * Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.

Ethernet

  • 1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth

  • Wi-Fi 6

  • 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

  • Supports 2.4/5GHz frequency band

  • Bluetooth® v5.2

USB

  • Rear USB (Total 8 ports)

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

  • 1 x USB 3.2 Gen 2 port (1 x Type-A)

  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)

  • 4 x USB 2.0 ports (4 x Type-A)

  • Front USB (Total 9 ports)

  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

  • 2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

  • * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

  • * USB_E5 port, USB_E6 port, USB_E7 port and USB_E8 port share the bandwidth.

Audio

  • Realtek 7.1 Surround Sound High Definition Audio CODEC*

  • - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

  • - Supports up to 24-Bit/192 kHz playback

  • Audio Features

  • - Audio Shielding

  • - Premium audio capacitors

  • - Dedicated audio PCB layers

  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

  • 1 x USB 3.2 Gen 2 port (1 x Type-A)

  • 2 x USB 3.2 Gen 1 ports (2 x Type-A)

  • 4 x USB 2.0 ports (4 x Type-A)

  • 1 x DisplayPort

  • 1 x HDMI® port

  • 1 x Wi-Fi Module

  • 1 x Realtek 2.5Gb Ethernet port

  • 3 x Audio jacks

  • 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

  • Fan and Cooling related

  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x 4-pin AIO Pump header

  • 3 x 4-pin Chassis Fan headers

  • Power related

  • 1 x 24-pin Main Power connector

  • 1 x 8-pin +12V Power connector

  • 1 x 4-pin +12V Power connector

  • Storage related

  • 3 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

  • USB

  • 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

  • 2 x USB 3.2 Gen 1 headers support  4 additional USB 3.2 Gen 1 ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

  • Miscellaneous

  • 3 x Addressable Gen 2 headers

  • 2 x Aura RGB headers

  • 1 x Clear CMOS header

  • 1 x COM Port header

  • 1 x Front Panel Audio header (AAFP)

  • 1 x S/PDIF Out header

  • 1 x SPI TPM header (14-1pin)

  • 1 x 20-5pin System Panel header

  • 1 x Thunderbolt™ (USB4®) Header

Special Features

  • ASUS 5X PROTECTION III

  • - DIGI+ VRM (- Digital power design with DrMOS)

  • - LANGuard

  • - Overvoltage Protection

  • - SafeSlot Core+

  • - Stainless-Steel Back I/O

  • ASUS Q-Design

  • - Q-DIMM

  • - Q-Slot

  • - Q-LED Core

  • ASUS Thermal Solution

  • - Flexible M.2 heatsink

  • - VRM heatsink design

  • ASUS EZ DIY

  • - ProCool

  • Aura Sync

  • - Aura RGB headers

  • - Addressable Gen 2 headers

Software Features

  • ASUS Exclusive Software

  • Armoury Crate

  • - Aura Sync

  • - Fan Xpert 4 (with AI Cooling II)

  • - Power Saving

  • AI Suite 3

  • -TurboV EVO

  • -PC Cleaner

  • -DIGI+ VRM

  • ASUS CPU-Z

  • MyASUS

  • Norton 360 Deluxe (60 Days Free Trial)

  • WinRAR

  • UEFI BIOS

  • ASUS EZ DIY

  • - ASUS CrashFree BIOS 3

  • - ASUS EZ Flash 3

  • - ASUS UEFI BIOS EZ Mode

BIOS
  • 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability

  • WOL by PME, PXE

Accessories

  • Cables

  • 2 x SATA 6Gb/s cables

  • Miscellaneous

  • 1 x ASUS Wi-Fi moving antennas

  • 1 x I/O Shield

  • 1 x M.2 Rubber Package

  • 2 x Screw packages for M.2 SSD

  • Documentation

  • 1 x User guide

Operating System

  • Windows® 11, Windows® 10 64-bit

Form Factor

  • ATX Form Factor

  • 12 inch x 9.2 inch ( 30.5 cm x 23.4 cm )
