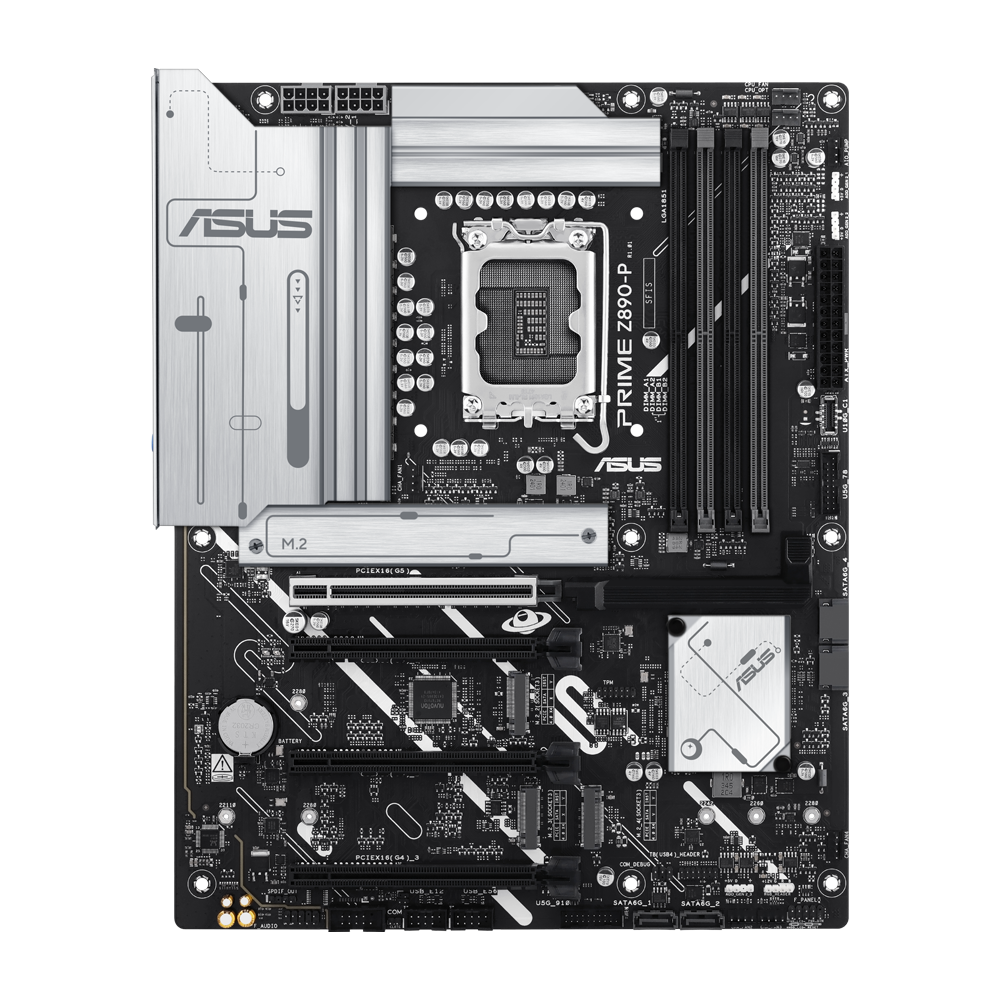

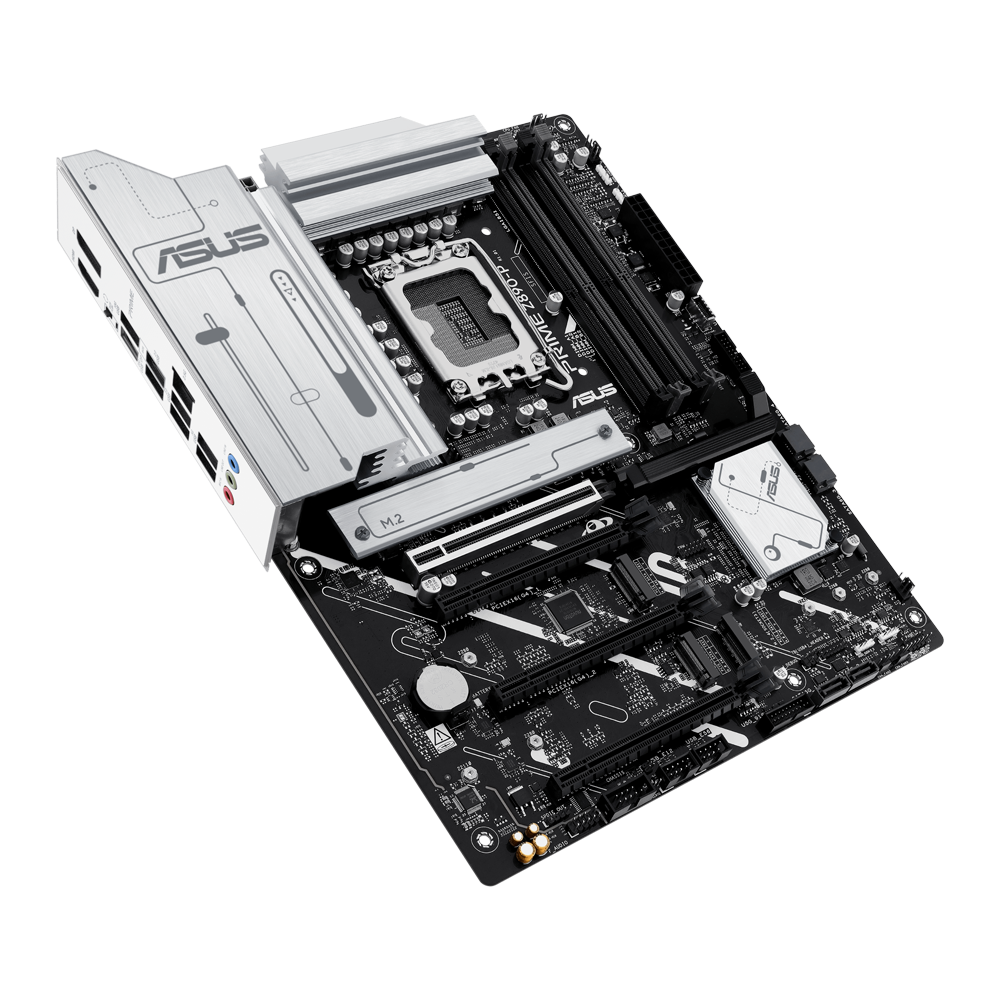

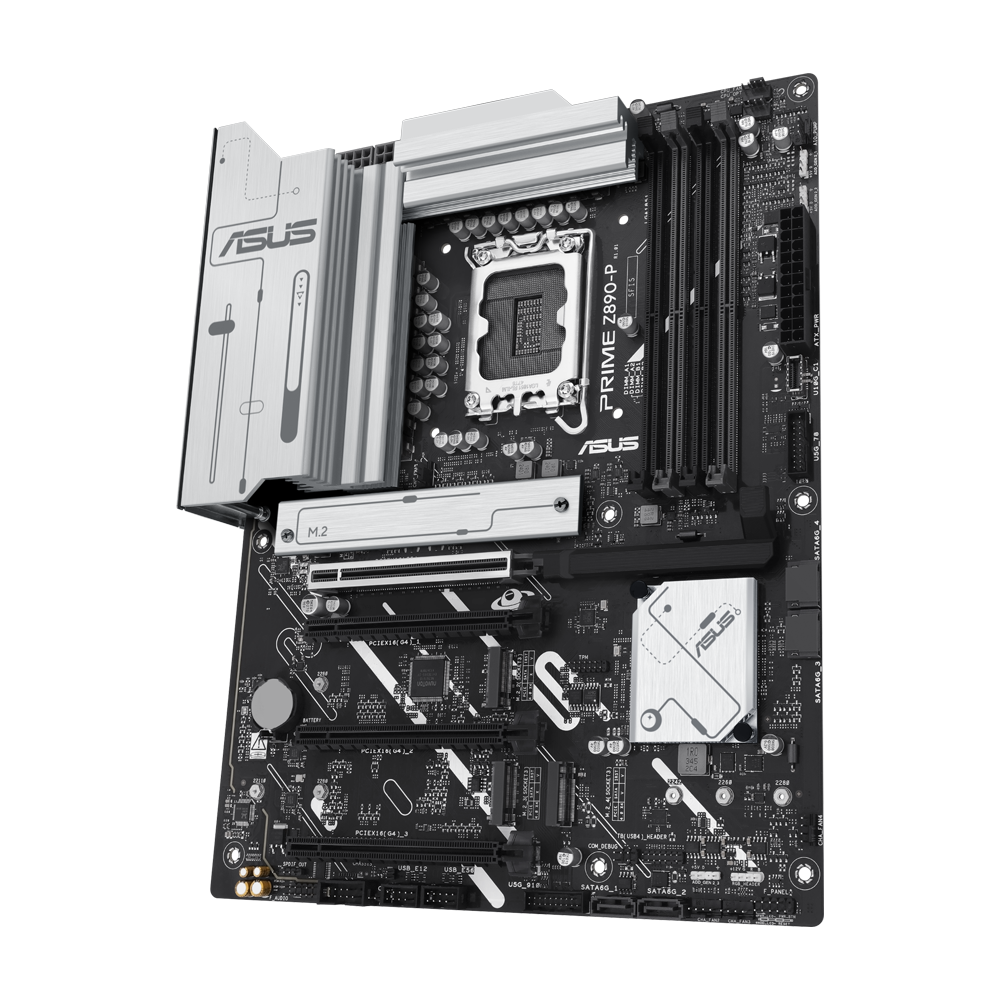

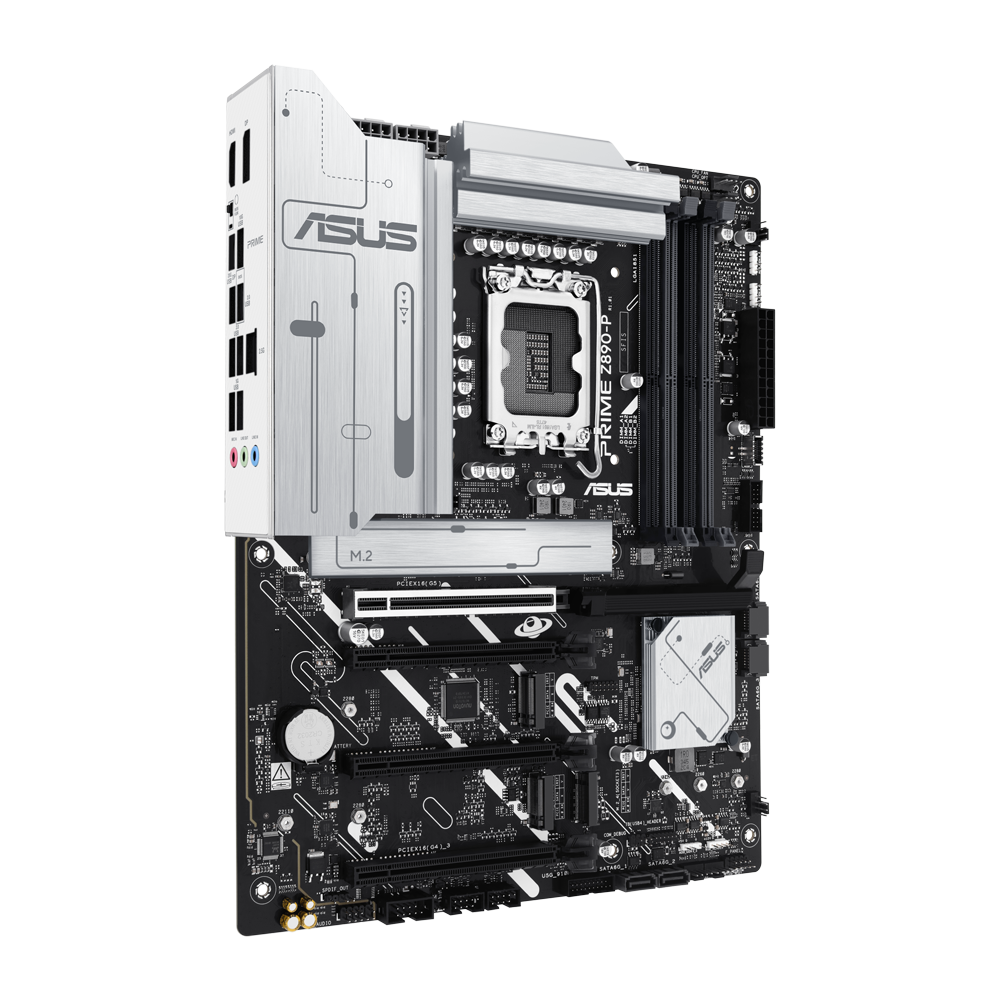

ASUS PRIME Z890-P DDR5 Motherboard - Black

ASUS PRIME Z890-P DDR5 ATX Motherboard - Black

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME Z890-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Performance

AI Solutions

ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance, and AI Cooling II for automated temperature control.

AI Advisor

ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI Cooling II

Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

NPU Boost

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows — and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Robust power design

Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The PRIME Z890-P is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.

Enhanced Memory & Storage Performance

AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

DIMM Fit

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.

Four M.2 ​​​​slots (up to 128Gbps)

PRIME Z890-P offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, three that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

Cooling

Cooler by design

The PRIME Z890-P motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Smart cooling precision

ASUS Fan Xpert 4

ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.

Cooler compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

Flexibility

Empowering connections

The PRIME Z890-P motherboard offers a versatile range of connectivity, including the latest version of PCI Express, while an arsenal of USB ports includes Type-C® connections expands compatibility and bandwidth even further.

USB 20Gbps port with DP Alt Mode

A batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C® port with transmission speeds of up to 20Gbps. The port can also support external 4K DisplayPort video output.

PCIe 5.0 s​​​​lot

The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

Customization

Personalization

The PRIME Z890-P enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

TurboV Core

Intuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.

Addressable Gen2 RGB headers

Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.

Customization

DIY friendly

The PRIME Z890-P motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

PCIe ​​​​Slot Q-Release

A physical lever unlocks the first PCIe ​​​​slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new graphics card or other compatible device.

M.2 Q-Latch

The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.

Q-LED Core

The Q-LED Core display produces color-coded lights during the Power-On Self-Test (POST) that can help you troubleshoot potential issues.

Pre-mounted

I/O shield

Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.

BIOS FlashBack™

BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button — no CPU or memory needed.

SafeSlot

PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

Specifications

• Model : PRIME Z890-P

CPU

• Supports Intel^® Core™ Ultra Processors (Series 2), LGA1851*

• Supports Intel^® Turbo Boost Technology 2.0 and Intel^® Turbo Boost Max Technology 3.0**

• ** Intel^® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

• Intel^® Z890 Chipset

Memory

• 4 x DIMM slots, max. 192GB, DDR5

• Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

• Dual channel memory architecture

• DIMM Fit

• Supports Intel^® Extreme Memory Profile (XMP) memory module

• ASUS Enhanced Memory Profile III(AEMPIII)

• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information


• ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

• 1 x DisplayPort**

• 1 x HDMI^TM port***

• 1 x USB 20Gbps port (USB Type-C^®) supports DisplayPort video output****

• * Graphics specifications may vary between CPU types.

• ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

• *** Supports 4K@60Hz as specified in HDMI 2.1.

• **** Supports max. 4K@120Hz as specified in DisplayPort 1.4.

• ***** VGA resolution support depends on processors' or graphic cards' resolution.

• ****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.

Expansion Slots

• Intel^® Core™ Ultra Processors (Series 2)*

• 1 x PCIe 5.0 x16 slot

• Intel^® Z890 Chipset

• 2 x PCIe 4.0 x16 slots (support x4 mode)

• 1 x PCIe 4.0 x16 slot (supports x1 mode)

• * Please check the PCIe bifurcation table

• - To ensure compatibility of the device installed.

Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*

• Intel^® Core™ Ultra Processors (Series 2)*

• M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)

• M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

• Intel^® Z890 Chipset

• M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

• M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

• 4 x SATA 6Gb/s ports

• * Intel^® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Ethernet

• 1 x Realtek 2.5Gb Ethernet

• ASUS LANGuard

USB

• Rear USB (Total 8 ports)

• 1 x USB 20Gbps port (1 x USB Type-C^® with DP Alt mode)

• 1 x USB 10Gbps port (1 x Type-A)

• 2 x USB 5Gbps ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)**

• Front USB (Total 9 ports)

• 1 x USB 10Gbps connector (supports USB Type-C^®)

• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports**

• * USB Type-C^® power delivery output: max. 5V/3A

• ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.

• ** USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*

• - Supports: Jack-detection,

• Multi-streaming, Front Panel Jack-retasking

• - Supports up to 24-Bit/192 kHz playback

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 1 x USB 20Gbps port (1 x USB Type-C^® with DP Alt mode)

• 1 x USB 10Gbps port (1 x Type-A)

• 2 x USB 5Gbps ports (2 x Type-A)

• 4 x USB 2.0 ports (4 x Type-A)

• 1 x DisplayPort

• 1 x HDMI^TM port

• 1 x Realtek 2.5Gb Ethernet port

• 3 x Audio jacks

• 1 x BIOS FlashBack™ button

Internal I/O Connectors

• Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 4 x 4-pin Chassis Fan headers

• Power related

• 1 x 24-pin Main Power connector

• 2 x 8-pin +12V CPU Power connector

• Storage related

• 4 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 10Gbps connector (supports USB Type-C^®)

• 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Miscellaneous

• 3 x Addressable Gen2 headers

• 1 x Aura RGB header

• 1 x Clear CMOS header

• 1 x COM Port header

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x S/PDIF Out header

• 1 x SPI TPM header (14-1pin)

• 1 x 10-1 pin Front PanelSystem header

• 1 x Thunderbolt™ (USB4^®) header

Special Features

• ASUS 5X PROTECTION III

• - DIGI+ VRM (- Digital power design with DrMOS)

• - LANGuard

• - Overvoltage Protection

• - SafeSlot

• - Stainless-Steel Back I/O

• ASUS Q-Design

• - M.2 Q-Latch

• - PCIe Slot Q-Release

• - Q-Dashboard

• - Q-DIMM

• - Q-LED Core

• - Q-Slot

• ASUS Thermal Solution

• - M.2 heatsink

• - VRM heatsink design

• ASUS EZ DIY

• - BIOS FlashBack™ button

• - BIOS FlashBack™ LED

• - ProCool

• - Pre-mounted I/O shield

• Aura Sync

• - Aura RGB header

• - Addressable Gen2 headers

Software Features

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 4 (with AI Cooling II)

• - Power Saving

• ASUS DriverHub

• ASUS CPU-Z

• TurboV Core

• Norton 360 Deluxe (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash

• - ASUS UEFI BIOS EZ Mode

• - ASUS MyHotkey

• NPU Boost (Intel K-series Processors only)

BIOS

• 256 (128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables

• 2 x SATA 6Gb/s cables

• Miscellaneous

• 1 x M.2 rubber package

• 2 x Screw packages for M.2 SSD

• Documentation

• 1 x Quick start guide

Operating System

• Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)

Form Factor

• ATX Form Factor

• 12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
