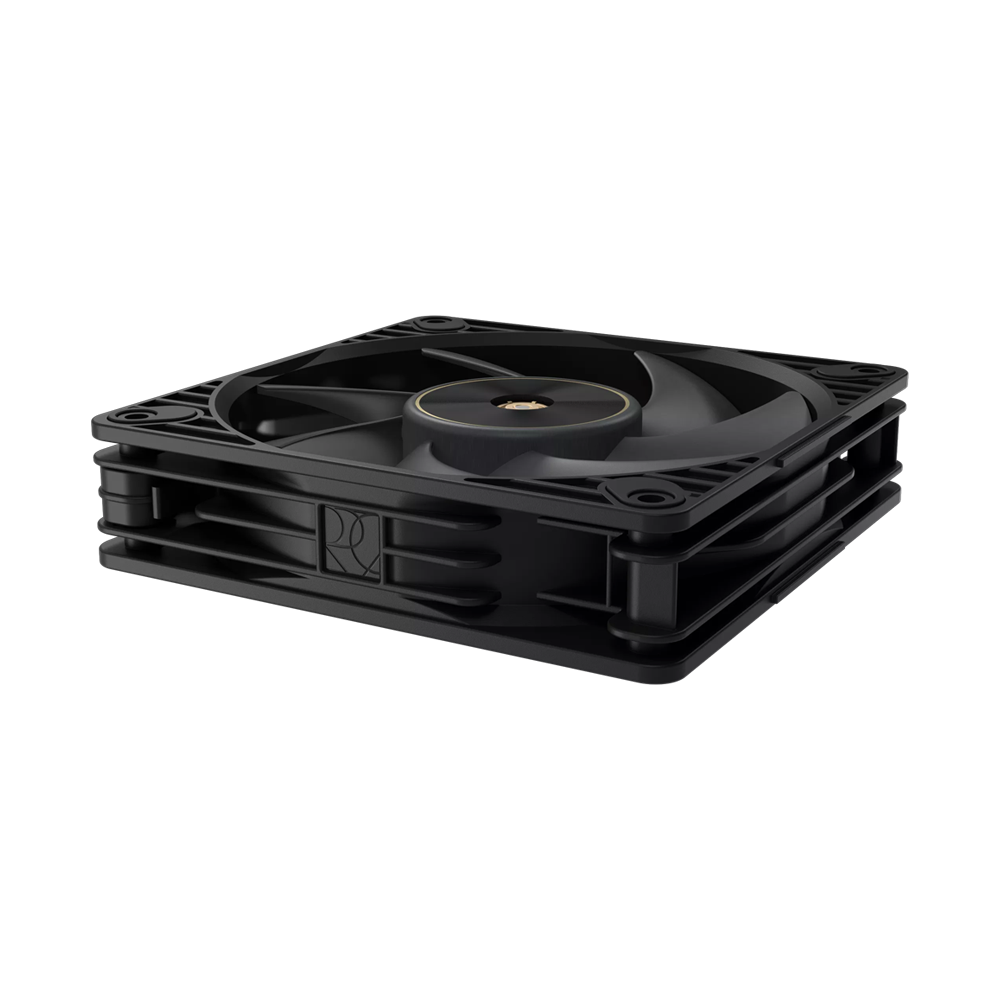

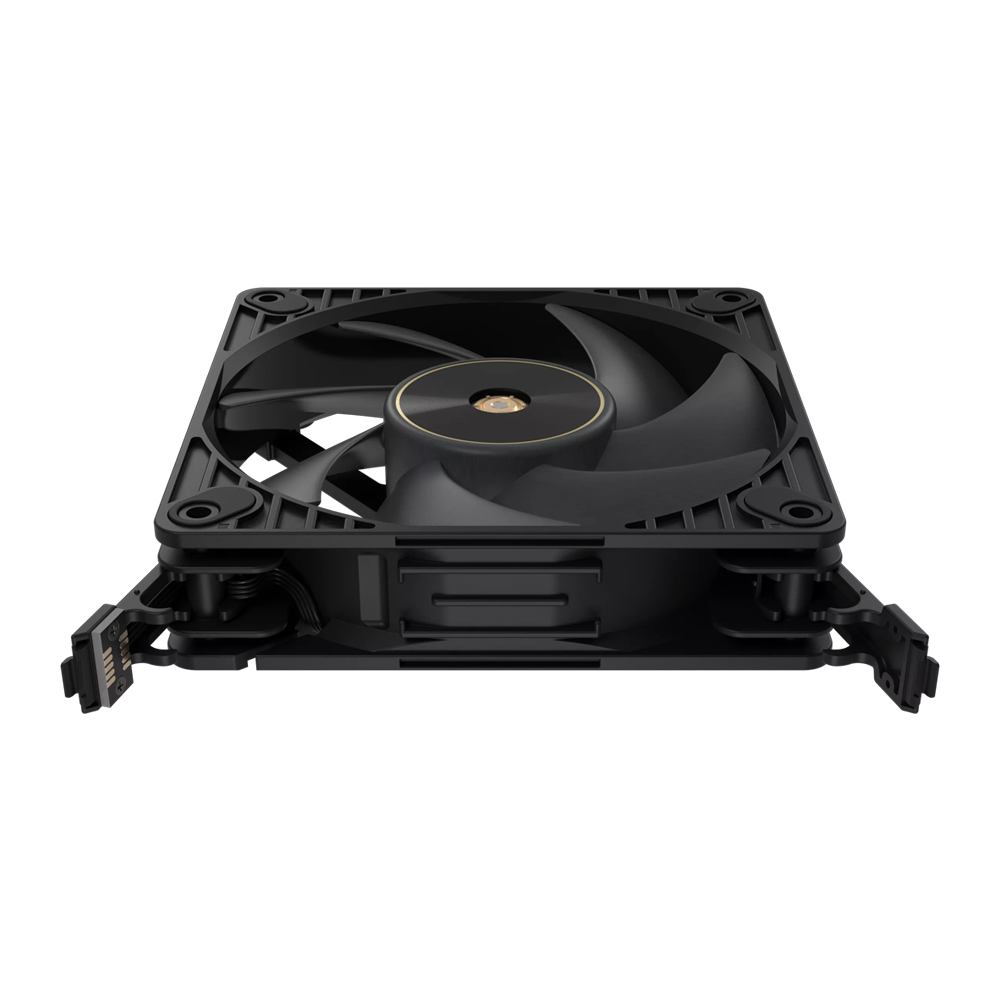

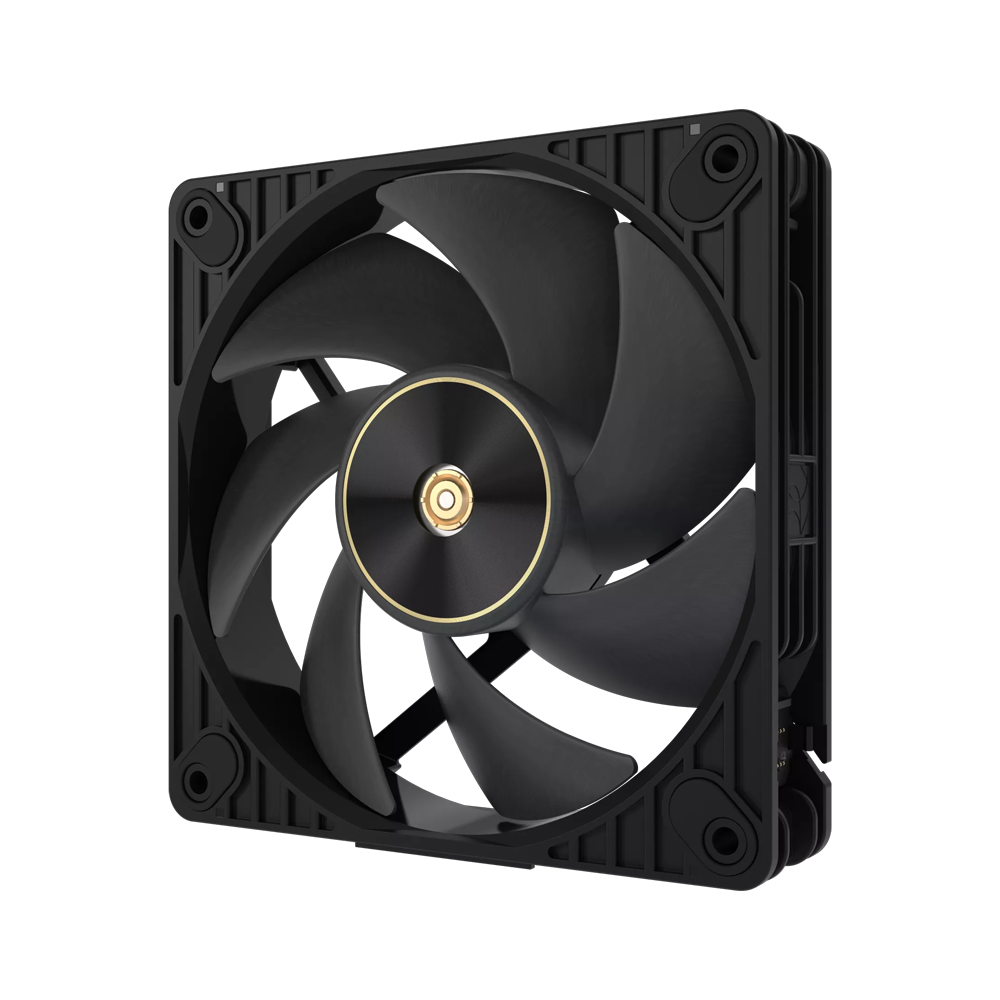

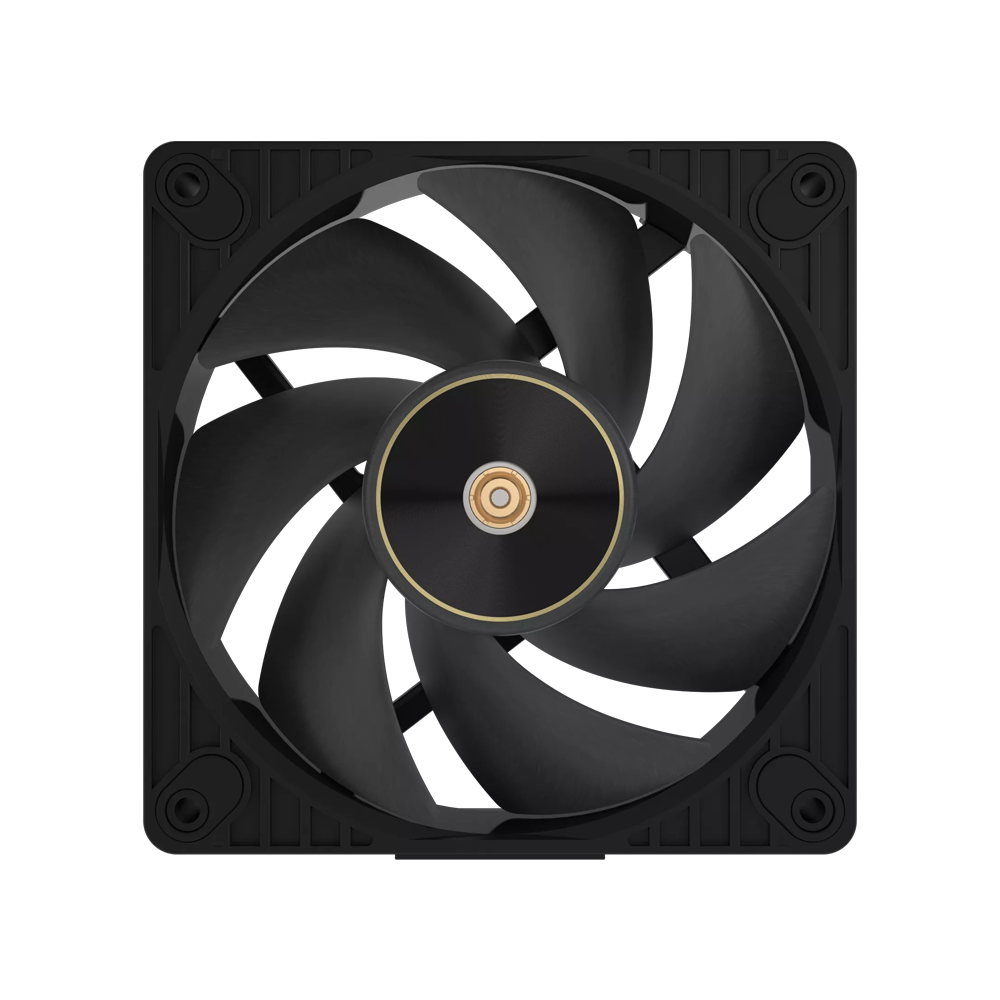

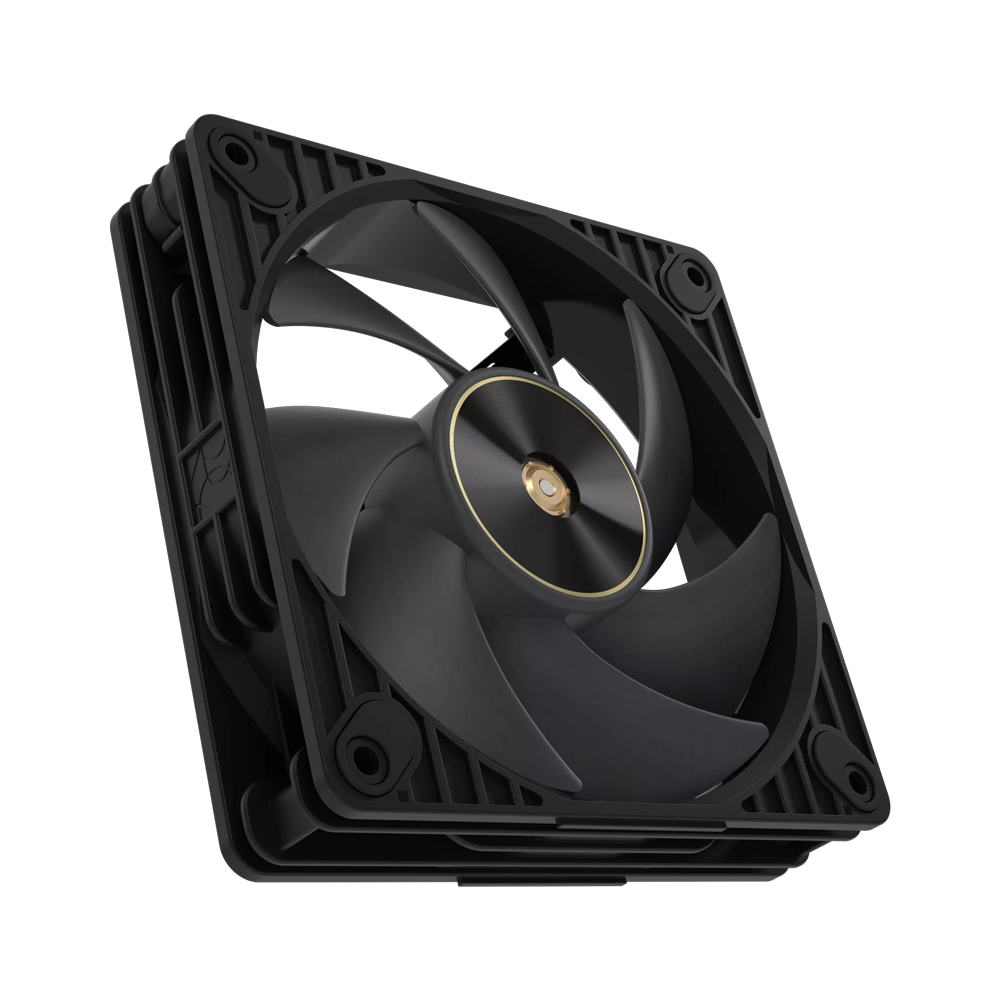

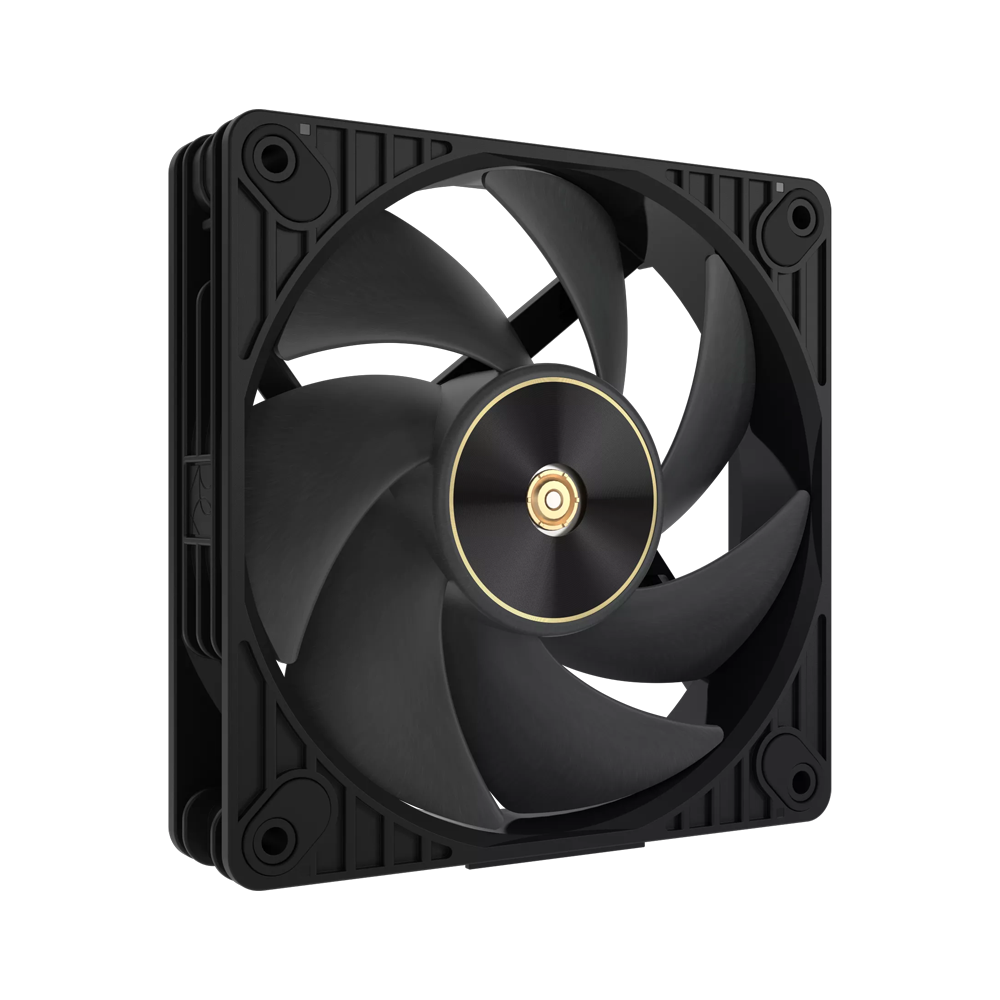

ASUS PRO ART PF120 Single Pack - Black

Key Features:

• 120mm PWM Fan

• Fluid Dynamic Bearing

• Up to 3000 rpm Speed

• 104.8 CFM Airflow

• 7.3mm H2O Static Pressure

• 39 dBA Max Noise Level

• 3-Phase, 6-Pole Fan Motor

• Daisy Chain Connectors

• 28mm Frame

The Art of Performance Cooling
The ProArt PF120 fan delivers superior cooling with premium quality and design for unmatched reliability . Boasting a 28mm frame, powerful 3-phase and 6-pole motor, CNC-milled brass bearing housing, reinforced Liquid Crystal Polymer (LCP) blades, and patented daisy-chain connectors to streamline installation and cable management, the ProArt PF120 is the ideal choice for users who demand peak performance and effortless integration.

28mm Frame Thickness
Enhances airflow with low noise

Smooth & Powerful 3-Phase and 6-Pole Fan Motor
Minimizes noise and vibration

CNC-Milled Brass Bearing Housing
Ensures reliability

Reinforced Liquid Crystal Polymer(LCP) Blades

Smaller 0.5mm Blade Gap for Reduced Turbulence

Patented Daisy-Chain Connectors for Seamless Installation

Enhanced Airflow

ProArt PF120 fans provide strong airflow and static pressure to ensure a consistently perfect balance of cooling and acoustics performance.

Uncompromised Quality

Smooth & Powerful 3-Phase and 6-Pole Fan Motor
Powerful motor delivers smooth and robust performance by operating at a low frequency. This design minimizes noise and vibration, resulting in superior sound quality and enhanced operational efficiency.

CNC-Milled Brass Bearing Housing
The brass housing stabilizes the motor and bearings for long-term durability and reliability.

Smaller 0.5mm Blade Gap for Reduced Turbulence
A precise 0.5mm parallel gap between the fan blade and the frame enhances airflow efficiency while minimizing turbulence and noise.

Reinforced Liquid Crystal Polymer (LCP) Blades
The fan blades are made using a liquid-crystal polymer (LCP) composite that delivers exceptional strength, minimal thermal expansion, and natural vibration damping—helping to ensure high-speed operation with stable, precise performance.

PWM Fan Efficiency

Under the same noise performance as competing models, ProArt PF120 fans deliver higher pressure-quantity optimization and better heat outtake efficiency.

Perfectly Match Your Build
The ProArt PF120 comes in white or black, so its suitable for builders seeking to match a lighter aesthetic or a classic black look.

Specifications

• Model : ProArt PF120 Fan - Single Pack

• Fan Size : 120 x 120 x 28 mm

• Fan Bearing : Fluid Dynamic Bearing

• Fan Speed : 3000 /2200 /1400 rpm (+/-10%)

• Fan Airflow : 104.8 /73.5 /47.4 CFM

• Fan Pressure : 7.3 /3.5 /1.5 mmH2O

• Fan Noise Level : 39 /29.7 /19 dB(A)
