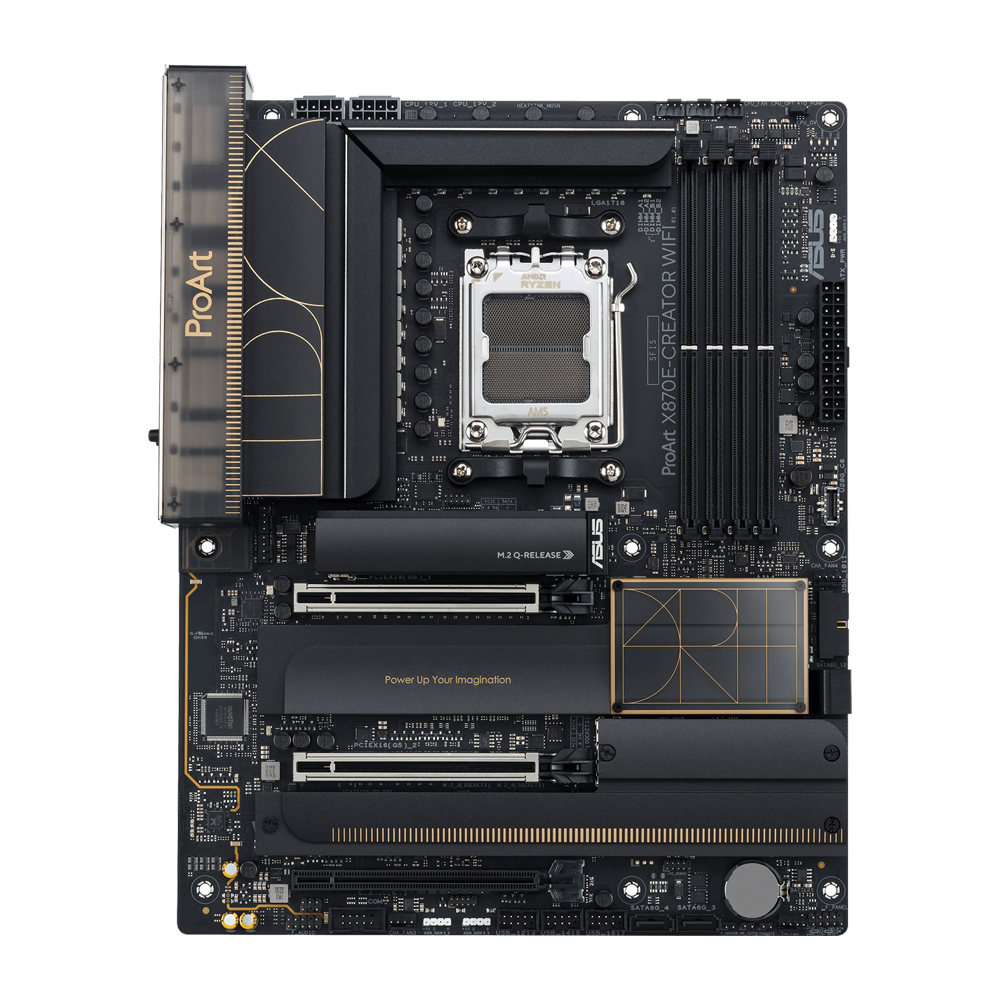

ASUS PRO ART X870E-CREATOR WIFI DDR5 Motherboard - Black

Key Features:

• Ready for Advanced AI PC

• Socket: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

• Chipset : AMD X870E

• Form Factor: ATX (30.5cm x 24.4cm)

• Memory: 4 x DIMM slots, max. 192GB, DDR5

• Two USB 40Gbps Type-C® ports

• PCIe 5.0 x16 Expansion Slots for next-gen GPUs

• 16+2+2 Teamed Power Stages for stable power delivery

• Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.

• Operating System : Windows® 11

ProArt logoX870E-CREATOR WIFI

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen™ 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe® 5.0 and lightning-fast connectivity including dual USB4®, 10G and 2.5G Ethernet, and WiFi 7.

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.

Dual USB4® Connectivity

Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort™ In port on the rear I/O panel and direct the video output via the USB4 port.

Ultrafast Networking

10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

WiFi 7

The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM**. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

PCIe 5.0 Support

Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four Onboard M.2 Slots
ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

PCIe 5.0 Expansion Slots

Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

Quick-charging Your USB Devices

USB 20Gbps Type-C front-panel connector with Quick Charge 4+
This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet or mobile phone at up to 30 watts.

Robust Power Design

Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

Eight-Layer PCB Design
This enhances quick heat dissipation around the voltage regulators for enhanced stability and overclocking.

ProCool II Connector

These are built to tight specifications to ensure flush contact with PSU power lines. The resulting lower impedance helps to prevent hotspots and connector failure.

Superior Chokes & Capacitors

These are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.

Digi+ VRM Control

The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

Intelligent AI Solutions

AI Cache Boost
Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

AI Overclocking

Maximized CPU performance, and predictions for ideal CPU and cooling settings, pushing your system to its limits.

AI Cooling II
Optimized thermals, and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.

AI Networking II
Optimized network performance, helping to ensure seamless connectivity and maximized WiFi 7 speeds.

ASUS AI Advisor
Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

Memory
The ProArt X870E-Creator WiFi enhances DDR5 performance by providing overclocking options that would otherwise be locked, whether you are dealing with high-speed or entry-level memory modules.

DDR5 Strength
For those who want to fly past stock DDR5 speeds*, the ProArt X870E-Creator WiFi is ready for enthusiast-grade kits, courtesy of vast AMD EXtended Profiles for Overclocking (EXPO) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS Enhanced Memory Profile (AEMP)
This exclusive firmware feature for PMIC-restricted memory modules automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

Easy PC DIY

PCIe® Slot Q-Release Slim
With PCIe Slot Q-Release Slim, simply tilt the card toward the latching mechanism to automatically unlock it from the PCIe slot. This makes upgrades and maintenance easier than ever before. Users no longer need to fiddle with a tricky latch or even press a button to release their graphics card from the slot.

The Power of Minimalist Design
A spark of inspiration can breathe life into a concept that leads to a masterpiece. ProArt is a comprehensive ecosystem providing professional creators with a stable foundation for your inspiration. These custom workstations feature award-winning ProArt motherboards, graphics cards, CPU coolers and chassis, pairing with ProArt displays to accelerate your creative workflow and bring the boldest visions and ideas to life.

Trusted Stability
ProArt X870E-Creator WiFi is engineered and rigorously tested to offer superior quality, stability and compatibility to ensure that it empowers creativity for years to come.

Specifications

• Model : ProArt X870E-CREATOR WIFI


• Socket AM5

• CPU : AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*


• Chipset : AMD X870E

• Memory : 4 x DIMM slots, max. 256GB, DDR5

• Support up to 8000+MT/s(OC) with Ryzen™ 9000 Series Processors,

• 8000+MT/s(OC) with Ryzen™ 8000 Series Processors,

• 8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

• ECC and Non-ECC Un-buffered DIMM

• Dual Channel Memory Architecture

• Supports AMD Extended Profiles for

• Overclocking (EXPO™)

• ASUS Enhanced Memory Profile (AEMP)

• * Adjustments will be made based on the specifications of mass-produced memory products available on the market.

• ** Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

• *** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.

• Graphics

• 1 x HDMI™ port**

• 2 x USB4® (40Gbps) ports support USB Type-C® display outputs***

• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

• ** Supports 4K@60Hz as specified in HDMI 2.1.

• *** Supports max. 8K@60Hz as specified in DisplayPort 1.4.

• **** VGA resolution support depends on processors' or graphic cards' resolution.

• Expansion Slots

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

• 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)

• AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors*

• 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled)

• AMD Ryzen™ 8500 & 8300 Series Desktop Processors*

• 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4,  PCIEX16(G5)_2 will be disabled)

• AMD X870E Chipset

• 1 x PCIe 4.0 x16 slot (supports x4 mode)

• * Please check the PCIe bifurcation table on the support site

• ** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, they will run at x8 each.

• *** PCIEX16(G5)_2 shares bandwidth with M.2_2 slot. When M.2_2 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run at x4.


• Storage

• Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*

• AMD Ryzen™ 8000 Series Desktop Processors

• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• M.2_2 slot is not supported

• AMD X870E Chipset

• M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

• * PCIEX16(G5)_2 slot shares bandwidth with M.2_2.

• AMD RAIDXpert2 Technology

• Ryzen™ 7000 series processors: PCIe RAID 0/1/10

• Ryzen™ 8000 series processors: PCIe RAID 0/1

• Ryzen™ 9000 series processors: PCIe RAID 0/1/5/10

• X870/B850/X670/B650/A620 chipset: SATA RAID 0/1/10

• Ethernet

• 1 x Marvell® AQtion 10Gb Ethernet

• 1 x Intel® 2.5Gb Ethernet

• ASUS LANGuard

• Wireless & Bluetooth

• Wi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)*

• 2x2 Wi-Fi 7** (802.11be)

• Supports 2.4/5/6GHz frequency band***

• Supports Wi-Fi 7 320MHz bandwidth

• Bluetooth® v5.4****

• *The actual Wi-Fi module that comes with this motherboard may vary, please refer to the label on the product for more details.

• **Wi-Fi features may vary depending on the operating system

• For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

• For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

• *** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

• **** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 11 ports)

• 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)

• 1 x USB 20Gbps port(s) (1 x USB Type-C®)

• 7 x USB 10Gbps port(s) (7 x Type-A)

• 1 x USB 2.0 port (1 x Type-A)

• Front USB (Total 9 ports)

• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)**

• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

• 3 x USB 2.0 headers support 6 additional USB 2.0 ports

• "* USB Type-C® power delivery output: max. 5V/3.0A"

• ** USB Type-C® power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A

• Audio

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*

• - Impedance sense for front and rear headphone outputs

• - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

• - Supports up to 32-Bit/192 kHz playback*

• Audio Features

• - Audio Shielding

• - Premium audio capacitors

• - Dedicated audio PCB layers

• - Unique de-pop circuit

• * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

• ** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

• Back Panel I/O Ports

• 2 x USB4® (40Gbps) port(s) (2 x USB Type-C®)

• 1 x USB 20Gbps port (1 x USB Type-C®)

• 7 x USB 10Gbps ports (7 x Type-A)

• 1 x USB 2.0 port (1 x Type-A)

• 1 x DisplayPort (Input only)

• 1 x HDMITM port

• 1 x Wi-Fi Module

• 1 x Marvell® AQtion 10Gb Ethernet

• 1 x Intel® 2.5Gb Ethernet

• 3 x Audio jacks

• 1 x BIOS FlashBack™ button

• 1 x Clear CMOS button

• Internal I/O Connectors

• Fan and Cooling related

• 1 x 4-pin CPU Fan header

• 1 x 4-pin CPU OPT Fan header

• 1 x 4-pin AIO Pump header

• 5 x 4-pin Chassis Fan headers

• Power related

• 1 x 24-pin Main Power connector

• 2 x 8-pin +12V CPU Power connector

• Storage related

• 4 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+)

• 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports

• 3 x USB 2.0 headers support 6 additional USB 2.0 ports

• Miscellaneous

• 3 x Addressable Gen 2 headers

• 1 x Chassis Intrusion header

• 1 x COM Port header

• 1 x CPU Over Voltage jumper

• 1 x Front Panel Audio header (F_AUDIO)

• 1 x 10-1 pin System Panel header

• 1 x Thermal Sensor header

• Special Features

• ASUS 5X PROTECTION III

• - DIGI+ VRM (- Digital power design)

• - Enhanced DRAM Overcurrent Protection

• - ESD Guards

• - LANGuard

• - Overvoltage Protection

• - Safeslot

• - Stainless-Steel Back I/O

• ASUS Q-Design

• - M.2 Q-Latch

• - M.2 Q-Release

• - M.2 Q-Slide

• - PCIe Slot Q-Release Slim (with PCIe SafeSlot)

• - Q-Antenna

• - Q-Connector

• - Q-DIMM

• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• - Q-Slot

• ASUS Thermal Solution

• - M.2 heatsink backplate

• - M.2 heatsinks

• - VRM heatsink design

• ASUS EZ DIY

• - BIOS FlashBack™ button

• - BIOS FlashBack™ LED

• - ProCool

• - Pre-mounted I/O shield

• - SafeSlot

• - SafeDIMM

• AURA Sync

• - Addressable Gen 2 headers

• Bespoke Motherboard Design & Business Focused Features

• - 24/7 Reliability

• - Overcurrent Protection

• Front Panel USB 20Gbps with Quick Charge 4+ Support

• - Support: up to 30W fast charging and USB Wattage Watcher

• - Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A

• - Compatible with PD3.0

• Software Features

• ASUS Exclusive Software

• Armoury Crate

• - Aura Creator

• - Aura Sync

• - Fan Xpert 4 with AI Cooling II

• - Power Saving

• ASUS DriverHub

• ASUS GlideX

• USB Wattage Watcher

• TurboV Core

• ASUS CPU-Z

• ProArt Creator Hub

• CreationFirst

• Adobe Creative Cloud (Free Trial)

• Norton 360 Deluxe (60 Days Free Trial)

• WinRAR (40 Days Free Trial)

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

• FlexKey

• Remote Management Features

• IT Management software supported

• - ASUS Control Center Express(ACCE)

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables

• 1 x DisplayPort cable

• 4 x SATA 6Gb/s cables

• Additional Cooling Kit

• 1 x Thermal pad for M.2 22110

• Miscellaneous

• 1 x ASUS WiFi Q-Antenna

• 1 x Q-connector

• 1 x M.2 Q-Latch package

• 1 x M.2 Q-Latch Q-Slide package for M.2 backplate

• 2 x Rubber Packages for M.2

• 1 x ProArt Gift Item

• Documentation

• 1 x Quick start guide

• 1 x ACC Express Activation Key Card

• Operating System  : Windows® 11

• Form Factor : ATX Form Factor

• 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
