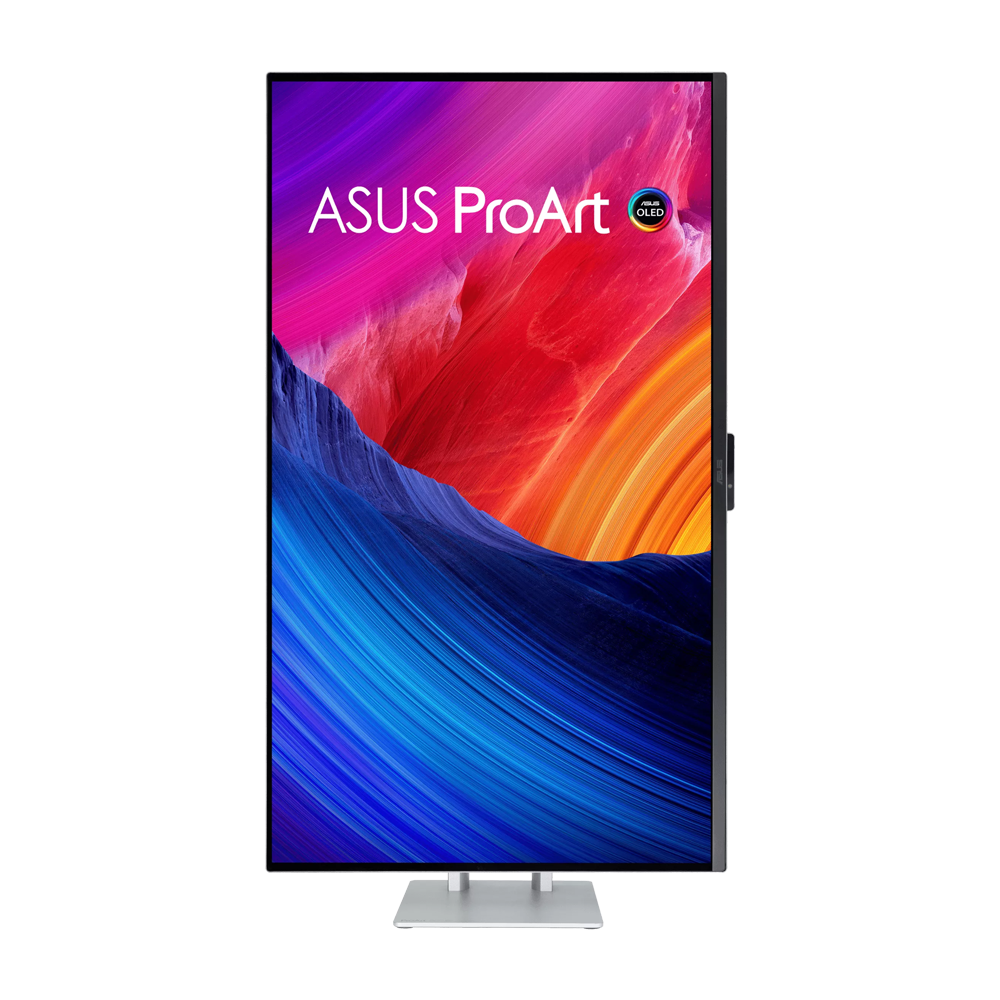

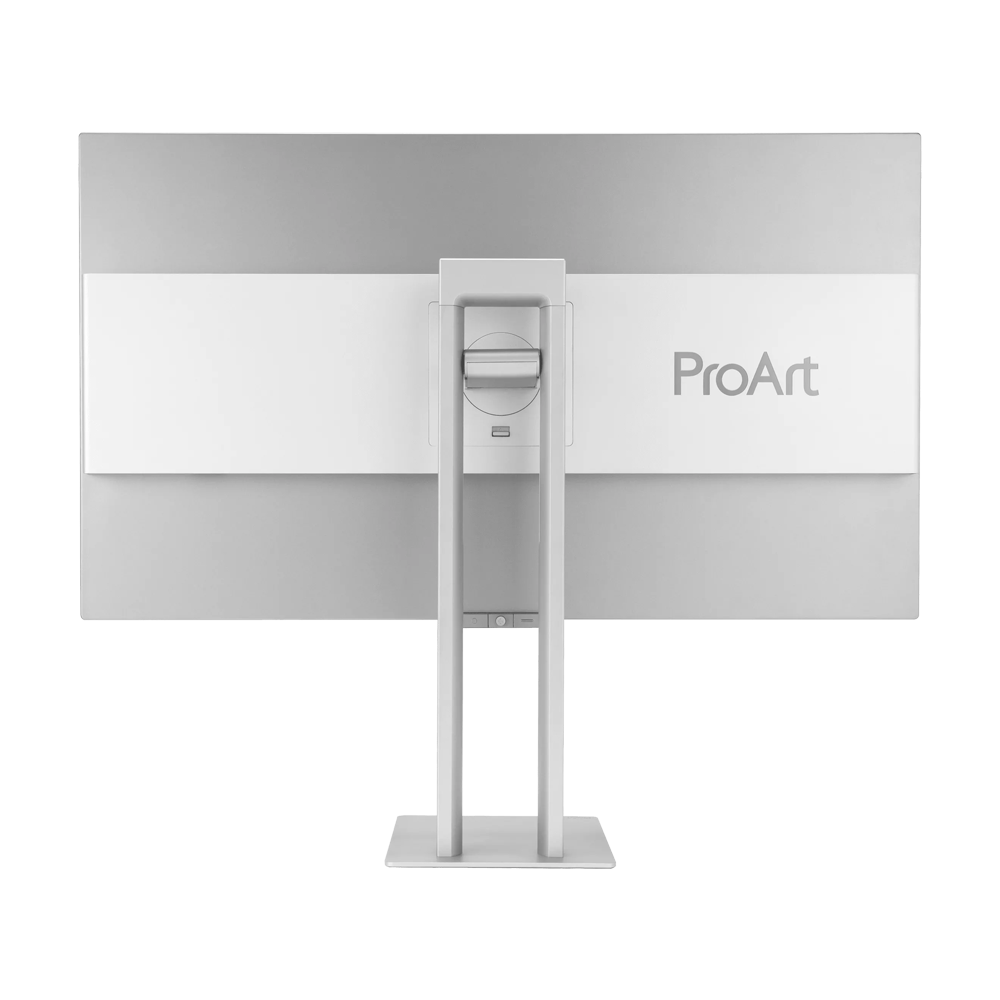

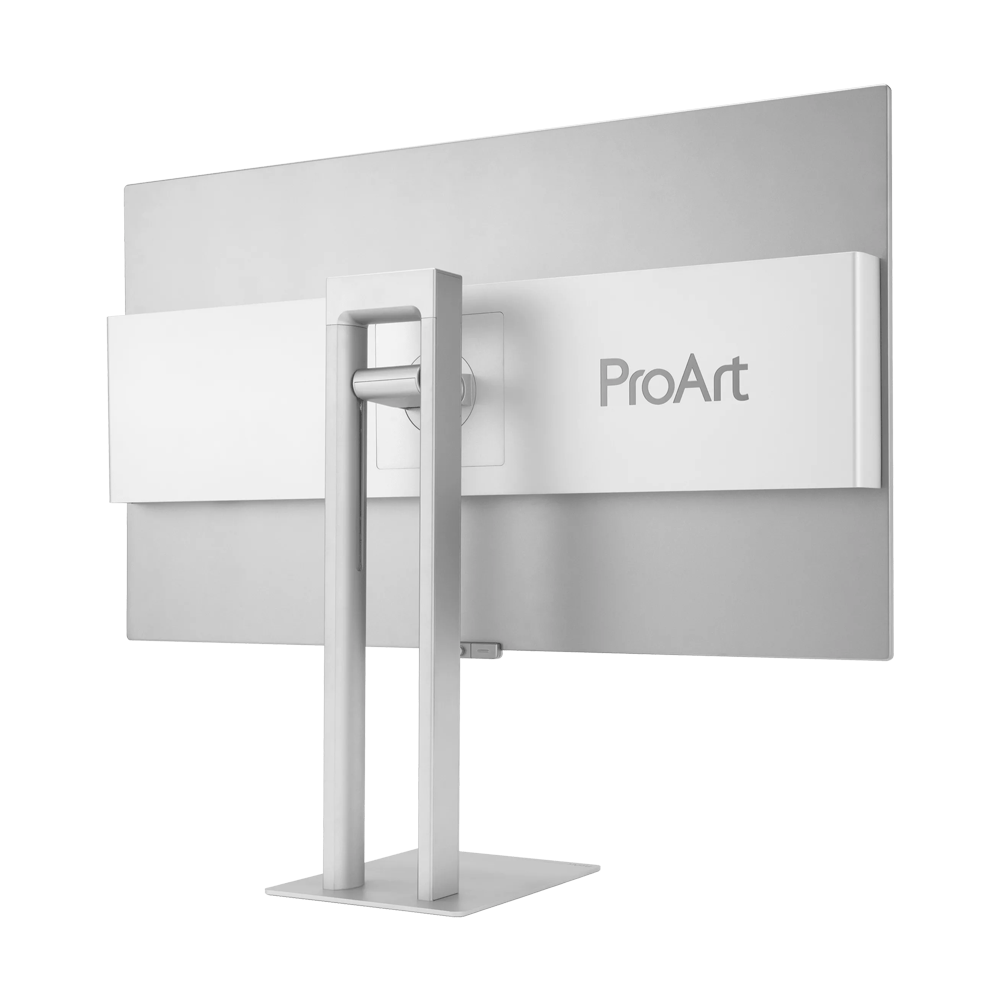

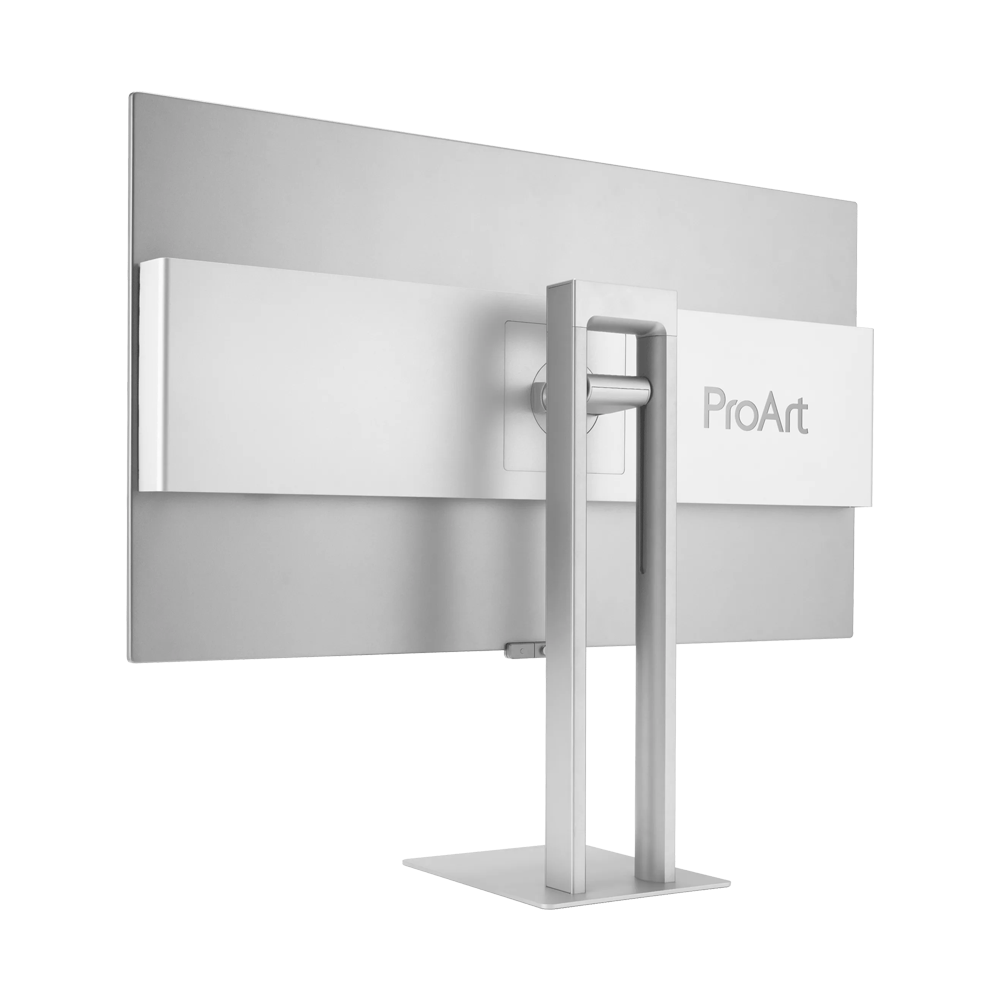

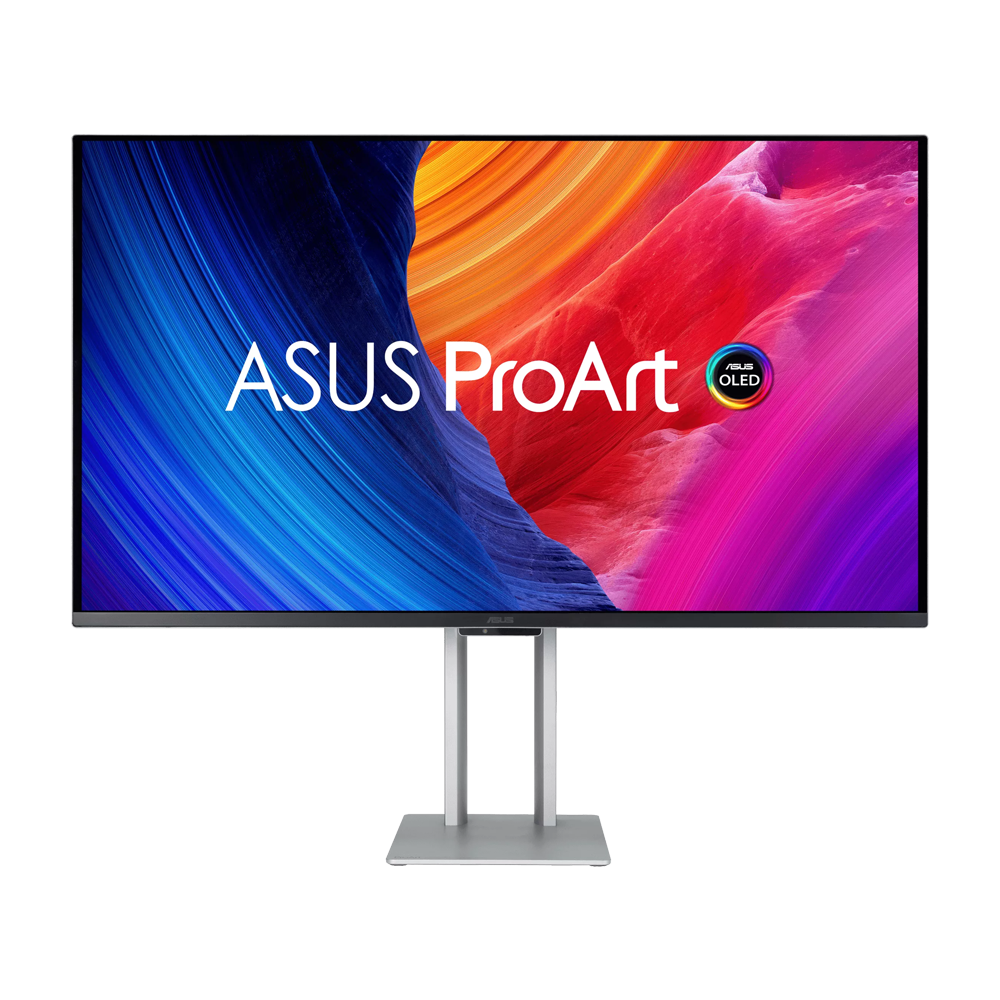

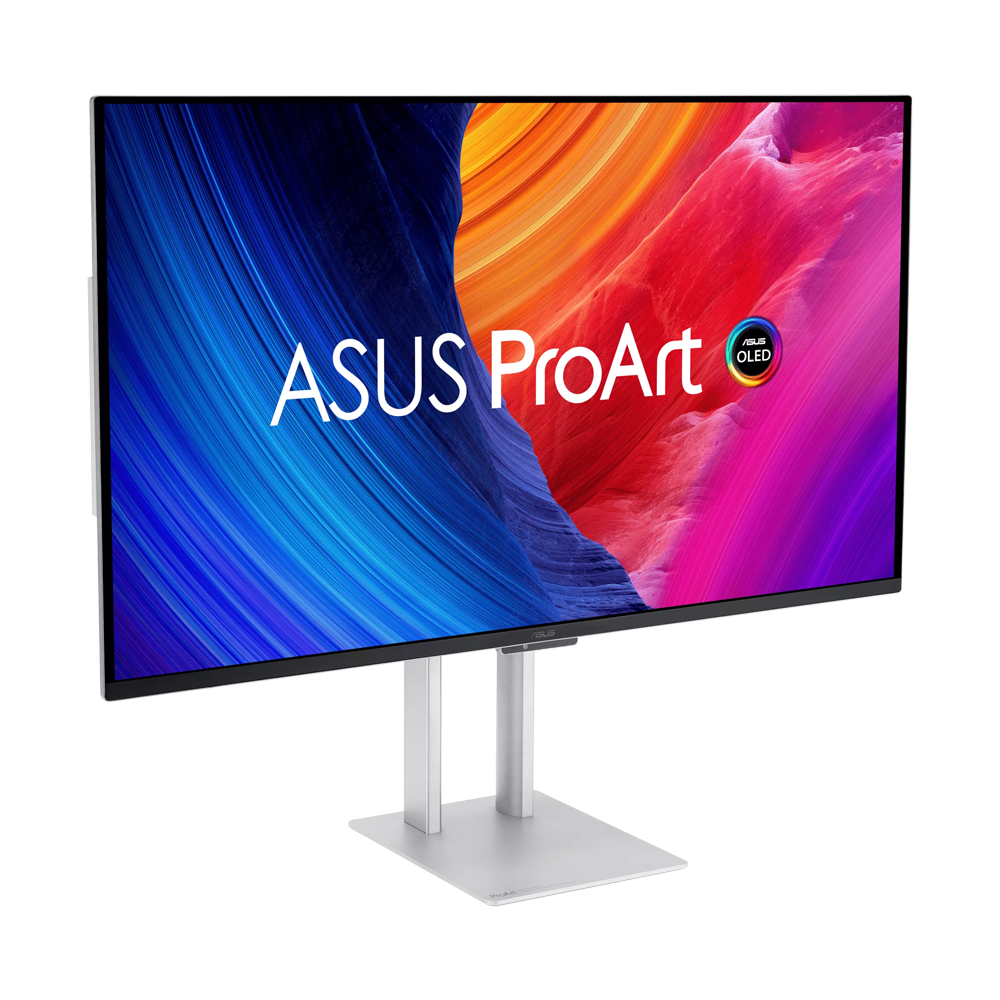

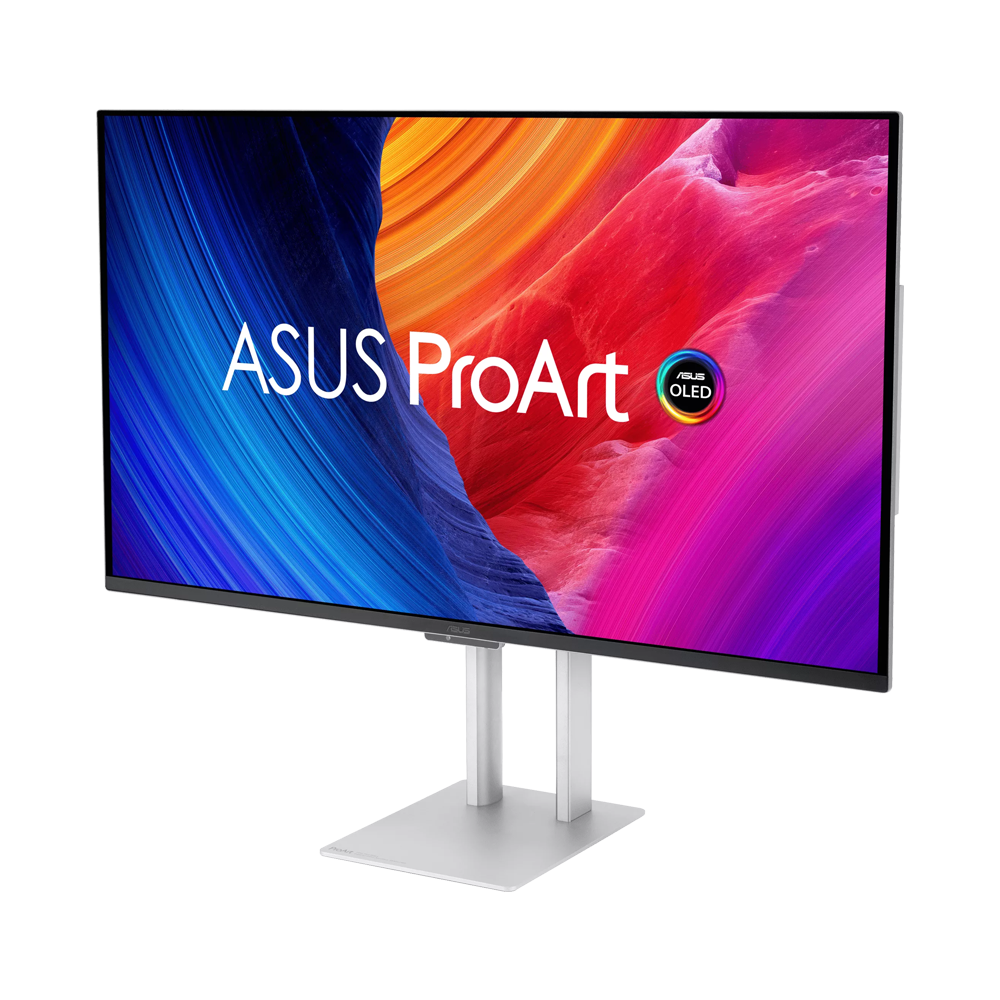

ASUS ProArt Display PA32UCDM 32 Inch 4K UHD 240Hz 0.1ms HDMI 2.1 OLED Gaming Monitor - Black

Key Features:

• 31.5-inch 4K UHD (3840 x 2160) QD-OLED panel with 240 Hz refresh rate and 0.1 ms (GTG) response time for smooth rendering

• 1000 nits peak brightness with VESA DisplayHDR™ True Black 400 for exceptional color contrast

• True 10-bit color depth and Quantum Dot technology provide 100% sRGB, 99% DCI-P3 and BT. 2020 color gamut

• World-leading ∆E < 1 color performance and ASUS ProArt Hardware Calibration Technology for color-accuracy optimization and color profile write-back

• Multiple HDR format support, including Dolby Vision^®, HLG and HDR10 (Dolby Vision support is available with the latest firmware update)

• Rich connectivity including dual Thunderbolt™ 4 up to 96W Power Delivery with daisy-chaining, HDMI2.1 and a built-in USB Hub

• Ergonomic design with tilt, pivot and height adjustments for a comfortable viewing experience

• Green Sustainability: paper packaging and energy-efficient environmental standards

ASUS ProArt Display OLED PA32UCDM Professional Monitor – 32-inch (31.5 inch viewable), 4K UHD (3840 x 2160), QD-OLED, Ultra-slim, 240Hz, 0.1ms, Auto Calibration, HDR-10, HLG, Dolby Vision, 99% DCI-P3, ΔE < 1, Thunderbolt™ 4 PD 96W, Calman Ready, ColourSpace Integration, Ergonomic Stand, Green Sustainability.

ProArt Display OLED PA32UCDM is a professional monitor designed for professional content creators. This 31.5-inch 4K HDR display boasts a cutting-edge 1000-nits QD-OLED panel with 99% DCI-P3 gamut, ensuring highly-accurate colors and exceptionally-detailed visuals. Its up to 240Hz refresh rate enables creators to develop fast-rendering games and perform artwork quality checks on a single display. Additionally, support for multiple HDR format makes PA32UCDM the perfect monitor for working on fast-moving HDR content.

Ideal for Game Development and Video Editing
PA32UCDM offers up to a 240Hz refresh rate and features variable-refresh-rate (VRR) technology to allow creators to work on fast-rendering visuals and conduct quality checks—all on a single display. HDMI® 2.1 with 4K@240Hz support results in supersmooth visuals with exceptional levels of detail.

up to 240Hz Refresh Rate

Intuitive and Intelligent Calibration

ProArt Hardware Calibration
ASUS ProArt Hardware Calibration software* works in both SDR and HDR modes. It saves all color parameter profiles directly on the ProArt monitor's internal scaler IC chip instead of the PC. Users can also use ProArt Calibration to schedule regular calibration intervals.

ProArt Color Center
ProArt Color Center is an online tool designed to help administrators manage the color accuracy of multiple ProArt displays that feature hardware calibration support. Users can check when the monitors were last calibrated, next recommended calibration date, and schedule calibration times for multiple monitors―even if they're using different color parameters and/or situated in different locations.

Seamless Calibration
ProArt Display seamlessly integrates with third-party professional hardware calibration software, including Calman and Light Illusion ColourSpace CMS. It also supports writing color parameters back into the ProArt displays, making the calibration process faster and easier.

ASUS OLED Care
ProArt Display OLED series monitors include ASUS OLED Care features that are proven to safeguard the display by minimizing the likelihood of image burn-in.

Panel Protection
Provides Sensing Protection, Pixel Shift, Screen Saver, ISP (Global), and Off Sensing to prevent static images from being displayed continuously on your screen. This feature offers two levels of adjustment to choose from.

Image Protection
Dynamically detects and identifies the task bar, logos, and video edges, reducing the brightness around them to minimize the risk of burn-in. This feature offers three adjustable levels to choose from.

Proximity Sensor
Automatically decreases brightness gradually when it detects no user in front of the monitor. There are three adjustable detection ranges available.

Uniform Brightness Setting
OLED displays feature an Auto Brightness Limiter (ABL) to maximize power use. When displaying a white (or bright) image in a particular window, the display automatically dims the image as the window size increases.

The optional Uniform Brightness function in the OSD menu is particularly useful when switching between, or changing the size of windows with vastly different contrast levels as it keeps brightness levels consistent with up to 250 nits for comfortable viewing and more accurate colors, even after hours of use.

The Perfect Monitor for Your Mac
ProArt Display combines professional-grade performance with sleek design and Mac-tested compatibility. Offering vibrant colors and versatile connectivity, ProArt Display is ideal for Mac users seeking exceptional color accuracy and unmatched productivity.

Instant Display Adjustments
Enjoy intuitive display control with ASUS DisplayWidget Center for macOS.

Seamless MacBook Controls
Use the MacBook brightness buttons to control the monitor's brightness* with ASUS DisplayWidget Center installed.

Supersmooth Viewing
A variable refresh rate of 240Hz ensures compatibility with Macs featuring Apple ProMotion technology.

Convenient Connectivity
A single Thunderbolt 4 port caters to all creative needs.

Create In Ultra-Vivid HDR

ASUS Smart HDR Technology
Exclusive ASUS Smart HDR technology enables this monitor to support multiple HDR formats, including Dolby Vision®, HLG and HDR10.

Dolby Vison transforms the viewing experience with unparalleled brightness, contrast, and colors. The ProArt Display is the world's first computer monitor with Dolby Vision support, making it ideal for professional image production, color grading, and mastering.

HLG allows users to view and create material for broadcast and satellite TV platforms such as BBC iPlayer, Japan NHK TV, and DirecTV.

HDR10 support ensures compatibility with existing streaming video services and a growing list of HDR-enabled games.

Expansive Connectivity
ProArt Display offers dual Thunderbolt 4 ports and HDMI(v2.1) port for compatibility with current and future displays and peripherals. One of the Thunderbolt 4 ports offers up to 96W Power Delivery to charge devices as well as the ability to daisy-chain several displays though a single port, without the need for a hub or switch. A built-in USB 3.2 hub includes one USB Type-A port and Type-C, allowing for easy connections to a variety of devices and peripherals, as well as charge compatible devices.*

Seamless Monitor Management
ASUS DisplayWidget Center is software that provides an intuitive interface to adjust monitor settings, including brightness, contrast, and color temperature. Whether a monitor is used for everyday viewing or for professional creative work, users can effortlessly find the optimal display settings for enhanced viewing experiences.

Effortless Multi-Display Consistency
ColorSync allows you to synchronize display settings across monitors of the same model through ASUS DisplayWidget Center software. This feature makes it easy to apply consistent settings—such as color mode and brightness—across multiple displays without manual adjustment on each unit.

Streamline Your Workflow with ProArt CaliContrO
The versatile ProArt CaliContrO MCA02 three-in-one colorimeter works with ASUS-exclusive apps for hardware and software calibration. It also supports the generation of ICC profiles for conventional monitors and laptop screens, enabling comprehensive color management across a wide range of devices. On-Screen Display (OSD) control via MCA02 enables quick adjustments when connected to a compatible monitor, with vibration feedback for enhanced usability. Built-in ASUS Dial features offers instant and precise control for Adobe apps and other applications by enabling customized shortcuts.

Specifications

Model

• ProArt Display OLED PA32UCDM

Display

• Panel Size (inch) : 31.5

• Pixels Per Inch (PPI) : 140

• Aspect Ratio : 16:9

• Display Viewing Area (H x V) : 699.48 x 394.73 mm

• Display Surface : Anti-Reflection

• Panel Type : QD-OLED

• Viewing Angle (CR≧10, H/V) : 178°/ 178°

• Pixel Pitch : 0.182mm

• Resolution : 3840x2160

• Color Space (sRGB) : 100%

• Color Space (DCI-P3) : 99%

• Brightness (HDR, Peak) : 1,000 cd/㎡

• Brightness (Typ.) : 250cd/㎡

• Contrast Ratio (HDR, Max) : 1,500,000:1

• Contrast Ratio (Typ.) : 1,500,000:1

• Display Colors : 1073.7M (10 bit)

• Response Time : 0.1ms(GTG)

• Refresh Rate (Max) : 240Hz

• HDR (High Dynamic Range) Support : Dolby Vision

• HLG

• HDR10

• Flicker-free : Yes

• ASUS OLED Care : Yes

Features

• ProArt Preset : User mode3

• User mode2

• User mode1

• Dolby Vision

• HDR_HLG DCI

• HDR_HLG_BT.2020

• HDR_PQ_BT.2020

• HDR_PQ DCI

• Rec.709

• DICOM

• BT.2020

• DCI-P3

• Adobe RGB

• sRGB

• Native

• Color Temp. Selection : Yes (5 modes)

• Color Adjustment : RGB Tuning (Gain / Offset)

• Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6)

• Color Accuracy : △E< 1

• ASUS ProArt Hardware Calibration : Yes

• ProArt Palette : Yes

• QuickFit Plus : Yes

• PIP / PBP Technology : Yes

• HDCP : Yes, 2.3

• VRR Technology : Yes (Adaptive-Sync)

• HDR Preview : Yes

• DisplayWidget : Yes, DisplayWidget Center

• Low Blue Light : Yes

• Multiple HDR Mode : Yes

Audio

• Speaker : Yes(3Wx2)

I/O Ports

• Thunderbolt 4 x 2 (Daisy Chain)

• HDMI(v2.1) x 1 (FRL)

• USB Hub : 1x USB 3.2 Gen 2 Type-C

• 1x USB 3.2 Gen 2 Type-A

• USB-C Power Delivery : 96W

Signal Frequency

• Digital Signal Frequency : HDMI: 15~583 KHz (H) / 48~240 Hz (V)

• Thunderbolt USB-C: 15~583 KHz (H) / 48~240 Hz (V)

Power Consumption

• Power Consumption : <32W

• Power Saving Mode : <0.5W

• Power Off Mode : <0.3W

• Voltage : 100-240V, 50/60Hz

Mechanical Design

• Tilt : Yes (+20° ~ -5°)

• Pivot : Yes (+90° ~ -90°)

• Height Adjustment : 0~130mm

• Ambient Light Sensor : Yes

• Proximity Sensor : Yes

• VESA Wall Mounting : 100x100mm

• Kensington Lock : Yes

Dimensions (Esti.)

• Phys. Dimension (W x H x D) : 71.73 x 60.25 x 22.80 cm (28.24" x 23.72" x 8.98")

• Phys. Dimension without Stand (W x H x D) : 71.73 x 42.23 x 4.24 cm (28.24" x 16.63" x 1.67")

• Box Dimension (W x H x D) : 82.0 x 57.7 x 28.2 cm (32.28" x 22.72" x 11.10")

Weight (Esti.)

• Net Weight : 9.0 kg (19.84 lbs)

• Net Weight without Stand : 6.5 kg (14.33 lbs)

• Gross Weight : 16.6 kg (36.60 lbs)

Accessories (vary by regions)

• Welcome Card

• Warranty Card

• USB-C to A cable

• Thunderbolt™ 4 Cable

• Quick start guide

• Quick release stand

• Power cord

• HDMI Ultra High Speed Cable

• Color pre-calibration report

Certificate

• Mac Compliance

• FSC MIX

• Calman Ready

• VESA DisplayHDR 400 True Black

• TÜV Low Blue Light

• TÜV Flicker-free

• Energy Star
