ASUS PROART DISPLAY PA32UCX-K 32 Inch 4K HDR IPS Professional Monitor - Black

Key Features:

• 32-inch Mini LED Backlight with 4K HDR, 1152 zones local dimming
• True 10 bit color with Quantum-dot technology provides 89% Rec. 2020, 99.5% Adobe RGB, 99% DCI-P3 and 100% sRGB color space for exceptional color fidelity
• Support multiple HDR formats (Dolby Vision, HDR-10, HLG) presents lifelike experience and flexibility
• World-leading delta-E (∆E) <1 color performance and ASUS ProArt Hardware Calibration technology for color-accuracy optimization, uniformity and color profile write-back
• Thunderbolt™ 3 USB-C supports data transfers at up to 40 Gbps, and Power Delivery provides up to 60W of power to external devices
• X-rite i1 Display Pro included

ASUS ProArt Display PA32UCX-K 4K HDR IPS Mini LED Professional Monitor - 32”, 1200 nits, 10 bit, Dolby Vision, HLG, 1152 zones, ΔE < 1, 99% DCI-P3, 99.5% Adobe RGB, 100% sRGB/Rec. 709, Hardware Calibration, Thunderbolt™ 3, Calman Ready, ColourSpace Integration.

Master Your HDR Workflow
The ASUS ProArt PA32UCX-K is aimed at discerning content creators including videographers, cinematographers, and colorists who are seeking the finest display for their workflow. The ASUS ProArt PA32UCX-K is the world's first 32-inch 4K HDR monitor with peak brightness of 1,200 nits and mini-LED backlighting, enabling 1,152 zones of local dimming control and support for multiple HDR formats, including Dolby Vision™, HLG and HDR-10. The PA32UCX-K's impressive panel reproduces the brightest whites and the deepest blacks with sharper, more detailed visuals. With true 10-bit color and Quantum Dot technology, support for DCI-P3, Rec. 709, Rec. 2020, and Adobe RGB color spaces, together with a rich selection of connectivity, the PA32UCX-K is primed to take on any studio workflow.

World's 1st 32-inch 4K Monitor with Mini LED Backlight*
ASUS ProArt PA32UCX-K 4K monitor incorporates the leading technology of mini LED backlight, which is packed in physically half smaller LEDs than the conventional in more densely to increases the granularity of brightness control. ProArt PA32UCX-K offers individual backlight control of a whopping 1,152 zones with higher luminance and deeper darkness to deliver the best contrast and accurate reproduction of HDR contents.

ASUS Smart HDR Technology
ASUS ProArt PA32UCX-K features ASUS Smart HDR Technology, which supports multiple HDR (high-dynamic-range) formats and multiple PQ curves to suit content creators' specific requirements.Dolby Vision HDR transforms your viewing experience with ultravivid image — incredible brightness, contrast, and color to expand content creators' storytelling possibilities . It achieves this astonishing image quality through cinema-inspired HDR technology that can deliver billions of colors. HDR-10 support ensures compatibility with existing streaming video services and a growing list of HDR-enabled games, including PQ hard clip curve, PQ Optimized and PQ Basic, to cover all content creators' needs. The PA32UCX-K's HLG (hybrid log gamma) preset allows users to both immerse in, as well as create material for broadcast and satellite TV platforms such as the BBC iPlayer, Japan NHK TV, and DirecTV.

Dolby Vision™ HDR transforms entertainment experience with ultra-vivid picture quality, providing incredible brightness, contrast, color and detail to bring entertainment to life. With Dolby Vision, the PA32UCX-K can bring confidence for content creators that their images are represented with ultimate consistency.

Multiple PQ Curves
ASUS ProArt PA32UCX-K supports multiple HDR-10 (high-dynamic-range) curves, including PQ Hard Clip, PQ Optimized and PQ Basic which can cover all content creators' needs.

Transform Your Viewing Experience
True 10-bit IPS with 1,200 nits peak brightness, supporting Quantum Dot technology provides an entire spectrum of colors to play with. PA32UCX-K support 99% DCI-P3, 99.5% Adobe RGB, 100% sRGB, 100% Rec. 709 and 89% Rec.2020 color spaces for video editing and post-production.

The Most Flexible Hardware Calibration
Whether you're using a desktop, laptop, PC or Mac, ASUS ProArt™ Hardware Calibration offers color accuracy tuning and uniformity compensation
to make things easy when it's time to recalibrate your display's brightness and color consistency.

Connect to Your Workflow
ASUS ProArt PA32UCX-K comes with HDMI 2.0, DisplayPort1.2, Thunderbolt™ 3 USB-C and USB hub.
It is built for content creators to easily connect to gadgets including blu-ray player, control panel, peripheral, desktop and display with zero hassle.

Picture-in-Picture & Picture-by-Picture
Both Built-in Picture-in-Picture (PiP) and Picture-by-Picture (PbP) functionalities allow you to view content from multiple sources simultaneously, and switch between them easily. You can even select which audio source to play.

Picture-by-Picture (PbP) mode
To simultaneously experience different settings, place multiple input sources side by side onscreen and configure each individual window's color settings with sRGB, Adobe RGB, DCI-P3, Rec. 2020, User Mode 1 or User Mode 2.

Ergonomic Design

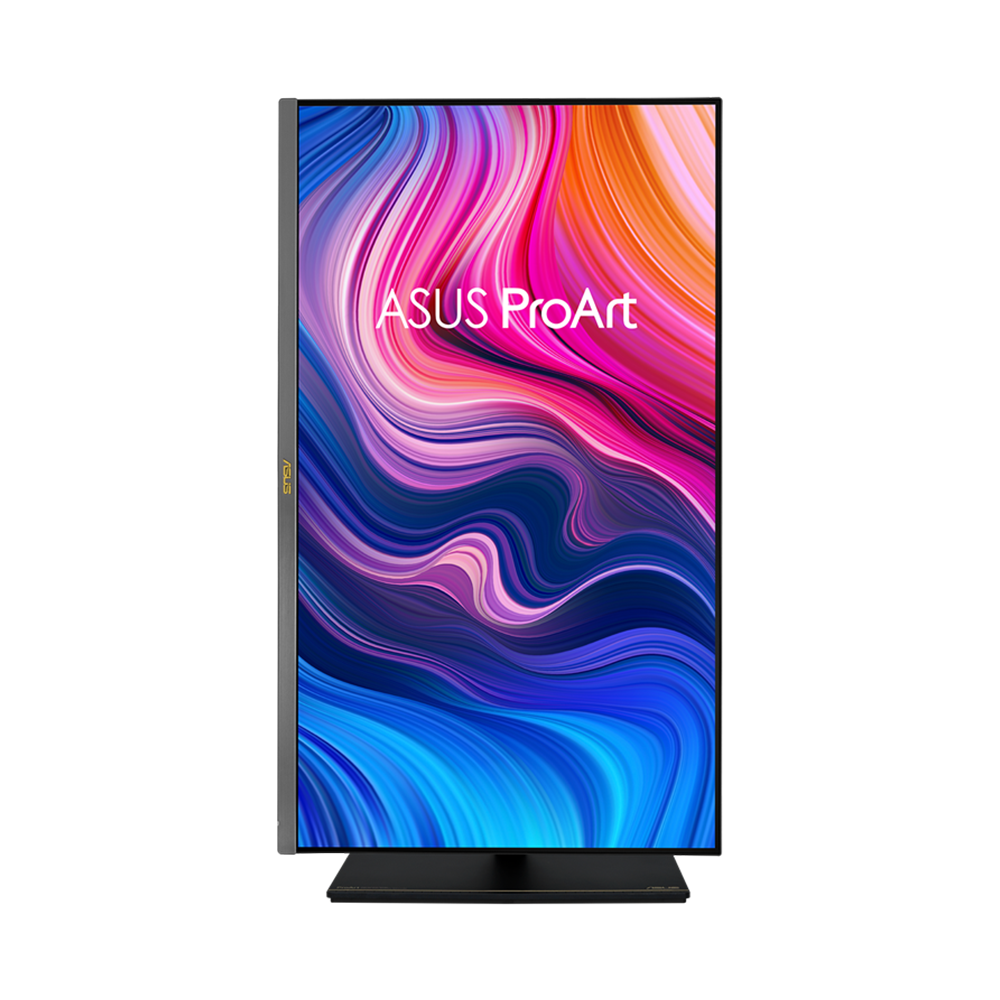

A comfortable viewing position is always easy to achieve with ProArt™ PA32UCX-K, thanks to its slim profile and ergonomically designed stand that offers tilt, swivel, pivot, and height adjustments. Its onscreen menu even rotates automatically to display correctly when the monitor is used in portrait orientation.

Specifications

• Model : ProArt Display PA32UCX-K

Display

• Panel Size (inch) : 32
• Pixels Per Inch (PPI) : 138
• Aspect Ratio : 16:9
• Display Viewing Area (H x V) : 708.48 x 398.52 mm
• Display Surface : Anti-Glare
• Backlight Type : Mini-LED
• Panel Type : IPS
• Viewing Angle (CR≧10, H/V) : 178°/ 178°
• Pixel Pitch : 0.185mm
• Resolution : 3840x2160
• Color Space (sRGB) : 100%
• Color Space (Adobe RGB) : 99.5%
• Color Space (DCI-P3) : 99%
• Color Space (Rec.2020) : 89%
• Brightness (HDR, Peak) : 1,200 cd/㎡
• Brightness (Typ.) : 600cd/㎡
• Contrast Ratio (HDR, Max) : 500,000:1
• Contrast Ratio (Typ.) : 20,000:1
• Display Colors : 1073.7M (10 bit)
• Response Time : 5ms(GTG)
• Refresh Rate (Max) : 60Hz
• HDR (High Dynamic Range) Support : HDR10
• HDR (High Dynamic Range) Support : HLG
• HDR (High Dynamic Range) Support : Dolby Vision
• Flicker-free : Yes
• LCD ZBD Warranty : Yes(3 yr)

Features

• Trace Free Technology : Yes
• ProArt Preset : Standard
• ProArt Preset : sRGB
• ProArt Preset : Adobe RGB
• ProArt Preset : DCI-P3
• ProArt Preset : Rec.2020
• ProArt Preset : DICOM
• ProArt Preset : Rec.709
• ProArt Preset : HDR_PQ DCI
• ProArt Preset : HDR_PQ Rec.2020
• ProArt Preset : HDR_HLG
• ProArt Preset : Dolby Vision
• ProArt Preset : User mode1
• ProArt Preset : User mode2
• Color Temp. Selection : Yes (5 modes)
• Color Adjustment : 6-axis adjustment (R,G,B,C,M,Y)
• Gamma Adjustment : Yes (Support Gamma 1.8/2.0/2.2/2.4/2.6)
• Color Accuracy : △E< 1
• ASUS ProArt Hardware Calibration : Yes
• ProArt Palette : Yes
• QuickFit : Yes
• PIP / PBP Technology : Yes
• HDCP : Yes
• VRR Technology : Yes (Adaptive-Sync)
• Motion Sync : Yes
• HDR Preview : Yes
• Low Blue Light : Yes
• Multiple HDR Mode : Yes

Audio

• Speaker : Yes(3Wx2)
• I/O Ports
• Thunderbolt 3 x 2
• DisplayPort 1.2 x 1
• HDMI(v2.0) x 3
• USB Hub : 3x USB 3.2 Gen 1 Type-A
• Earphone Jack : Yes
• USB-C Power Delivery : 60W

Signal Frequency

• Digital Signal Frequency : HDMI: 109~142 KHz (H) / 29~65 Hz (V)
• DisplayPort, Thunderbolt™ 3: 142~142 KHz (H) / 40~60 Hz (V)

Power Consumption

• Power Consumption : 60W
• Power Saving Mode : <0.5W
• Power Off Mode : <0.5W
• Voltage : 100-240V, 50/60Hz

Mechanical Design

• Tilt : Yes (+23° ~ -5°)
• Swivel : Yes (+60° ~ -60°)
• Pivot : Yes (+90° ~ -90°)
• Height Adjustment : 0~130mm
• Ambient Light Sensor : Yes
• VESA Wall Mounting : 100x100mm
• ROG Light Signal : Yes
• Kensington Lock : Yes

Dimensions (Esti.)

• Phys. Dimension (W x H x D) : 72.70 x 60.00 x 24.00 cm (28.62" x 23.62" x 9.45")
• Phys. Dimension without Stand (W x H x D) : 72.70 x 42.60 x 9.30 cm (28.62" x 16.77" x 3.66")
• Box Dimension (W x H x D) : 92.30 x 52.50 x 38.60 cm (36.34" x 20.67" x 15.20")

Weight (Esti.)

• Net Weight : 14.0 kg (30.86 lbs)
• Net Weight without Stand : 11.0 kg (24.25 lbs)
• Gross Weight : 19.1 kg (42.11 lbs)

Accessories (vary by regions)

• Color pre-calibration report
• DisplayPort cable
• HDMI cable
• Monitor hood
• Power cord
• Quick release stand
• Quick start guide
• Thunderbolt™ 3 Cable
• USB Type-C to A adapter
• USB-C cable
• Warranty Card
• X-rite i1 Display Pro Calibrator
• Operation Temperature / Humidity
• Operation Temperature : 0~45
• Operation Humidity : 75%

Certificate

• TÜV Flicker-free
• TÜV Low Blue Light
• VESA DisplayHDR 1000
• Calman Ready
• Mac Compliance
