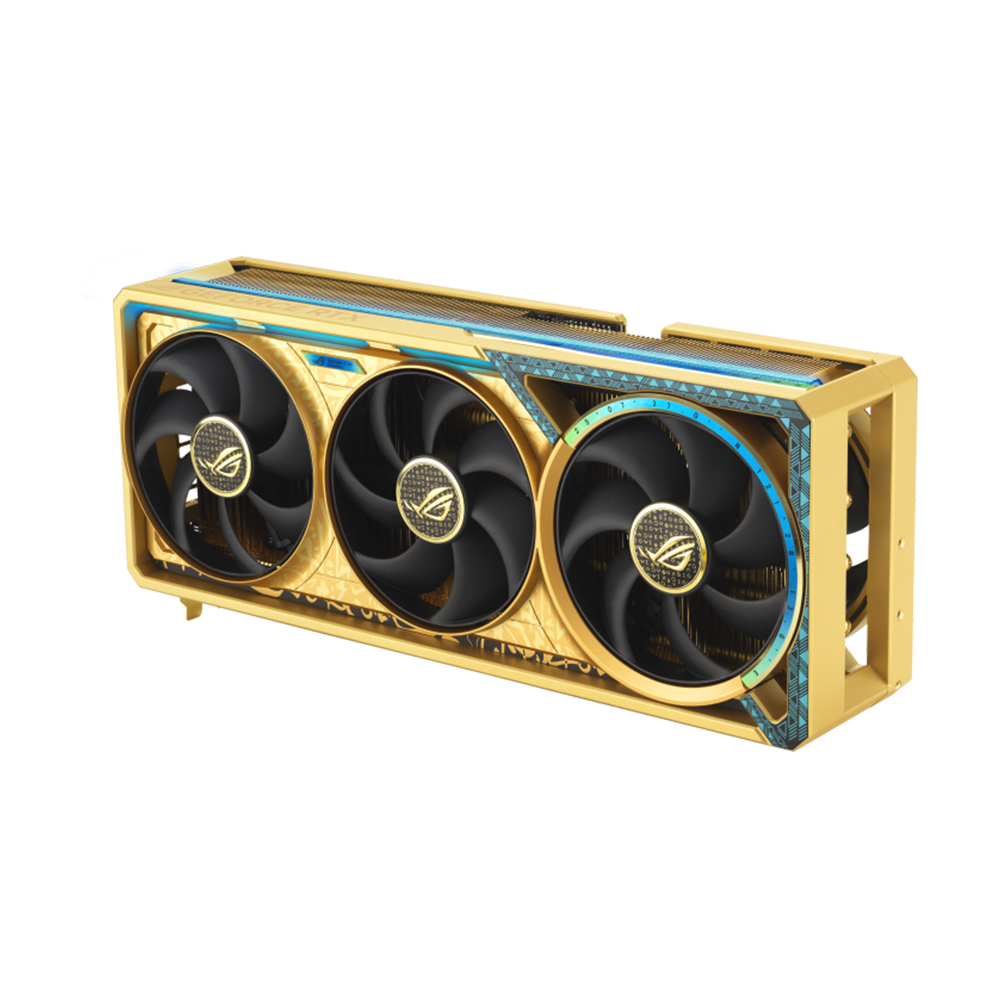

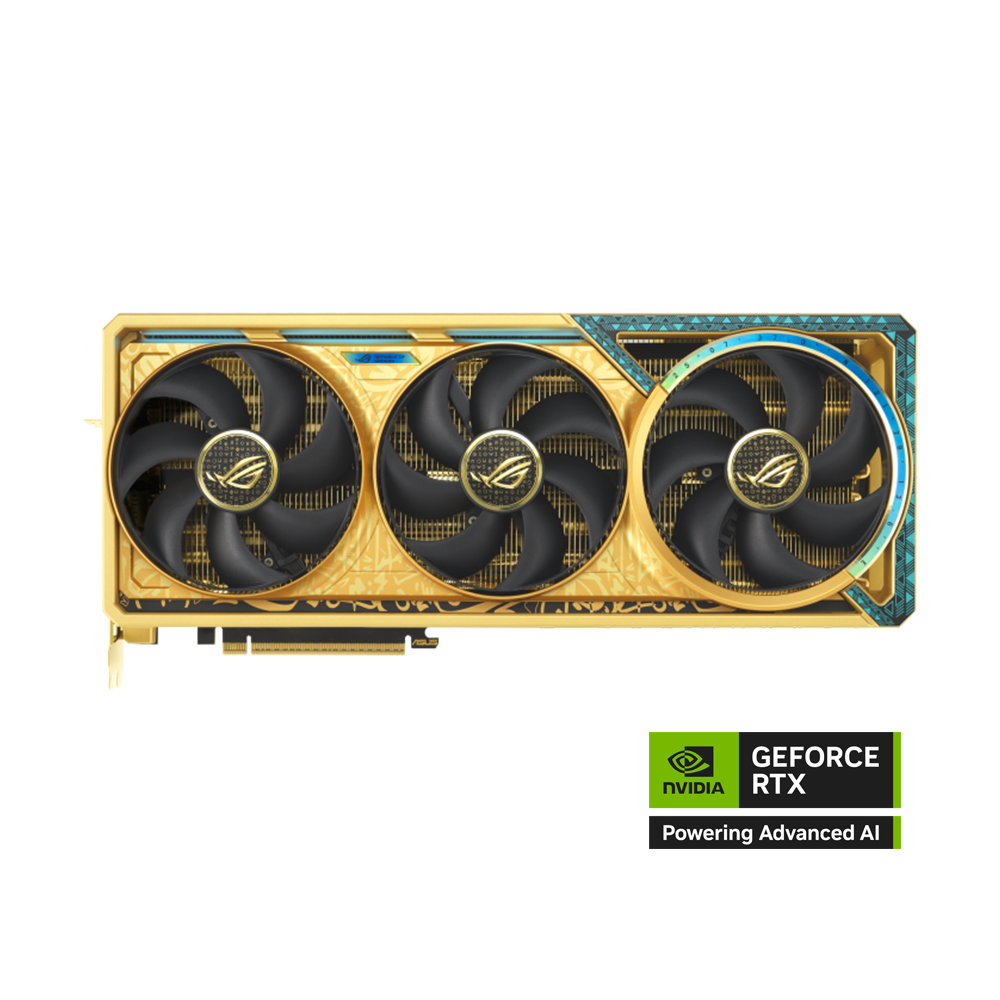

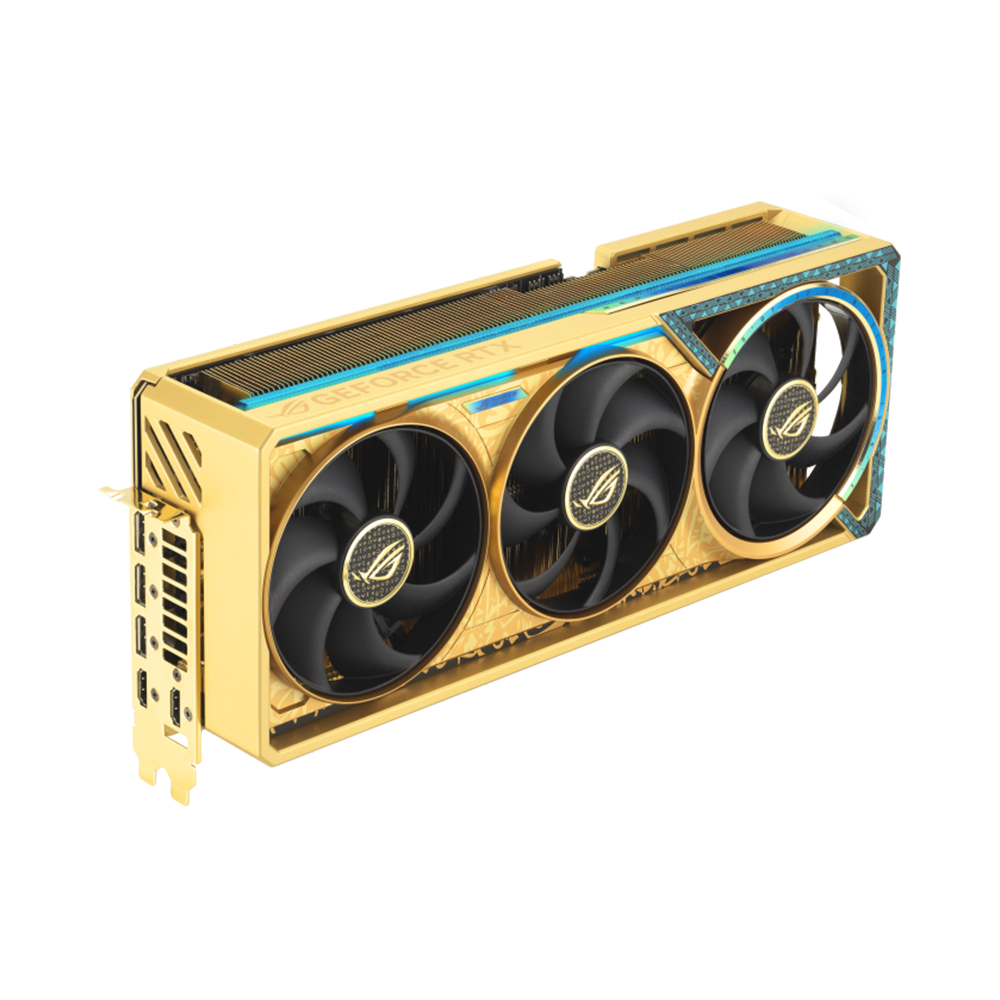

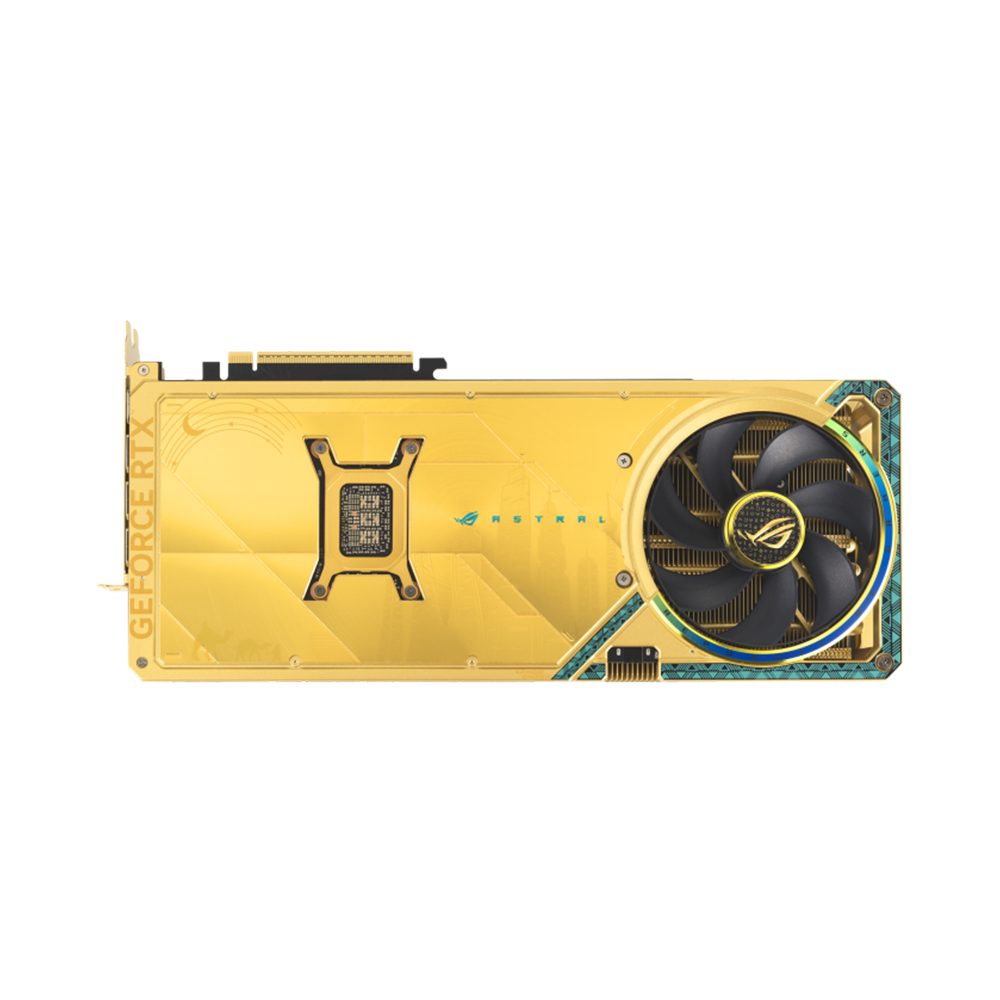

ASUS ROG ASTRAL Nvidia GeForce RTX 5080 OC 16GB Dhahab Edition Graphics Card - Gold

GeForce RTX 50 Series - Game Changer! Powered by NVIDIA Blackwell, GeForce RTX 50 Series GPUs bring game-changing capabilities to gamers and creators. Equipped with a massive level of AI horsepower, the RTX 50 Series enables new experiences and next-level graphics fidelity. Multiply performance with NVIDIA DLSS 4, generate images at unprecedented speed, and unleash your creativity with NVIDIA Studio.

ROG Astral GeForce RTX™ 5080 Dhahab CORE
Reach the Sky
The ROG Astral GeForce RTX™ 5080 Dhahab CORE features an exquisite, premium design that combines cutting-edge aesthetics with exceptional performance. It offers ROG's first quad-fan design, coupled with a patented vapor chamber, increased heatsink fin density, a phase-change GPU thermal pad, towering default clock speeds, boosted power delivery, and more. These premium innovations – amplified by an eye-catching die-cast frame and metal GPU bracket – combine to deliver absolute performance that can handle even the most demanding gaming scenarios.

Elegant Calligraphy

Timeless script bestows an air of mystery around the wonders waiting to be unlocked

Cooling Expertise
Quad-Fan Force
A revolutionary four-fan design creates a powerful vertical airflow channel that boosts air pressure by up to 20%. This results in premium thermal performance that dramatically lowers GPU temperatures and minimizes hotspots, enabling unprecedented clock speeds.

Optimized Fin Spacing
The addition of a fourth fan permits more densely packed heatsink fins, increasing cooling potential.

Patented Vapor Chamber
A patented vapor chamber with milled pathways enables heatpipes to pass through without needing to have a flattened design , boosting heat dissipation efficiency. This innovative combo maximizes contact surface and improves thermal performance by more than 10%.

MaxContact Design
MaxContact is an ASUS-exclusive manufacturing technique that effectively increases the surface area of the GPU heat spreader by 5% for improved thermal efficiency.

Phase-Change GPU Thermal Pad
By liquifying to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.

Premium Power Delivery
Powerful 50-amp MOSFETs with extra power phases to deliver over 25% more headroom than the standard design. This helps ensure enhanced performance, stability and higher overclocking potential.

ASUS GPU Guard & Bracket
To handle larger graphics processors, ASUS GPU Guard applies adhesive to secure all four corners, reducing the risk of cracks while a GPU bracket helps ensure uniform mounting pressure and extra stability.

Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.

Auto−Extreme Technology
This unique manufacturing process sets the standard in the industry by performing all soldering in a single pass. ASUS Auto-Extreme technology reduces thermal strain on components and also avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.

Ultra Rigid Metal Case
A high-quality diecast frame, shroud and backplate tightly brace the PCB for rigidity, and a 304 stainless steel I/O bracket plus bundled graphics card holder ensures stable

FanConnect II
Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly synced with the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.

Dual BIOS
Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time. Alternately, Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at medium temperatures.

Pair with an ROG PSU
Featuring Patented “GPU-First” Intelligent Voltage Stabilizer
Pair with the ROG Thor III or ROG Strix Platinum Series PSUs and enjoy reliable power for your graphics card. GPU-First enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios, helping to ensure peak performance for a more consistent gaming experience. Additionally, the integration of a GaN MOSFET boosts power efficiency by up to 30%.

Specifications

• Model : ROG Astral GeForce RTX™ 5080 Dhahab CORE OC Edition
• Graphic Engine : NVIDIA® GeForce RTX™ 5080
• AI Performance : 1801 TOPs
• Bus Standard : PCI Express 5.0
• OpenGL : OpenGL®4.6
• Video Memory : 16GB GDDR7
• Engine Clock : OC mode: 2790 MHz
• Default mode: 2760 MHz (Boost Clock)
• CUDA Core : 10752
• Memory Speed : 30 Gbps
• Memory Interface : 256-bit
• Resolution : Digital Max Resolution 7680 x 4320
• Interface : Yes x 2 (Native HDMI 2.1b)
• Yes x 3 (Native DisplayPort 2.1b)
• HDCP Support Yes (2.3)
• Maximum Display Support : 4
• NVlink/ Crossfire Support : No
• Accessories : 1 x Speedsetup Manual
• 1 x ROG Graphics Card Holder
• 1 x ROG Velcro Hook & Loop
• 1 x ROG Magnet
• 1 x ROG Graphics Card Keycap
• 1 x ROG PCB Ruler
• 1 x Thank You Card
• 1 x Adapter Cable (1 to 3)
• Software : ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
• Dimensions : 357.6 x 149.3 x 76 mm
• 14.1 x 5.9 x 3 inch
• Recommended PSU : 850W
• Power Connectors : 1 x 16-pin
• Slot : 3.8 Slot
• AURA SYNC : ARGB
