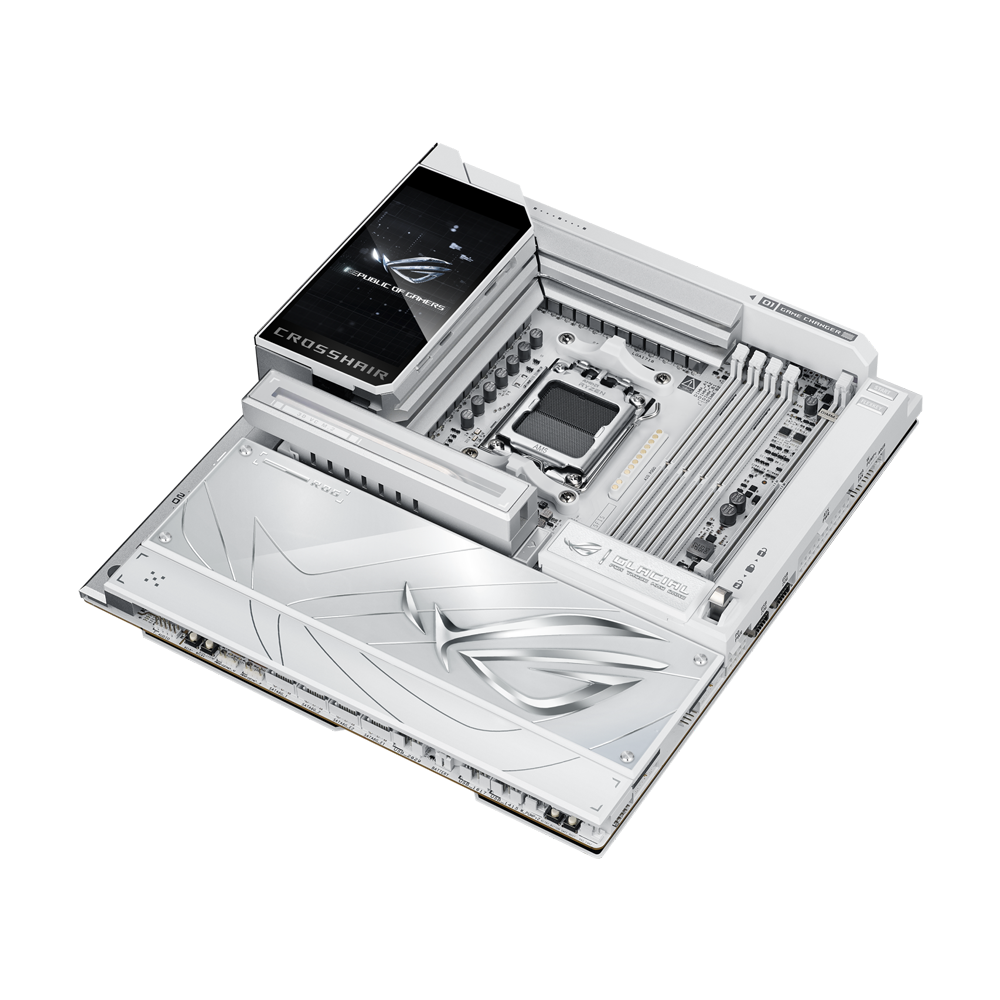

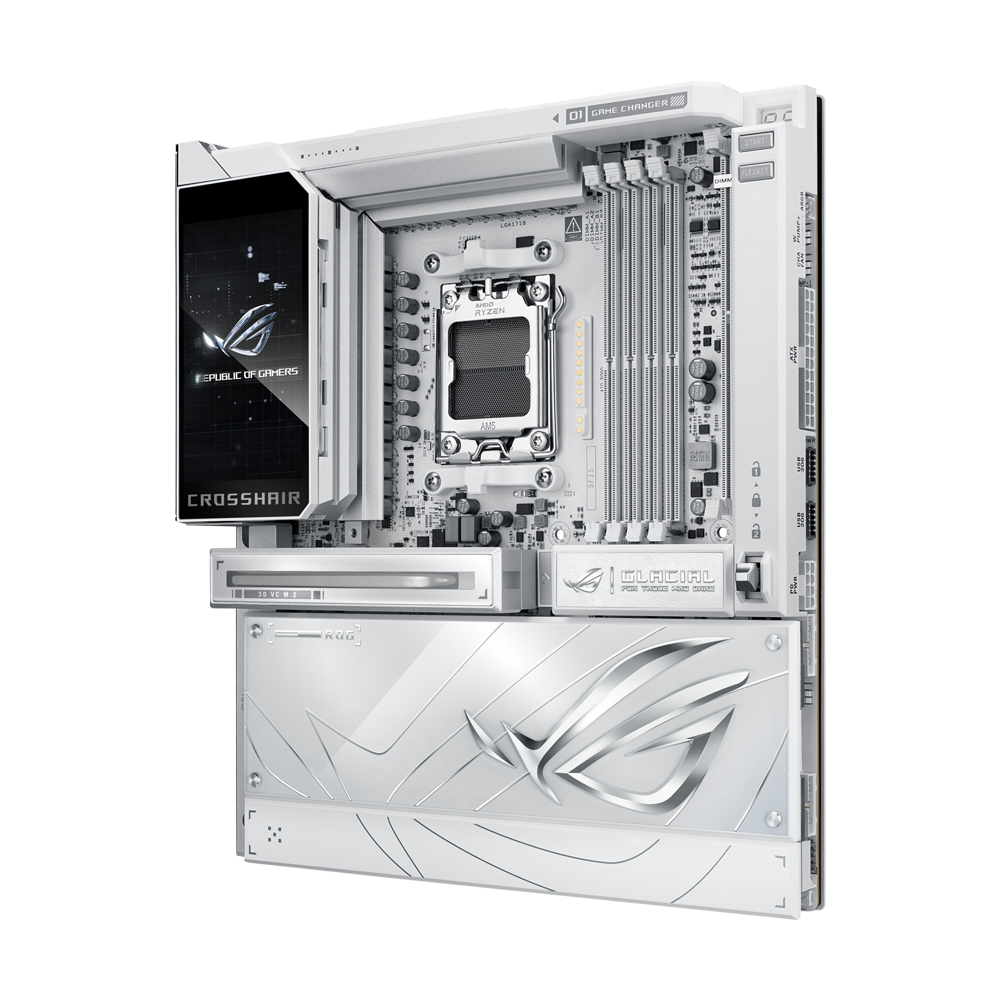

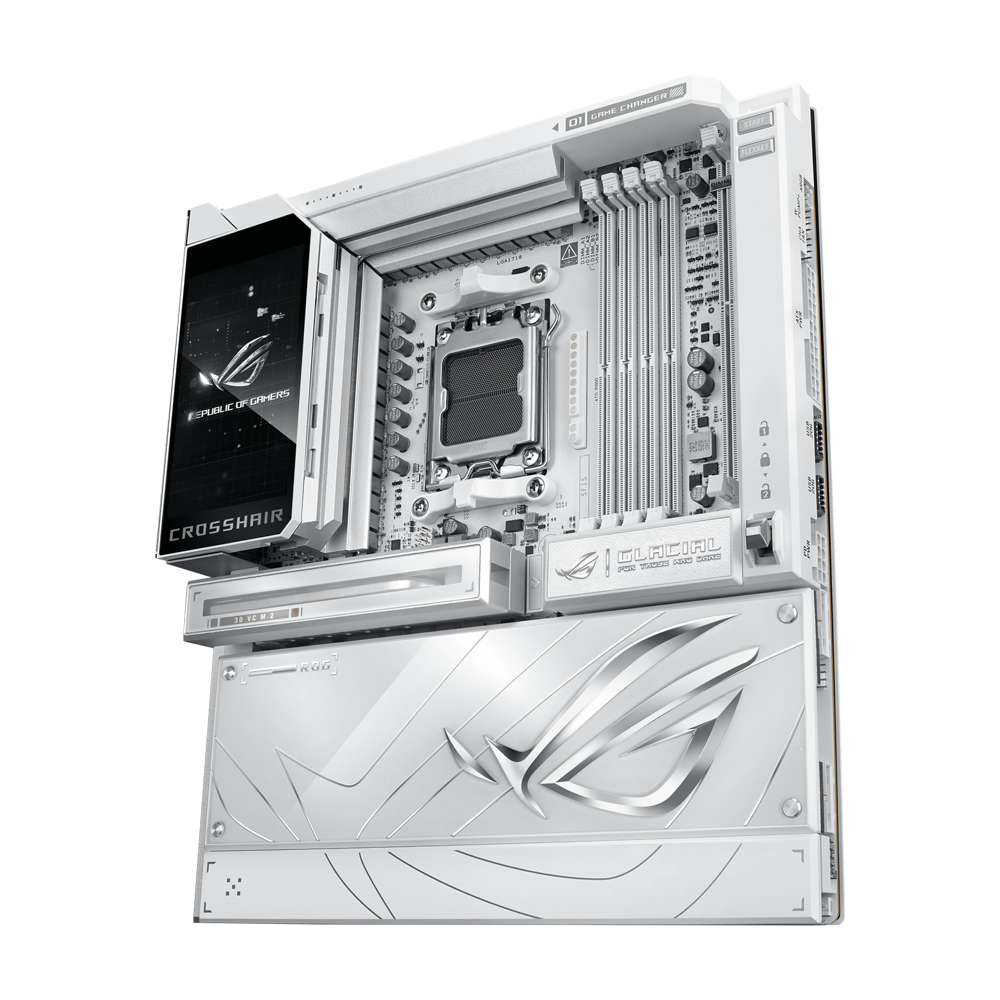

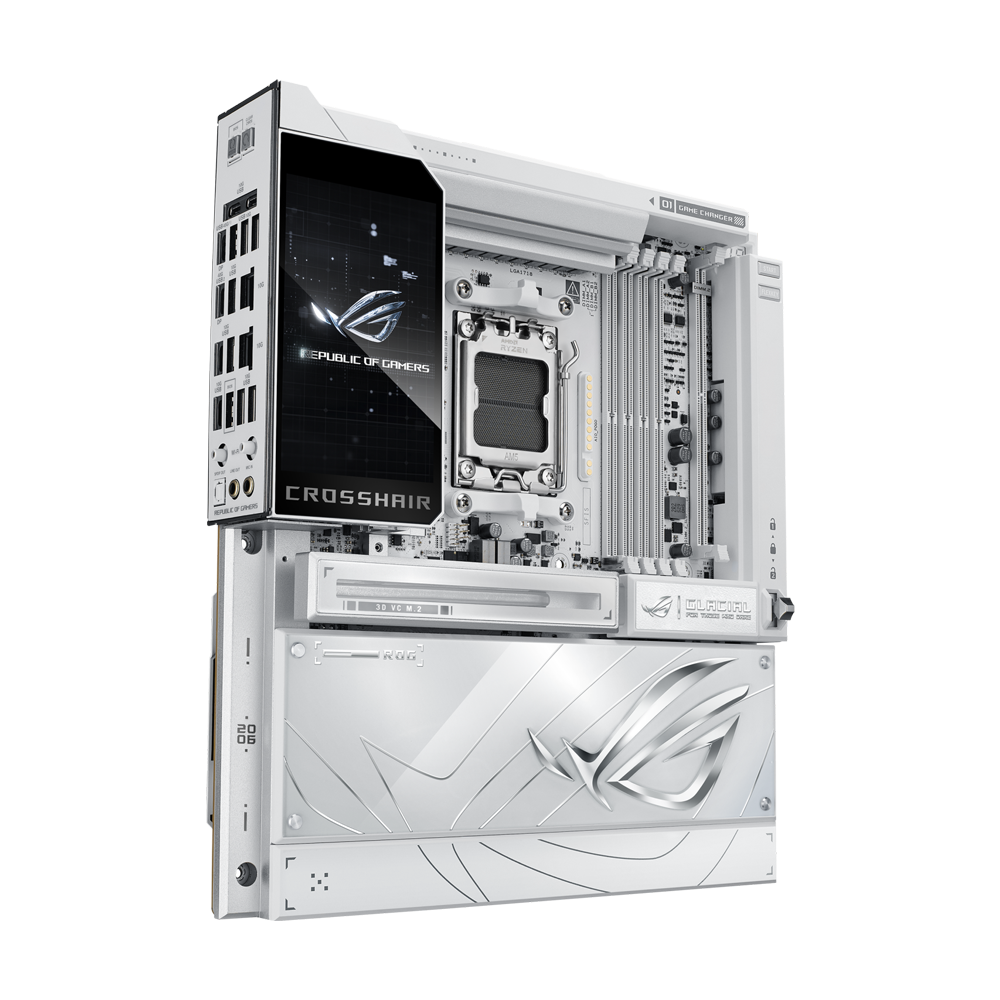

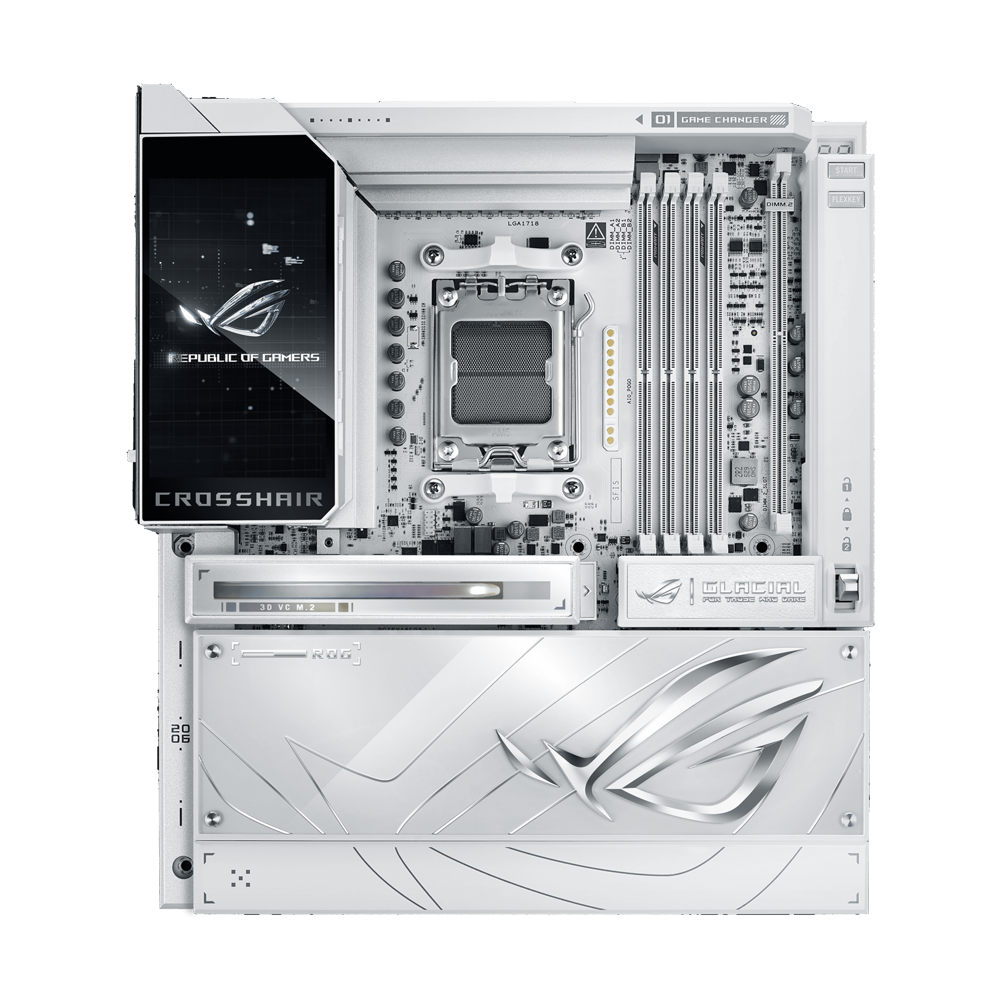

ASUS ROG CROSSHAIR X870E GLACIAL DDR5 Gaming Motherboard - White

Key Features:

• Power Delivery: Teamed Power Solution – optimized, stable energy for high‑end performance.

• AI Enhancements: AI Cache Boost & ASUS AI Advisor – intelligent system tuning and smart optimization.

• Cooling: AI Cooling II – one‑click fan tuning for effortless thermal management.

• Overclocking: Effortless performance boost – streamlined and safe tuning for extra speed.

• Memory: DDR5 up to 256 GB – Server‑Grade DRAM Enhancement, NitroPath Technology, and AEMP support.

• Expansion: PCIe Gen 5 – dual onboard M.2 slots and dual PCIe 5.0 x16 slots for future‑proof bandwidth.

• Storage: ROG Hyper M.2 Card & ROG Q‑DIMM.2 – up to 4 extra M.2 slots with simplified installation.

• Connectivity: WiFi 7 & USB4® – ultra‑fast universal networking and data transfer.

• Cooling Innovation: 3D VC M.2 Heatsink – advanced SSD cooling for sustained performance.

• DIY & Monitoring: ASUS AIO Q‑Connector, EZ PC DIY, and Full Color 5” LCD Display – simplified assembly with real‑time system stats.

The ROG X870E Glacial is a flagship motherboard engineered for uncompromising performance and sophisticated AI. It boasts a robust 24+2+2 power stage design, Dynamic OC Switcher, and Core Flex for next-generation overclocking control. Meanwhile, advanced memory tuning is unlocked through server-grade DRAM enhancement and NitroPath DRAM technology, and storage scales with support for up to seven M.2 drives. Top-tier connectivity includes two 10G Ethernet ports, two USB4® ports, and two USB 20Gbps Type-C® front-panel connectors. This motherboard also features a 3D VC M.2 heatsink and a 5-inch LCD display, along with AI Cache Boost and AI Advisor for smarter, more intuitive system tuning.

Performance
OVERCLOCKING
Dynamic OC Switcher
Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex
Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways.

Asynchronous Clock
For next-level frequency flexibility, the ROG Crosshair X870E Glacial features a built-in clock generator that isolates CPU base clock from memory, PCIe, and the Infinity Fabric speed.

PBO ENHANCEMENT
AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance.

Performance
MEMORY
SERVER-GRADE DRAM ENHANCEMENT
Thanks to improved signal routing, now enthusiast-grade kits can be driven far beyond the 9 GT/s mark on the ROG Crosshair X870E Glacial*.

The ROG Crosshair X870E Glacial lets you overclock memory up to 8600+ MT/s.

DIMM Fit / DIMM Fit Pro
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues; whereas DIMM Fit Pro is an advanced option that provides more extensive customizability for memory optimization.

NitroPath DRAM Technology
Frequency up to 400 MT/s higher Slot retention force enhanced by 57%.

AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

ROG Ultimate Power Solution
24(110A)+2(110A)+2(80A) Power Stages

Cooling

3D VC M.2 HEATSINK
Operating Temperature

10% Cooler
Air Cooling Solution

Highly Efficient
3D VC Cooling On Gaming Motherboard

Thermal Management
Multiple temperature sources
4-pin fan headers

Connectivity

pcie 5.0
Fully embracing the new standard, the ROG Crosshair X870E Glacial offers abundant Gen 5 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

USB Ports

THREE USB 2.0 HEADERS
Three USB 2.0 headers ensure broad compatibility with AIO coolers, chassis fan hubs, front USB modules, and popular third-party components.

UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

64MB BIOS
A larger BIOS chip enables a more powerful interface and extended CPU compatibility with the latest and future AM5 processors, ensuring a smooth, seamless user experience.

Pre-installed WiFi driver
A pre-installed WiFi driver enables users to connect to the internet when installing Windows on their PC; no USB flash drive is needed for driver installation, making the setup process faster and more convenient.

BIOS Q-DASHBOARD
Simplify your motherboard configuration with BIOS Q-Dashboard. Its intuitive visual representation of hardware connections and corresponding BIOS settings takes the complexity out of setting up your system. Upgrade now, and discover the power of BIOS Q-Dashboard to easily and efficiently enhance your computing setup.

SOFTWARE

ASUS DriverHub
ASUS DriverHub streamlines the installation and management of ASUS drivers and utilities to keep your hardware up-to-date and performing optimally. This standalone application automatically detects current driver versions and presents available updates in a list view. By default, it supports ASUS motherboards, and users are invited to install ASUS DriverHub after OS installation. Additionally, ASUS DriverHub offers one-click one-click installation and update checks, making it easier for users to keep their systems running smoothly and efficiently.

PERSONALIZATION
Boundless creativity, endless style.
The ROG Crosshair X870E Glacial features a full-color 5-inch LCD screen that can show exclusive ROG animations, system information and even personalized services* through Armoury Crate, empowering gamers to define their unique style on a vibrant display.

MagnetiCover
Magnetic panels conceal the motherboard's connectors for a cleaner look, or they can be attached to any magnetic surface as a decorative element. Includes an accessory to provide additional space underneath the cover if needed.

Specifications

CPU & Chipset

• Socket: AMD AM5 for Ryzen™ 9000, 8000, 7000 Series

• Chipset: AMD X870E

Memory

• Slots: 4 x DIMM, up to 256 GB DDR5

• Speeds:

  • Ryzen™ 9000: up to 8600+ MT/s (OC)

  • Ryzen™ 8000: up to 9600+ MT/s (OC)

  • Ryzen™ 7000: up to 8000+ MT/s (OC)

• Features: ECC & Non‑ECC support, Dual Channel, EXPO™, DIMM Fit, AEMP, NitroPath DRAM Technology

Graphics

• USB4® Display Output: 2 x 40Gbps Type‑C ports

• Resolution Support: Up to 4K @ 60Hz (DP 1.4a)

Expansion Slots

• Ryzen™ 9000/7000: 2 x PCIe 5.0 x16 (Q‑Release, SafeSlot)

• Ryzen™ 8700/8600/8400: 2 x PCIe 4.0 x16 (limited bandwidth)

• Ryzen™ 8500/8300: 2 x PCIe 4.0 x16 (one slot limited to PCIe 3.0 x4)

Storage

• M.2 Support: Up to 7 slots (PCIe 5.0 & 4.0 depending on CPU)

• SATA: 4 x SATA 6Gb/s ports

• Add‑ons: ROG Hyper M.2 Card, ROG Q‑DIMM.2

• RAID: AMD RAIDXpert2 (0/1/5/10)

Connectivity

• Ethernet: Dual Realtek 10Gb LAN with ASUS LANGuard

• Wireless: WiFi 7 (MediaTek MT7927), 2x2, supports 2.4/5/6GHz

• Bluetooth®: v5.4 with LE Audio

USB Ports

• Rear I/O:

  • 2 x USB4® (40Gbps, Type‑C)

  • 12 x USB 10Gbps (8 x Type‑A, 4 x Type‑C)

• Front I/O:

  • 1 x USB 20Gbps Type‑C with 60W PD/QC4+

  • 1 x USB 20Gbps Type‑C

  • Headers for USB 5Gbps & USB 2.0

Audio

• Codec: ROG SupremeFX ALC4082, 7.1 Surround

• Features: ESS® ES9219 QUAD DAC, 120 dB SNR playback, LED jacks, optical S/PDIF out

DIY & Special Features

• Extreme OC Kit: LN2 Mode, ProbeIt, Safe Boot, Start Button

• ASUS Q‑Design: M.2 Q‑Latch, PCIe Q‑Release, Q‑Connector, Q‑Dashboard, Q‑LED

• Thermal Solutions: VRM heatsink, 3D VC M.2 Heatsink, ROG Memory Q‑Fan

• EZ DIY: Pre‑mounted I/O shield, BIOS FlashBack™, Clear CMOS, SafeSlot, SafeDIMM

• Display: Full Color 5” LCD

Accessories

• ROG Hyper M.2 Card with heatsink

• ROG Q‑DIMM.2 with heatsink

• ROG Memory Q‑Fan

• ASUS WiFi Q‑Antenna

• Cables, thermal pads, stickers, VIP card, ROG bottle opener

Form Factor & OS

• Form Factor: E‑ATX (30.5 cm x 27.7 cm)

• OS Support: Windows® 11
