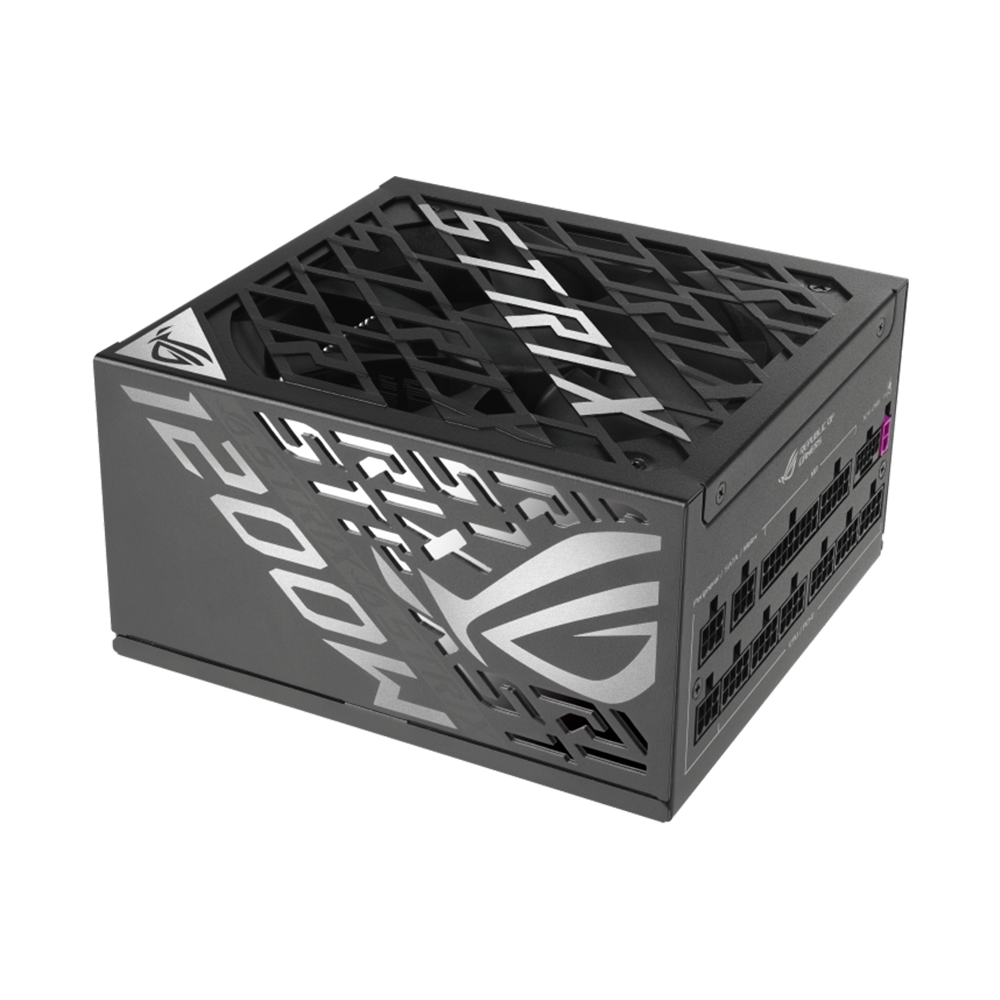

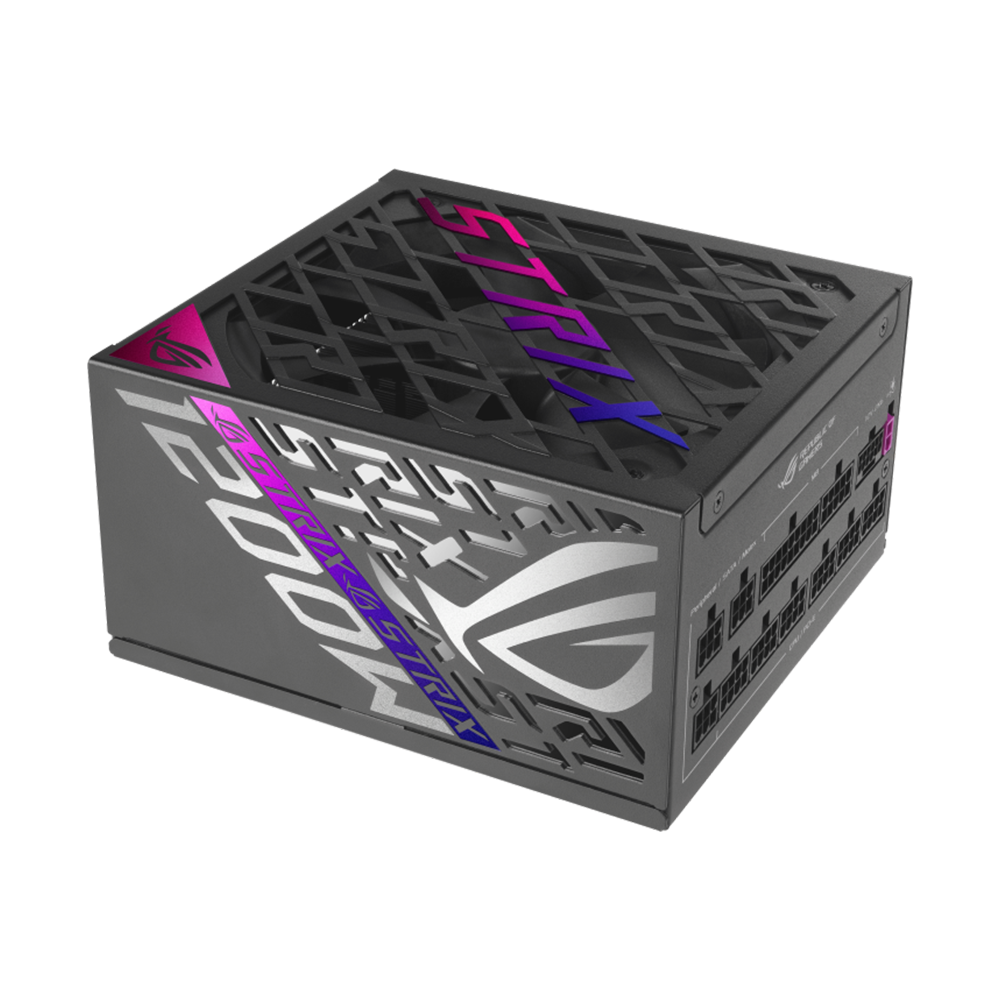

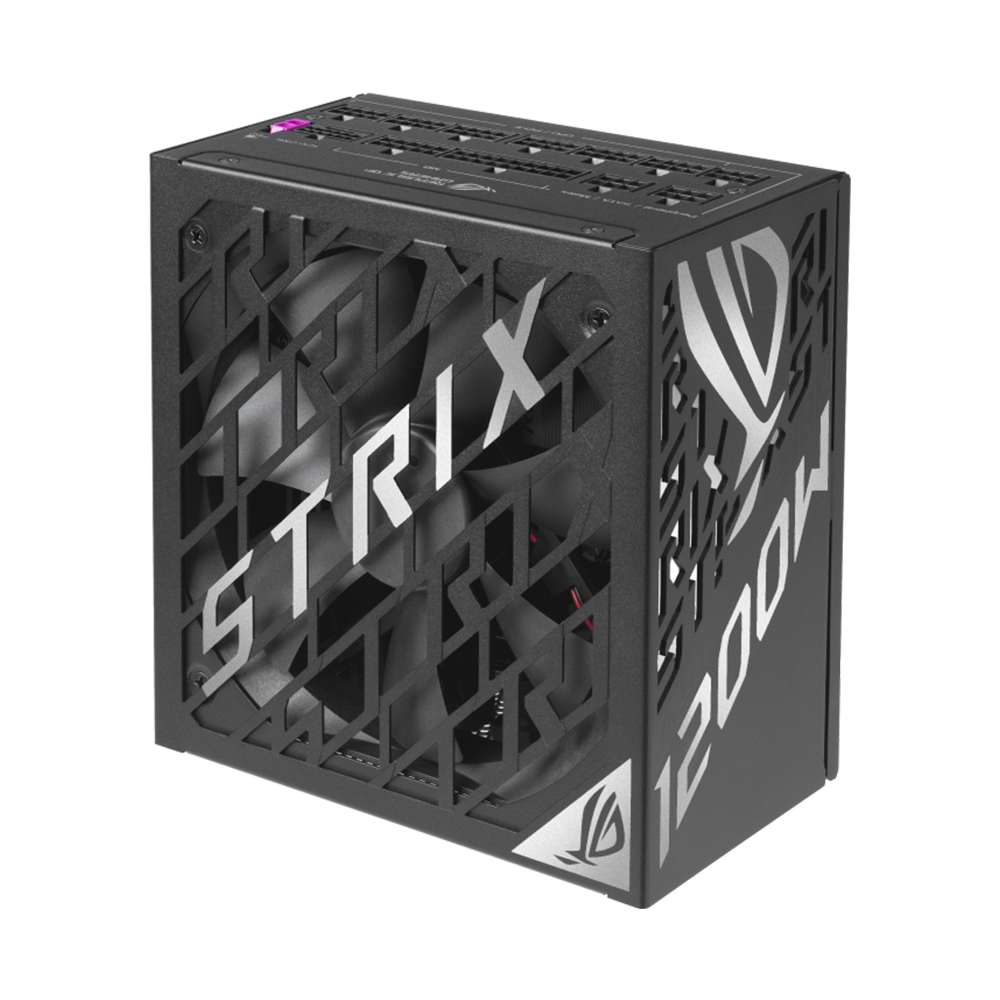

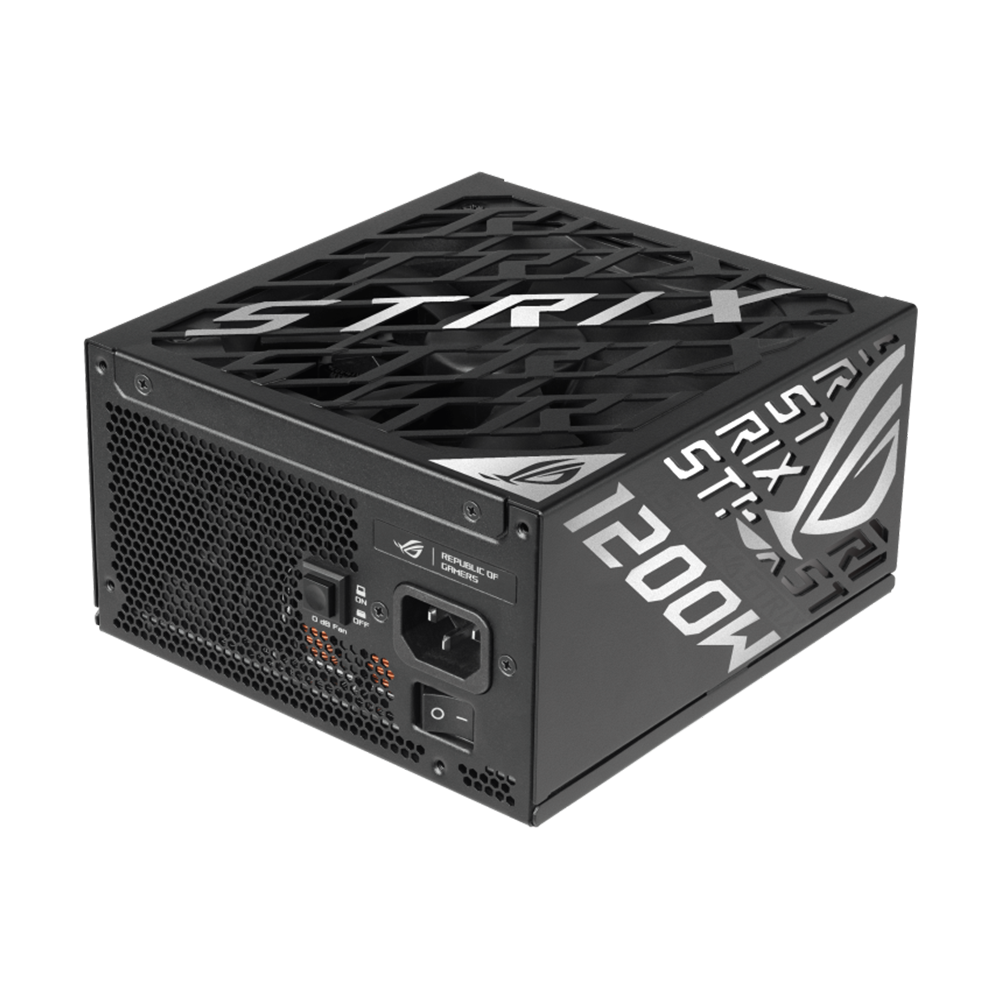

ASUS ROG STRIX 1200W 80 Plus Platinum ATX 3.1 PCIe Gen 5 Power Supply - Black

Key Features:

• GaN MOSFET delivers superior power efficiency by up to 30% and a more organized internal layout for cooler operation.

• "GPU-FIRST" voltage sensing with patented-intelligent voltage stabilizer enhances voltage delivery by up to 45% to your graphics card for smoother gameplay and unwavering performance.

• Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs.

• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

• 0dB technology lets you enjoy light gaming in relative silence.

• ATX 3.1 compatible: ROG Strix Platinum is compliant with ATX 3.1 standard, ensuring enhanced voltage and current regulation.

• PCIe 5.1 Ready: ROG Strix Platinum features a native 12V-2x6 connector for next-gen graphics card power.

• Lambda A Certification: Certified low noise levels, below 25 dB

• 80 PLUS & Cybenetics Platinum certified:  ROG Strix Platinum leverages low-ESR capacitors and premium components for industry-leading power efficiency.

ROG Strix 1200W Platinum is a cool and quiet PSU with stable power delivery, engineered for efficiency with GaN MOSFET and intelligent stabilizer in striking style.

ROG Strix 1200W Platinum
Superior Stability. Next-Level Efficiency
The ROG Strix Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The “GPU-FIRST” voltage sensing with patented-intelligent voltage stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.

GaN MOSFET

The ROG Strix Platinum PSU boasts innovative GaN MOSFET that delivers superior power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of GaN MOSFET allows for a more organized internal layout within the PSU. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation within the PSU.

COOLING

ROG Heatsinks

Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation

Dual Ball Fan Bearings

2x longer lifespan

Dual ball bearings boast a remarkable lifespan of 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings.
Ensuring long-lasting, reliable cooling with minimal noise for ROG STRIX Platinum series.

EXPERIENCE

Etched Cables

Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.

DIY-friendly CPU Power Connector

Engineered with a distinct clip between the 4+4 pin connectors and a unique color scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.

Cosmetic Customization

Customize your own PSU with included stickers that complement the PSU's patterns. Choose your preferred color scheme for a personalized touch.

Specifications

• Model : ROG STRIX 1200W Platinum
• Intel Form Factor : ATX12V
• PFC Type : Active PFC
• ATX Standard : ATX 3.1
• Dimensions : 160 x 150 x 86 mm
• Efficiency : 80Plus Platinum
• MTBF : >120,000 hrs @ 25°C
• Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials : ROHS
• AC Input Range : 100-240Vac
• DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
• Maximum Load : 25A 25A 100A 0.3A 3A
• Combined Load : 130W 130W 1200W 3.6W 15W
• Total Output : 1200W
• Cable Connectors : MB 24/20-pin x 1
• CPU 4+4-pin x 2
• PCI-E 16-pin x 1 (both PSU & component side)
• PCI-E 6+2-pin x 4
• SATA x 6
• PERIPHERAL x 3
• Package Contents
• Power Cord x 1
• Motherboard Power Cable x 1 (610mm)
• CPU Cable x 2 (1000mm)
• PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)
• PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
• SATA 1-to-3 Cable x 2 (400+120+120mm)
• Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
• ROG Strix DIY sticker x 1
• User Manual x 1
• Weight : 1.84 kg (single PSU)
• Cybenetics Noise Level Certification : A
• 0dB Technology : Supported. The fan shuts off entirely when the PSU is under certain load
• 0dB Fan Button : Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
