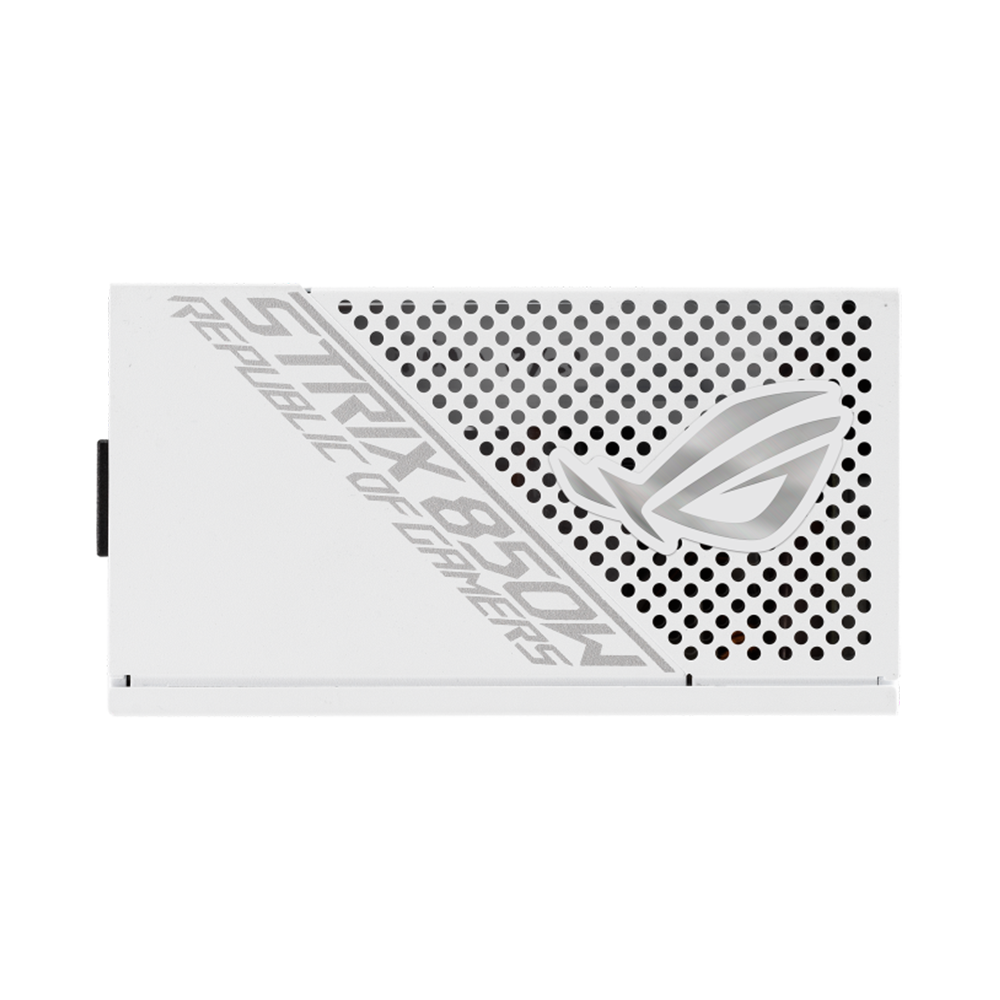

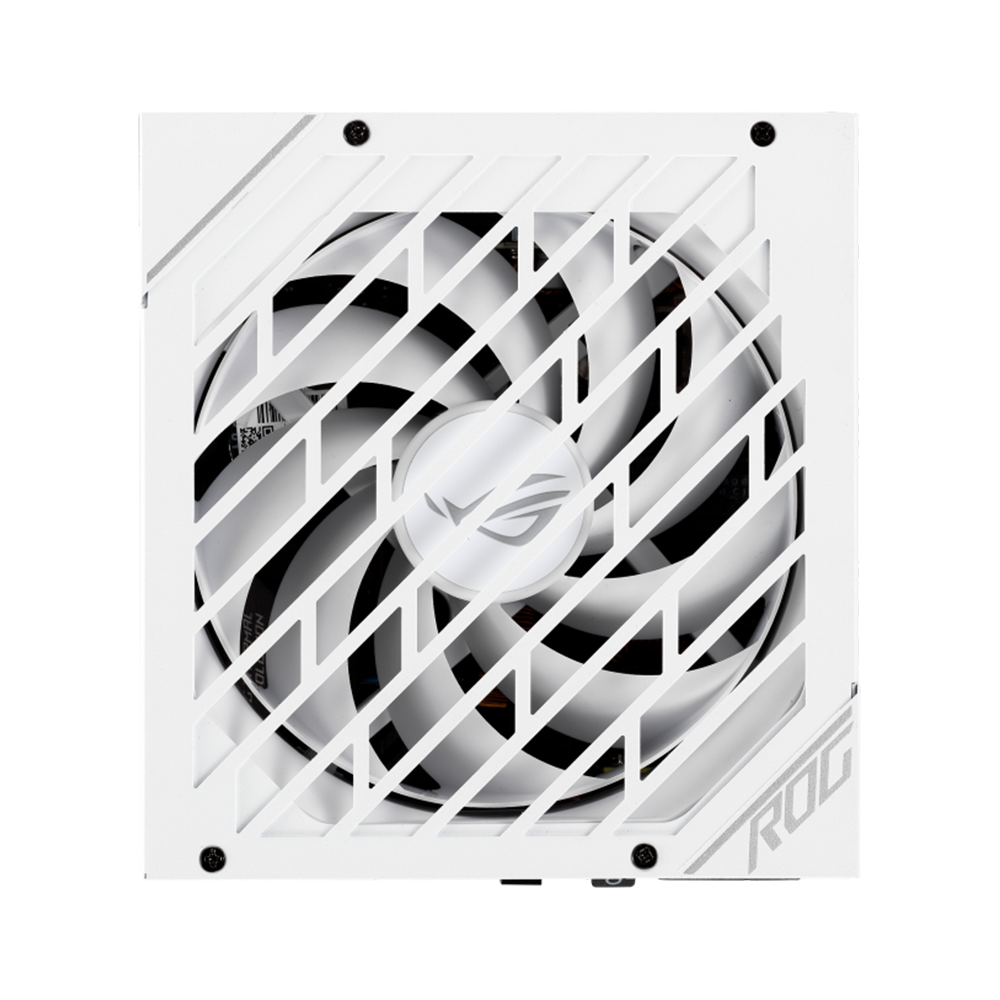

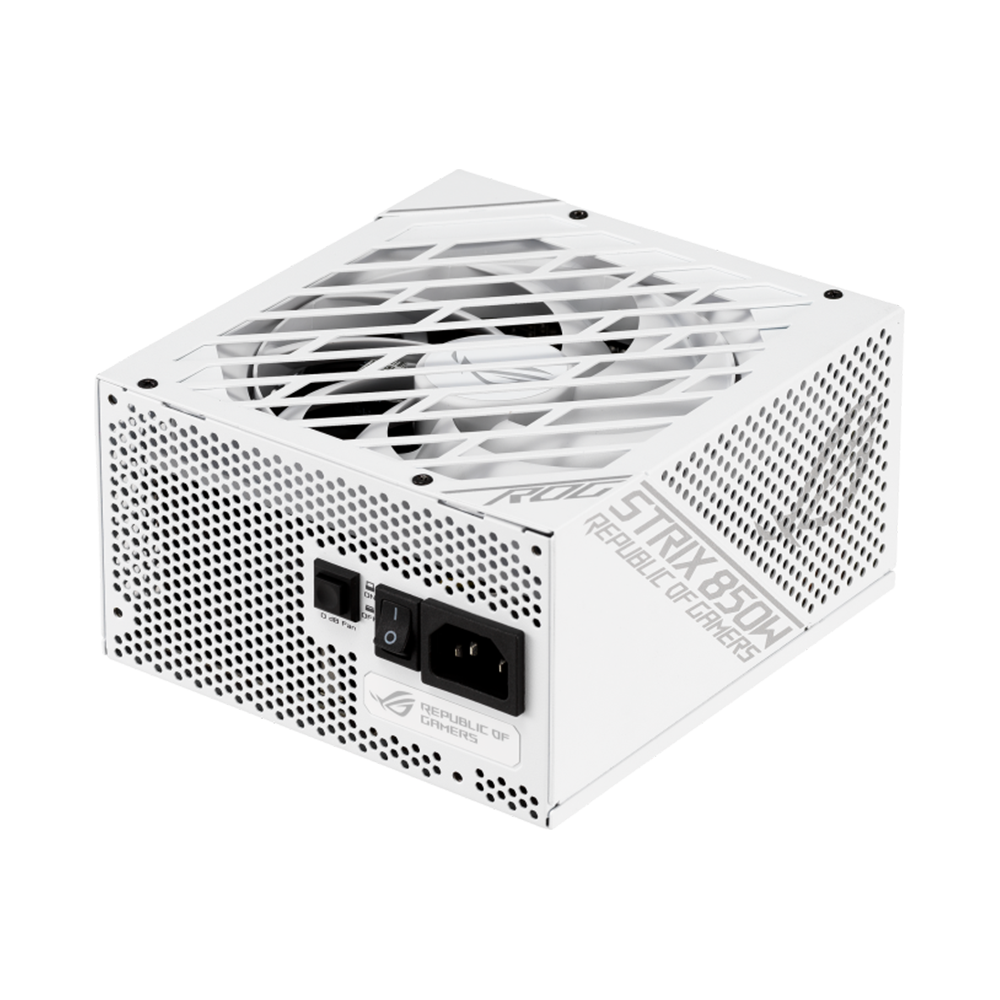

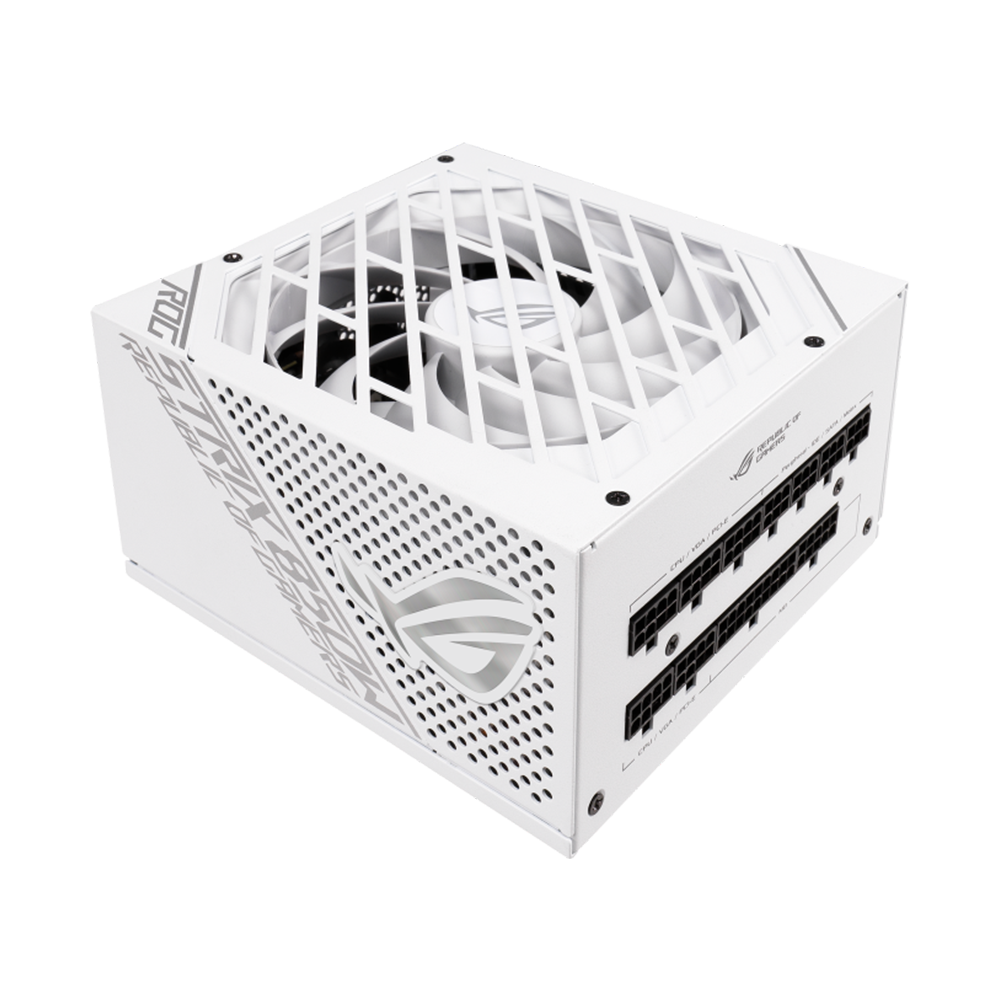

ASUS ROG STRIX 850W 80 PLUS GOLD Fully Modular Power Supply Unit - White

Key Features:

• ROG heatsinks cover critical components, delivering lower temperatures and reduced noise.
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
• Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
• 0dB Technology lets you enjoy light gaming in relative silence.
• An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
• Cosmetic customization is enabled by a magnetic logo and stickers that help you reskin the visible side to your liking.
• Fully modular cables keep your rig neat and tidy.

The ROG Strix 850W Gold PSU brings premium cooling performance to the mainstream.

Frozen Silence
The ROG Strix Series PSUs bring high-end cooling and premium components together for an ultra-quiet high-performance product aimed at core gamers. Massive ROG heatsinks trickle down from the mighty ROG Thor series and Axial-tech fan design from our premium NVIDIA RTX™ graphics cards also make an appearance. Below the surface, low RDS (on) MOSFETs and premium Japanese capacitors take on power delivery with ease. The result is an incredibly quiet and efficient power supply with the reserves to handle the most intense gaming scenarios.

Cooling

ROG Heatsinks
Let it sink in

The integrated ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside ROG Strix Series PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.

Engineering

80 Plus Gold Certification
Heart of gold

Top-end Japanese capacitors ensure efficient operation and have helped the Strix earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

Experience

Cosmetic Customization
A e s t h e t i c

Getting everything looking right can be a challenging aspect of any setup. The ROG Strix Series PSUs aim to make your life a little easier with a convenient magnetic logo and stickers that help you reskin the visible side to your liking.

Fully Modular Cables
Plug in

Each model comes with fully modular 24-pin, 6+2-pin PCI-e, and 8-pin CPU cables that have embedded capacitors to reduce voltage ripple. And if you'd like to add a dash of color to your build, the included CableMod coupon will set you on your way towards next-level customization.

Specifications

• Model : ROG-STRIX-850G
• PFC Type : Active PFC
• Dimensions : 16 x 15 x 8.6 Centimeter
• Efficiency : 80Plus Gold
• MTBF : >120,000 hrs @ 25°C
• Protection Features : OPP/OVP/UVP/SCP/OCP/OTP
• Hazardous Materials : ROHS
• AC Input Range : 100-240Vac
• RGB Connector : NO
• Fan Size : 135 mm
• DC Output Voltage : +3.3V +5V +12V -12V +5Vsb
• Maximum Load : 20A 20A 70A 0.3A 3A
• Combined Load : 100W 100W 840W 3.6W 15W
• Total Output : 850W
• Cable Connectors : MB 24/20-pin x 1
• CPU 4+4-pin x 2
• PCI-E 6+2-pin x 6
• SATA x 8
• PERIPHERAL x 6
• Package Contents
• Power Cord x 1
• Motherboard Power Cable x 1 (610mm)
• CPU Cable x2 (1000mm)
• PCIE 1-to-2 Cable x3 (675+75mm)
• SATA 1-to-4 Cable x1 (410+150+150+150mm)
• SATA 1-to-4 Cable x1 (450+120+120+120mm)
• Peripheral 1-to-3 Cable x2 (450+120+120mm)
• ROG badge x 2
• ROG logo magnet x 1
• ROG label x 3
• *MB/ CPU/ PCI-E cables come with embedded capacitors in the middle.
• Weight : Single Card (KG) 1.825
• Product Weight (with packing) (KG) 3.48
• Cybenetics Noise Level Certification : NA
• 0dB Technology : Supported. The fan shuts off entirely when the PSU is under certain load
