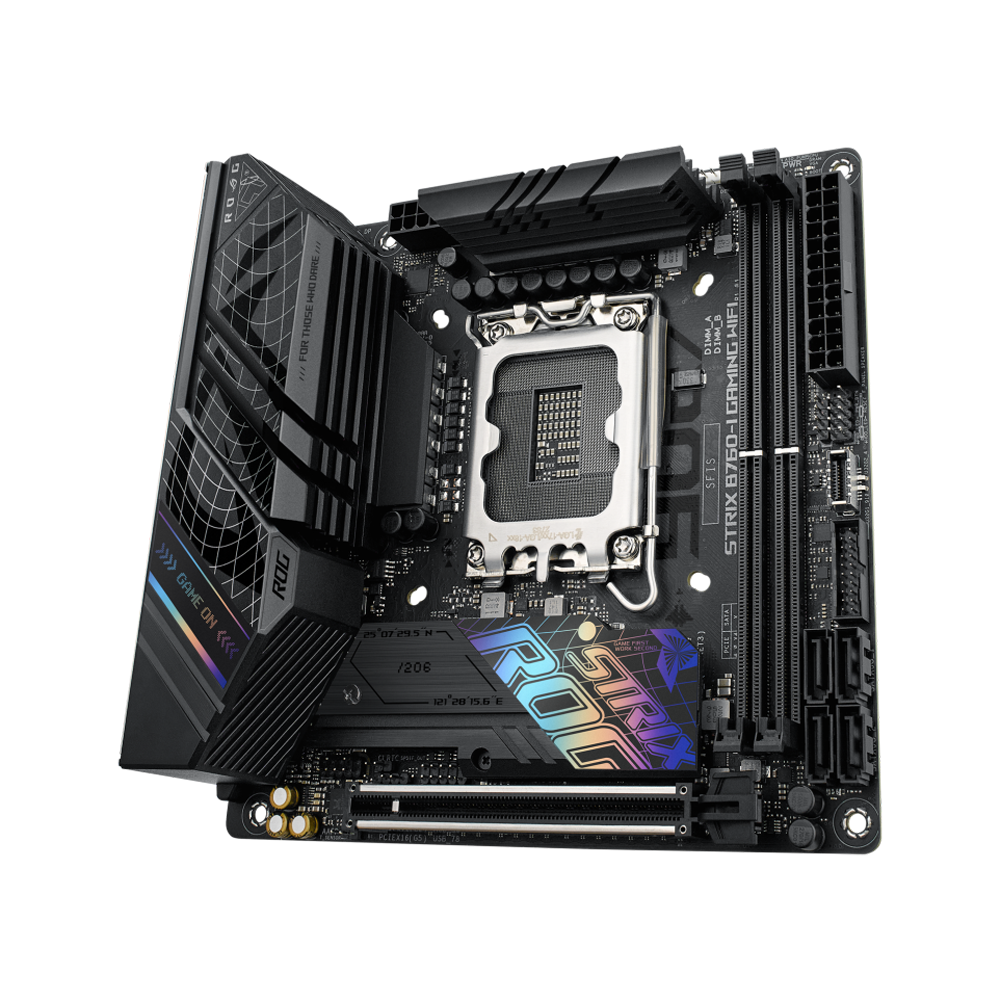

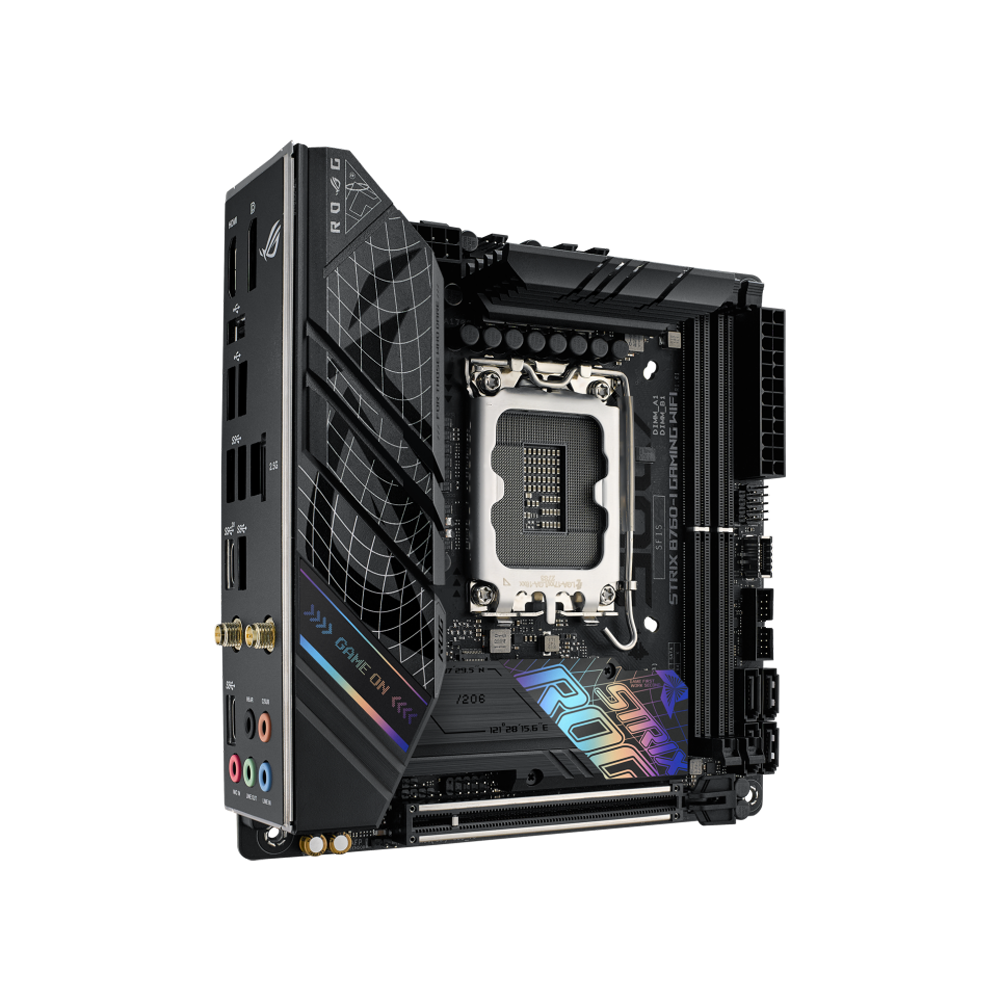

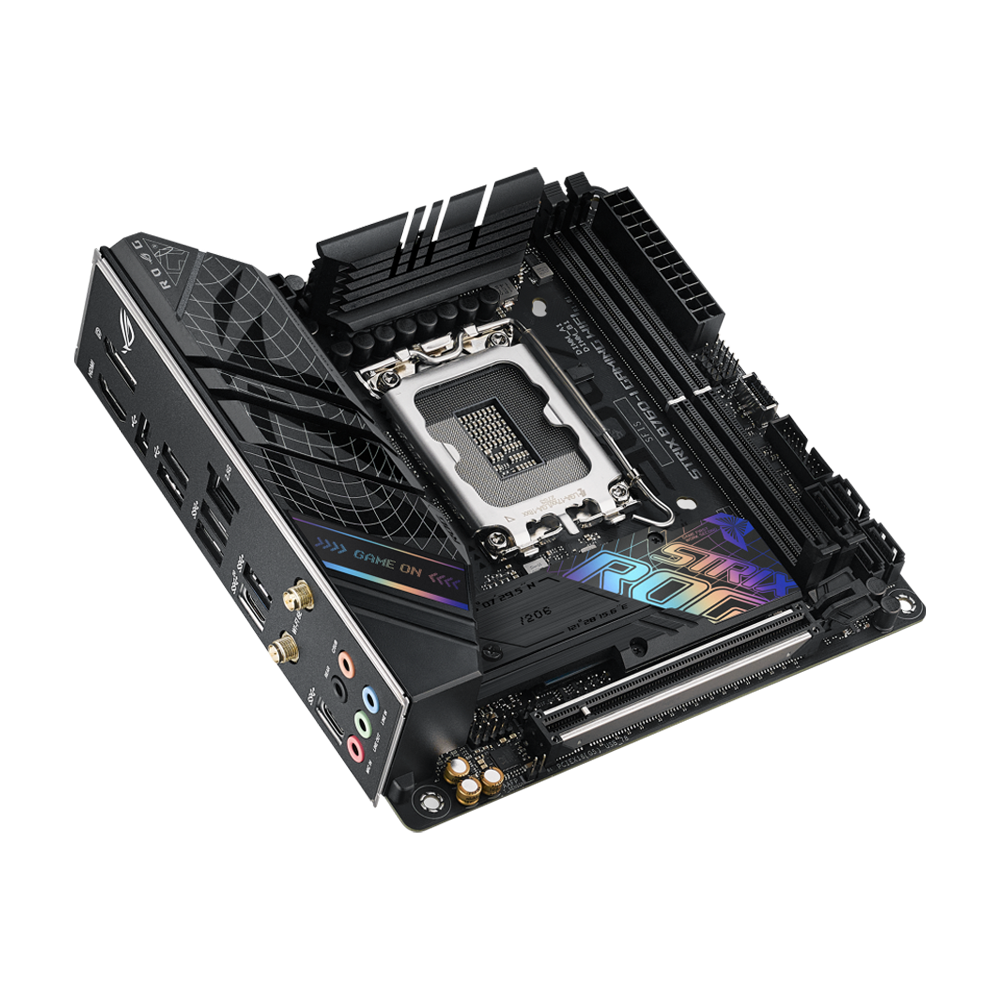

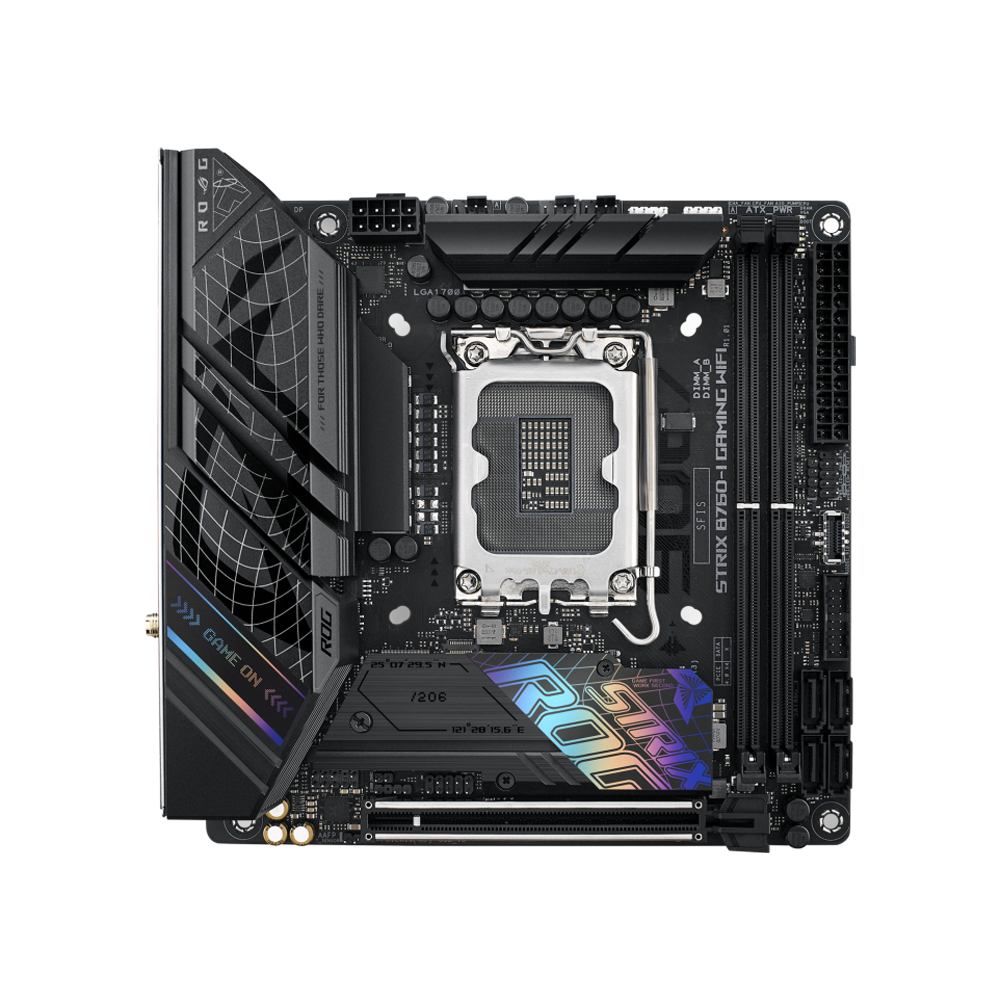

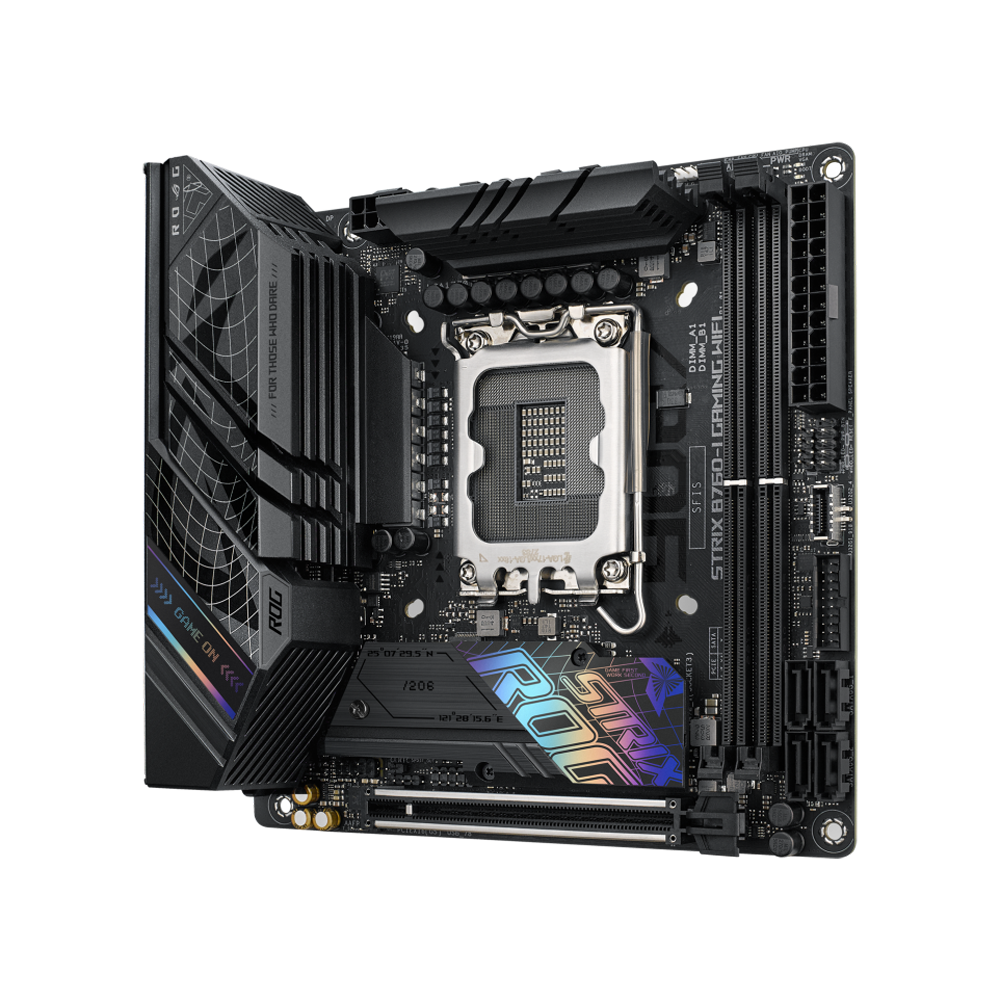

ASUS ROG STRIX B760-I Gaming WIFI DDR5 Motherboard - Black

ROG STRIX B760-I GAMING WiFi

Let your rig run wild with the ROG Strix B760-I, a feisty foundation for your next SFF build. Boasting hyperfast DDR5 memory, low-latency WiFi 6E networking, and a future-ready PCIe 5.0 slot, it sets you up for savage speeds, all while giving you incredible 14^th Gen support thanks to its powerful VRM and thermal solution. This platform delivers the power and connectivity that advanced AI PC applications demand.

DIY-FRIENDLY FEATURES

M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

PRE-MOUNTED I/O SHIELD
The patented ROG I/O shield is finished in sleek matte black and comes pre-mounted, which further simplifies the process of installing the motherboard.

ALL-ROUND PERFORMANCE
Bulking up where it counts, the ROG Strix B760-I bears an octet of power stages mounted with a hefty cooling array to give you all the fury of Raptor Lake. To pack on the FPS, the PCIe 5.0 slot is primed for the mightiest graphics card you can fit your chassis, and the memory slots can handle dizzying DDR5 speeds.

POWER ARCHITECTURE
8 + 1 + 2 power stages each rated to handle up to 80A deliver ample current to drive the most powerful Intel 14th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

EIGHT-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

Memory

DDR5 DOMINATION
ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Strix B760-I, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

Cooling

VRM HEATSINK ARRAY
Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 14th Gen processors.

LEADING CONNECTIVITY
Massive throughput flows through the ROG Strix B760-I via advanced networking adapters and high-bandwidth USB connectors, allowing you to rip through games with no interference, and crystal clear on-board audio keeps you immersed in the experience.

The x16 expansion slot is ready for the future with incredible PCIe 5.0 bandwidth, and it is protected with a SafeSlot retention bracket to support the bulk of the latest graphics cards. Zippy storage comes courtesy of the pair of PCIe 4.0 M.2 slots, one under the front-side heatsink, and the other positioned on the back to save space.

Networking

WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

PLAY IN STYLE
The black shrouds and PCB of the Strix B760-I pair well with most products from the diverse ROG ecosystem, all while making your build distinct with a dash of polychromatic contrast.

UNDENIABLY ROG STRIX
In compact builds with a vertically-mounted graphics card, the ROG Strix B760-I keeps a low profile, as only the top of a wavy grid decal is likely to peek through. But if the build has a bit more space, a pair of bold pastel insignias give some colorful flair amid the otherwise stealthy fascia.

SOFTWARE UTILITIES
Customize your rig through a suite of intuitive software and firmware utilities that let you maximize performance and tweak your experience to your liking.

TWO-WAY AI NOISE CANCELATION
This utility leverages a massive deep-learning database to reduce over 5 million types of background noise from incoming or outgoing audio, helping ensure crystal-clear communication in games or calls.

Specifications

• Model : ROG STRIX B760-I GAMING WIFI

CPU



•  Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors



• Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

• * Refer to www.asus.com for CPU support list.

• ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset



• Intel® B760 Chipset



Memory



• 2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*



• Dual Channel Memory Architecture

• Supports Intel® Extreme Memory Profile (XMP)

• OptiMem II

Graphics



• 1 x DisplayPort**



• 1 x HDMI®***

• ** Support 4K@60Hz as specified in DisplayPort 1.4

• *** Support 4K@60Hz as specified in HDMI 2.1.

Expansion Slots



• Intel® 14th & 13th & 12th Gen Processors*



• 1 x PCIe 5.0 x16 slot

Storage



• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*



• Intel® 14th & 13th & 12th Gen Processors

• M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)

• Intel® B760 Chipset**

• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

• 4 x SATA 6Gb/s ports

• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

Ethernet

• 1 x Intel® 2.5Gb Ethernet

• ASUS LANGuard

Wireless & Bluetooth

• Wi-Fi 6E

• 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

• Supports 2.4/5/6GHz frequency band*

• Bluetooth® v5.3

• * WiFi 6E 6GHz regulatory may vary between countries.

USB



• Rear USB (Total 8 ports)



• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

• 4 x USB 3.2 Gen 1 ports  (3 x Type-A +1 x USB Type-C®)

• 3 x USB 2.0 ports  (3 x Type-A)

• Front USB (Total 5 ports)

• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

• 1 x USB 2.0 header supports additional 2 USB 2.0 ports

Audio



• ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A



• - Impedance sense for front and rear headphone outputs

• - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

• - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)

• - Supports up to 32-Bit/192 kHz playback*

• Audio Features

• - SupremeFX Shielding Technology

• - Savitech SV3H712 AMP

• - Premium audio capacitors

• * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Back Panel I/O Ports



• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)



• 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®)

• 3 x USB 2.0 ports (3 x Type-A)

• 1 x HDMI® port

• 1 x DisplayPort

• 1 x Wi-Fi Module

• 1 x Intel® 2.5Gb Ethernet

• 5 x Audio jacks

Internal I/O Connectors



• Fan and Cooling related



• 1 x 4-pin CPU Fan header

• 1 x 4-pin Chasis Fan header

• 1 x 4-pin AIO Pump header

• Power related

• 1 x 24-pin Main Power connector

• 1 x 8-pin +12V Power connector

• Storage related

• 2 x M.2 slots (Key M)

• 4 x SATA 6Gb/s ports

• USB

• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

• 1 x USB 2.0 headers support additional 2 USB 2.0 ports

• Miscellaneous

• 1 x Addressable Gen 2 headers

• 1 x Aura RGB header

• 1 x Clear CMOS header

• 1 x Front Panel Audio header (AAFP)

• 1 x S/PDIF Out header

• 1 x Speaker header

• 1 x 10-1 pin System Panel header

• 1 x Thermal Sensor header

Special Features

• Extreme Engine Digi+

• - 5K Black Metallic Capacitors

• ASUS Q-Design

• - M.2 Q-Latch

• - Q-DIMM

• - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

• - Q-Slot

• ASUS Thermal Solution

• - M.2 heatsink backplate

• ASUS EZ DIY

• -CPU Socket lever protector

• - ProCool

• - Pre-mounted I/O shield

• - SafeSlot

• - SafeDIMM

• AURA Sync

• - Aura RGB header

• - Addressable Gen 2 header

Software Features

ROG Exclusive Software

• - GameFirst VI

• - ROG CPU-Z

• - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion

• - Sonic Radar III

• - DTS® Sound Unbound

• ASUS Exclusive Software

• Armoury Crate

• - AIDA64 Extreme (60 days free trial)

• - AURA Creator

• - AURA Sync

• - Fan Xpert 4

• - Two-Way AI Noise Cancelation

• - Power Saving

• AI Suite 3

• - Performance And Power Saving Utility

•  PC Cleaner

•  DIGI+ VRM

• MyAsus

• Norton 360 for Gamers

• WinRAR

• UEFI BIOS

• ASUS EZ DIY

• - ASUS CrashFree BIOS 3

• - ASUS EZ Flash 3

• - ASUS UEFI BIOS EZ Mode

• MemTest86

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability



• WOL by PME, PXE



Accessories



• Cables



• 2 x SATA 6Gb/s cables

• 1 x ROG USB2.0 splitter cable

• 1 x Panel cable

• Additional Cooling Kit

• 1 x Thermal pad for M.2

• Miscellaneous

• 1 x ASUS Wi-Fi moving antennas

• 1 x Cable ties package

• 1 x M.2 Rubber Package

• 2 x Screw packages for M.2 SSD

• 1 x M.2 bracket

• 1 x ROG key chain

• 1 x ROG STRIX stickers

• 1 x ROG STRIX thank you card

• Documentation

• 1 x User manual

Operating System

• Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

• Mini-ITX Form Factor

• 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
