ASUS ROG STRIX B850-E GAMING WIFI DDR5 Gaming Motherboard - Black

ASUS ROG STRIX B850-E GAMING WIFI DDR5 Gaming Motherboard - Black

90MB1J60-M0EAY0

QR Code : 1326099

In stock

KWD 119.250
KWD 119.250
Sale Sold out
Manufacturer

Description

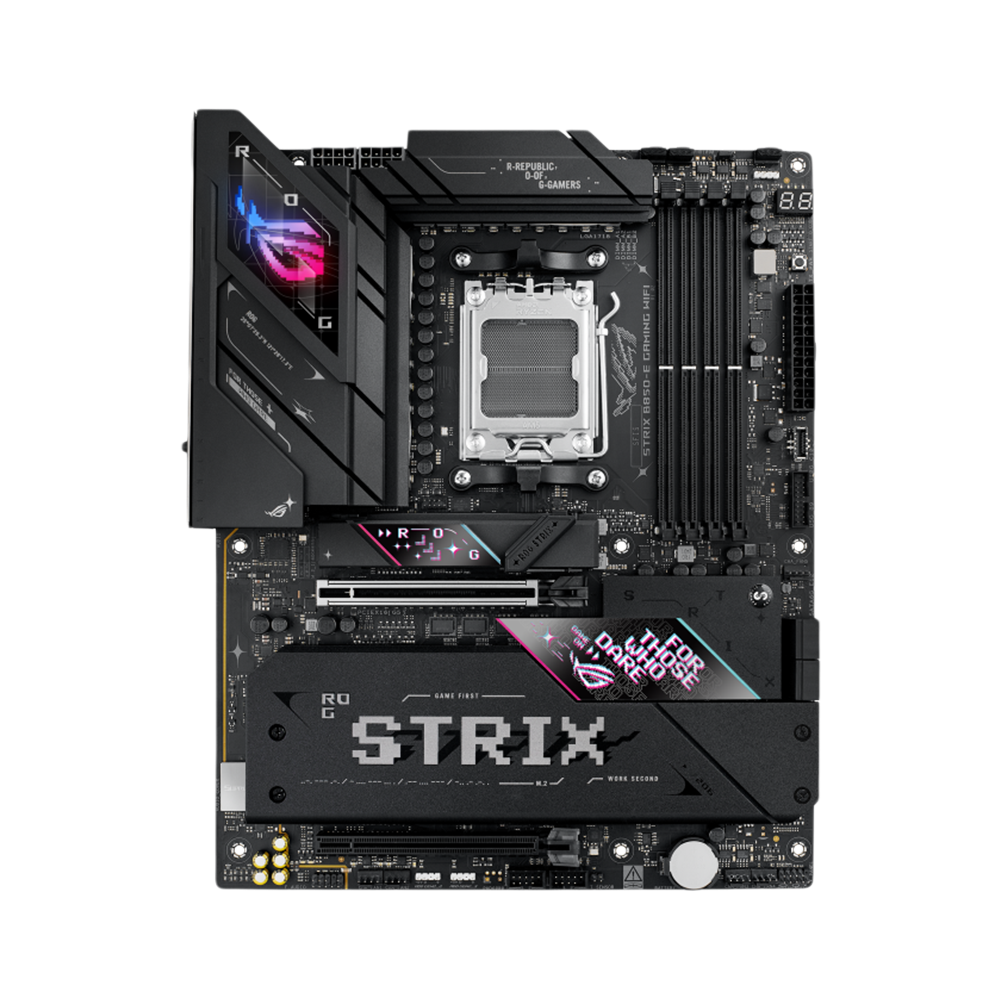

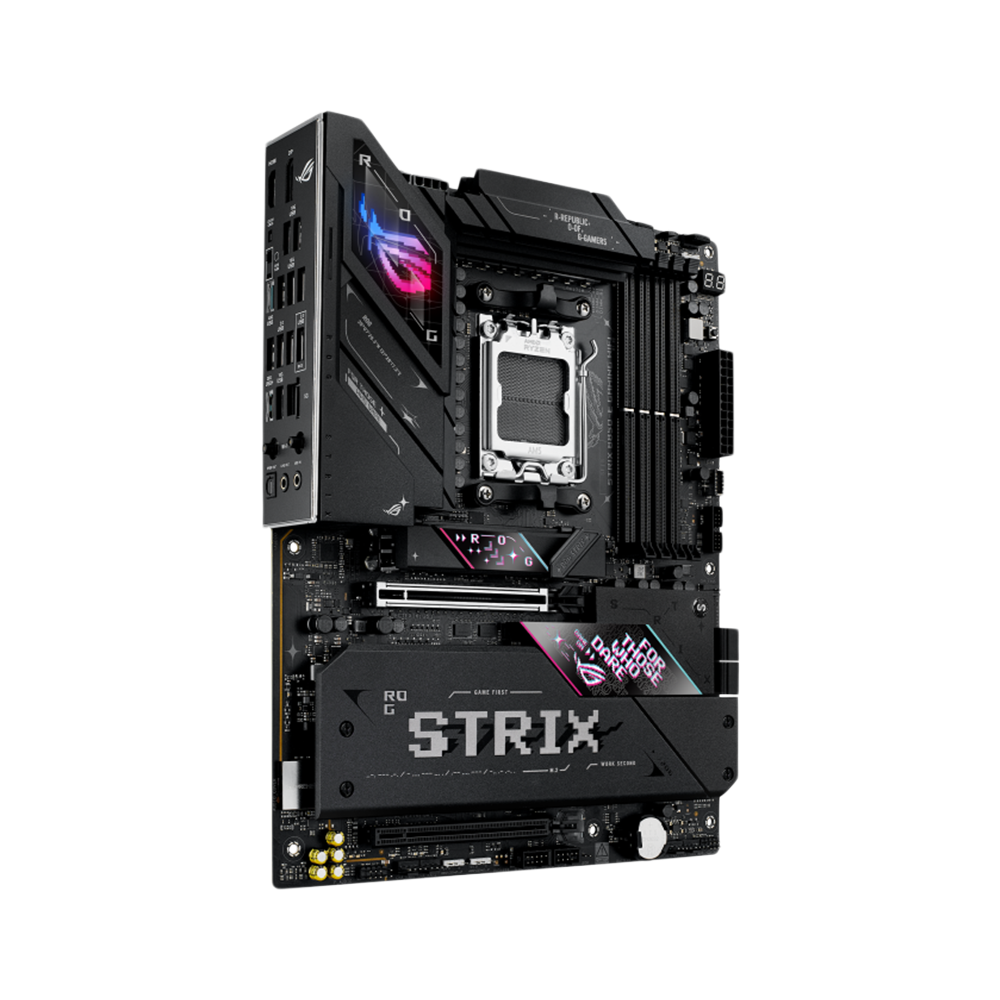

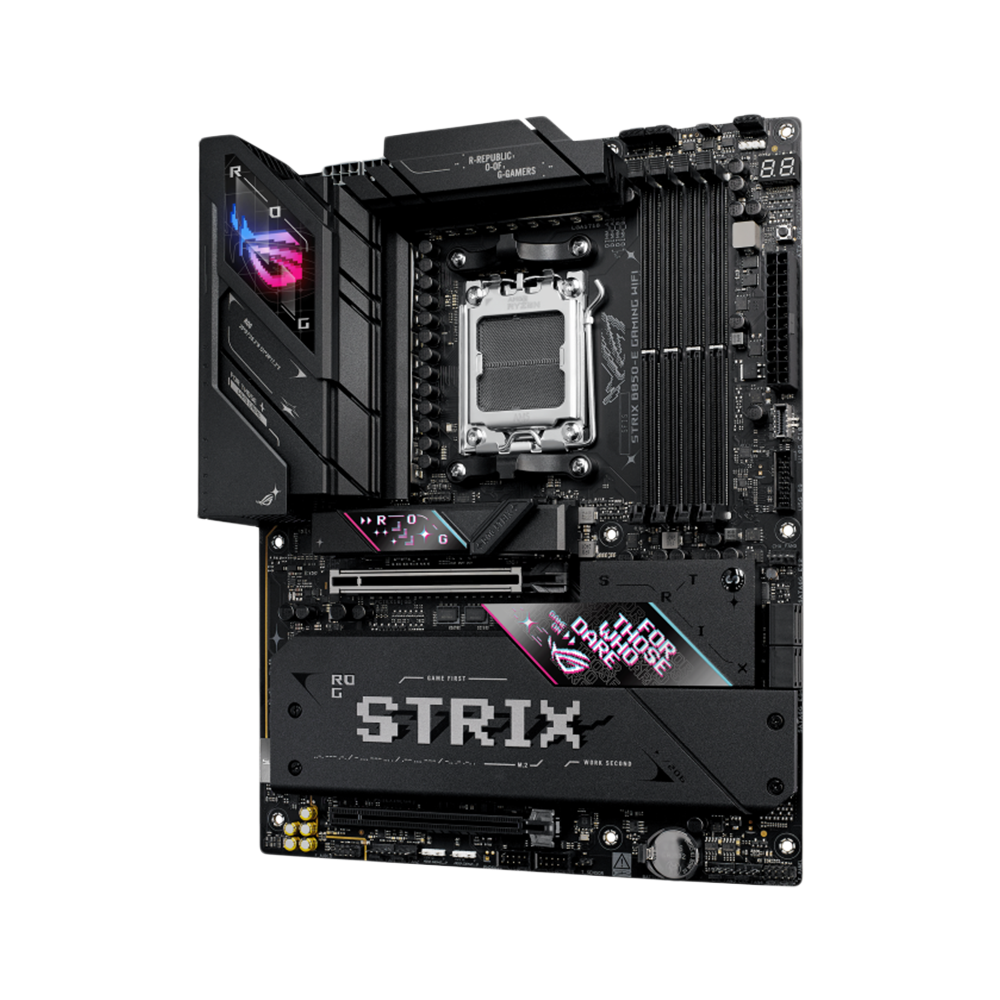

ASUS ROG STRIX B850-E GAMING WIFI DDR5 AM5 ATX Gaming Motherboard - Black

AMD B850-E ATX motherboard with 16+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, five M.2 slots, PCIe® 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, one USB4® port, USB 20Gbps Type-C® with PD 3.0 up to 30W, ASUS AI Advisor, AI Overclocking, AI Networking II, and Aura Sync RGB lighting.

ASUS AI INTELLIGENCE

ASUS AI ADVISOR

Using AI technology to understand natural-language questions or scenario descriptions, ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI OVERCLOCKING

ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits.

AI NETWORKING II

AI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.

Performance

OVERCLOCKING

Dynamic OC Switcher

Dynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

Core Flex

Core Flex empowers you to smash limits farther than ever before by letting you control clock, power, and thermals in creative new ways. In its simplest form, you can maximize base clock during lighter loads and set breakpoints to gradually reduce CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting multiple user-controlled functions that can manipulate power, current, and temperature limits independently so that you can bend CPU performance to your will.

PBO ENHANCEMENT

AMD Precision Boost Overdrive (PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.

Performance

MEMORY

DDR5 DOMINATION

The Strix B850-E is primed and ready for enthusiast-grade kits courtesy of vast AMD Extended Profiles for Overclocking (EXPO) support.

AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules.

ROG STRIX ULTIMATE

POWER DESIGN

16(90A)+2(90A)+2(80A)

Power Stages

COOLING

M.2

M.2 HEATSINKS, M.2 BACKPLATE

Leading Connectivity

pcie 5.0

Fully embracing the new standard, the Strix B850-E offers end-to-end PCIe 5.0 support.

SOFTWARE UTILITIES

UNDENIABLY ROG STRIX

Diagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B850-E bears all of them with pride. But for this generation, translucent diffusers line the I/O shroud and the Q-Release array, softly contrasting the metallic heatsinks nearby.

Specifications

CPU

  • AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

Chipset

  • AMD B850 Chipset

Memory

  • 4 x DIMM slots, max. 192GB, DDR5

  • Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*

  • Dual channel memory architecture

  • Supports AMD Extended Profiles for Overclocking (EXPO™)

  • ASUS Enhanced Memory Profile (AEMP)

  • * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information

  • **Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

  • 1 x DisplayPort*

  • 1 x HDMI™ port**

  • 1 x USB4® (40Gbps) port supports USB Type-C® display outputs***

  • - Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

  • * Supports max. 8K@30Hz as specified in DisplayPort 1.4

  • ** Supports 4K@60Hz as specified in HDMI 2.1

  • *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a

  • ***** VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors*

  • 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes)**

  • AMD Ryzen™ 8000 Series Desktop Processors

  • 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)***

  • AMD B850 Chipset

  • 1 x PCIe 4.0 x16 slot (supports x4 mode)****

  • * Please check the PCIe bifurcation table

  • ** When either M.2_2 or M.2_3 is enabled, PCIEX16(G5) will run x8.

  • *** Specifications vary by CPU types.

  • **** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

  • - To ensure compatibility of the device installed.

Storage

  • Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

  • AMD Ryzen™ 9000 & 7000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)

  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)*

  • M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)*

  • AMD Ryzen™ 8000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)

  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**

  • M.2_3 slot (Key M), type 2280 (Not supports)***

  • AMD B850 Chipset

  • M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)***

  • M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

  • 4 x SATA 6Gb/s ports

  • * When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8.

  • ** M.2_2 and M.2_3 slot will be disabled while using the AMD Ryzen™ 8000 Series Desktop Processors.

  • *** M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

  • AMD RAIDXpert2 Technology

  • Ryzen™ 9000 Series Processors: RAID 0/1/5/10

  • Ryzen™ 8000 Series Processors: RAID 0/1

  • Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet

  • 1 x Realtek 5Gb Ethernet

  • ASUS LANGuard

Wireless & Bluetooth

  • Wi-Fi 7*

  • 2x2 Wi-Fi 7 (802.11be)

  • Supports 2.4/5/6GHz frequency band**

  • Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.

  • Bluetooth® v5.4***

  • *Wi-Fi features may vary depending on the operating system

  • For Windows 11, Wi-Fi 7 will require24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.

  • For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details.

  • ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.

  • *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

  • Rear USB (Total 12 ports)

  • 1 x USB4® (40Gbps) port(1 x USB Type-C®)*

  • 1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)**

  • 6 x USB 10Gbps ports (6 x Type-A)

  • 4 x USB 2.0 ports (4 x Type-A)

  • Front USB (Total 7 ports)

  • 1 x USB 10Gbps connector (1 x USB Type-C®)

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

  • * USB Type-C® power delivery output: max. 5V/3A

  • ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A

Audio

  • ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*

  • - Impedance sense for front and rear headphone outputs

  • - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking

  • - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input

  • - Supports up to 32-Bit/384 kHz playback on front panel

  • Audio Features

  • - SupremeFX Shielding Technology

  • - Savitech SV3H712 AMP

  • - Gold-plated audio jacks

  • - Rear optical S/PDIF out port

  • - Premium audio capacitors

  • - Audio cover

  • * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

  • ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

Back Panel I/O Ports

  • 1 x USB4® (40Gbps)(1 x USB Type-C®)

  • 1 x USB 20Gbps port (supports USB Type-C® with up to 30W PD/PPS Fast-charge)

  • 6 x USB 10Gbps ports (6 x Type-A)

  • 4 x USB 2.0 ports (4 x Type-A)

  • 1 x DisplayPort

  • 1 x HDMI™ port

  • 1 x Wi-Fi module

  • 1 x Realtek 5Gb Ethernet port

  • 2 x Gold-plated audio jacks

  • 1 x Optical S/PDIF out port

  • 1 x BIOS FlashBack™ button

  • 1 x Clear CMOS button

Internal I/O Connectors

  • Fan and Cooling Related

  • 1 x 4-pin CPU Fan header

  • 1 x 4-pin CPU OPT Fan header

  • 1 x 4-pin AIO Pump header

  • 5 x 4-pin Chassis Fan headers

  • Power Related

  • 1 x 24-pin Main Power connector

  • 2 x 8-pin +12V CPU Power connector

  • Storage Related

  • 5 x M.2 slots (Key M)

  • 4 x SATA 6Gb/s ports

  • USB

  • 1 x USB 10Gbps connector (supports USB Type-C® )

  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

  • Miscellaneous

  • 3 x Addressable Gen 2 header(s)

  • 1 x CPU Over voltage jumper

  • 1 x Front Panel Audio header (F_AUDIO)

  • 1 x Power button

  • 1 x 10-1 pin Front System Panel header

  • 1 x Thermal Sensor header

Special Features

  • Extreme Engine Digi+

  • - 5K Black metallic capacitors

  • ASUS Q-Design

  • - M.2 Q-Latch

  • - M.2 Q-Release

  • - M.2 Q-Slide

  • - PCIe Slot Q-Release Slim (with PCIe SafeSlot)

  • - Q-Antenna

  • - Q-Code

  • - Q-Dashboard

  • - Q-DIMM

  • - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

  • - Q-Slot

  • ASUS Thermal Solution

  • - M.2 heatsink backplate

  • - M.2 heatsink

  • ASUS EZ DIY

  • - BIOS FlashBack™ button

  • - BIOS FlashBack™ LED

  • - Clear CMOS button

  • - ProCool

  • - Pre-mounted I/O shield

  • - SafeSlot

  • - SafeDIMM

  • Aura Sync

  • - Addressable Gen 2 header(s)
